GDH303W-RDTGY (2019)
Toyota Granace
Production
Dec 2019
-
Sep 9999
Engine
1GDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

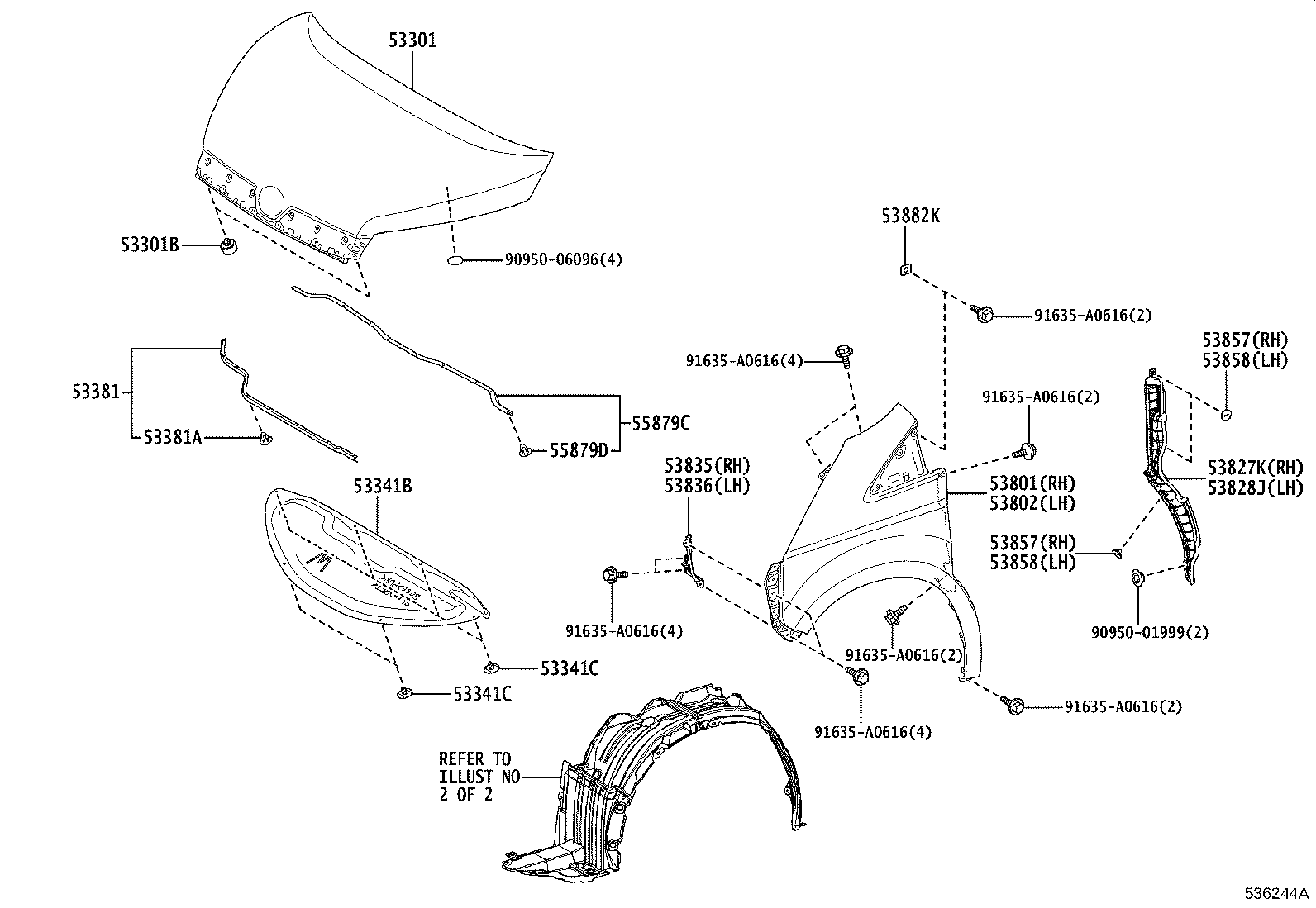

ILLUST NO. 1 OF 2(1912- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-26100 |
GDH303 |
1 | ||
| 53301B - CUSHION, HOOD BUMPER | ||||
| 90541-10044 |
GDH303 |
2 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-26060 |
GDH303 |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-09050 |
GDH303 |
6 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-09050 |
GDH303 |
6 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-26130 |
GDH303 |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
GDH303 |
11 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-26050 |
GDH303 |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-26080 |
GDH303 |
1 | ||
| 53827K - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-26020 |
GDH303 |
1 | ||
| 53828J - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-26030 |
GDH303 |
1 | ||
| 53835 - BRACE, FRONT FENDER TO EXTENSION, RH | ||||
| 53835-26020 |
GDH303 |
1 | ||
| 53836 - BRACE, FRONT FENDER TO EXTENSION, LH | ||||
| 53836-26010 |
GDH303 |
1 | ||
| 53857 - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-28030 |
GDH303 |
3 | ||
| 53857 - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-28030 |
GDH303 |
3 | ||
| 53858 - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53857-28030 |
GDH303 |
3 | ||
| 53858 - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53857-28030 |
GDH303 |
3 | ||
| 53882K - SEAL, FRONT FENDER | ||||
| 53882-16030 |
GDH303 |
2 | ||
| 55879C - SEAL, COWL VENT | ||||
| 55879-26030 |
GDH303 |
1 | ||
| 55879D - CLIP(FOR COWL VENT SEAL) | ||||
| 90467-08011 |
GDH303 |
14 | ||
| Common parts | ||||
| 90950-01999 | ||||
| 90950-06096 | ||||
| 91635-A0616 | ||||

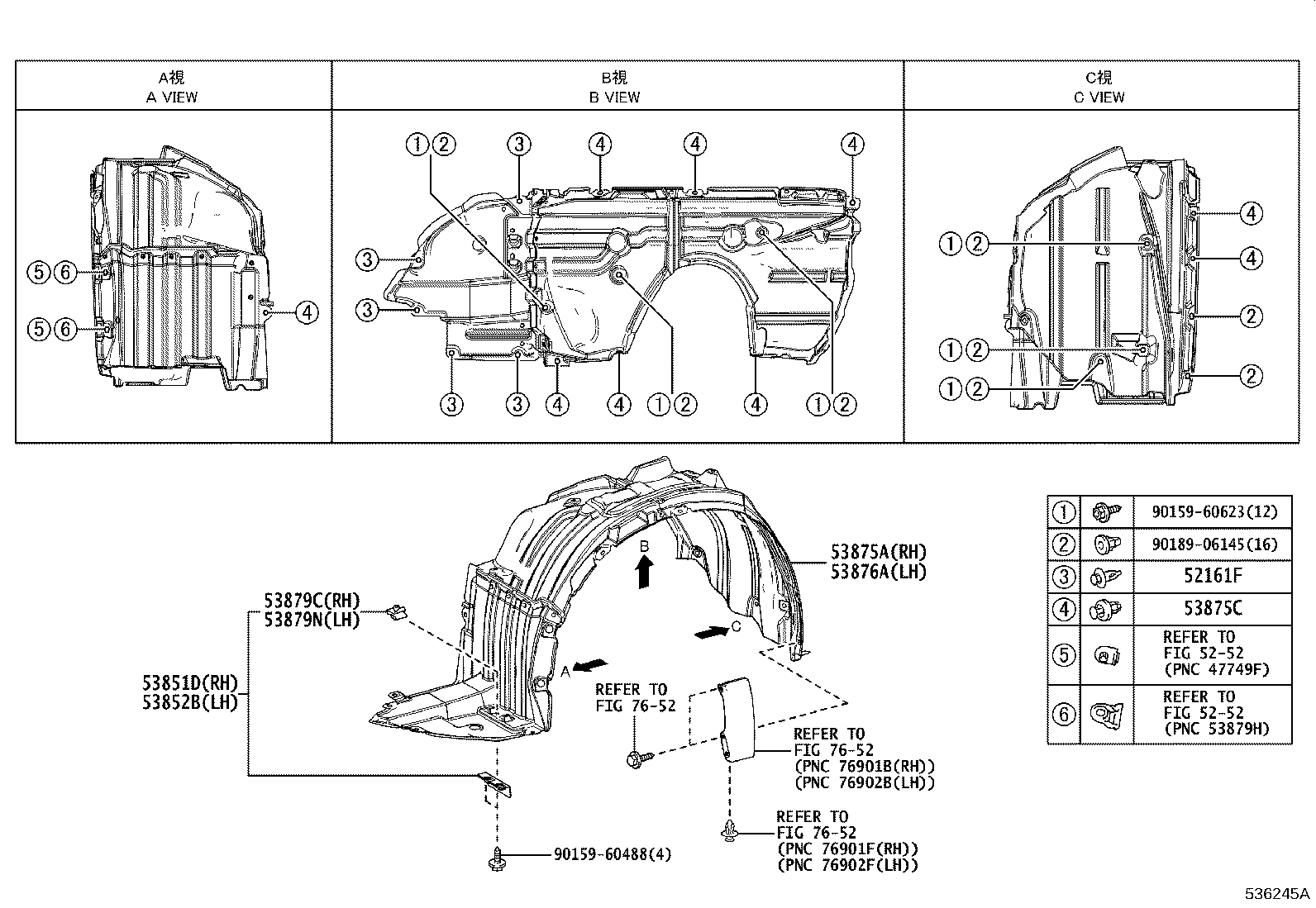

ILLUST NO. 2 OF 2(1912- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52161F - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
GDH303 |
10 | ||
| 53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53851-26010 |
GDH303 |
1 | ||
| 53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53851-26010 |
GDH303 |
1 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53805-26030 |
GDH303 |
1 | ||
| 53875C - CLIP, FRONT FENDER LINER | ||||
| 90467-07214 |
GDH303 |
18 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53806-26040 |
GDH303 |
1 | ||
| 53879C - RETAINER, FRONT FENDER LINER | ||||
| 53879-47020 |
GDH303 |
4 | ||
| 53879N - RETAINER, FRONT FENDER LINER, LH | ||||
| 53879-47020 |
GDH303 |
4 | ||
| Common parts | ||||
| 90159-60488 | ||||
| 90159-60623 | ||||
| 90189-06145 | ||||
| Linked diagrams | ||||
| 5252 | ||||
| 7652 | ||||
