GDH303W-RDTGY (2019)
Toyota Granace
(1912- )

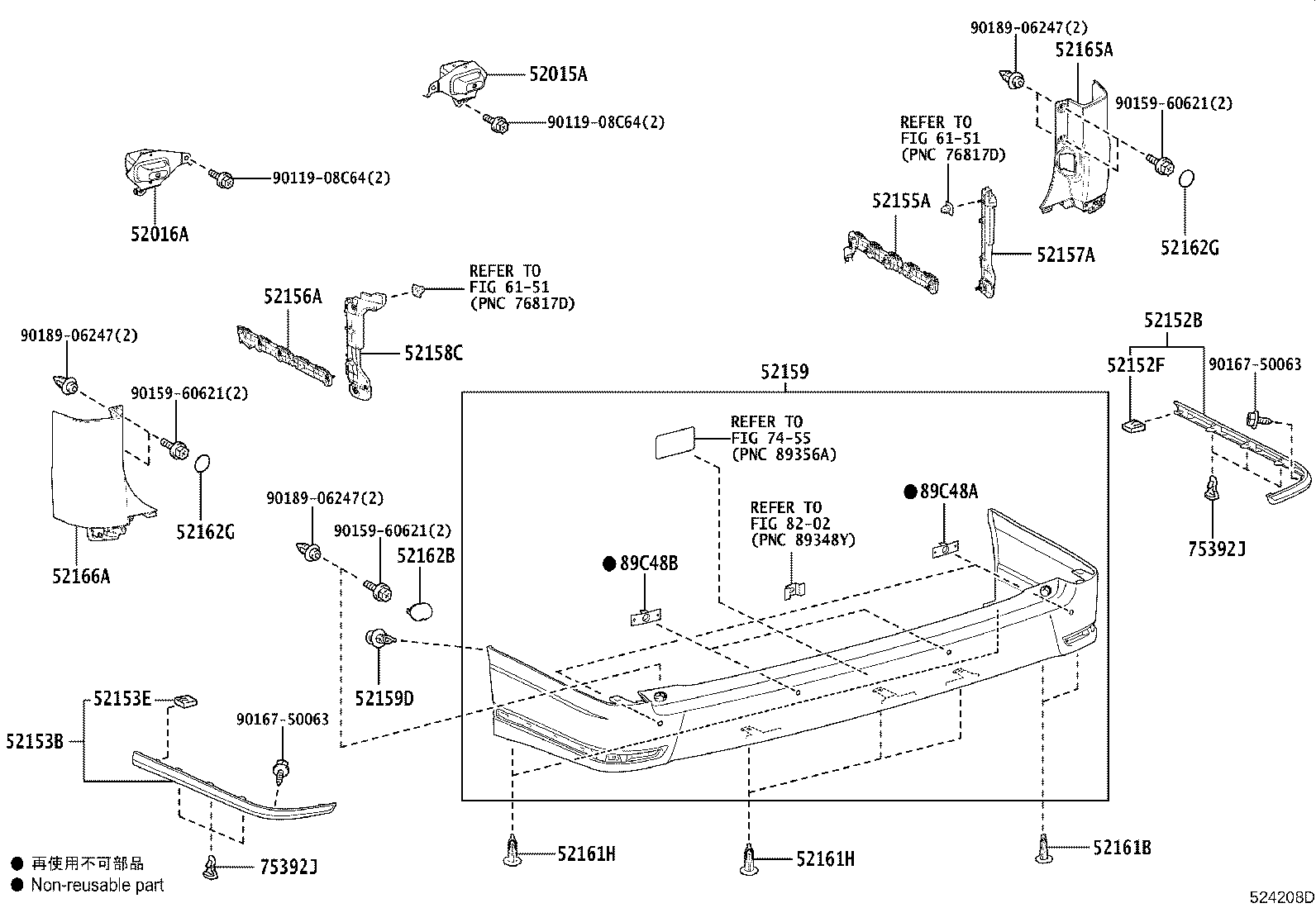

ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52015A - ARM SUB-ASSY, REAR BUMPER, RH | ||||
| 52015-26010 |
GDH303 |
1 | ||
| 52016A - ARM SUB-ASSY, REAR BUMPER, LH | ||||
| 52016-26010 |
GDH303 |
1 | ||
| 52152B - EXTENSION, REAR BUMPER, RH | ||||
| 52152-26010 |
GDH303 |
1 | ||
| 52152F - CLIP, REAR BUMPER EXTENSION | ||||
| 90467-08229 |
GDH303 |
2 | ||
| 52153B - EXTENSION, REAR BUMPER, LH | ||||
| 52153-26010 |
GDH303 |
1 | ||
| 52153E - CLIP, REAR BUMPER EXTENSION | ||||
| 90467-08229 |
GDH303 |
2 | ||
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-26160 |
GDH303 |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-26020 |
GDH303 |
1 | ||
| 52157A - SUPPORT, REAR BUMPER SIDE, NO.2 RH | ||||
| 52157-26030 |
GDH303 |
1 | ||
| 52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH | ||||
| 52158-26030 |
GDH303 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-26952 |
GDH303 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 52159-26959B0 |
GDH303 SILVER ME.,1F7 |
1 | ||
| 52159-26959B1 |
GDH303 GRAY ME.,1G3 |
1 | ||
| 52159-26959E0 |
GDH303 BEIGE ME.,2QD |
1 | ||
| 52159-26959A0 |
GDH303 WHITE PEARL CS.,070 |
1 | ||
| 52159-26959C0 |
GDH303 BLACK,202 |
1 | ||
| 52159D - CLIP, REAR BUMPER COVER | ||||
| 90467-05170 |
GDH303 |
2 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
GDH303 |
2 | ||
| 52161H - PIECE, REAR BUMPER | ||||
| 52161-16010 |
GDH303 |
5 | ||
| 52161H - PIECE, REAR BUMPER | ||||
| 52161-16010 |
GDH303 |
5 | ||
| 52162B - PLATE, REAR BUMPER, NO.1 | ||||
| 52162-26050A0 |
GDH303 WHITE PEARL CS.,070 |
2 | ||
| 52162-26903 |
GDH303 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
4 | ||
| 52162-26050C0 |
GDH303 BLACK,202 |
2 | ||
| 52162-26050B0 |
GDH303 SILVER ME.,1F7 |
2 | ||
| 52162-26050E0 |
GDH303 BEIGE ME.,2QD |
2 | ||
| 52162-26050B1 |
GDH303 GRAY ME.,1G3 |
2 | ||
| 52162G - PLATE, REAR BUMPER, NO.1 | ||||
| 52162-26020C0 |
GDH303 BLACK,202 |
4 | ||
| 52162-26020A1 |
GDH303 WHITE PEARL CS.,070 ,2QD |
4 | ||
| 52162-26901 |
GDH303 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
4 | ||
| 52162-26020B2 |
GDH303 GRAY ME.,1G3 |
4 | ||
| 52162-26020B1 |
GDH303 SILVER ME.,1F7 |
4 | ||
| 52162G - PLATE, REAR BUMPER, NO.1 | ||||
| 52162-26020C0 |
GDH303 BLACK,202 |
4 | ||
| 52162-26020A1 |
GDH303 WHITE PEARL CS.,070 ,2QD |
4 | ||
| 52162-26901 |
GDH303 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
4 | ||
| 52162-26020B2 |
GDH303 GRAY ME.,1G3 |
4 | ||
| 52162-26020B1 |
GDH303 SILVER ME.,1F7 |
4 | ||
| 52165A - COVER, REAR BUMPER, UPR RH | ||||
| 52165-26911 |
GDH303 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 52165-26080B0 |
GDH303 SILVER ME.,1F7,ｶﾗｰ058のみ |
1 | ||
| 52165-26080B1 |
GDH303 GRAY ME.,1G3,ｶﾗｰ058のみ |
1 | ||
| 52165-26080C0 |
GDH303 BLACK,202,ｶﾗｰ058のみ |
1 | ||
| 52165-26080A0 |
GDH303 WHITE PEARL CS.,070 ,2QD,ｶﾗｰ058のみ |
1 | ||
| 52166A - COVER, REAR BUMPER, UPR LH | ||||
| 52166-26911 |
GDH303 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 52166-26080B1 |
GDH303 GRAY ME.,1G3,ｶﾗｰ058のみ |
1 | ||
| 52166-26080B0 |
GDH303 SILVER ME.,1F7,ｶﾗｰ058のみ |
1 | ||
| 52166-26080C0 |
GDH303 BLACK,202,ｶﾗｰ058のみ |
1 | ||
| 52166-26080A0 |
GDH303 WHITE PEARL CS.,070 ,2QD,ｶﾗｰ058のみ |
1 | ||
| 75392J - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
GDH303 |
6 | ||
| 75392J - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
GDH303 |
6 | ||
| 89C48A - RETAINER, ULTRASONIC SENSOR, REAR CORNER | ||||
| 89348-26060A0 |
GDH303 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,070,左側 |
1 | ||
| 89348-78020 |
GDH303 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
2 | ||
| 89348-26060C0 |
GDH303 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,202,左側 |
1 | ||
| 89348-26060A0 |
GDH303 WHITE PEARL CS.,070,左側 |
1 | ||
| 89348-26060E0 |
GDH303 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BEIGE ME.,2QD,左側 |
1 | ||
| 89348-26060B0 |
GDH303 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVER ME.,1F7,左側 |
1 | ||
| 89348-26060B1 |
GDH303 GRAY ME.,1G3,左側 |
1 | ||
| 89348-26060B1 |
GDH303 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,GRAY ME.,1G3,左側 |
1 | ||
| 89348-26060B0 |
GDH303 SILVER ME.,1F7,左側 |
1 | ||
| 89348-26070E0 |
GDH303 BEIGE ME.,2QD,右側 |
1 | ||
| 89348-26060C0 |
GDH303 BLACK,202,左側 |
1 | ||
| 89348-26070A0 |
GDH303 WHITE PEARL CS.,070,右側 |
1 | ||
| 89348-26060E0 |
GDH303 BEIGE ME.,2QD,左側 |
1 | ||
| 89348-26070B0 |
GDH303 SILVER ME.,1F7,右側 |
1 | ||
| 89348-26070C0 |
GDH303 BLACK,202,右側 |
1 | ||
| 89348-26070B1 |
GDH303 GRAY ME.,1G3,右側 |
1 | ||
| 89C48B - RETAINER, ULTRASONIC SENSOR, REAR CENTER | ||||
| 89348-12170A1 |
GDH303 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,070 |
2 | ||
| 89348-12170E3 |
GDH303 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BEIGE ME.,2QD |
2 | ||
| 89348-12170B4 |
GDH303 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,GRAY ME.,1G3 |
2 | ||
| 89348-12170B0 |
GDH303 SILVER ME.,1F7 |
2 | ||
| 89348-12170E3 |
GDH303 BEIGE ME.,2QD |
2 | ||
| 89348-12170B0 |
GDH303 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVER ME.,1F7 |
2 | ||
| 89348-78020 |
GDH303 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
2 | ||
| 89348-12170A1 |
GDH303 WHITE PEARL CS.,070 |
2 | ||
| 89348-12170C5 |
GDH303 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,202 |
2 | ||
| 89348-12170C5 |
GDH303 BLACK,202 |
2 | ||
| 89348-12170B4 |
GDH303 GRAY ME.,1G3 |
2 | ||
| Common parts | ||||
| 90119-08C64 | ||||
| 90159-60621 | ||||
| 90167-50063 | ||||
| 90189-06247 | ||||
| Linked diagrams | ||||
| 6151 | ||||
| 8202 | ||||
(1912- )

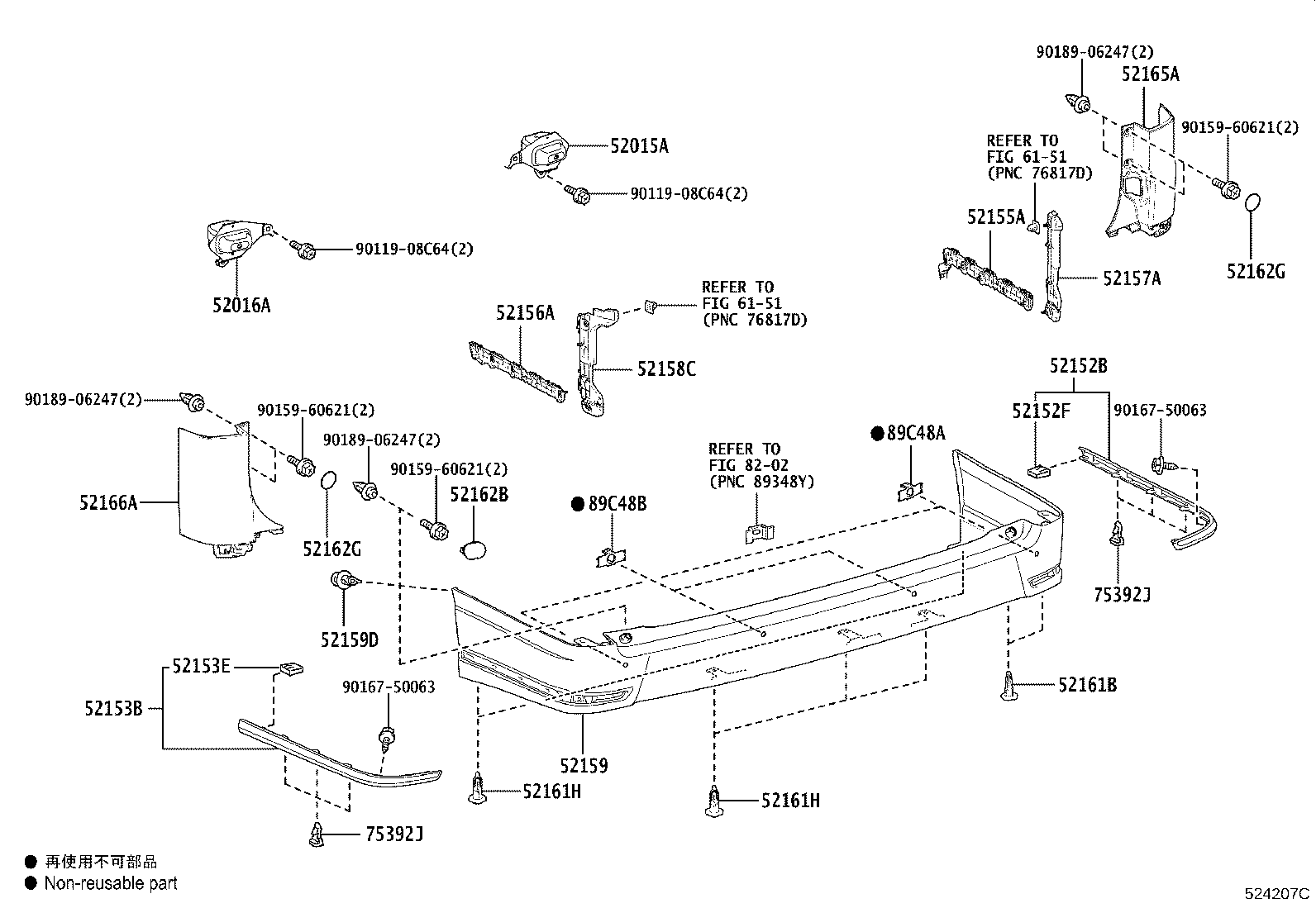

ｱﾘ(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅｰ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52015A - ARM SUB-ASSY, REAR BUMPER, RH | ||||
| 52015-26010 |
GDH303 |
1 | ||
| 52016A - ARM SUB-ASSY, REAR BUMPER, LH | ||||
| 52016-26010 |
GDH303 |
1 | ||
| 52152B - EXTENSION, REAR BUMPER, RH | ||||
| 52152-26010 |
GDH303 |
1 | ||
| 52152F - CLIP, REAR BUMPER EXTENSION | ||||
| 90467-08229 |
GDH303 |
2 | ||
| 52153B - EXTENSION, REAR BUMPER, LH | ||||
| 52153-26010 |
GDH303 |
1 | ||
| 52153E - CLIP, REAR BUMPER EXTENSION | ||||
| 90467-08229 |
GDH303 |
2 | ||
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-26160 |
GDH303 |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-26020 |
GDH303 |
1 | ||
| 52157A - SUPPORT, REAR BUMPER SIDE, NO.2 RH | ||||
| 52157-26030 |
GDH303 |
1 | ||
| 52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH | ||||
| 52158-26030 |
GDH303 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-26952 |
GDH303 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 52159-26959B0 |
GDH303 SILVER ME.,1F7 |
1 | ||
| 52159-26959B1 |
GDH303 GRAY ME.,1G3 |
1 | ||
| 52159-26959E0 |
GDH303 BEIGE ME.,2QD |
1 | ||
| 52159-26959A0 |
GDH303 WHITE PEARL CS.,070 |
1 | ||
| 52159-26959C0 |
GDH303 BLACK,202 |
1 | ||
| 52159D - CLIP, REAR BUMPER COVER | ||||
| 90467-05170 |
GDH303 |
2 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
GDH303 |
2 | ||
| 52161H - PIECE, REAR BUMPER | ||||
| 52161-16010 |
GDH303 |
5 | ||
| 52161H - PIECE, REAR BUMPER | ||||
| 52161-16010 |
GDH303 |
5 | ||
| 52162B - PLATE, REAR BUMPER, NO.1 | ||||
| 52162-26050A0 |
GDH303 WHITE PEARL CS.,070 |
2 | ||
| 52162-26903 |
GDH303 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
4 | ||
| 52162-26050C0 |
GDH303 BLACK,202 |
2 | ||
| 52162-26050B0 |
GDH303 SILVER ME.,1F7 |
2 | ||
| 52162-26050E0 |
GDH303 BEIGE ME.,2QD |
2 | ||
| 52162-26050B1 |
GDH303 GRAY ME.,1G3 |
2 | ||
| 52162G - PLATE, REAR BUMPER, NO.1 | ||||
| 52162-26020C0 |
GDH303 BLACK,202 |
4 | ||
| 52162-26020A1 |
GDH303 WHITE PEARL CS.,070 ,2QD |
4 | ||
| 52162-26901 |
GDH303 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
4 | ||
| 52162-26020B2 |
GDH303 GRAY ME.,1G3 |
4 | ||
| 52162-26020B1 |
GDH303 SILVER ME.,1F7 |
4 | ||
| 52162G - PLATE, REAR BUMPER, NO.1 | ||||
| 52162-26020C0 |
GDH303 BLACK,202 |
4 | ||
| 52162-26020A1 |
GDH303 WHITE PEARL CS.,070 ,2QD |
4 | ||
| 52162-26901 |
GDH303 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
4 | ||
| 52162-26020B2 |
GDH303 GRAY ME.,1G3 |
4 | ||
| 52162-26020B1 |
GDH303 SILVER ME.,1F7 |
4 | ||
| 52165A - COVER, REAR BUMPER, UPR RH | ||||
| 52165-26911 |
GDH303 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 52165-26080B0 |
GDH303 SILVER ME.,1F7,ｶﾗｰ058のみ |
1 | ||
| 52165-26080B1 |
GDH303 GRAY ME.,1G3,ｶﾗｰ058のみ |
1 | ||
| 52165-26080C0 |
GDH303 BLACK,202,ｶﾗｰ058のみ |
1 | ||
| 52165-26080A0 |
GDH303 WHITE PEARL CS.,070 ,2QD,ｶﾗｰ058のみ |
1 | ||
| 52166A - COVER, REAR BUMPER, UPR LH | ||||
| 52166-26911 |
GDH303 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 52166-26080B1 |
GDH303 GRAY ME.,1G3,ｶﾗｰ058のみ |
1 | ||
| 52166-26080B0 |
GDH303 SILVER ME.,1F7,ｶﾗｰ058のみ |
1 | ||
| 52166-26080C0 |
GDH303 BLACK,202,ｶﾗｰ058のみ |
1 | ||
| 52166-26080A0 |
GDH303 WHITE PEARL CS.,070 ,2QD,ｶﾗｰ058のみ |
1 | ||
| 75392J - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
GDH303 |
6 | ||
| 75392J - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
GDH303 |
6 | ||
| 89C48A - RETAINER, ULTRASONIC SENSOR, REAR CORNER | ||||
| 89348-26060A0 |
GDH303 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,070,左側 |
1 | ||
| 89348-78020 |
GDH303 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
2 | ||
| 89348-26060C0 |
GDH303 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,202,左側 |
1 | ||
| 89348-26060A0 |
GDH303 WHITE PEARL CS.,070,左側 |
1 | ||
| 89348-26060E0 |
GDH303 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BEIGE ME.,2QD,左側 |
1 | ||
| 89348-26060B0 |
GDH303 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVER ME.,1F7,左側 |
1 | ||
| 89348-26060B1 |
GDH303 GRAY ME.,1G3,左側 |
1 | ||
| 89348-26060B1 |
GDH303 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,GRAY ME.,1G3,左側 |
1 | ||
| 89348-26060B0 |
GDH303 SILVER ME.,1F7,左側 |
1 | ||
| 89348-26070E0 |
GDH303 BEIGE ME.,2QD,右側 |
1 | ||
| 89348-26060C0 |
GDH303 BLACK,202,左側 |
1 | ||
| 89348-26070A0 |
GDH303 WHITE PEARL CS.,070,右側 |
1 | ||
| 89348-26060E0 |
GDH303 BEIGE ME.,2QD,左側 |
1 | ||
| 89348-26070B0 |
GDH303 SILVER ME.,1F7,右側 |
1 | ||
| 89348-26070C0 |
GDH303 BLACK,202,右側 |
1 | ||
| 89348-26070B1 |
GDH303 GRAY ME.,1G3,右側 |
1 | ||
| 89C48B - RETAINER, ULTRASONIC SENSOR, REAR CENTER | ||||
| 89348-12170A1 |
GDH303 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,070 |
2 | ||
| 89348-12170E3 |
GDH303 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BEIGE ME.,2QD |
2 | ||
| 89348-12170B4 |
GDH303 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,GRAY ME.,1G3 |
2 | ||
| 89348-12170B0 |
GDH303 SILVER ME.,1F7 |
2 | ||
| 89348-12170E3 |
GDH303 BEIGE ME.,2QD |
2 | ||
| 89348-12170B0 |
GDH303 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVER ME.,1F7 |
2 | ||
| 89348-78020 |
GDH303 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
2 | ||
| 89348-12170A1 |
GDH303 WHITE PEARL CS.,070 |
2 | ||
| 89348-12170C5 |
GDH303 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,202 |
2 | ||
| 89348-12170C5 |
GDH303 BLACK,202 |
2 | ||
| 89348-12170B4 |
GDH303 GRAY ME.,1G3 |
2 | ||
| Common parts | ||||
| 90119-08C64 | ||||
| 90159-60621 | ||||
| 90167-50063 | ||||
| 90189-06247 | ||||
| Linked diagrams | ||||
| 6151 | ||||
| 7455 | ||||
| 8202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
