GDH303W-RDTGY (2019)
Toyota Granace

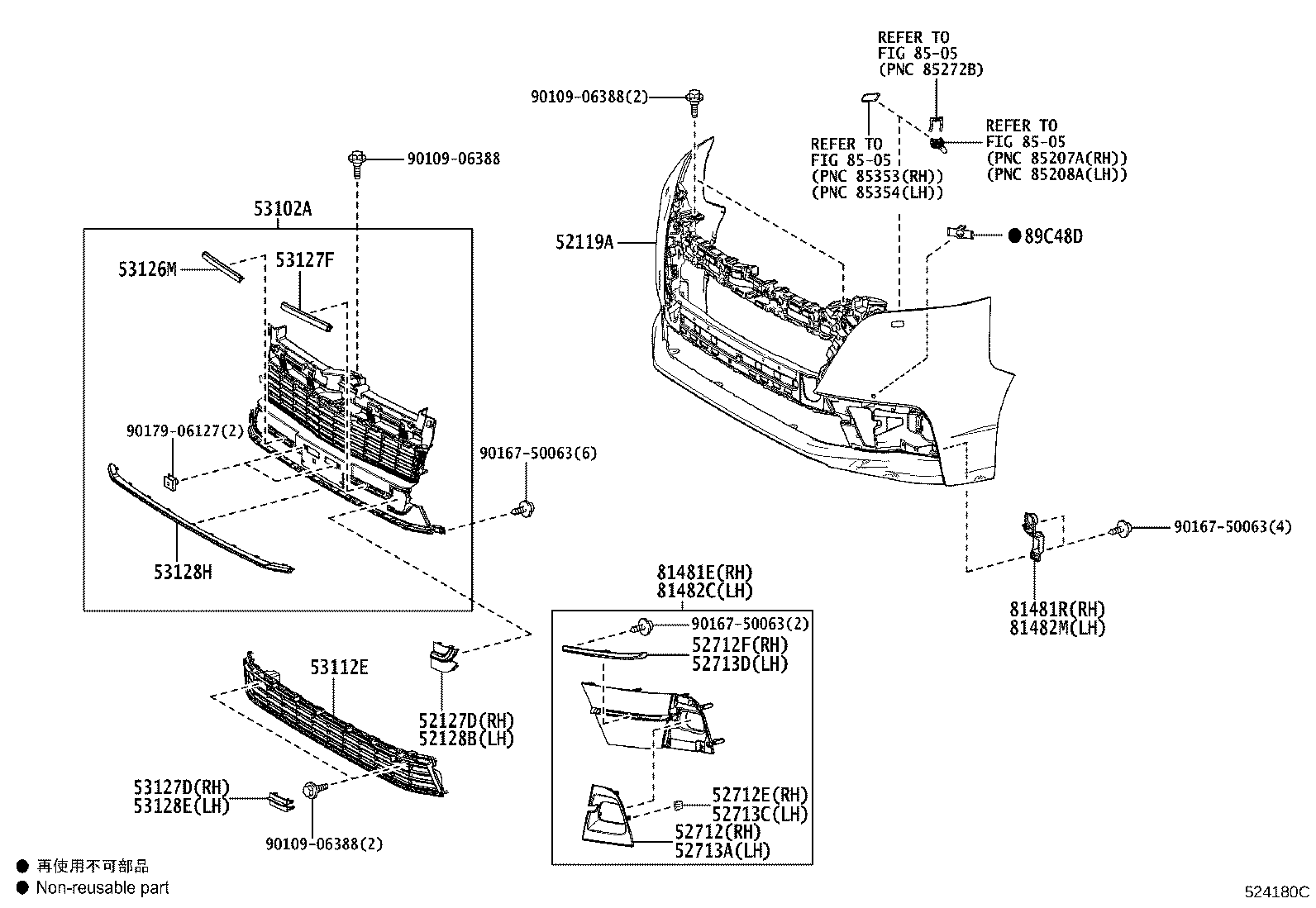

ILLUST NO. 2 OF 2(1912- )
ｱﾘ(ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-26967B0 |
GDH303 SILVER ME.,1F7 |
1 | ||
| 52119-26967B1 |
GDH303 GRAY ME.,1G3 |
1 | ||
| 52119-26967E0 |
GDH303 BEIGE ME.,2QD |
1 | ||
| 52119-26967C0 |
GDH303 BLACK,202 |
1 | ||
| 52119-26967A0 |
GDH303 WHITE PEARL CS.,070 |
1 | ||
| 52119-26964 |
GDH303 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-26280 |
GDH303 |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-26140 |
GDH303 |
1 | ||
| 52712 - MOULDING, FRONT BUMPER SIDE, RH | ||||
| 52712-26020 |
GDH303 |
1 | ||
| 52712E - CLIP, FRONT BUMPER SIDE MOULDING | ||||
| 90467-08229 |
GDH303 |
7 | ||
| 52712F - MOULDING, FRONT BUMPER SIDE, RH NO.2 | ||||
| 52712-26030 |
GDH303 |
1 | ||
| 52713A - MOULDING, FRONT BUMPER SIDE, LH | ||||
| 52713-26030 |
GDH303 |
1 | ||
| 52713C - CLIP, FRONT BUMPER SIDE MOULDING | ||||
| 90467-08229 |
GDH303 |
7 | ||
| 52713D - MOULDING, FRONT BUMPER SIDE, LH NO.2 | ||||
| 52713-26040 |
GDH303 |
1 | ||
| 53102A - GRILLE SUB-ASSY, RADIATOR, LWR | ||||
| 53102-26010 |
GDH303 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 53102-26030 |
GDH303 ﾒｯｷ |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-26130 |
GDH303 塗装不要 |
1 | ||
| 53126M - MOULDING, RADIATOR GRILLE, NO.6 | ||||
| 53126-26050 |
GDH303 |
1 | ||
| 53127D - GRILLE, RADIATOR, LOWER SIDE RH | ||||
| 53127-26020 |
GDH303 |
1 | ||
| 53127F - MOULDING, RADIATOR GRILLE, NO.7 | ||||
| 53127-26030 |
GDH303 |
1 | ||
| 53128E - GRILLE, RADIATOR, LOWER SIDE LH | ||||
| 53128-26020 |
GDH303 |
1 | ||
| 53128H - MOULDING, RADIATOR GRILLE, NO.8 | ||||
| 53128-26050 |
GDH303 |
1 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 52030-26040 |
GDH303 |
1 | ||
| 81481R - BRACKET, FOG LAMP, RH | ||||
| 81481-26190 |
GDH303 |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 52040-26040 |
GDH303 |
1 | ||
| 81482M - BRACKET, FOG LAMP, LH | ||||
| 81482-26190 |
GDH303 |
1 | ||
| 89C48D - RETAINER, ULTRASONIC SENSOR, FRONT CORNER | ||||
| 89348-78020 |
GDH303 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
2 | ||
| 89348-50130 |
GDH303 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
2 | ||
| 89348-50130 |
GDH303 |
2 | ||
| Common parts | ||||
| 90109-06388 | ||||
| 90167-50063 | ||||
| 90179-06127 | ||||
| Linked diagrams | ||||
| 8505 | ||||

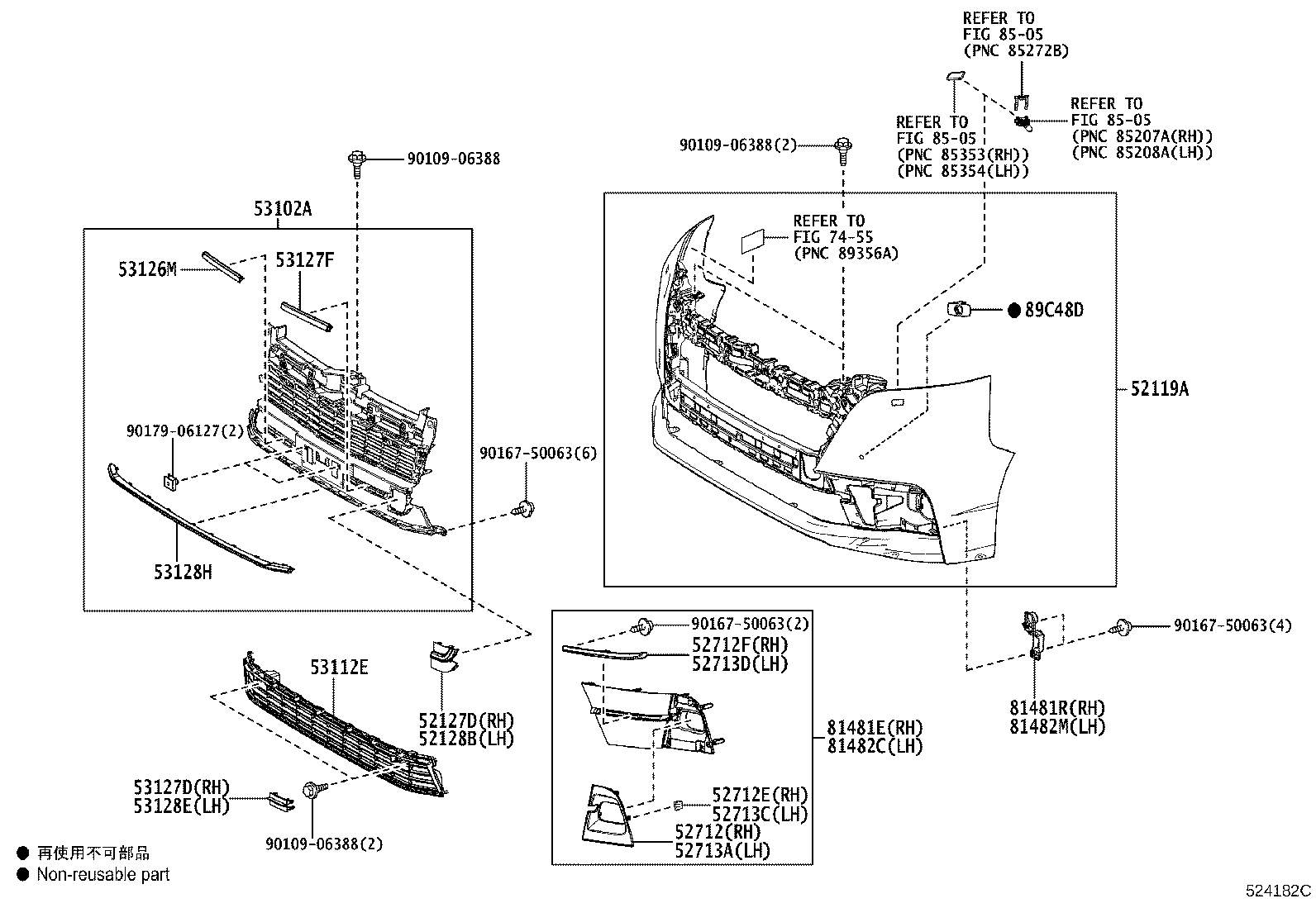

ILLUST NO. 2 OF 2(1912- )
ｱﾘ(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅｰ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-26967B0 |
GDH303 SILVER ME.,1F7 |
1 | ||
| 52119-26967B1 |
GDH303 GRAY ME.,1G3 |
1 | ||
| 52119-26967E0 |
GDH303 BEIGE ME.,2QD |
1 | ||
| 52119-26967C0 |
GDH303 BLACK,202 |
1 | ||
| 52119-26967A0 |
GDH303 WHITE PEARL CS.,070 |
1 | ||
| 52119-26964 |
GDH303 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-26280 |
GDH303 |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-26140 |
GDH303 |
1 | ||
| 52712 - MOULDING, FRONT BUMPER SIDE, RH | ||||
| 52712-26020 |
GDH303 |
1 | ||
| 52712E - CLIP, FRONT BUMPER SIDE MOULDING | ||||
| 90467-08229 |
GDH303 |
7 | ||
| 52712F - MOULDING, FRONT BUMPER SIDE, RH NO.2 | ||||
| 52712-26030 |
GDH303 |
1 | ||
| 52713A - MOULDING, FRONT BUMPER SIDE, LH | ||||
| 52713-26030 |
GDH303 |
1 | ||
| 52713C - CLIP, FRONT BUMPER SIDE MOULDING | ||||
| 90467-08229 |
GDH303 |
7 | ||
| 52713D - MOULDING, FRONT BUMPER SIDE, LH NO.2 | ||||
| 52713-26040 |
GDH303 |
1 | ||
| 53102A - GRILLE SUB-ASSY, RADIATOR, LWR | ||||
| 53102-26010 |
GDH303 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 53102-26030 |
GDH303 ﾒｯｷ |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-26130 |
GDH303 塗装不要 |
1 | ||
| 53126M - MOULDING, RADIATOR GRILLE, NO.6 | ||||
| 53126-26050 |
GDH303 |
1 | ||
| 53127D - GRILLE, RADIATOR, LOWER SIDE RH | ||||
| 53127-26020 |
GDH303 |
1 | ||
| 53127F - MOULDING, RADIATOR GRILLE, NO.7 | ||||
| 53127-26030 |
GDH303 |
1 | ||
| 53128E - GRILLE, RADIATOR, LOWER SIDE LH | ||||
| 53128-26020 |
GDH303 |
1 | ||
| 53128H - MOULDING, RADIATOR GRILLE, NO.8 | ||||
| 53128-26050 |
GDH303 |
1 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 52030-26040 |
GDH303 |
1 | ||
| 81481R - BRACKET, FOG LAMP, RH | ||||
| 81481-26190 |
GDH303 |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 52040-26040 |
GDH303 |
1 | ||
| 81482M - BRACKET, FOG LAMP, LH | ||||
| 81482-26190 |
GDH303 |
1 | ||
| 89C48D - RETAINER, ULTRASONIC SENSOR, FRONT CORNER | ||||
| 89348-78020 |
GDH303 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
2 | ||
| 89348-50130 |
GDH303 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
2 | ||
| 89348-50130 |
GDH303 |
2 | ||
| Common parts | ||||
| 90109-06388 | ||||
| 90167-50063 | ||||
| 90179-06127 | ||||
| Linked diagrams | ||||
| 7455 | ||||
| 8505 | ||||

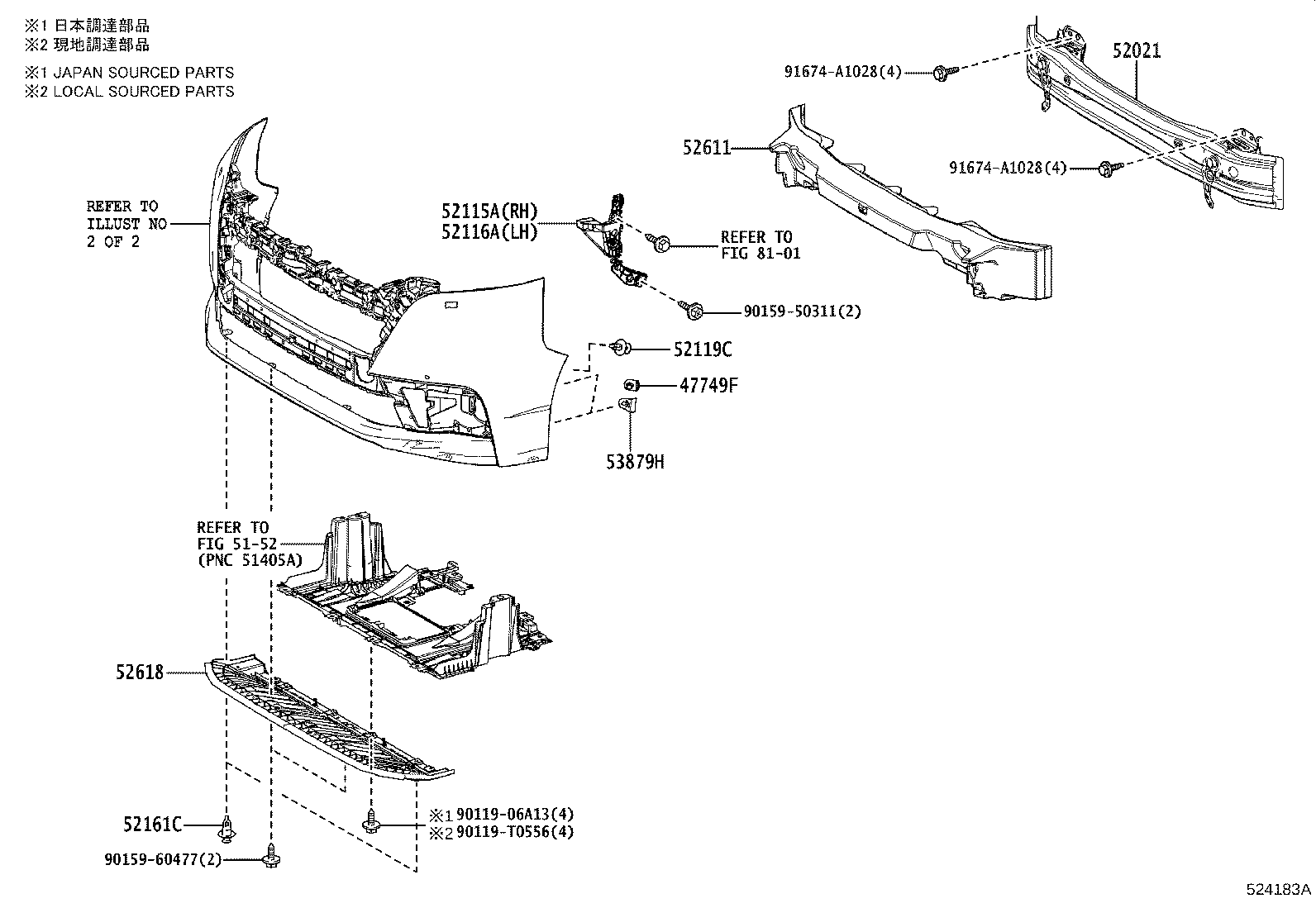

ILLUST NO. 1 OF 2(1912- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47749F - CLIP, PIN HOLD | ||||
| 47749-33030 |
GDH303 |
4 | ||
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-26020 |
GDH303 |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-26190 |
GDH303 |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-26190 |
GDH303 |
1 | ||
| 52119C - CLIP, FRONT BUMPER COVER | ||||
| 90467-05170 |
GDH303 |
2 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
GDH303 |
2 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-26020 |
GDH303 |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-26010 |
GDH303 |
1 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-33030 |
GDH303 |
4 | ||
| Common parts | ||||
| 90119-06A13 | ||||
| 90119-T0556 | ||||
| 90159-50311 | ||||
| 90159-60477 | ||||
| 91674-A1028 | ||||
| Linked diagrams | ||||
| 5152 | ||||
| 8101 | ||||
