GDH303W-RDTGY (2019)
Toyota Granace
Production
Dec 2019
-
Sep 9999
Engine
1GDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1912- )

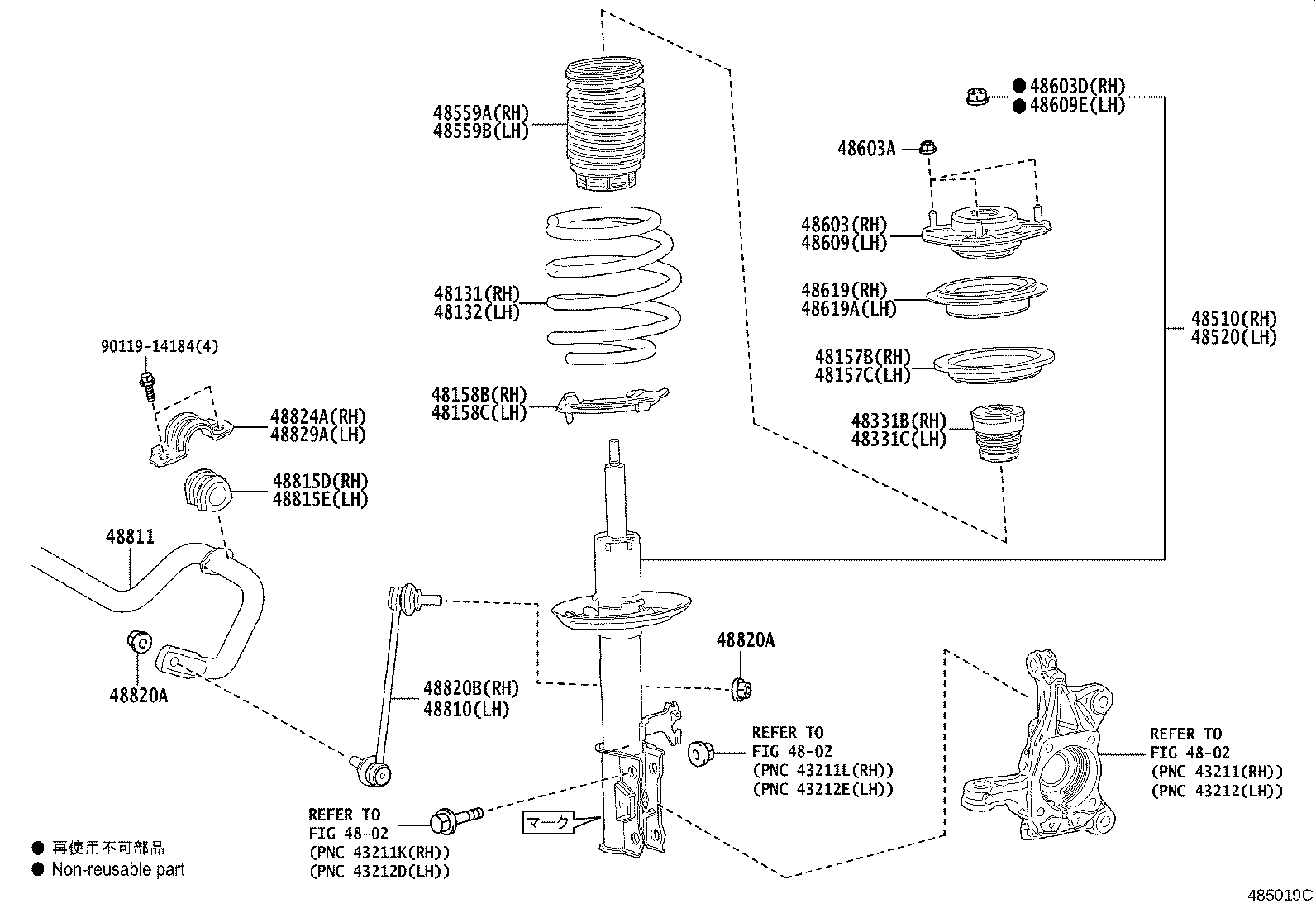

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-26250 |
GDH303 |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-26250 |
GDH303 |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-26020 |
GDH303 |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-26020 |
GDH303 |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-26010 |
GDH303 |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-26010 |
GDH303 |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-26130 |
GDH303 |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-26130 |
GDH303 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-80A91 |
GDH303 ﾏｰｸ 48510−26070 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-80651 |
GDH303 ﾏｰｸ 48520−26070 |
1 | ||
| 48559A - COVER, FRONT SHOCK ABSORBER DUST, RH NO.1 | ||||
| 48559-26010 |
GDH303 |
1 | ||
| 48559B - COVER, FRONT SHOCK ABSORBER DUST, LH NO.1 | ||||
| 48559-26010 |
GDH303 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48603-26010 |
GDH303 |
1 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90178-10030 |
GDH303 |
6 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 90177-14007 |
GDH303 |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-26010 |
GDH303 |
1 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 90177-14007 |
GDH303 |
1 | ||
| 48619 - BEARING, STRUT MOUNTING, RH | ||||
| 48619-26010 |
GDH303 |
1 | ||
| 48619A - BEARING, STRUT MOUNTING, LH | ||||
| 48619-26010 |
GDH303 |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48810-26050 |
GDH303 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-26490 |
GDH303 |
1 | ||
| 48815D - BUSH, FRONT STABILIZER BAR, RH | ||||
| 48815-26430 |
GDH303 |
1 | ||
| 48815E - BUSH, FRONT STABILIZER BAR, LH | ||||
| 48815-26430 |
GDH303 |
1 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 94151-21441 |
GDH303 |
4 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 94151-21441 |
GDH303 |
4 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-26060 |
GDH303 |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-26270 |
GDH303 |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-26270 |
GDH303 |
1 | ||
| Common parts | ||||
| 90119-14184 | ||||
| Linked diagrams | ||||
| 4802 | ||||
