GDH303W-RDTGY (2019)

Toyota Granace

Production Dec 2019 - Sep 9999
Engine 1GDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1912- )

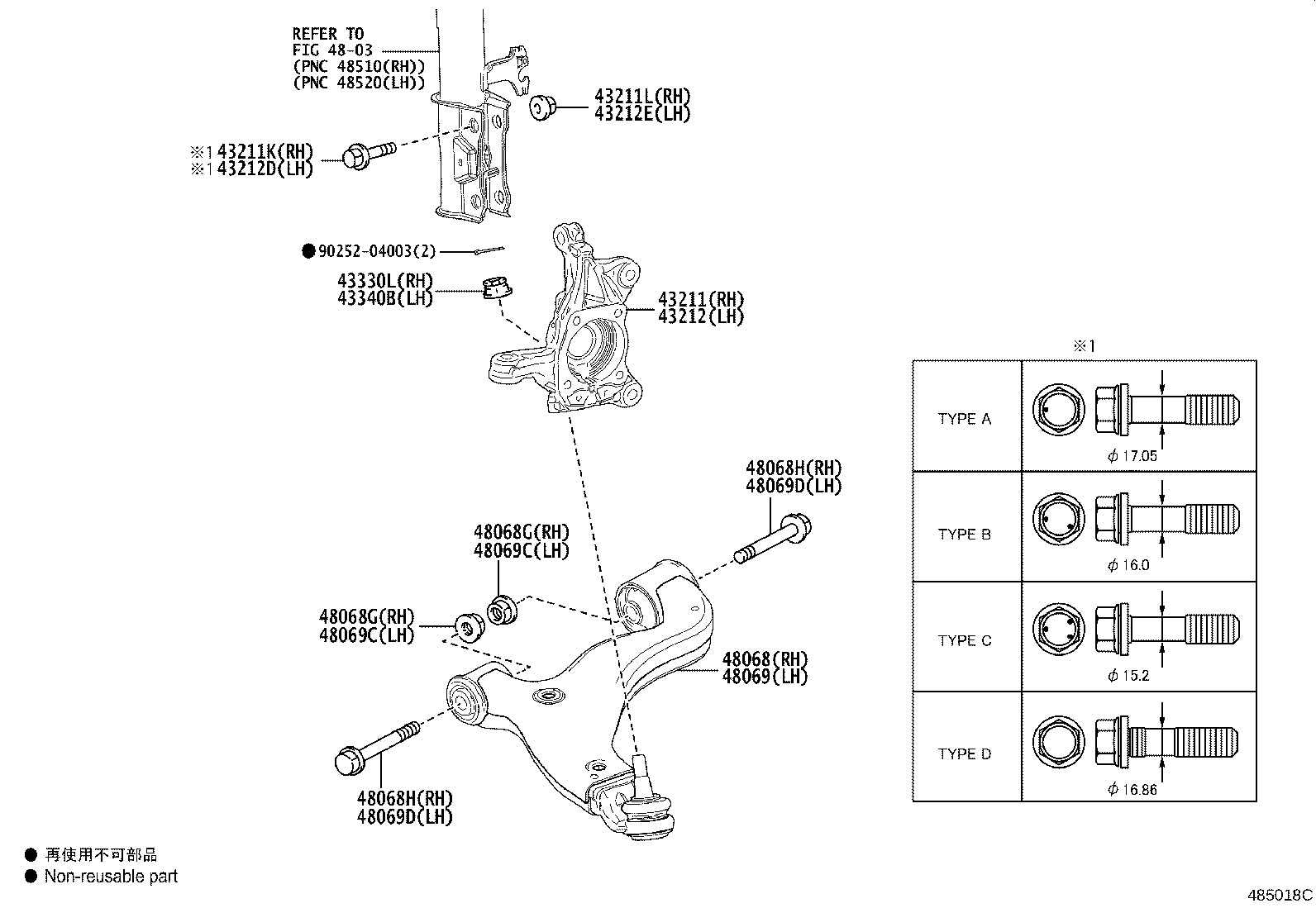

Click highlighted areas on diagram

diagram 43211 43211K 43211L 43212 43212D 43212E 43330L 43340B 4803 48068 48068G 48068G 48068H 48068H 48069 48069C 48069C 48069D 48069D 9025204003
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-26170

GDH303

 1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90119-18012

GDH303

*18−1.5PX75−32.5,ﾀｲﾌﾟ B

 2
90119-18010

GDH303

*18−1.5PX75,ﾀｲﾌﾟ D

 2
90119-18013

GDH303

*18−1.5PX75−32.5,ﾀｲﾌﾟ C

 2
90119-18011

GDH303

*18−1.5PX75−32.5,ﾀｲﾌﾟ A

 2
43211L - NUT (FOR STEERING KNUCKLE RH)
90178-18003

GDH303

 2
43212 - KNUCKLE, STEERING, LH
43212-26140

GDH303

 1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90119-18011

GDH303

*18−1.5PX75−32.5,ﾀｲﾌﾟ A

 2
90119-18012

GDH303

*18−1.5PX75−32.5,ﾀｲﾌﾟ B

 2
90119-18010

GDH303

*18−1.5PX75,ﾀｲﾌﾟ D

 2
90119-18013

GDH303

*18−1.5PX75−32.5,ﾀｲﾌﾟ C

 2
43212E - NUT (FOR STEERING KNUCKLE LH)
90178-18003

GDH303

 2
43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
90171-16008

GDH303

 1
43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
90171-16008

GDH303

 1
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-26180

GDH303

 1
48068G - NUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90178-18003

GDH303

 2
48068G - NUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90178-18003

GDH303

 2
48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90119-18009

GDH303

 2
48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90119-18009

GDH303

 2
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-26180

GDH303

 1
48069C - NUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90178-18003

GDH303

 2
48069C - NUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90178-18003

GDH303

 2
48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90119-18009

GDH303

 2
48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90119-18009

GDH303

 2
Common parts
90252-04003
Linked diagrams
4803
