GDH303W-RDTGY (2019)
Toyota Granace
Production
Dec 2019
-
Sep 9999
Engine
1GDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 2(1912- )
Click highlighted areas on diagram

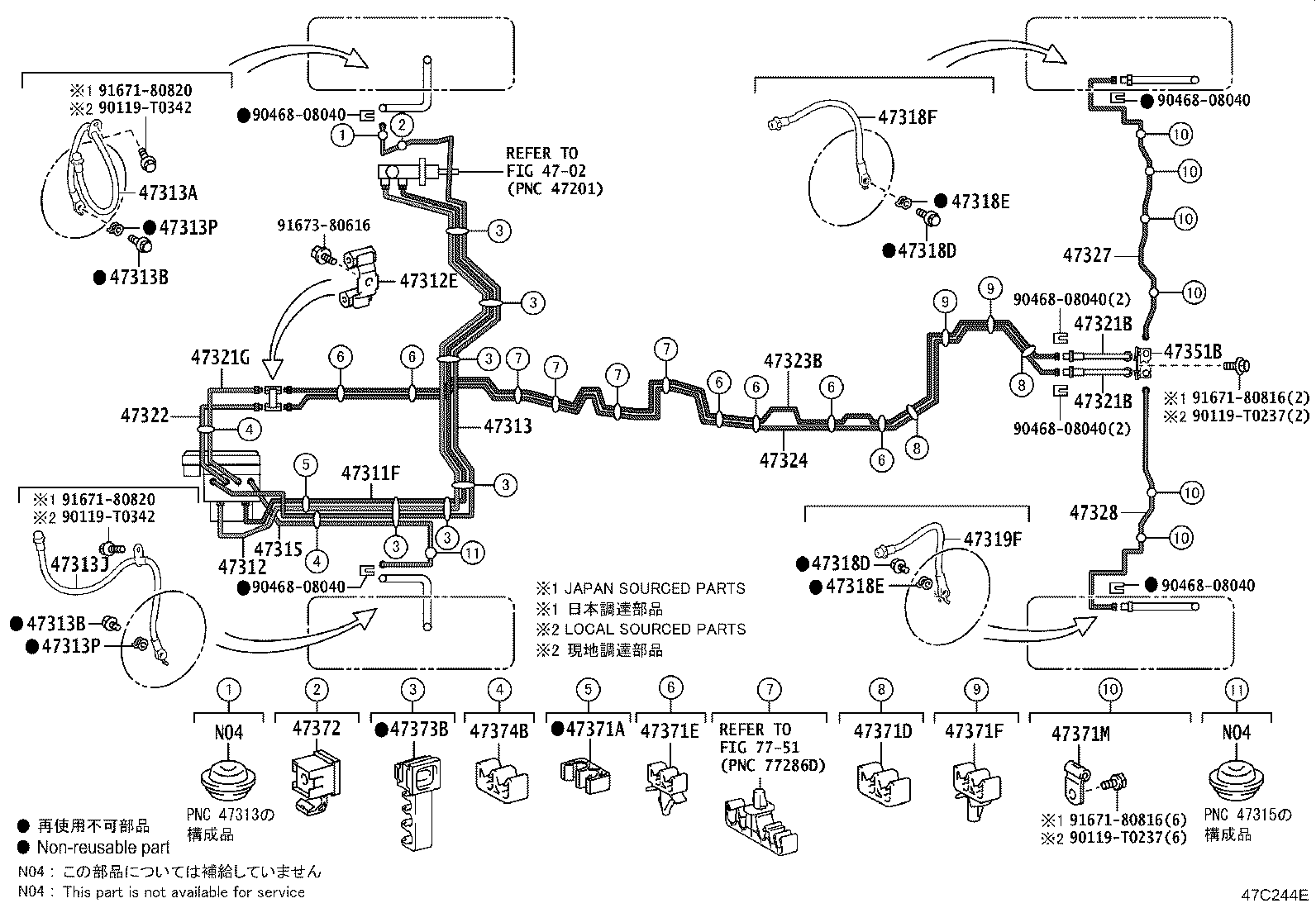

BRAKE TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-26A90 |
GDH303 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-26400 |
GDH303 |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10285 |
GDH303 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-26410 |
GDH303 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02H88 |
GDH303 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
GDH303 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
GDH303 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02H89 |
GDH303 |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
GDH303 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
GDH303 |
2 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-26370 |
GDH303 |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
GDH303 |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
GDH303 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50021 |
GDH303 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50021 |
GDH303 |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02H23 |
GDH303 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02H23 |
GDH303 |
1 | ||
| 47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02H90 |
GDH303 |
2 | ||
| 47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02H90 |
GDH303 |
2 | ||
| 47321G - TUBE, REAR BRAKE, FRAME NO.1 | ||||
| 47321-26840 |
GDH303 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-26450 |
GDH303 |
1 | ||
| 47323B - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-26440 |
GDH303 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-26590 |
GDH303 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-26410 |
GDH303 |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-26240 |
GDH303 |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-26240 |
GDH303 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90464-00920 |
GDH303 |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90464-00903 |
GDH303 |
2 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90469-07019 |
GDH303 |
6 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 90949-01E02 |
GDH303 |
2 | ||
| 47371M - CLAMP, BRAKE TUBE, NO.13 | ||||
| 90461-08639 |
GDH303 |
5 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-01D20 |
GDH303 |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01E47 |
GDH303 |
6 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90464-00903 |
GDH303 |
2 | ||
| Common parts | ||||
| 90119-T0237 | ||||
| 90119-T0342 | ||||
| 90468-08040 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7751 | ||||
ILLUST NO. 2 OF 2(1912- )
Click highlighted areas on diagram

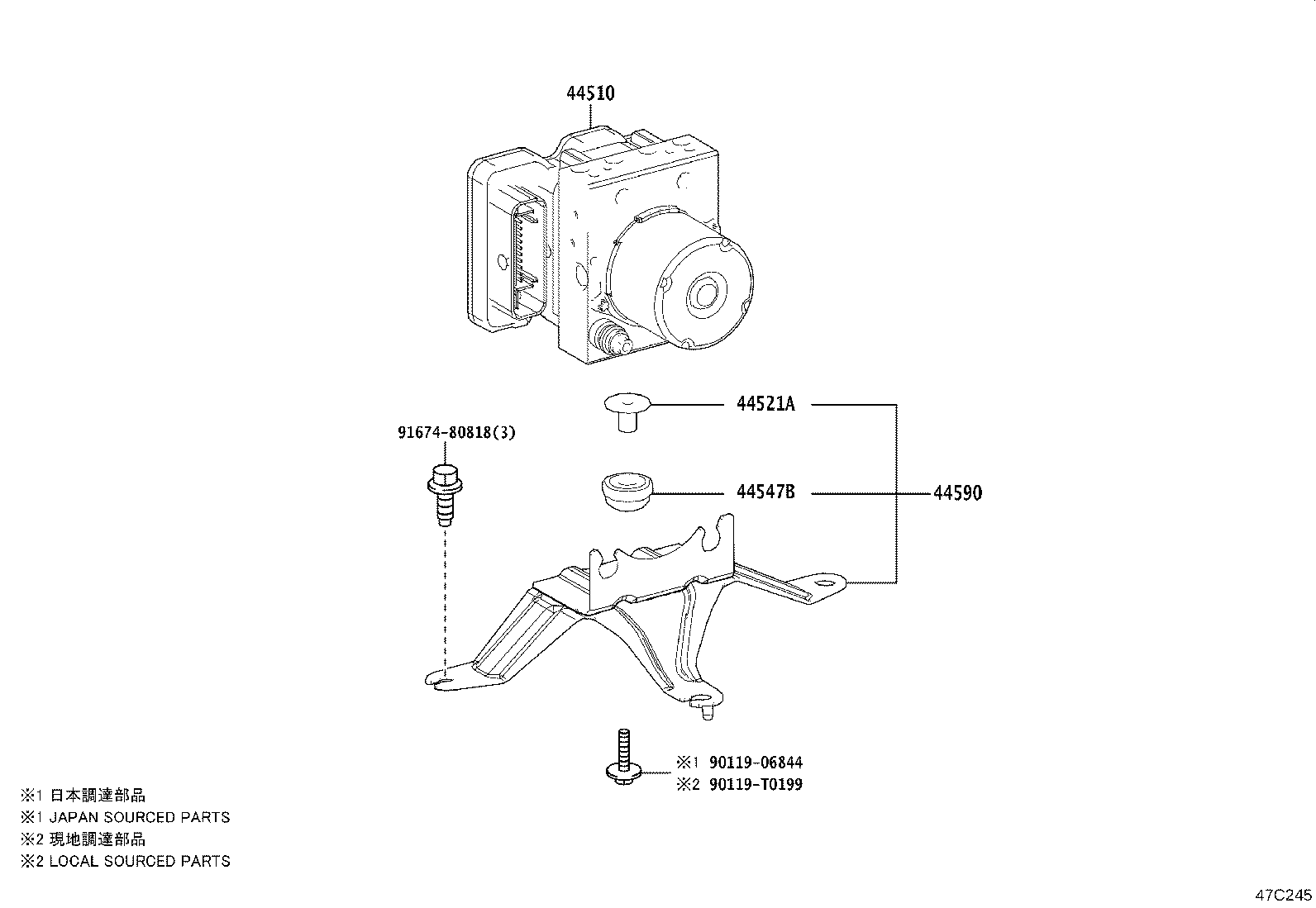

BRAKE ACTUATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-26671 |
GDH303 |
1 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-12060 |
GDH303 |
1 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-10080 |
GDH303 |
1 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-26060 |
GDH303 |
1 | ||
| Common parts | ||||
| 90119-06844 | ||||
| 90119-T0199 | ||||
| 91674-80818 | ||||
