GDH303W-RDTGY (2019)
Toyota Granace
Production
Dec 2019
-
Sep 9999
Engine
1GDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1912- )

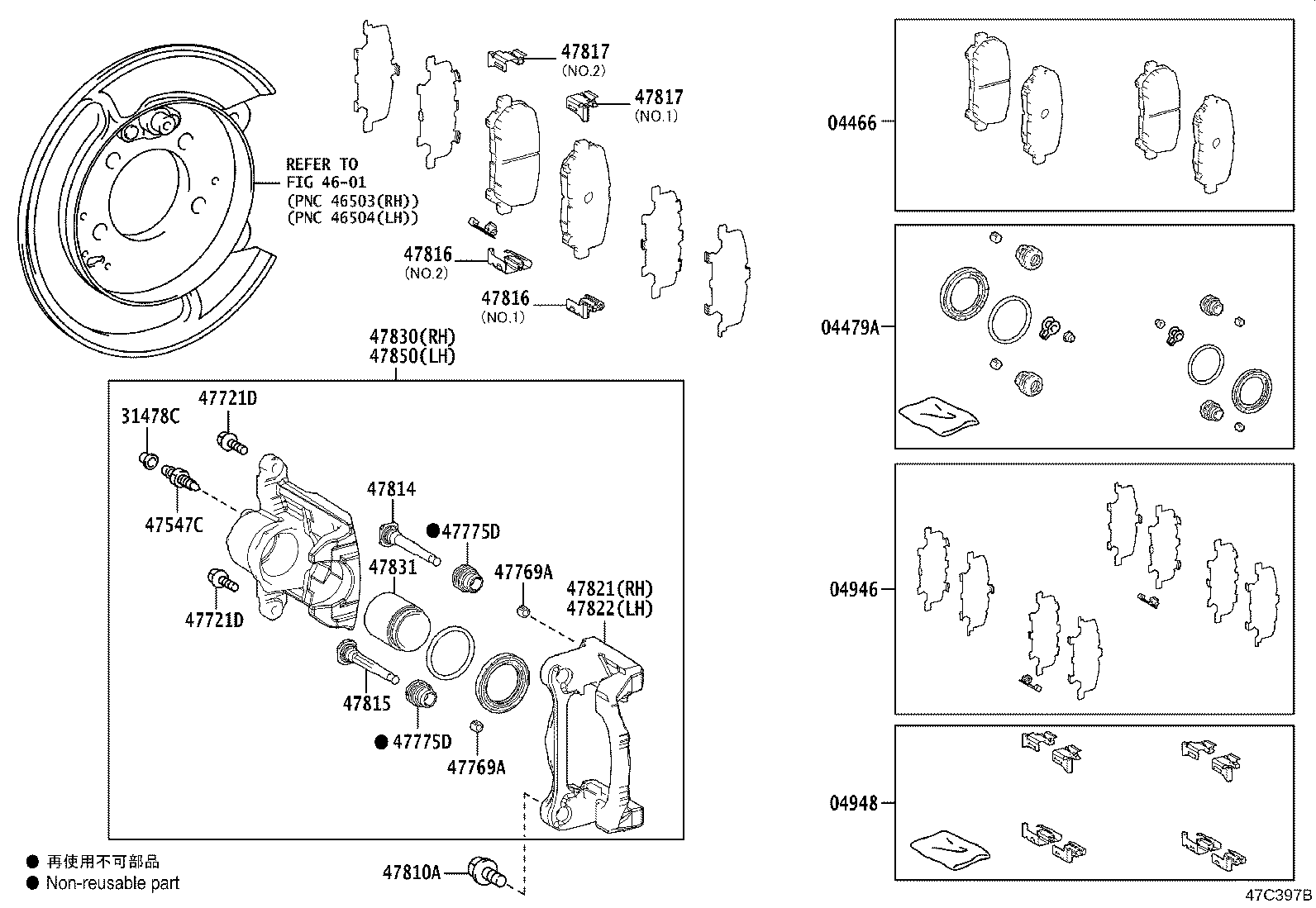

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04466 - PAD KIT, DISC BRAKE, REAR | ||||
| 04466-26030 |
GDH303 ﾏｰｸ AK NS542 |
1 | ||
| 04479A - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04479-26100 |
GDH303 |
1 | ||
| 04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE) | ||||
| 04946-26000 |
GDH303 |
1 | ||
| 04948 - FITTING KIT, DISC BRAKE, REAR | ||||
| 04948-26020 |
GDH303 |
1 | ||
| 31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 31478-30010 |
GDH303 |
2 | ||
| 47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 47547-12130 |
GDH303 |
2 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90105-08346 |
GDH303 *8−1.00PX21.5−10.5 |
4 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90105-08346 |
GDH303 *8−1.00PX21.5−10.5 |
4 | ||
| 47769A - BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47769-28570 |
GDH303 |
4 | ||
| 47769A - BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47769-28570 |
GDH303 |
4 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47775-48010 |
GDH303 |
4 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47775-48010 |
GDH303 |
4 | ||
| 47810A - BOLT, HEXAGON(FOR REAR CALIPER) | ||||
| 90119-14181 |
GDH303 |
4 | ||
| 47814 - PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47814-26030 |
GDH303 |
2 | ||
| 47815 - PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE) | ||||
| 47815-26030 |
GDH303 |
2 | ||
| 47816 - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE) | ||||
| 47816-26030 |
GDH303 NO.1 |
2 | ||
| 47816-26031 |
GDH303 NO.2 |
2 | ||
| 47816 - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE) | ||||
| 47816-26030 |
GDH303 NO.1 |
2 | ||
| 47816-26031 |
GDH303 NO.2 |
2 | ||
| 47817 - PLATE, PAD SUPPORT. NO.2(FOR REAR DISC BRAKE) | ||||
| 47817-26031 |
GDH303 NO.2 |
2 | ||
| 47817-26030 |
GDH303 NO.1 |
2 | ||
| 47817 - PLATE, PAD SUPPORT. NO.2(FOR REAR DISC BRAKE) | ||||
| 47817-26031 |
GDH303 NO.2 |
2 | ||
| 47817-26030 |
GDH303 NO.1 |
2 | ||
| 47821 - MOUNTING, REAR DISC BRAKE CYLINDER, RH | ||||
| 47821-26030 |
GDH303 |
1 | ||
| 47822 - MOUNTING, REAR DISC BRAKE CYLINDER, LH | ||||
| 47821-26030 |
GDH303 |
1 | ||
| 47830 - CYLINDER ASSY, DISC BRAKE, REAR RH | ||||
| 47830-26030 |
GDH303 |
1 | ||
| 47831 - PISTON, REAR DISC BRAKE | ||||
| 47831-26030 |
GDH303 |
2 | ||
| 47850 - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47850-26030 |
GDH303 |
1 | ||
| Linked diagrams | ||||
| 4601 | ||||
