GDH303W-RDTGY (2019)
Toyota Granace
Production
Dec 2019
-
Sep 9999
Engine
1GDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1912- )

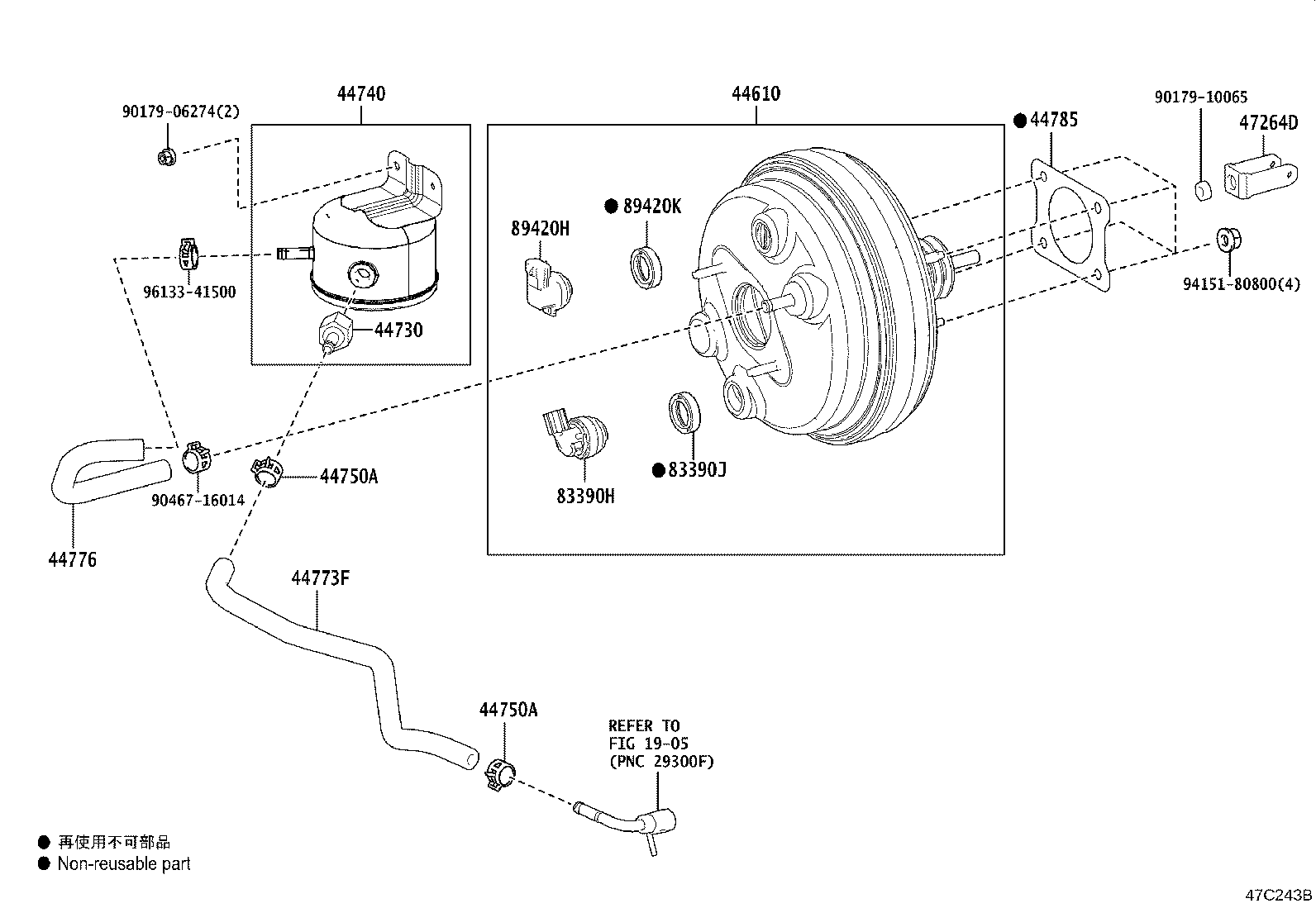

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-26A40 |
GDH303 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60050 |
GDH303 |
1 | ||
| 44740 - RESERVOIR ASSY, VACUUM | ||||
| 44740-26180 |
GDH303 |
1 | ||
| 44750A - CLIP(FOR VACUUM HOSE ASSY) | ||||
| 96133-41500 |
GDH303 |
2 | ||
| 44750A - CLIP(FOR VACUUM HOSE ASSY) | ||||
| 96133-41500 |
GDH303 |
2 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-26140 |
GDH303 |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-26090 |
GDH303 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-12040 |
GDH303 |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-30060 |
GDH303 |
1 | ||
| 83390H - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-28120 |
GDH303 |
1 | ||
| 83390J - GROMMET, VACUUM WARNING SWITCH | ||||
| 90480-24439 |
GDH303 |
1 | ||
| 89420H - SENSOR ASSY, VACUUM | ||||
| 89421-52020 |
GDH303 |
1 | ||
| 89420K - GROMMET, VACUUM SENSOR | ||||
| 90480-24439 |
GDH303 |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 90179-10065 | ||||
| 90467-16014 | ||||
| 94151-80800 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 1905 | ||||
