GDH303W-RDTGY (2019)
Toyota Granace
Production
Dec 2019
-
Sep 9999
Engine
1GDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1912- )

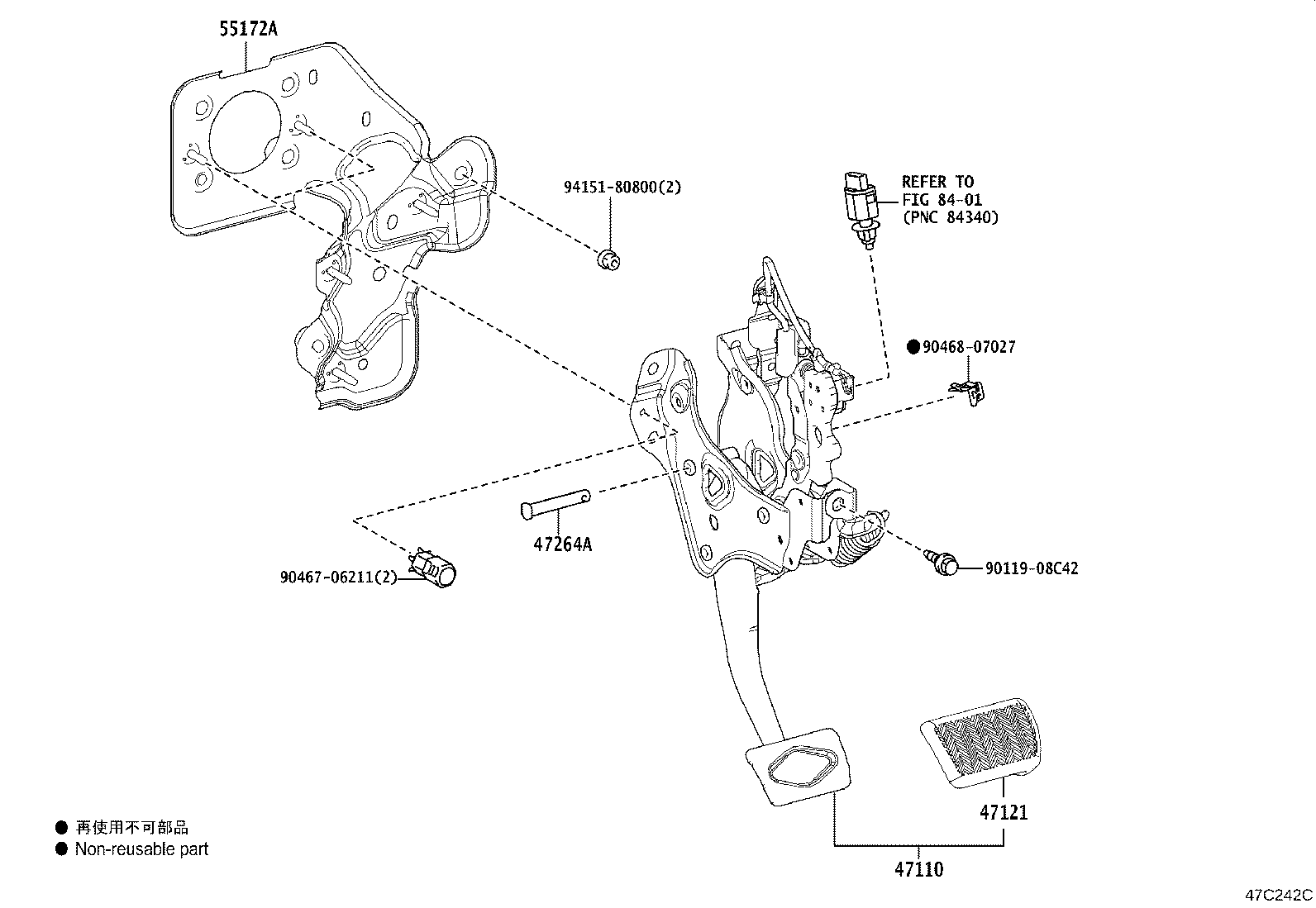

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47110 - SUPPORT ASSY, BRAKE PEDAL | ||||
| 47110-26080 |
GDH303 |
1 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 47121-47010 |
GDH303 |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 90240-06028 |
GDH303 |
1 | ||
| 55172A - BASE, BRAKE PEDAL SUPPORT | ||||
| 55172-26060 |
GDH303 |
1 | ||
| Common parts | ||||
| 90119-08C42 | ||||
| 90467-06211 | ||||
| 90468-07027 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
