GDH303W-RDTGY (2019)

Toyota Granace

Production Dec 2019 - Sep 9999
Engine 1GDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1912- )

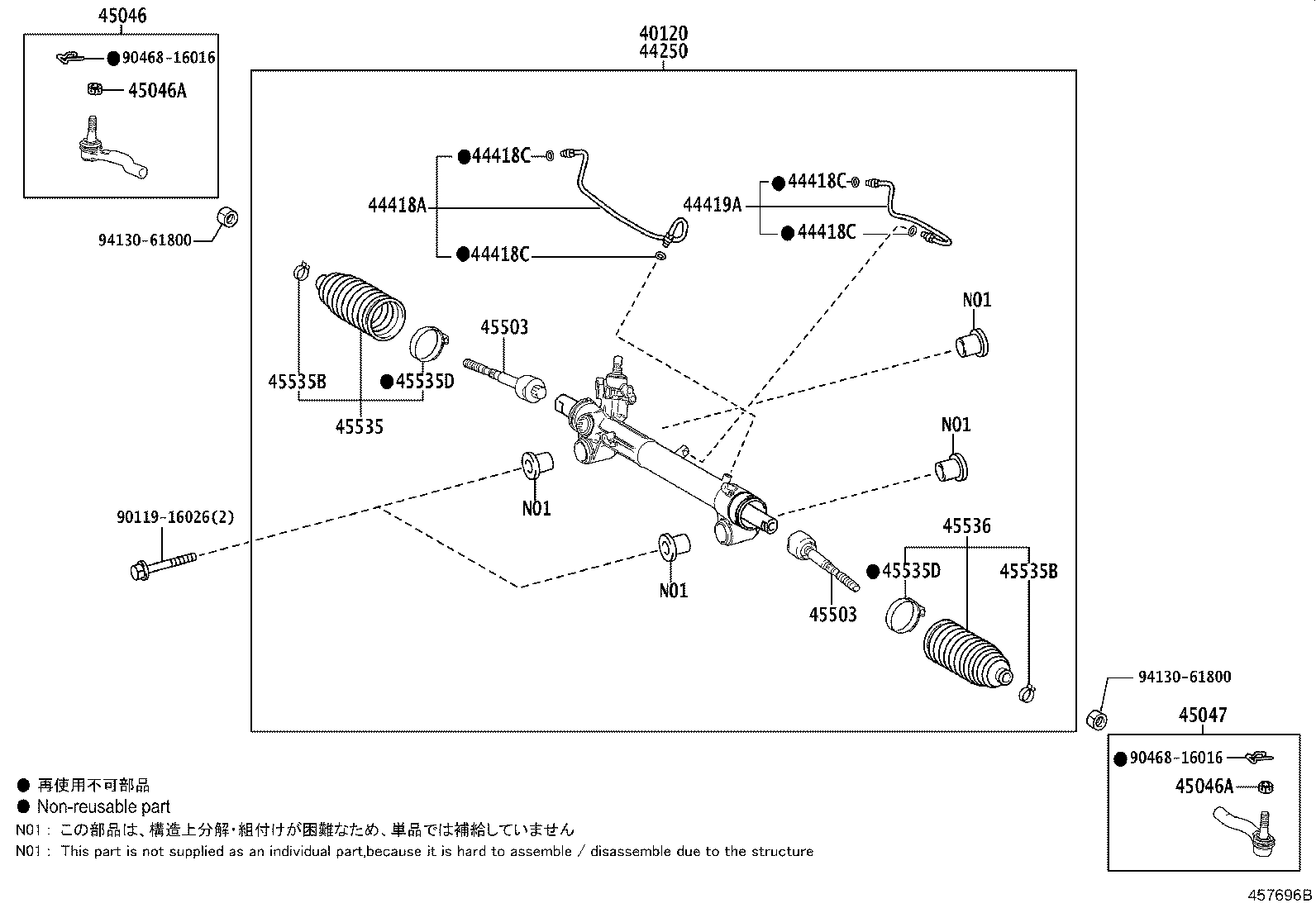

Click highlighted areas on diagram

diagram 40120 44250 44418A 44418C 44418C 44418C 44418C 44419A 45046 45046A 45046A 45047 45503 45503 45535 45535B 45535B 45535D 45535D 45536 9011916026 9046816016 9046816016 9413061800 9413061800
Part # Description Qty Price
40120 - GEAR ASSY,POWER STEERING,REBUILT
40120-26610

GDH303

 1
44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION)
44250-26610

GDH303

 1
44418A - TUBE, STEERING RIGHT TURN PRESSURE
44418-26290

GDH303

 1
44418C - RING, O(FOR STEERING TURN PRESSURE TUBE)
90301-06026

GDH303

 4
44418C - RING, O(FOR STEERING TURN PRESSURE TUBE)
90301-06026

GDH303

 4
44418C - RING, O(FOR STEERING TURN PRESSURE TUBE)
90301-06026

GDH303

 4
44418C - RING, O(FOR STEERING TURN PRESSURE TUBE)
90301-06026

GDH303

 4
44419A - TUBE, STEERING LEFT TURN PRESSURE
44419-26270

GDH303

 1
45046 - END SUB-ASSY, TIE ROD, RH
45046-29565

GDH303

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-16003

GDH303

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-16003

GDH303

 2
45047 - END SUB-ASSY, TIE ROD, LH
45047-29225

GDH303

 1
45503 - END SUB-ASSY, STEERING RACK
45503-26180

GDH303

 2
45503 - END SUB-ASSY, STEERING RACK
45503-26180

GDH303

 2
45535 - BOOT, STEERING RACK, NO.1
45535-29045

GDH303

 1
45535B - CLIP(FOR STEERING RACK BOOT)
96134-42300

GDH303

 2
45535B - CLIP(FOR STEERING RACK BOOT)
96134-42300

GDH303

 2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
90460-A0004

GDH303

 2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
90460-A0004

GDH303

 2
45536 - BOOT, STEERING RACK, NO.2
45535-29045

GDH303

 1
Common parts
90119-16026
90468-16016
94130-61800
