GDH303W-RDTGY (2019)
Toyota Granace
Production
Dec 2019
-
Sep 9999
Engine
1GDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1912- )

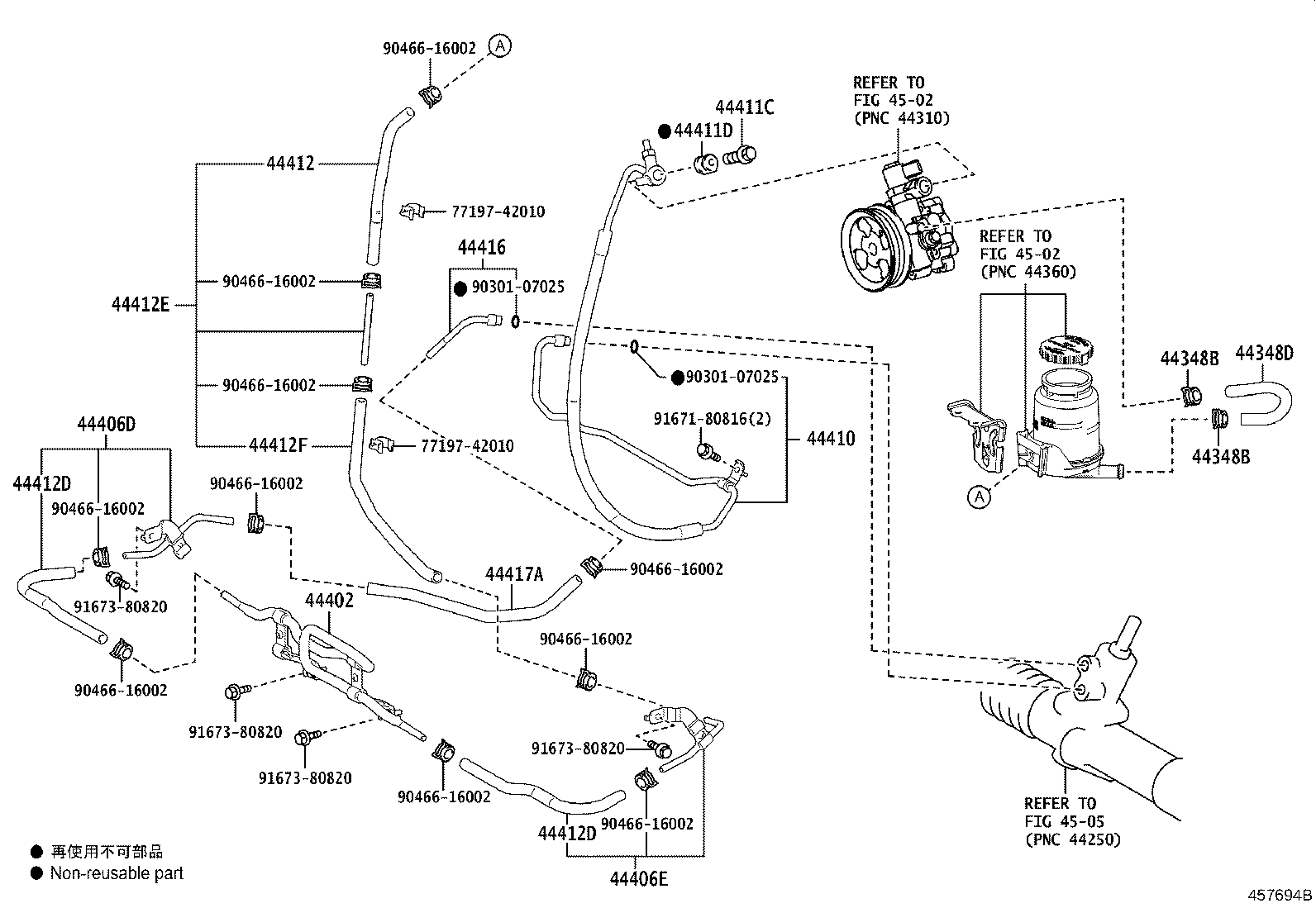

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE) | ||||
| 90467-21010 |
GDH303 |
2 | ||
| 44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE) | ||||
| 90467-21010 |
GDH303 |
2 | ||
| 44348D - HOSE, OIL RESERVOIR TO PUMP, NO.2 | ||||
| 44348-26300 |
GDH303 |
1 | ||
| 44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1 | ||||
| 44402-26030 |
GDH303 |
1 | ||
| 44406D - TUBE SUB-ASSY, RETURN, NO.1 | ||||
| 44406-26050 |
GDH303 |
1 | ||
| 44406E - TUBE SUB-ASSY, RETURN, NO.2 | ||||
| 44406-26060 |
GDH303 |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-26B90 |
GDH303 |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16034 |
GDH303 |
1 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 44327-30040 |
GDH303 |
1 | ||
| 44412 - HOSE, RETURN | ||||
| 44428-26050 |
GDH303 |
1 | ||
| 44412D - HOSE, RETURN, NO.1 | ||||
| 44428-26010 |
GDH303 |
2 | ||
| 44412D - HOSE, RETURN, NO.1 | ||||
| 44428-26010 |
GDH303 |
2 | ||
| 44412E - HOSE, RETURN, NO.2 | ||||
| 44412-26200 |
GDH303 |
1 | ||
| 44412F - HOSE, RETURN, NO.3 | ||||
| 44428-26040 |
GDH303 |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-26090 |
GDH303 |
1 | ||
| 44417A - HOSE, RETURN TUBE (FOR RETURN TUBE TO RETURN TUBE NO.2) | ||||
| 44412-26180 |
GDH303 |
1 | ||
| Common parts | ||||
| 77197-42010 | ||||
| 90301-07025 | ||||
| 90466-16002 | ||||
| 91671-80816 | ||||
| 91673-80820 | ||||
| Linked diagrams | ||||
| 4502 | ||||
| 4505 | ||||
