GDH303W-RDTGY (2019)
Toyota Granace
Production
Dec 2019
-
Sep 9999
Engine
1GDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1912- )

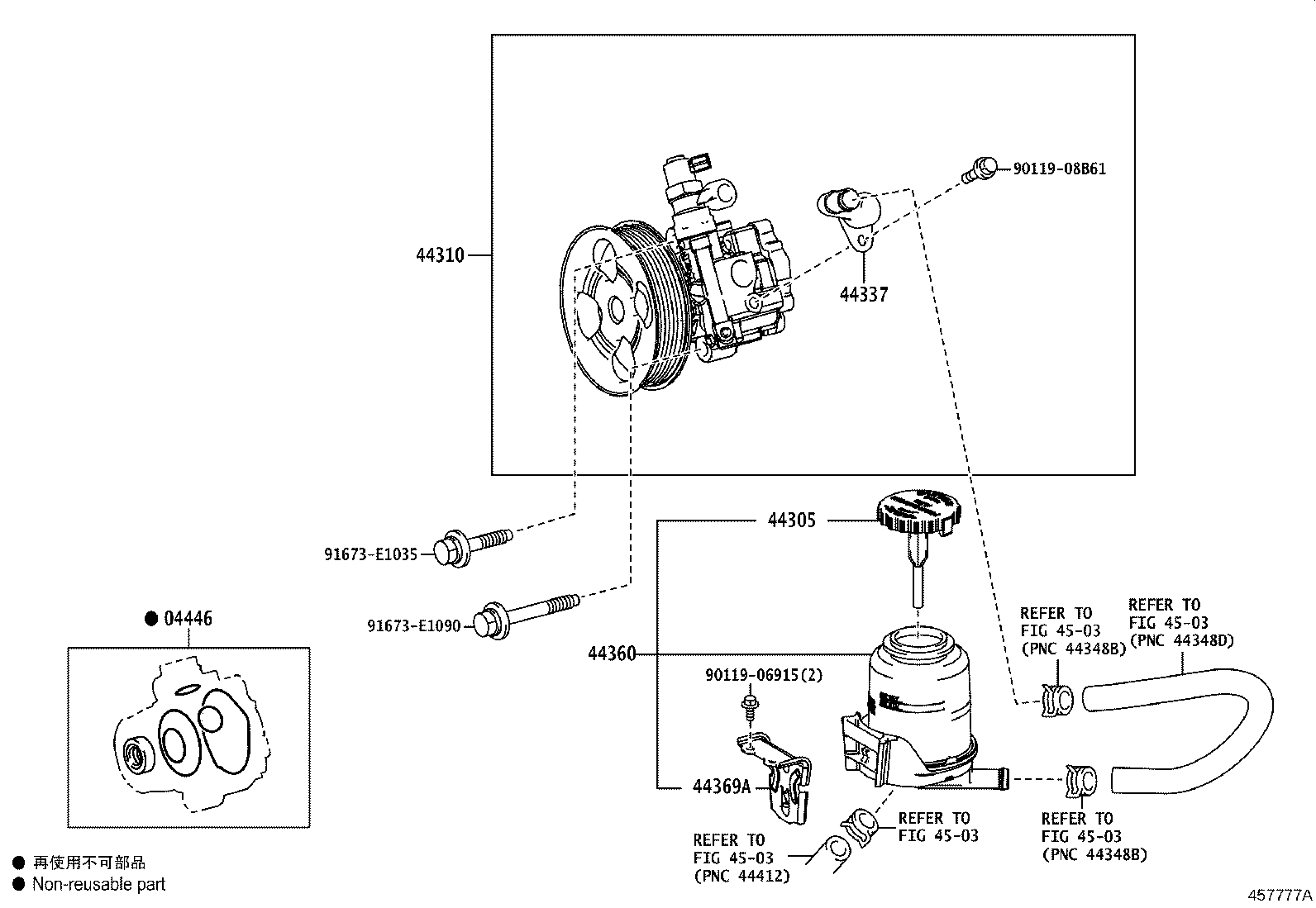

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-26110 |
GDH303 |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-37031 |
GDH303 |
1 | ||
| 44310 - PUMP ASSY, VANE | ||||
| 44310-26410 |
GDH303 |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-26090 |
GDH303 |
1 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-26170 |
GDH303 |
1 | ||
| 44369A - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-26050 |
GDH303 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-08B61 | ||||
| 91673-E1035 | ||||
| 91673-E1090 | ||||
| Linked diagrams | ||||
| 4503 | ||||
