GDH303W-RDTGY (2019)

Toyota Granace

Production Dec 2019 - Sep 9999
Engine 1GDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1912- )

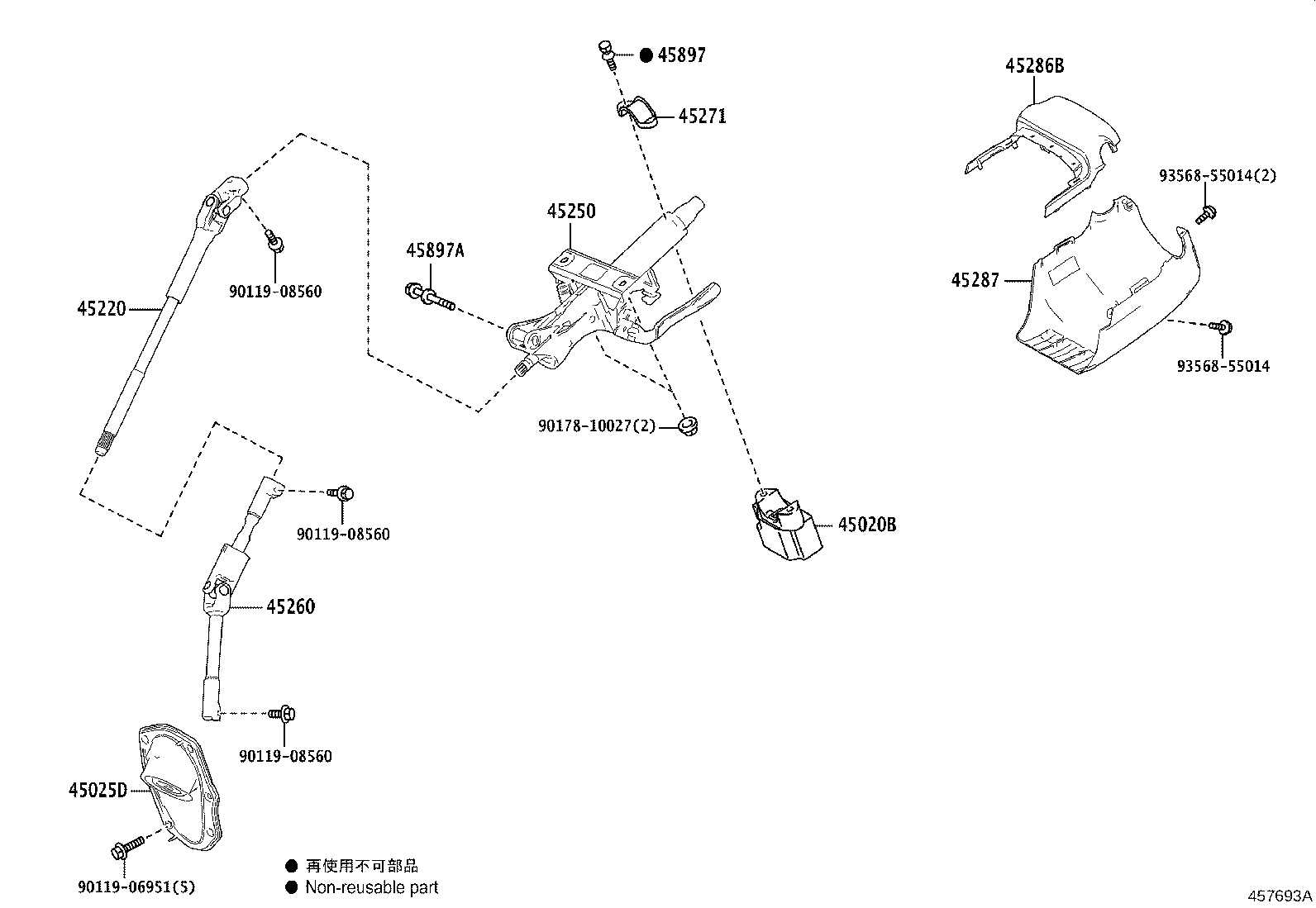

Click highlighted areas on diagram

diagram 45020B 45025D 45220 45250 45260 45271 45286B 45287 45897 45897A 9011906951 9011908560 9011908560 9011908560 9017810027 9356855014 9356855014
Part # Description Qty Price
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45020-33240

GDH303

 1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-26100

GDH303

 1
45220 - SHAFT ASSY, STEERING INTERMEDIATE
45220-26030

GDH303

 1
45250 - COLUMN ASSY, STEERING
45250-26A10

GDH303

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-26130

GDH303

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-52030

GDH303

 1
45286B - COVER, STEERING COLUMN, UPR
45286-33290C0

GDH303

BLACK,TRIM2#

 1
45287 - COVER, STEERING COLUMN, LWR
45024-33230C0

GDH303

BLACK,TRIM2#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

GDH303

 2
45897A - BOLT, TILT STEERING PAWL SET
90119-10980

GDH303

 1
Common parts
90119-06951
90119-08560
90178-10027
93568-55014
