GDH303W-RDTGY (2019)

Toyota Granace

Production Dec 2019 - Sep 9999
Engine 1GDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1912- )

Click highlighted areas on diagram

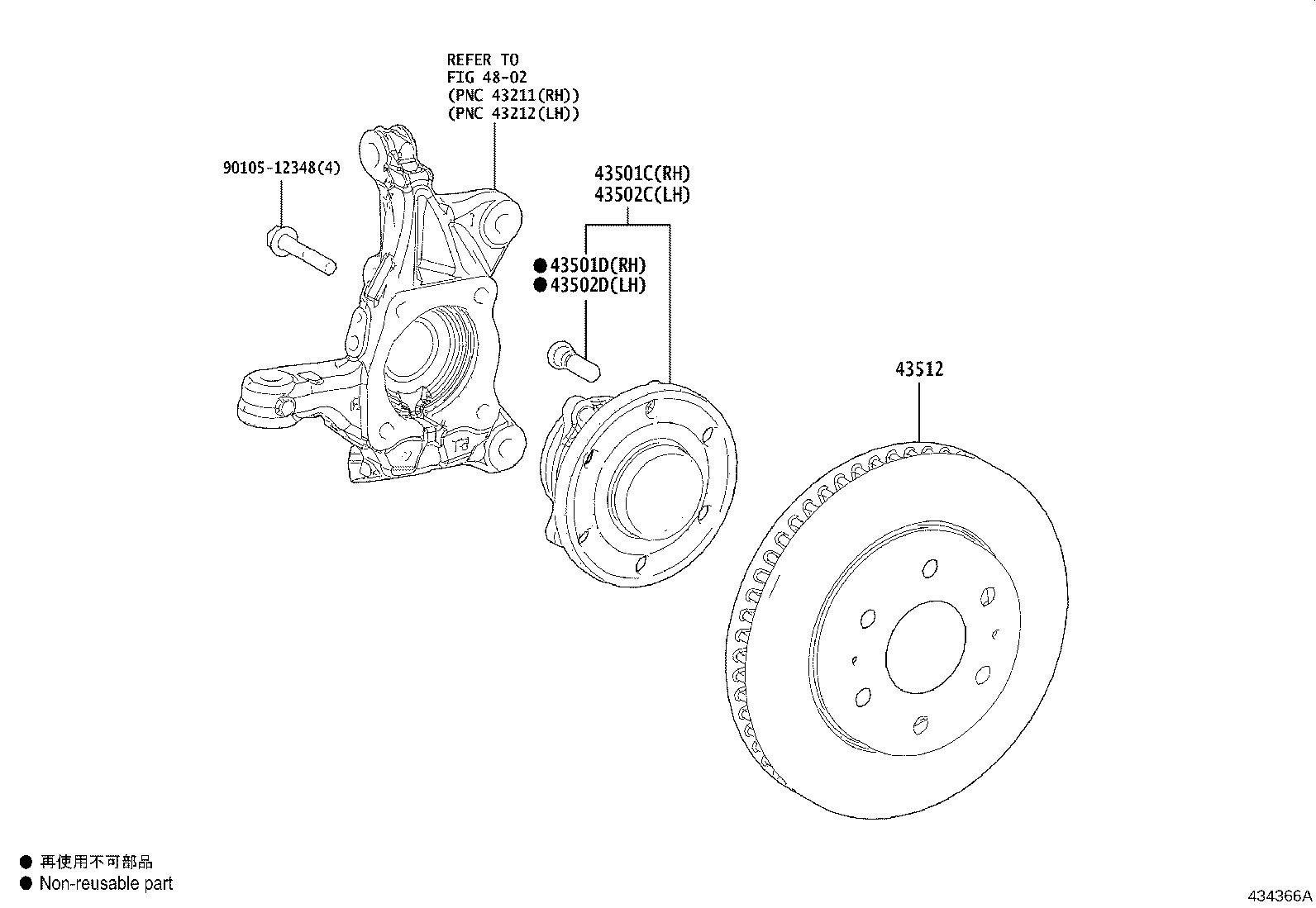

diagram 43501C 43501D 43502C 43502D 43512 4802 9010512348
Part # Description Qty Price
43501C - HUB SUB-ASSY, FRONT AXLE, RH
43550-26010

GDH303

 1
43501D - BOLT, HUB (FOR FRONT AXLE RH)
90942-02083

GDH303

 6
43502C - HUB SUB-ASSY, FRONT AXLE, LH
43550-26010

GDH303

 1
43502D - BOLT, HUB (FOR FRONT AXLE LH)
90942-02083

GDH303

 6
43512 - DISC, FRONT
43512-26200

GDH303

 2
Common parts
90105-12348
Linked diagrams
4802
