GDH303W-RDTGY (2019)

Toyota Granace

Production Dec 2019 - Sep 9999
Engine 1GDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

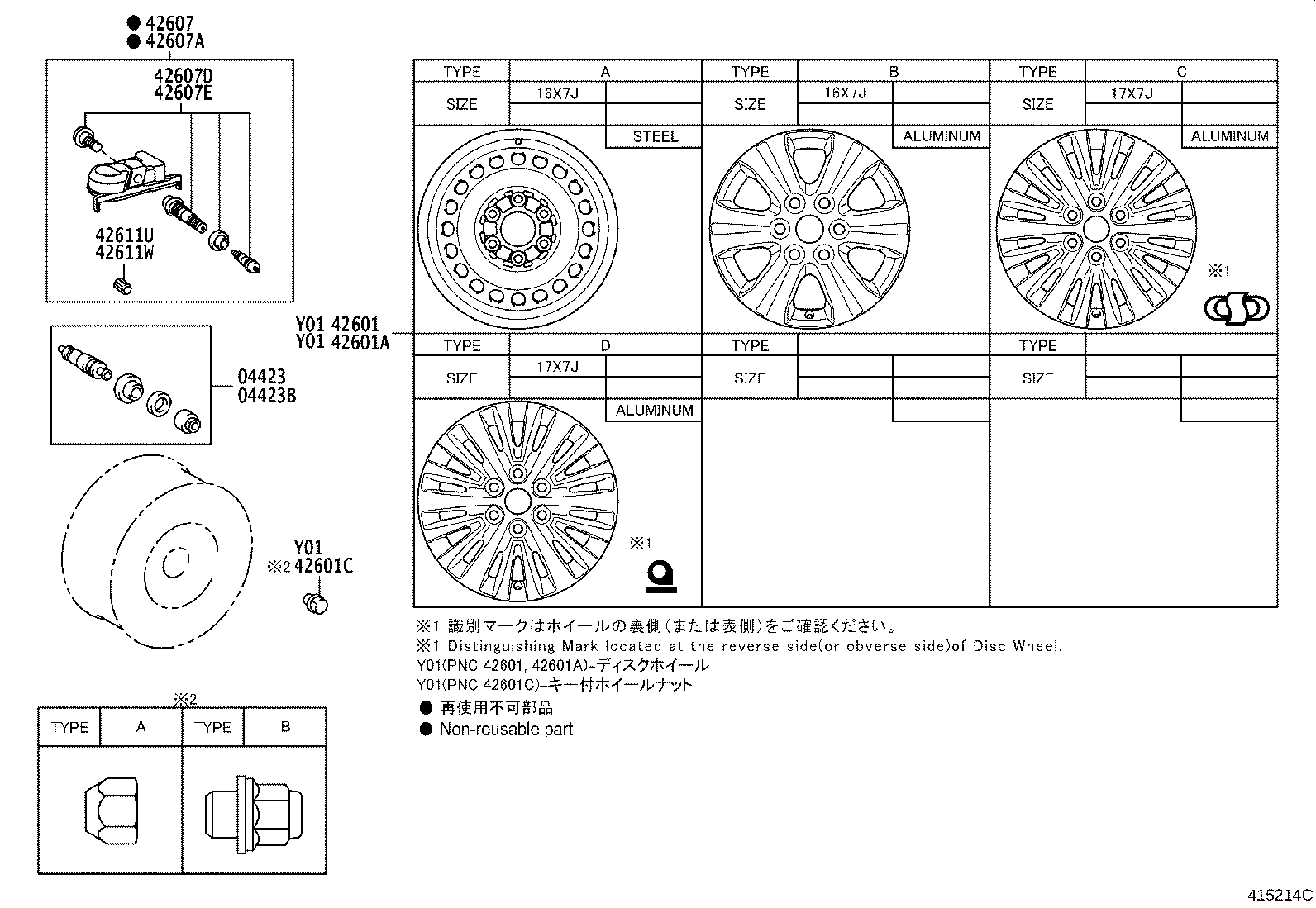

ILLUST NO. 1 OF 2(1912- )

Click highlighted areas on diagram

diagram 04423 04423B 42601 42601A 42601C 42607 42607A 42607D 42607E 42611U 42611W
Part # Description Qty Price
04423 - FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
04423-33060

GDH303

 4
04423B - FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SP
04423-33060

GDH303

 1
42601 - WHEEL, DISC
42611-26240

GDH303

17X7J,#,TYPE D:ｲﾗｽﾄ参照

 4
42611-26220

GDH303

17X7J,#,TYPE C:ｲﾗｽﾄ参照

 4
42601A - WHEEL, DISC (FOR SPARE)
42611-26240

GDH303

17X7J,#,TYPE D:ｲﾗｽﾄ参照

 1
42611-26220

GDH303

17X7J,#,TYPE C:ｲﾗｽﾄ参照

 1
42601C - NUT, HUB (FOR AXLE)
90942-01121

GDH303

TYPE B:ｲﾗｽﾄ参照

 24
42607 - VALVE SUB-ASSY, TIRE PRESSURE MONITOR
42607-29005

GDH303

 4
42607A - VALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
42607-29005

GDH303

 1
42607D - VALVE, TIRE PRESSURE MONITOR
90942-05044

GDH303

 4
42607E - VALVE, TIRE PRESSURE MONITOR (FOR SPARE)
90942-05044

GDH303

 1
42611U - CAP, TIRE VALVE
90942-05039

GDH303

 4
42611W - CAP, TIRE VALVE (FOR SPARE)
90942-05039

GDH303

 1

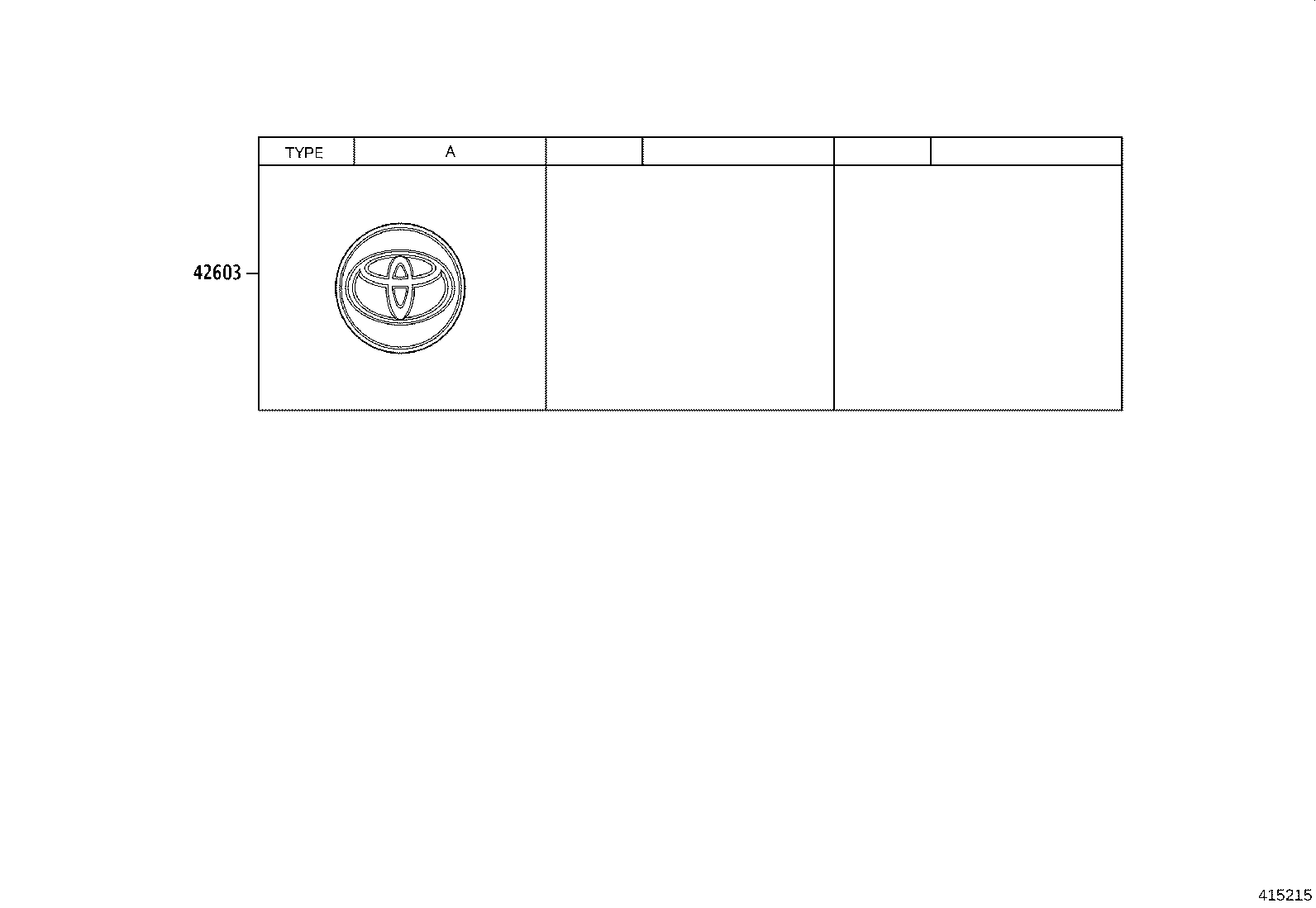

ILLUST NO. 2 OF 2(1912- )

Click highlighted areas on diagram

diagram 42603
Part # Description Qty Price
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-42130

GDH303

*ALU,TYPE A:ｲﾗｽﾄ参照

 4

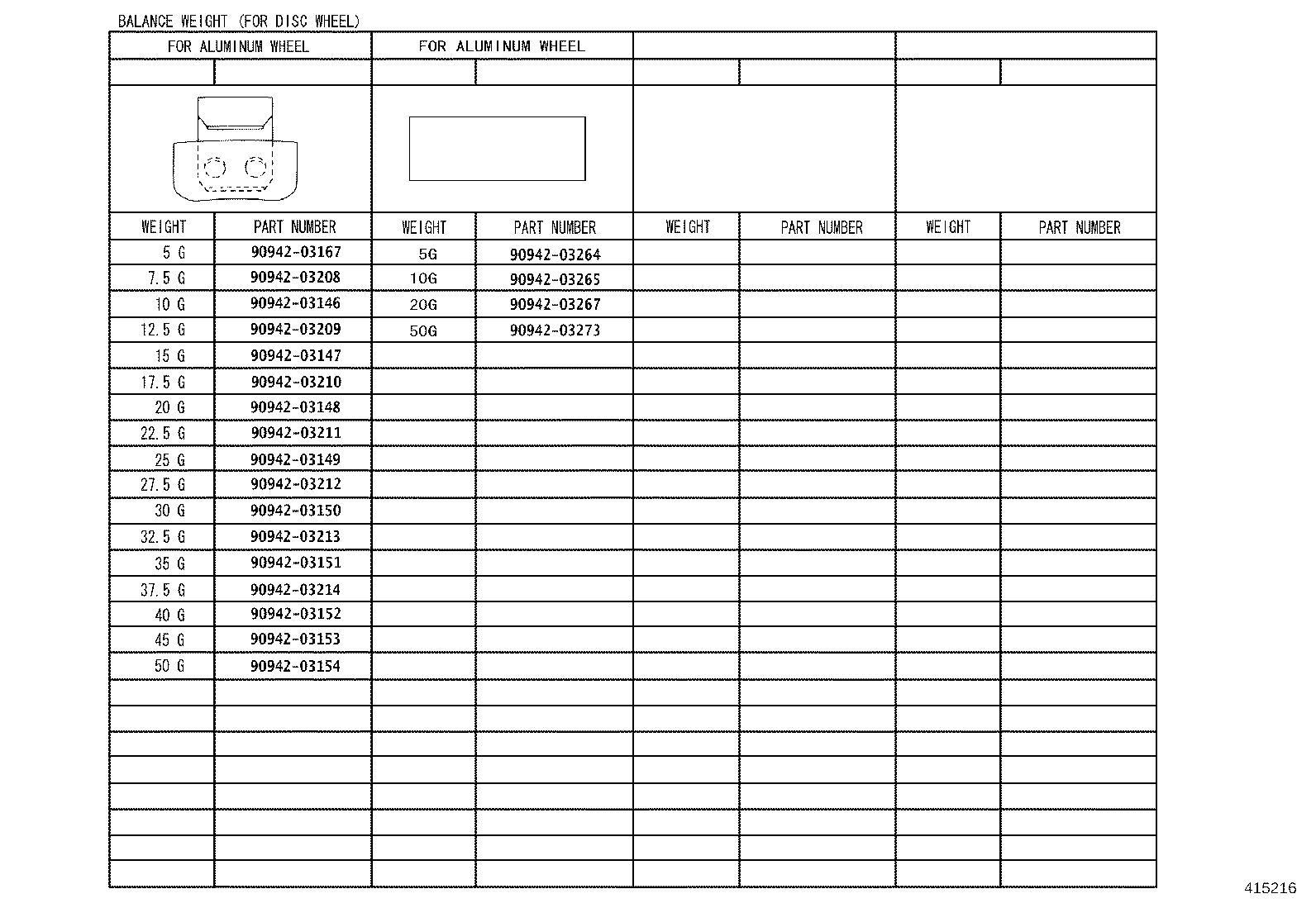

ILLUST NO. 3 OF 3(1912- )

Click highlighted areas on diagram

diagram 9094203146 9094203147 9094203148 9094203149 9094203150 9094203151 9094203152 9094203153 9094203154 9094203167 9094203208 9094203209 9094203210 9094203211 9094203212 9094203213 9094203214 9094203264 9094203265 9094203267 9094203273
Part # Description Qty Price
Common parts
90942-03146
90942-03147
90942-03148
90942-03149
90942-03150
90942-03151
90942-03152
90942-03153
90942-03154
90942-03167
90942-03208
90942-03209
90942-03210
90942-03211
90942-03212
90942-03213
90942-03214
90942-03264
90942-03265
90942-03267
90942-03273
