GDH303W-RDTGY (2019)
Toyota Granace
Production
Dec 2019
-
Sep 9999
Engine
1GDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1912- )

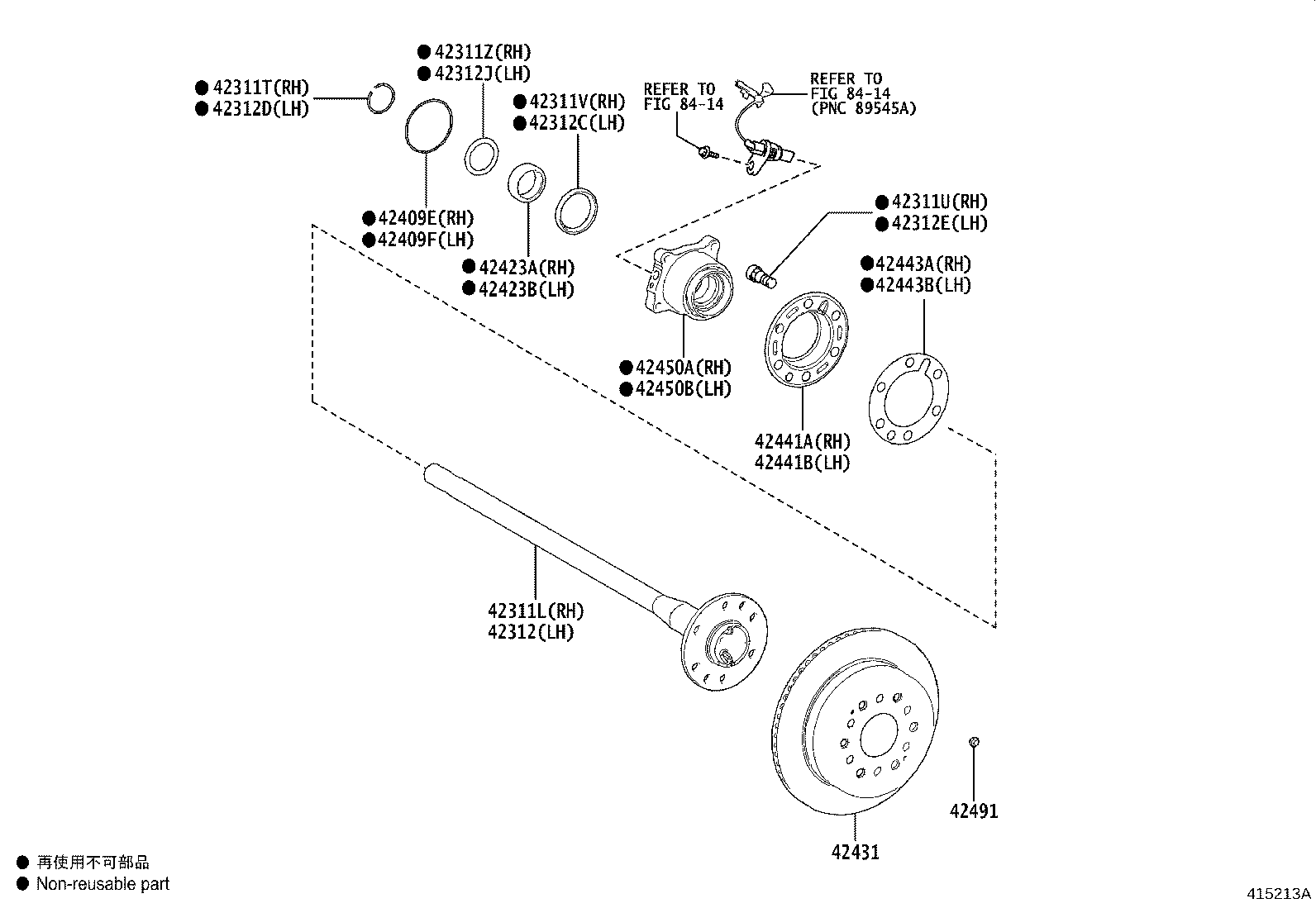

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311L - SHAFT, REAR AXLE, RH | ||||
| 42311-26330 |
GDH303 |
1 | ||
| 42311T - RING, SNAP (FOR REAR AXLE SHAFT RH) | ||||
| 90520-46014 |
GDH303 |
1 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02083 |
GDH303 |
6 | ||
| 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) | ||||
| 90310-63001 |
GDH303 |
1 | ||
| 42311Z - WASHER(FOR REAR AXLE SHAFT RH) | ||||
| 90208-49001 |
GDH303 |
1 | ||
| 42312 - SHAFT, REAR AXLE, LH | ||||
| 42311-26330 |
GDH303 |
1 | ||
| 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) | ||||
| 90310-63001 |
GDH303 |
1 | ||
| 42312D - RING, SNAP (FOR REAR AXLE SHAFT LH) | ||||
| 90520-46014 |
GDH303 |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02083 |
GDH303 |
6 | ||
| 42312J - WASHER (FOR REAR AXLE SHAFT LH) | ||||
| 90208-49001 |
GDH303 |
1 | ||
| 42409E - RING, O (FOR REAR AXLE BEARING RH) | ||||
| 90301-88004 |
GDH303 |
1 | ||
| 42409F - RING, O (FOR REAR AXLE BEARING LH) | ||||
| 90301-88004 |
GDH303 |
1 | ||
| 42423A - RETAINER, REAR AXLE BEARING, INNER RH | ||||
| 42423-34040 |
GDH303 |
1 | ||
| 42423B - RETAINER, REAR AXLE BEARING, INNER LH | ||||
| 42423-34040 |
GDH303 |
1 | ||
| 42431 - DISC, REAR | ||||
| 42431-26220 |
GDH303 |
2 | ||
| 42441A - DEFLECTOR, BRAKE DRUM OIL RH | ||||
| 42441-26020 |
GDH303 |
1 | ||
| 42441B - DEFLECTOR, BRAKE DRUM OIL LH | ||||
| 42441-26020 |
GDH303 |
1 | ||
| 42443A - GASKET, BRAKE DRUM OIL DEFLECTOR, RH | ||||
| 42443-26010 |
GDH303 |
1 | ||
| 42443B - GASKET, BRAKE DRUM OIL DEFLECTOR, LH | ||||
| 42443-26010 |
GDH303 |
1 | ||
| 42450A - HUB & BEARING ASSY, REAR AXLE, RH | ||||
| 42450-26010 |
GDH303 |
1 | ||
| 42450B - HUB & BEARING ASSY, REAR AXLE, LH | ||||
| 42460-26010 |
GDH303 |
1 | ||
| 42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE) | ||||
| 47491-26570 |
GDH303 |
2 | ||
| Linked diagrams | ||||
| 8414 | ||||
