GDH303W-RDTGY (2019)
Toyota Granace

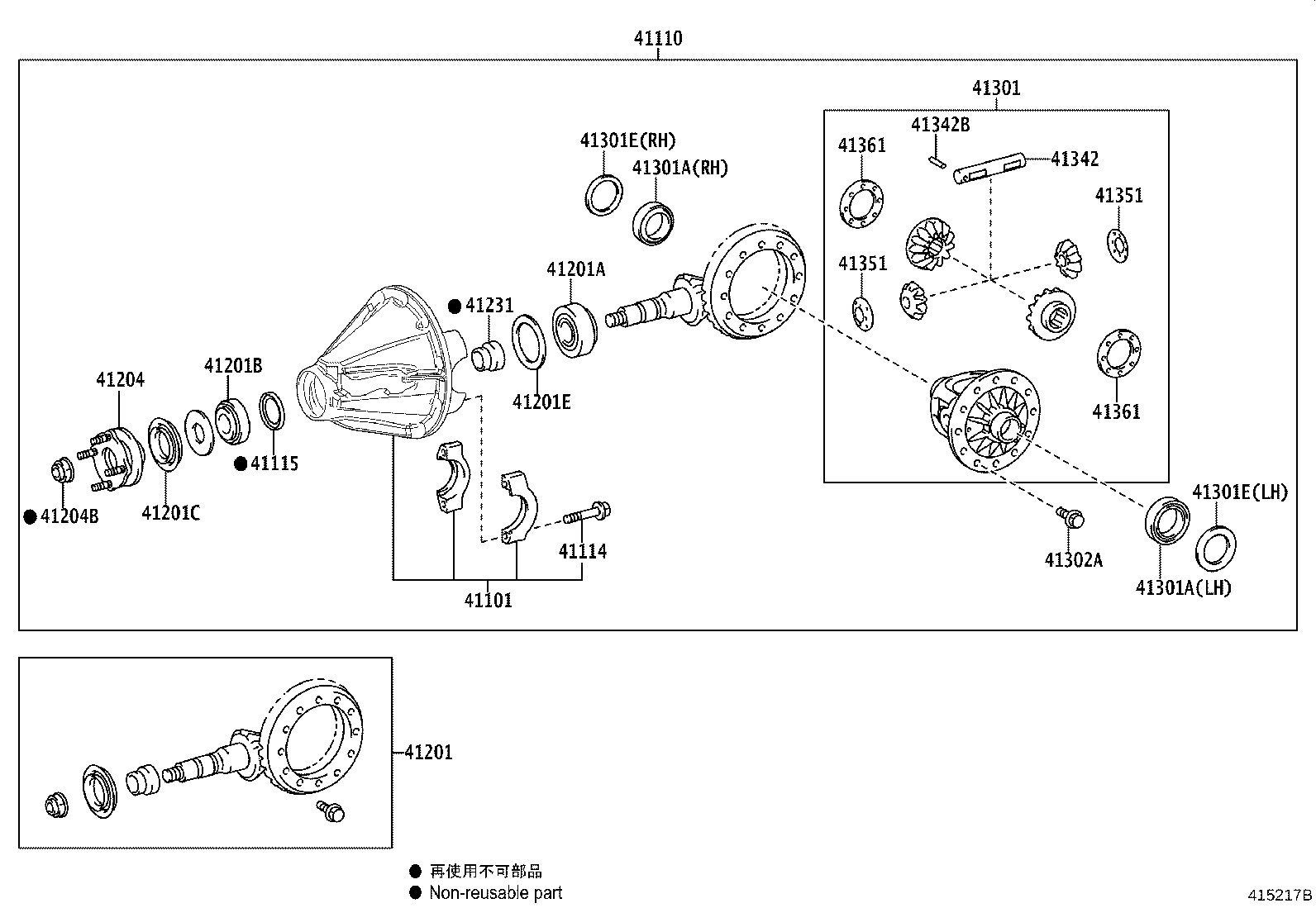

ILLUST NO. 1 OF 2(1912- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-26030 |
GDH303 |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-26820 |
GDH303 *FGR=41:11=3.727 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 41114-60010 |
GDH303 |
4 | ||
| 41115 - RING, DIFFERENTIAL OIL STORAGE | ||||
| 41115-26020 |
GDH303 |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-80A12 |
GDH303 *FGR=41:11=3.727 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-45059 |
GDH303 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-35188 |
GDH303 |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-46010 |
GDH303 |
1 | ||
| 41201E - SHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST) | ||||
| 90564-78001 |
GDH303 厚さ=1.72 |
1 | ||
| 90564-78007 |
GDH303 厚さ=1.84 |
1 | ||
| 90564-78004 |
GDH303 厚さ=1.78 |
1 | ||
| 90564-78008 |
GDH303 厚さ=1.86 |
1 | ||
| 90564-78005 |
GDH303 厚さ=1.80 |
1 | ||
| 90564-78002 |
GDH303 厚さ=1.74 |
1 | ||
| 90564-78014 |
GDH303 厚さ=1.98 |
1 | ||
| 90564-78018 |
GDH303 厚さ=2.06 |
1 | ||
| 90564-78010 |
GDH303 厚さ=1.90 |
1 | ||
| 90564-78011 |
GDH303 厚さ=1.92 |
1 | ||
| 90564-78006 |
GDH303 厚さ=1.82 |
1 | ||
| 90564-78016 |
GDH303 厚さ=2.02 |
1 | ||
| 90564-78020 |
GDH303 厚さ=2.10 |
1 | ||
| 90564-78022 |
GDH303 厚さ=2.14 |
1 | ||
| 90564-78013 |
GDH303 厚さ=1.96 |
1 | ||
| 90564-78021 |
GDH303 厚さ=2.12 |
1 | ||
| 90564-78019 |
GDH303 厚さ=2.08 |
1 | ||
| 90564-78012 |
GDH303 厚さ=1.94 |
1 | ||
| 90564-78015 |
GDH303 厚さ=2.00 |
1 | ||
| 90564-78024 |
GDH303 厚さ=2.18 |
1 | ||
| 90564-78009 |
GDH303 厚さ=1.88 |
1 | ||
| 90564-78017 |
GDH303 厚さ=2.04 |
1 | ||
| 90564-78003 |
GDH303 厚さ=1.76 |
1 | ||
| 90564-78023 |
GDH303 厚さ=2.16 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-26020 |
GDH303 |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-22029 |
GDH303 外径=43 |
1 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-26010 |
GDH303 |
1 | ||
| 41301 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-26020 |
GDH303 |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-50166 |
GDH303 右側 |
1 | ||
| 90366-50130 |
GDH303 左側 |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-50166 |
GDH303 右側 |
1 | ||
| 90366-50130 |
GDH303 左側 |
1 | ||
| 41301E - SHIM(FOR DIFFERENTIAL CASE) | ||||
| 90564-59044 |
GDH303 厚さ=2.08,左側 |
1 | ||
| 90564-59048 |
GDH303 厚さ=2.16,左側 |
1 | ||
| 90564-59049 |
GDH303 厚さ=2.18,左側 |
1 | ||
| 90564-59045 |
GDH303 厚さ=2.10,左側 |
1 | ||
| 90564-59047 |
GDH303 厚さ=2.14,左側 |
1 | ||
| 90564-59054 |
GDH303 厚さ=2.28,左側 |
1 | ||
| 90564-59050 |
GDH303 厚さ=2.20,左側 |
1 | ||
| 90564-59052 |
GDH303 厚さ=2.24,左側 |
1 | ||
| 90564-59046 |
GDH303 厚さ=2.12,左側 |
1 | ||
| 90564-59060 |
GDH303 厚さ=2.40,左側 |
1 | ||
| 90564-59051 |
GDH303 厚さ=2.22,左側 |
1 | ||
| 90564-59055 |
GDH303 厚さ=2.30,左側 |
1 | ||
| 90564-59059 |
GDH303 厚さ=2.38,左側 |
1 | ||
| 90564-59062 |
GDH303 厚さ=2.44,左側 |
1 | ||
| 90564-59067 |
GDH303 厚さ=2.54,左側 |
1 | ||
| 90564-59058 |
GDH303 厚さ=2.36,左側 |
1 | ||
| 90564-59053 |
GDH303 厚さ=2.26,左側 |
1 | ||
| 90564-59073 |
GDH303 厚さ=2.66,左側 |
1 | ||
| 90564-59066 |
GDH303 厚さ=2.52,左側 |
1 | ||
| 90564-59061 |
GDH303 厚さ=2.42,左側 |
1 | ||
| 90564-59057 |
GDH303 厚さ=2.34,左側 |
1 | ||
| 90564-59063 |
GDH303 厚さ=2.46,左側 |
1 | ||
| 90564-59069 |
GDH303 厚さ=2.58,左側 |
1 | ||
| 90564-59065 |
GDH303 厚さ=2.50,左側 |
1 | ||
| 90564-59056 |
GDH303 厚さ=2.32,左側 |
1 | ||
| 90564-59071 |
GDH303 厚さ=2.62,左側 |
1 | ||
| 90564-59070 |
GDH303 厚さ=2.60,左側 |
1 | ||
| 90564-59064 |
GDH303 厚さ=2.48,左側 |
1 | ||
| 90564-59068 |
GDH303 厚さ=2.56,左側 |
1 | ||
| 90564-59155 |
GDH303 厚さ=2.14,右側 |
1 | ||
| 90564-59163 |
GDH303 厚さ=2.30,右側 |
1 | ||
| 90564-59072 |
GDH303 厚さ=2.64,左側 |
1 | ||
| 90564-59153 |
GDH303 厚さ=2.10,右側 |
1 | ||
| 90564-59156 |
GDH303 厚さ=2.16,右側 |
1 | ||
| 90564-59159 |
GDH303 厚さ=2.22,右側 |
1 | ||
| 90564-59154 |
GDH303 厚さ=2.12,右側 |
1 | ||
| 90564-59158 |
GDH303 厚さ=2.20,右側 |
1 | ||
| 90564-59161 |
GDH303 厚さ=2.26,右側 |
1 | ||
| 90564-59074 |
GDH303 厚さ=2.68,左側 |
1 | ||
| 90564-59152 |
GDH303 厚さ=2.08,右側 |
1 | ||
| 90564-59168 |
GDH303 厚さ=2.40,右側 |
1 | ||
| 90564-59171 |
GDH303 厚さ=2.46,右側 |
1 | ||
| 90564-59166 |
GDH303 厚さ=2.36,右側 |
1 | ||
| 90564-59165 |
GDH303 厚さ=2.34,右側 |
1 | ||
| 90564-59157 |
GDH303 厚さ=2.18,右側 |
1 | ||
| 90564-59162 |
GDH303 厚さ=2.28,右側 |
1 | ||
| 90564-59151 |
GDH303 厚さ=2.06,右側 |
1 | ||
| 90564-59164 |
GDH303 厚さ=2.32,右側 |
1 | ||
| 90564-59160 |
GDH303 厚さ=2.24,右側 |
1 | ||
| 90564-59172 |
GDH303 厚さ=2.48,右側 |
1 | ||
| 90564-59173 |
GDH303 厚さ=2.50,右側 |
1 | ||
| 90564-59177 |
GDH303 厚さ=2.58,右側 |
1 | ||
| 90564-59167 |
GDH303 厚さ=2.38,右側 |
1 | ||
| 90564-59170 |
GDH303 厚さ=2.44,右側 |
1 | ||
| 90564-59175 |
GDH303 厚さ=2.54,右側 |
1 | ||
| 90564-59176 |
GDH303 厚さ=2.56,右側 |
1 | ||
| 90564-59169 |
GDH303 厚さ=2.42,右側 |
1 | ||
| 90564-59181 |
GDH303 厚さ=2.66,右側 |
1 | ||
| 90564-59174 |
GDH303 厚さ=2.52,右側 |
1 | ||
| 90564-59178 |
GDH303 厚さ=2.60,右側 |
1 | ||
| 90564-59182 |
GDH303 厚さ=2.68,右側 |
1 | ||
| 90564-59179 |
GDH303 厚さ=2.62,右側 |
1 | ||
| 90564-59180 |
GDH303 厚さ=2.64,右側 |
1 | ||
| 41301E - SHIM(FOR DIFFERENTIAL CASE) | ||||
| 90564-59044 |
GDH303 厚さ=2.08,左側 |
1 | ||
| 90564-59048 |
GDH303 厚さ=2.16,左側 |
1 | ||
| 90564-59049 |
GDH303 厚さ=2.18,左側 |
1 | ||
| 90564-59045 |
GDH303 厚さ=2.10,左側 |
1 | ||
| 90564-59047 |
GDH303 厚さ=2.14,左側 |
1 | ||
| 90564-59054 |
GDH303 厚さ=2.28,左側 |
1 | ||
| 90564-59050 |
GDH303 厚さ=2.20,左側 |
1 | ||
| 90564-59052 |
GDH303 厚さ=2.24,左側 |
1 | ||
| 90564-59046 |
GDH303 厚さ=2.12,左側 |
1 | ||
| 90564-59060 |
GDH303 厚さ=2.40,左側 |
1 | ||
| 90564-59051 |
GDH303 厚さ=2.22,左側 |
1 | ||
| 90564-59055 |
GDH303 厚さ=2.30,左側 |
1 | ||
| 90564-59059 |
GDH303 厚さ=2.38,左側 |
1 | ||
| 90564-59062 |
GDH303 厚さ=2.44,左側 |
1 | ||
| 90564-59067 |
GDH303 厚さ=2.54,左側 |
1 | ||
| 90564-59058 |
GDH303 厚さ=2.36,左側 |
1 | ||
| 90564-59053 |
GDH303 厚さ=2.26,左側 |
1 | ||
| 90564-59073 |
GDH303 厚さ=2.66,左側 |
1 | ||
| 90564-59066 |
GDH303 厚さ=2.52,左側 |
1 | ||
| 90564-59061 |
GDH303 厚さ=2.42,左側 |
1 | ||
| 90564-59057 |
GDH303 厚さ=2.34,左側 |
1 | ||
| 90564-59063 |
GDH303 厚さ=2.46,左側 |
1 | ||
| 90564-59069 |
GDH303 厚さ=2.58,左側 |
1 | ||
| 90564-59065 |
GDH303 厚さ=2.50,左側 |
1 | ||
| 90564-59056 |
GDH303 厚さ=2.32,左側 |
1 | ||
| 90564-59071 |
GDH303 厚さ=2.62,左側 |
1 | ||
| 90564-59070 |
GDH303 厚さ=2.60,左側 |
1 | ||
| 90564-59064 |
GDH303 厚さ=2.48,左側 |
1 | ||
| 90564-59068 |
GDH303 厚さ=2.56,左側 |
1 | ||
| 90564-59155 |
GDH303 厚さ=2.14,右側 |
1 | ||
| 90564-59163 |
GDH303 厚さ=2.30,右側 |
1 | ||
| 90564-59072 |
GDH303 厚さ=2.64,左側 |
1 | ||
| 90564-59153 |
GDH303 厚さ=2.10,右側 |
1 | ||
| 90564-59156 |
GDH303 厚さ=2.16,右側 |
1 | ||
| 90564-59159 |
GDH303 厚さ=2.22,右側 |
1 | ||
| 90564-59154 |
GDH303 厚さ=2.12,右側 |
1 | ||
| 90564-59158 |
GDH303 厚さ=2.20,右側 |
1 | ||
| 90564-59161 |
GDH303 厚さ=2.26,右側 |
1 | ||
| 90564-59074 |
GDH303 厚さ=2.68,左側 |
1 | ||
| 90564-59152 |
GDH303 厚さ=2.08,右側 |
1 | ||
| 90564-59168 |
GDH303 厚さ=2.40,右側 |
1 | ||
| 90564-59171 |
GDH303 厚さ=2.46,右側 |
1 | ||
| 90564-59166 |
GDH303 厚さ=2.36,右側 |
1 | ||
| 90564-59165 |
GDH303 厚さ=2.34,右側 |
1 | ||
| 90564-59157 |
GDH303 厚さ=2.18,右側 |
1 | ||
| 90564-59162 |
GDH303 厚さ=2.28,右側 |
1 | ||
| 90564-59151 |
GDH303 厚さ=2.06,右側 |
1 | ||
| 90564-59164 |
GDH303 厚さ=2.32,右側 |
1 | ||
| 90564-59160 |
GDH303 厚さ=2.24,右側 |
1 | ||
| 90564-59172 |
GDH303 厚さ=2.48,右側 |
1 | ||
| 90564-59173 |
GDH303 厚さ=2.50,右側 |
1 | ||
| 90564-59177 |
GDH303 厚さ=2.58,右側 |
1 | ||
| 90564-59167 |
GDH303 厚さ=2.38,右側 |
1 | ||
| 90564-59170 |
GDH303 厚さ=2.44,右側 |
1 | ||
| 90564-59175 |
GDH303 厚さ=2.54,右側 |
1 | ||
| 90564-59176 |
GDH303 厚さ=2.56,右側 |
1 | ||
| 90564-59169 |
GDH303 厚さ=2.42,右側 |
1 | ||
| 90564-59181 |
GDH303 厚さ=2.66,右側 |
1 | ||
| 90564-59174 |
GDH303 厚さ=2.52,右側 |
1 | ||
| 90564-59178 |
GDH303 厚さ=2.60,右側 |
1 | ||
| 90564-59182 |
GDH303 厚さ=2.68,右側 |
1 | ||
| 90564-59179 |
GDH303 厚さ=2.62,右側 |
1 | ||
| 90564-59180 |
GDH303 厚さ=2.64,右側 |
1 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90105-12365 |
GDH303 |
12 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-26010 |
GDH303 |
1 | ||
| 41342B - PIN, STRAIGHT (FOR REAR DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06058 |
GDH303 |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-26010 |
GDH303 |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-26010 |
GDH303 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-26060 |
GDH303 厚さ=1.70 |
2 | ||
| 41361-26020 |
GDH303 厚さ=1.50 |
2 | ||
| 41361-26070 |
GDH303 厚さ=1.75 |
2 | ||
| 41361-26040 |
GDH303 厚さ=1.60 |
2 | ||
| 41361-26030 |
GDH303 厚さ=1.55 |
2 | ||
| 41361-26090 |
GDH303 厚さ=1.85 |
2 | ||
| 41361-26080 |
GDH303 厚さ=1.80 |
2 | ||
| 41361-26050 |
GDH303 厚さ=1.65 |
2 | ||
| 41361-26010 |
GDH303 厚さ=1.45 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-26060 |
GDH303 厚さ=1.70 |
2 | ||
| 41361-26020 |
GDH303 厚さ=1.50 |
2 | ||
| 41361-26070 |
GDH303 厚さ=1.75 |
2 | ||
| 41361-26040 |
GDH303 厚さ=1.60 |
2 | ||
| 41361-26030 |
GDH303 厚さ=1.55 |
2 | ||
| 41361-26090 |
GDH303 厚さ=1.85 |
2 | ||
| 41361-26080 |
GDH303 厚さ=1.80 |
2 | ||
| 41361-26050 |
GDH303 厚さ=1.65 |
2 | ||
| 41361-26010 |
GDH303 厚さ=1.45 |
2 | ||

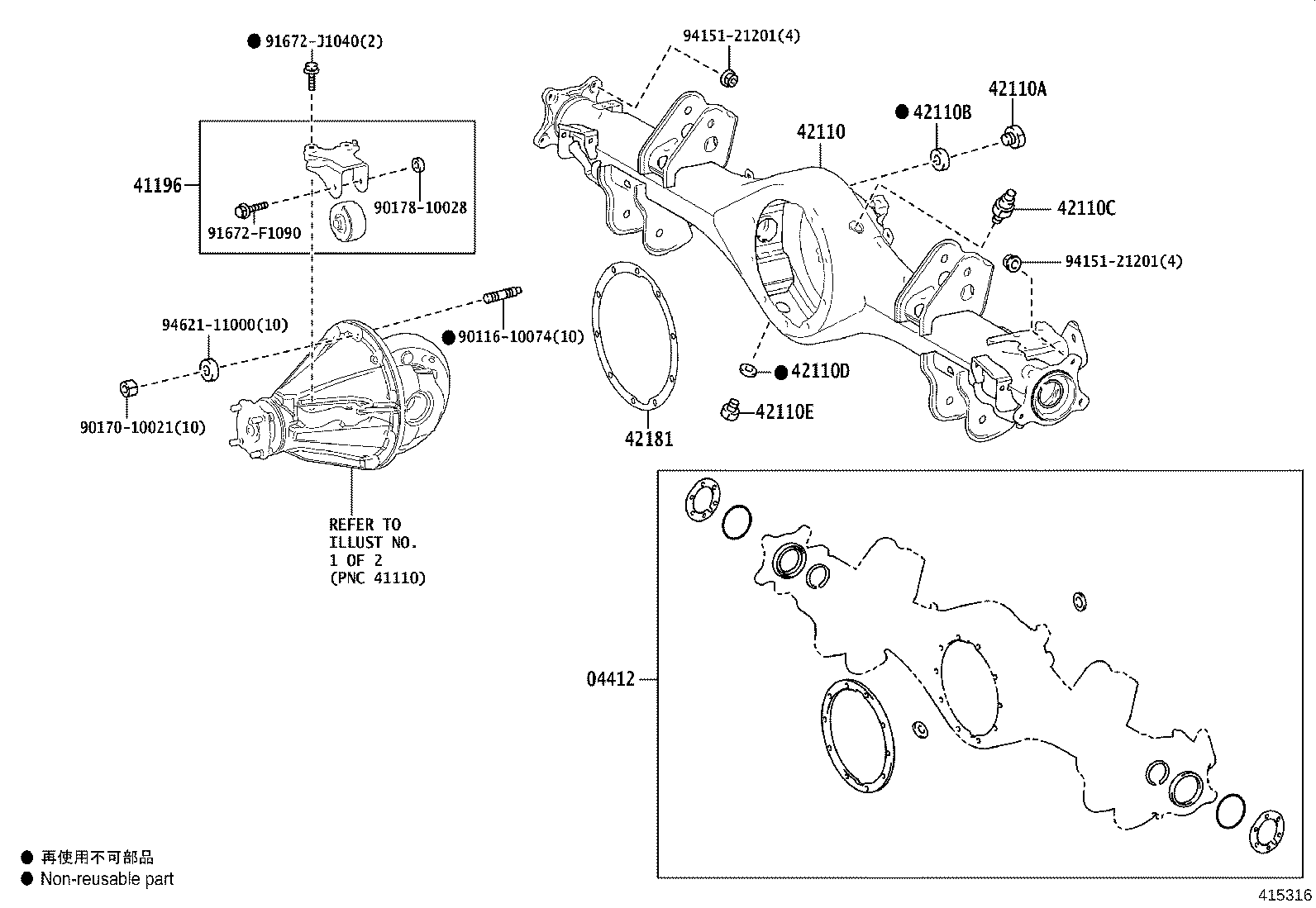

ILLUST NO. 2 OF 2(1912- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER | ||||
| 04412-26280 |
GDH303 |
1 | ||
| 41196 - DAMPER, REAR DIFFERENTIAL DYNAMIC | ||||
| 41196-26100 |
GDH303 |
1 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42120-26180 |
GDH303 |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18006 |
GDH303 |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
GDH303 |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03031 |
GDH303 |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
GDH303 |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
GDH303 |
1 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-26010 |
GDH303 |
1 | ||
| Common parts | ||||
| 90116-10074 | ||||
| 90170-10021 | ||||
| 90178-10028 | ||||
| 91672-F1090 | ||||
| 91672-J1040 | ||||
| 94151-21201 | ||||
| 94621-11000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
