GDH303W-RDTGY (2019)
Toyota Granace
(1912- )

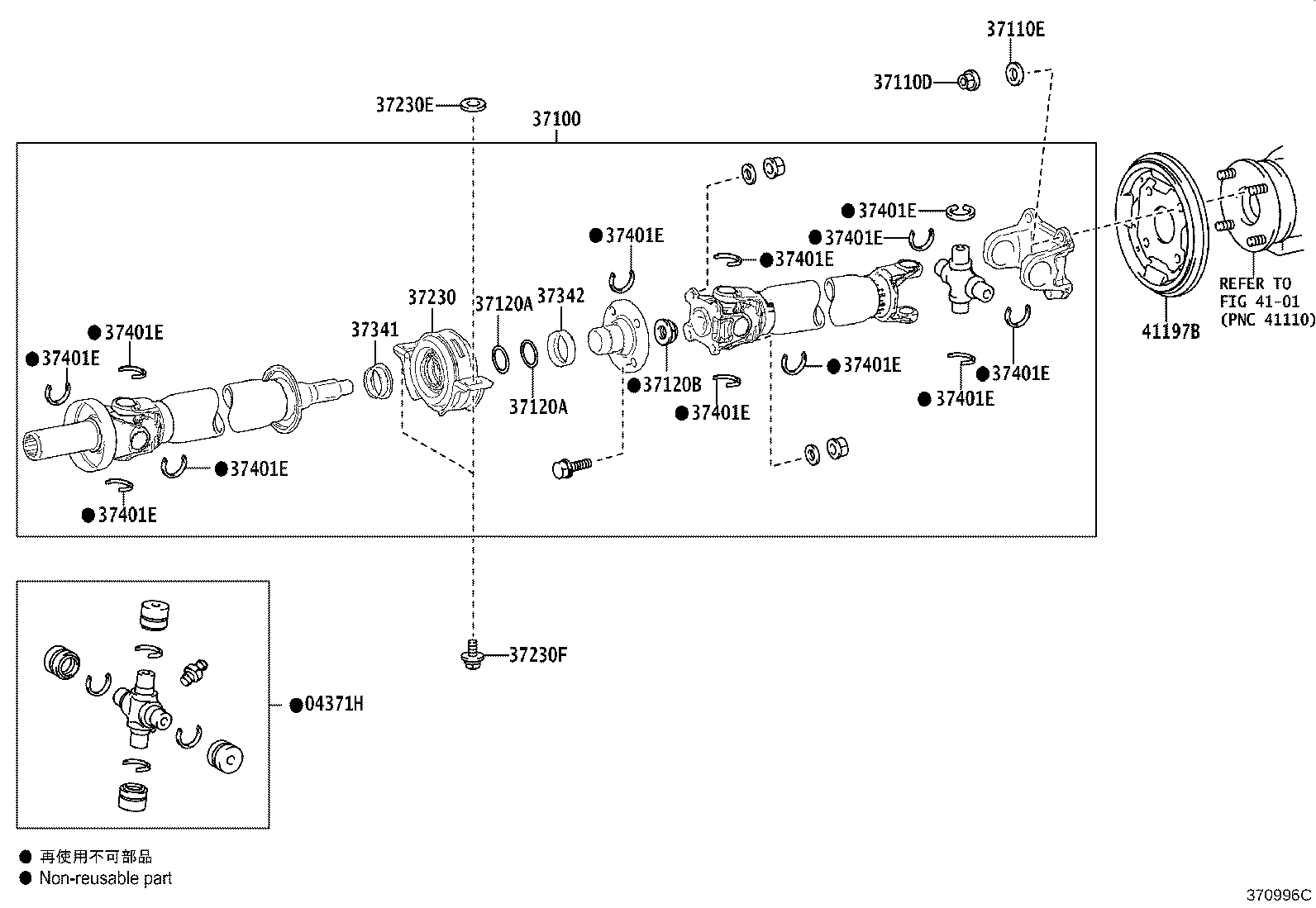

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-26011 |
GDH303 |
3 | ||
| 04371-26010 |
GDH303 |
3 | ||
| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-26630 |
GDH303 |
1 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90178-11001 |
GDH303 |
4 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90201-11013 |
GDH303 |
4 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90560-31004 |
GDH303 厚さ=0.8 |
2 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90560-31004 |
GDH303 厚さ=0.8 |
2 | ||
| 37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING) | ||||
| 90179-22016 |
GDH303 |
1 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-26040 |
GDH303 |
1 | ||
| 37230E - WASHER, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90201-10033 |
GDH303 |
2 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90119-10902 |
GDH303 長さ=33 |
2 | ||
| 37341 - DEFLECTOR, PROPELLER SHAFT DUST, NO.1 | ||||
| 37341-26010 |
GDH303 |
1 | ||
| 37342 - DEFLECTOR, PROPELLER SHAFT DUST, NO.2 | ||||
| 37342-26010 |
GDH303 |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-29039 |
GDH303 厚さ=1.99,ﾏｰｸ 1 |
8 | ||
| 90520-29024 |
GDH303 厚さ=2.00,ﾉｰﾏｰｸ |
8 | ||
| 90520-29042 |
GDH303 厚さ=2.05,ﾏｰｸ 4 |
8 | ||
| 90520-29026 |
GDH303 厚さ=2.06,ﾌﾞﾙｰ |
8 | ||
| 90520-29027 |
GDH303 厚さ=2.09,ﾉｰﾏｰｸ |
8 | ||
| 90520-29041 |
GDH303 厚さ=2.03,ﾏｰｸ 3 |
8 | ||
| 90520-29048 |
GDH303 厚さ=2.17,ﾏｰｸ 10 |
8 | ||
| 90520-29025 |
GDH303 厚さ=2.03,ﾌﾞﾗｳﾝ |
8 | ||
| 90520-29045 |
GDH303 厚さ=2.11,ﾏｰｸ 7 |
8 | ||
| 90520-29043 |
GDH303 厚さ=2.07,ﾏｰｸ 5 |
8 | ||
| 90520-29046 |
GDH303 厚さ=2.13,ﾏｰｸ 8 |
8 | ||
| 90520-29044 |
GDH303 厚さ=2.09,ﾏｰｸ 6 |
8 | ||
| 90520-29040 |
GDH303 厚さ=2.01,ﾏｰｸ 2 |
8 | ||
| 90520-29047 |
GDH303 厚さ=2.15,ﾏｰｸ 9 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-29039 |
GDH303 厚さ=1.99,ﾏｰｸ 1 |
8 | ||
| 90520-29024 |
GDH303 厚さ=2.00,ﾉｰﾏｰｸ |
8 | ||
| 90520-29042 |
GDH303 厚さ=2.05,ﾏｰｸ 4 |
8 | ||
| 90520-29026 |
GDH303 厚さ=2.06,ﾌﾞﾙｰ |
8 | ||
| 90520-29027 |
GDH303 厚さ=2.09,ﾉｰﾏｰｸ |
8 | ||
| 90520-29041 |
GDH303 厚さ=2.03,ﾏｰｸ 3 |
8 | ||
| 90520-29048 |
GDH303 厚さ=2.17,ﾏｰｸ 10 |
8 | ||
| 90520-29025 |
GDH303 厚さ=2.03,ﾌﾞﾗｳﾝ |
8 | ||
| 90520-29045 |
GDH303 厚さ=2.11,ﾏｰｸ 7 |
8 | ||
| 90520-29043 |
GDH303 厚さ=2.07,ﾏｰｸ 5 |
8 | ||
| 90520-29046 |
GDH303 厚さ=2.13,ﾏｰｸ 8 |
8 | ||
| 90520-29044 |
GDH303 厚さ=2.09,ﾏｰｸ 6 |
8 | ||
| 90520-29040 |
GDH303 厚さ=2.01,ﾏｰｸ 2 |
8 | ||
| 90520-29047 |
GDH303 厚さ=2.15,ﾏｰｸ 9 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-29039 |
GDH303 厚さ=1.99,ﾏｰｸ 1 |
8 | ||
| 90520-29024 |
GDH303 厚さ=2.00,ﾉｰﾏｰｸ |
8 | ||
| 90520-29042 |
GDH303 厚さ=2.05,ﾏｰｸ 4 |
8 | ||
| 90520-29026 |
GDH303 厚さ=2.06,ﾌﾞﾙｰ |
8 | ||
| 90520-29027 |
GDH303 厚さ=2.09,ﾉｰﾏｰｸ |
8 | ||
| 90520-29041 |
GDH303 厚さ=2.03,ﾏｰｸ 3 |
8 | ||
| 90520-29048 |
GDH303 厚さ=2.17,ﾏｰｸ 10 |
8 | ||
| 90520-29025 |
GDH303 厚さ=2.03,ﾌﾞﾗｳﾝ |
8 | ||
| 90520-29045 |
GDH303 厚さ=2.11,ﾏｰｸ 7 |
8 | ||
| 90520-29043 |
GDH303 厚さ=2.07,ﾏｰｸ 5 |
8 | ||
| 90520-29046 |
GDH303 厚さ=2.13,ﾏｰｸ 8 |
8 | ||
| 90520-29044 |
GDH303 厚さ=2.09,ﾏｰｸ 6 |
8 | ||
| 90520-29040 |
GDH303 厚さ=2.01,ﾏｰｸ 2 |
8 | ||
| 90520-29047 |
GDH303 厚さ=2.15,ﾏｰｸ 9 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-29039 |
GDH303 厚さ=1.99,ﾏｰｸ 1 |
8 | ||
| 90520-29024 |
GDH303 厚さ=2.00,ﾉｰﾏｰｸ |
8 | ||
| 90520-29042 |
GDH303 厚さ=2.05,ﾏｰｸ 4 |
8 | ||
| 90520-29026 |
GDH303 厚さ=2.06,ﾌﾞﾙｰ |
8 | ||
| 90520-29027 |
GDH303 厚さ=2.09,ﾉｰﾏｰｸ |
8 | ||
| 90520-29041 |
GDH303 厚さ=2.03,ﾏｰｸ 3 |
8 | ||
| 90520-29048 |
GDH303 厚さ=2.17,ﾏｰｸ 10 |
8 | ||
| 90520-29025 |
GDH303 厚さ=2.03,ﾌﾞﾗｳﾝ |
8 | ||
| 90520-29045 |
GDH303 厚さ=2.11,ﾏｰｸ 7 |
8 | ||
| 90520-29043 |
GDH303 厚さ=2.07,ﾏｰｸ 5 |
8 | ||
| 90520-29046 |
GDH303 厚さ=2.13,ﾏｰｸ 8 |
8 | ||
| 90520-29044 |
GDH303 厚さ=2.09,ﾏｰｸ 6 |
8 | ||
| 90520-29040 |
GDH303 厚さ=2.01,ﾏｰｸ 2 |
8 | ||
| 90520-29047 |
GDH303 厚さ=2.15,ﾏｰｸ 9 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-29039 |
GDH303 厚さ=1.99,ﾏｰｸ 1 |
8 | ||
| 90520-29024 |
GDH303 厚さ=2.00,ﾉｰﾏｰｸ |
8 | ||
| 90520-29042 |
GDH303 厚さ=2.05,ﾏｰｸ 4 |
8 | ||
| 90520-29026 |
GDH303 厚さ=2.06,ﾌﾞﾙｰ |
8 | ||
| 90520-29027 |
GDH303 厚さ=2.09,ﾉｰﾏｰｸ |
8 | ||
| 90520-29041 |
GDH303 厚さ=2.03,ﾏｰｸ 3 |
8 | ||
| 90520-29048 |
GDH303 厚さ=2.17,ﾏｰｸ 10 |
8 | ||
| 90520-29025 |
GDH303 厚さ=2.03,ﾌﾞﾗｳﾝ |
8 | ||
| 90520-29045 |
GDH303 厚さ=2.11,ﾏｰｸ 7 |
8 | ||
| 90520-29043 |
GDH303 厚さ=2.07,ﾏｰｸ 5 |
8 | ||
| 90520-29046 |
GDH303 厚さ=2.13,ﾏｰｸ 8 |
8 | ||
| 90520-29044 |
GDH303 厚さ=2.09,ﾏｰｸ 6 |
8 | ||
| 90520-29040 |
GDH303 厚さ=2.01,ﾏｰｸ 2 |
8 | ||
| 90520-29047 |
GDH303 厚さ=2.15,ﾏｰｸ 9 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-29039 |
GDH303 厚さ=1.99,ﾏｰｸ 1 |
8 | ||
| 90520-29024 |
GDH303 厚さ=2.00,ﾉｰﾏｰｸ |
8 | ||
| 90520-29042 |
GDH303 厚さ=2.05,ﾏｰｸ 4 |
8 | ||
| 90520-29026 |
GDH303 厚さ=2.06,ﾌﾞﾙｰ |
8 | ||
| 90520-29027 |
GDH303 厚さ=2.09,ﾉｰﾏｰｸ |
8 | ||
| 90520-29041 |
GDH303 厚さ=2.03,ﾏｰｸ 3 |
8 | ||
| 90520-29048 |
GDH303 厚さ=2.17,ﾏｰｸ 10 |
8 | ||
| 90520-29025 |
GDH303 厚さ=2.03,ﾌﾞﾗｳﾝ |
8 | ||
| 90520-29045 |
GDH303 厚さ=2.11,ﾏｰｸ 7 |
8 | ||
| 90520-29043 |
GDH303 厚さ=2.07,ﾏｰｸ 5 |
8 | ||
| 90520-29046 |
GDH303 厚さ=2.13,ﾏｰｸ 8 |
8 | ||
| 90520-29044 |
GDH303 厚さ=2.09,ﾏｰｸ 6 |
8 | ||
| 90520-29040 |
GDH303 厚さ=2.01,ﾏｰｸ 2 |
8 | ||
| 90520-29047 |
GDH303 厚さ=2.15,ﾏｰｸ 9 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-29039 |
GDH303 厚さ=1.99,ﾏｰｸ 1 |
8 | ||
| 90520-29024 |
GDH303 厚さ=2.00,ﾉｰﾏｰｸ |
8 | ||
| 90520-29042 |
GDH303 厚さ=2.05,ﾏｰｸ 4 |
8 | ||
| 90520-29026 |
GDH303 厚さ=2.06,ﾌﾞﾙｰ |
8 | ||
| 90520-29027 |
GDH303 厚さ=2.09,ﾉｰﾏｰｸ |
8 | ||
| 90520-29041 |
GDH303 厚さ=2.03,ﾏｰｸ 3 |
8 | ||
| 90520-29048 |
GDH303 厚さ=2.17,ﾏｰｸ 10 |
8 | ||
| 90520-29025 |
GDH303 厚さ=2.03,ﾌﾞﾗｳﾝ |
8 | ||
| 90520-29045 |
GDH303 厚さ=2.11,ﾏｰｸ 7 |
8 | ||
| 90520-29043 |
GDH303 厚さ=2.07,ﾏｰｸ 5 |
8 | ||
| 90520-29046 |
GDH303 厚さ=2.13,ﾏｰｸ 8 |
8 | ||
| 90520-29044 |
GDH303 厚さ=2.09,ﾏｰｸ 6 |
8 | ||
| 90520-29040 |
GDH303 厚さ=2.01,ﾏｰｸ 2 |
8 | ||
| 90520-29047 |
GDH303 厚さ=2.15,ﾏｰｸ 9 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-29039 |
GDH303 厚さ=1.99,ﾏｰｸ 1 |
8 | ||
| 90520-29024 |
GDH303 厚さ=2.00,ﾉｰﾏｰｸ |
8 | ||
| 90520-29042 |
GDH303 厚さ=2.05,ﾏｰｸ 4 |
8 | ||
| 90520-29026 |
GDH303 厚さ=2.06,ﾌﾞﾙｰ |
8 | ||
| 90520-29027 |
GDH303 厚さ=2.09,ﾉｰﾏｰｸ |
8 | ||
| 90520-29041 |
GDH303 厚さ=2.03,ﾏｰｸ 3 |
8 | ||
| 90520-29048 |
GDH303 厚さ=2.17,ﾏｰｸ 10 |
8 | ||
| 90520-29025 |
GDH303 厚さ=2.03,ﾌﾞﾗｳﾝ |
8 | ||
| 90520-29045 |
GDH303 厚さ=2.11,ﾏｰｸ 7 |
8 | ||
| 90520-29043 |
GDH303 厚さ=2.07,ﾏｰｸ 5 |
8 | ||
| 90520-29046 |
GDH303 厚さ=2.13,ﾏｰｸ 8 |
8 | ||
| 90520-29044 |
GDH303 厚さ=2.09,ﾏｰｸ 6 |
8 | ||
| 90520-29040 |
GDH303 厚さ=2.01,ﾏｰｸ 2 |
8 | ||
| 90520-29047 |
GDH303 厚さ=2.15,ﾏｰｸ 9 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-29039 |
GDH303 厚さ=1.99,ﾏｰｸ 1 |
8 | ||
| 90520-29024 |
GDH303 厚さ=2.00,ﾉｰﾏｰｸ |
8 | ||
| 90520-29042 |
GDH303 厚さ=2.05,ﾏｰｸ 4 |
8 | ||
| 90520-29026 |
GDH303 厚さ=2.06,ﾌﾞﾙｰ |
8 | ||
| 90520-29027 |
GDH303 厚さ=2.09,ﾉｰﾏｰｸ |
8 | ||
| 90520-29041 |
GDH303 厚さ=2.03,ﾏｰｸ 3 |
8 | ||
| 90520-29048 |
GDH303 厚さ=2.17,ﾏｰｸ 10 |
8 | ||
| 90520-29025 |
GDH303 厚さ=2.03,ﾌﾞﾗｳﾝ |
8 | ||
| 90520-29045 |
GDH303 厚さ=2.11,ﾏｰｸ 7 |
8 | ||
| 90520-29043 |
GDH303 厚さ=2.07,ﾏｰｸ 5 |
8 | ||
| 90520-29046 |
GDH303 厚さ=2.13,ﾏｰｸ 8 |
8 | ||
| 90520-29044 |
GDH303 厚さ=2.09,ﾏｰｸ 6 |
8 | ||
| 90520-29040 |
GDH303 厚さ=2.01,ﾏｰｸ 2 |
8 | ||
| 90520-29047 |
GDH303 厚さ=2.15,ﾏｰｸ 9 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-29039 |
GDH303 厚さ=1.99,ﾏｰｸ 1 |
8 | ||
| 90520-29024 |
GDH303 厚さ=2.00,ﾉｰﾏｰｸ |
8 | ||
| 90520-29042 |
GDH303 厚さ=2.05,ﾏｰｸ 4 |
8 | ||
| 90520-29026 |
GDH303 厚さ=2.06,ﾌﾞﾙｰ |
8 | ||
| 90520-29027 |
GDH303 厚さ=2.09,ﾉｰﾏｰｸ |
8 | ||
| 90520-29041 |
GDH303 厚さ=2.03,ﾏｰｸ 3 |
8 | ||
| 90520-29048 |
GDH303 厚さ=2.17,ﾏｰｸ 10 |
8 | ||
| 90520-29025 |
GDH303 厚さ=2.03,ﾌﾞﾗｳﾝ |
8 | ||
| 90520-29045 |
GDH303 厚さ=2.11,ﾏｰｸ 7 |
8 | ||
| 90520-29043 |
GDH303 厚さ=2.07,ﾏｰｸ 5 |
8 | ||
| 90520-29046 |
GDH303 厚さ=2.13,ﾏｰｸ 8 |
8 | ||
| 90520-29044 |
GDH303 厚さ=2.09,ﾏｰｸ 6 |
8 | ||
| 90520-29040 |
GDH303 厚さ=2.01,ﾏｰｸ 2 |
8 | ||
| 90520-29047 |
GDH303 厚さ=2.15,ﾏｰｸ 9 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-29039 |
GDH303 厚さ=1.99,ﾏｰｸ 1 |
8 | ||
| 90520-29024 |
GDH303 厚さ=2.00,ﾉｰﾏｰｸ |
8 | ||
| 90520-29042 |
GDH303 厚さ=2.05,ﾏｰｸ 4 |
8 | ||
| 90520-29026 |
GDH303 厚さ=2.06,ﾌﾞﾙｰ |
8 | ||
| 90520-29027 |
GDH303 厚さ=2.09,ﾉｰﾏｰｸ |
8 | ||
| 90520-29041 |
GDH303 厚さ=2.03,ﾏｰｸ 3 |
8 | ||
| 90520-29048 |
GDH303 厚さ=2.17,ﾏｰｸ 10 |
8 | ||
| 90520-29025 |
GDH303 厚さ=2.03,ﾌﾞﾗｳﾝ |
8 | ||
| 90520-29045 |
GDH303 厚さ=2.11,ﾏｰｸ 7 |
8 | ||
| 90520-29043 |
GDH303 厚さ=2.07,ﾏｰｸ 5 |
8 | ||
| 90520-29046 |
GDH303 厚さ=2.13,ﾏｰｸ 8 |
8 | ||
| 90520-29044 |
GDH303 厚さ=2.09,ﾏｰｸ 6 |
8 | ||
| 90520-29040 |
GDH303 厚さ=2.01,ﾏｰｸ 2 |
8 | ||
| 90520-29047 |
GDH303 厚さ=2.15,ﾏｰｸ 9 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-29039 |
GDH303 厚さ=1.99,ﾏｰｸ 1 |
8 | ||
| 90520-29024 |
GDH303 厚さ=2.00,ﾉｰﾏｰｸ |
8 | ||
| 90520-29042 |
GDH303 厚さ=2.05,ﾏｰｸ 4 |
8 | ||
| 90520-29026 |
GDH303 厚さ=2.06,ﾌﾞﾙｰ |
8 | ||
| 90520-29027 |
GDH303 厚さ=2.09,ﾉｰﾏｰｸ |
8 | ||
| 90520-29041 |
GDH303 厚さ=2.03,ﾏｰｸ 3 |
8 | ||
| 90520-29048 |
GDH303 厚さ=2.17,ﾏｰｸ 10 |
8 | ||
| 90520-29025 |
GDH303 厚さ=2.03,ﾌﾞﾗｳﾝ |
8 | ||
| 90520-29045 |
GDH303 厚さ=2.11,ﾏｰｸ 7 |
8 | ||
| 90520-29043 |
GDH303 厚さ=2.07,ﾏｰｸ 5 |
8 | ||
| 90520-29046 |
GDH303 厚さ=2.13,ﾏｰｸ 8 |
8 | ||
| 90520-29044 |
GDH303 厚さ=2.09,ﾏｰｸ 6 |
8 | ||
| 90520-29040 |
GDH303 厚さ=2.01,ﾏｰｸ 2 |
8 | ||
| 90520-29047 |
GDH303 厚さ=2.15,ﾏｰｸ 9 |
8 | ||
| 41197B - DAMPER, DIFFERENTIAL TORSIONAL | ||||
| 41197-26010 |
GDH303 |
1 | ||
| Linked diagrams | ||||
| 4101 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
