GDH303W-RDTGY (2019)
Toyota Granace
Production
Dec 2019
-
Sep 9999
Engine
1GDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1912- )

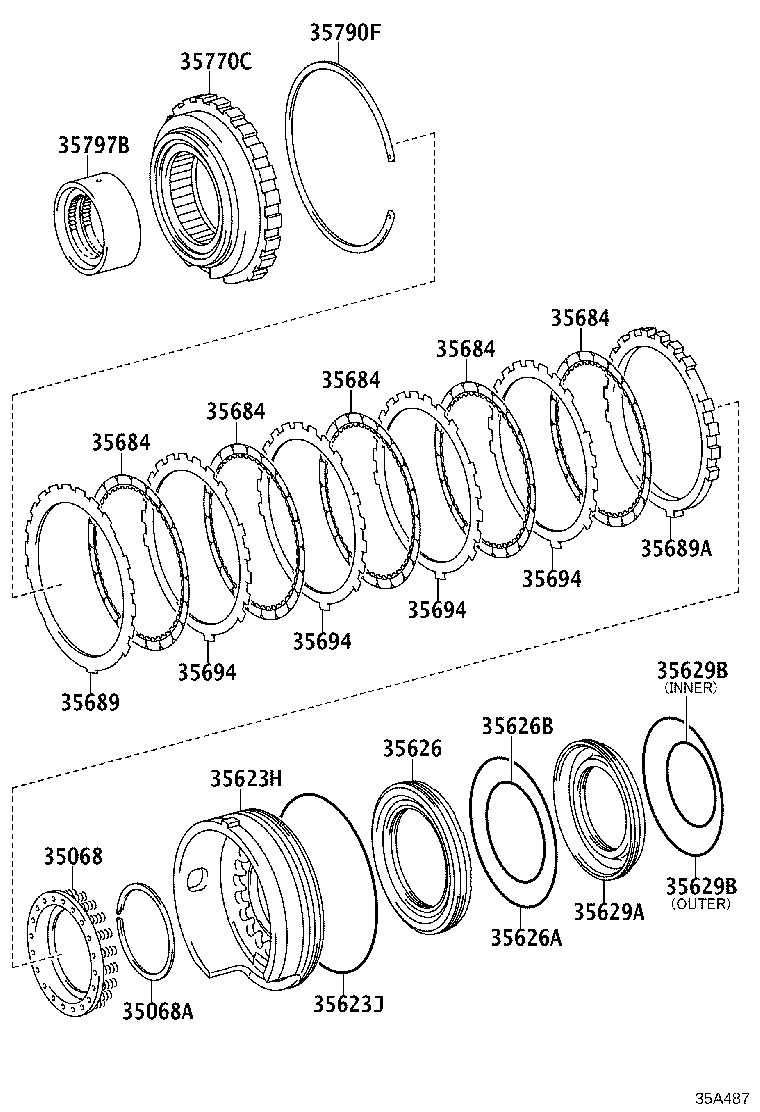

Click highlighted areas on diagram
AC60E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35068 - SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN | ||||
| 35068-60010 |
GDH303 |
1 | ||
| 35068A - RING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING | ||||
| 90520-61001 |
GDH303 |
1 | ||
| 35623H - PISTON, 1ST & REVERSE BRAKE | ||||
| 35623-71010 |
GDH303 |
1 | ||
| 35623J - RING, O (FOR 1ST & REVERSE BRAKE) | ||||
| 90301-99087 |
GDH303 |
1 | ||
| 35626 - SLEEVE, BRAKE REACTION | ||||
| 35626-50010 |
GDH303 |
1 | ||
| 35626A - RING (FOR BRAKE REACTION SLEEVE OUTER) | ||||
| 90301-99144 |
GDH303 |
1 | ||
| 35626B - RING (FOR BRAKE REACTION SLEEVE INNER) | ||||
| 90301-79003 |
GDH303 |
1 | ||
| 35629A - PISTON, BRAKE, NO.4 | ||||
| 35629-50020 |
GDH303 |
1 | ||
| 35629B - RING, O (FOR BRAKE PISTON NO.4) | ||||
| 90301-67006 |
GDH303 内側 |
1 | ||
| 90301-99084 |
GDH303 外側 |
1 | ||
| 35629B - RING, O (FOR BRAKE PISTON NO.4) | ||||
| 90301-67006 |
GDH303 内側 |
1 | ||
| 90301-99084 |
GDH303 外側 |
1 | ||
| 35684 - DISC, BRAKE, NO.4 | ||||
| 35684-60030 |
GDH303 |
7 | ||
| 35684 - DISC, BRAKE, NO.4 | ||||
| 35684-60030 |
GDH303 |
7 | ||
| 35684 - DISC, BRAKE, NO.4 | ||||
| 35684-60030 |
GDH303 |
7 | ||
| 35684 - DISC, BRAKE, NO.4 | ||||
| 35684-60030 |
GDH303 |
7 | ||
| 35684 - DISC, BRAKE, NO.4 | ||||
| 35684-60030 |
GDH303 |
7 | ||
| 35689 - FLANGE, BRAKE, NO.4 | ||||
| 35689-60290 |
GDH303 厚さ=2.11,ﾏｰｸ 3 |
1 | ||
| 35689-60270 |
GDH303 厚さ=1.8,ﾏｰｸ 0 |
1 | ||
| 35689-60320 |
GDH303 厚さ=2.53,ﾏｰｸ 7 |
1 | ||
| 35689-60300 |
GDH303 厚さ=2.25,ﾏｰｸ 4 |
1 | ||
| 35689-60350 |
GDH303 厚さ=2.95,ﾏｰｸ 11 |
1 | ||
| 35689-60330 |
GDH303 厚さ=2.67,ﾏｰｸ 8 |
1 | ||
| 35689-60310 |
GDH303 厚さ=2.39,ﾏｰｸ 5 |
1 | ||
| 35689-60370 |
GDH303 厚さ=3.23,ﾏｰｸ 14 |
1 | ||
| 35689-60280 |
GDH303 厚さ=1.97,ﾏｰｸ 1 |
1 | ||
| 35689-60360 |
GDH303 厚さ=3.09,ﾏｰｸ 12 |
1 | ||
| 35689-60340 |
GDH303 厚さ=2.81,ﾏｰｸ 10 |
1 | ||
| 35689A - FLANGE, BRAKE, NO.4 | ||||
| 35689-71010 |
GDH303 |
1 | ||
| 35694 - PLATE, BRAKE, NO.4 | ||||
| 35694-60011 |
GDH303 |
6 | ||
| 35694 - PLATE, BRAKE, NO.4 | ||||
| 35694-60011 |
GDH303 |
6 | ||
| 35694 - PLATE, BRAKE, NO.4 | ||||
| 35694-60011 |
GDH303 |
6 | ||
| 35694 - PLATE, BRAKE, NO.4 | ||||
| 35694-60011 |
GDH303 |
6 | ||
| 35770C - CLUTCH ASSY, 1WAY NO.3 | ||||
| 35770-60030 |
GDH303 |
1 | ||
| 35790F - RING, HOLE SNAP(FOR 1WAY CLUTCH) | ||||
| 90521-99131 |
GDH303 |
1 | ||
| 35797B - RACE, 1 WAY CLUTCH, INNER | ||||
| 35797-60020 |
GDH303 |
1 | ||
