GDH303W-RDTGY (2019)

Toyota Granace

Production Dec 2019 - Sep 9999
Engine 1GDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1912- )

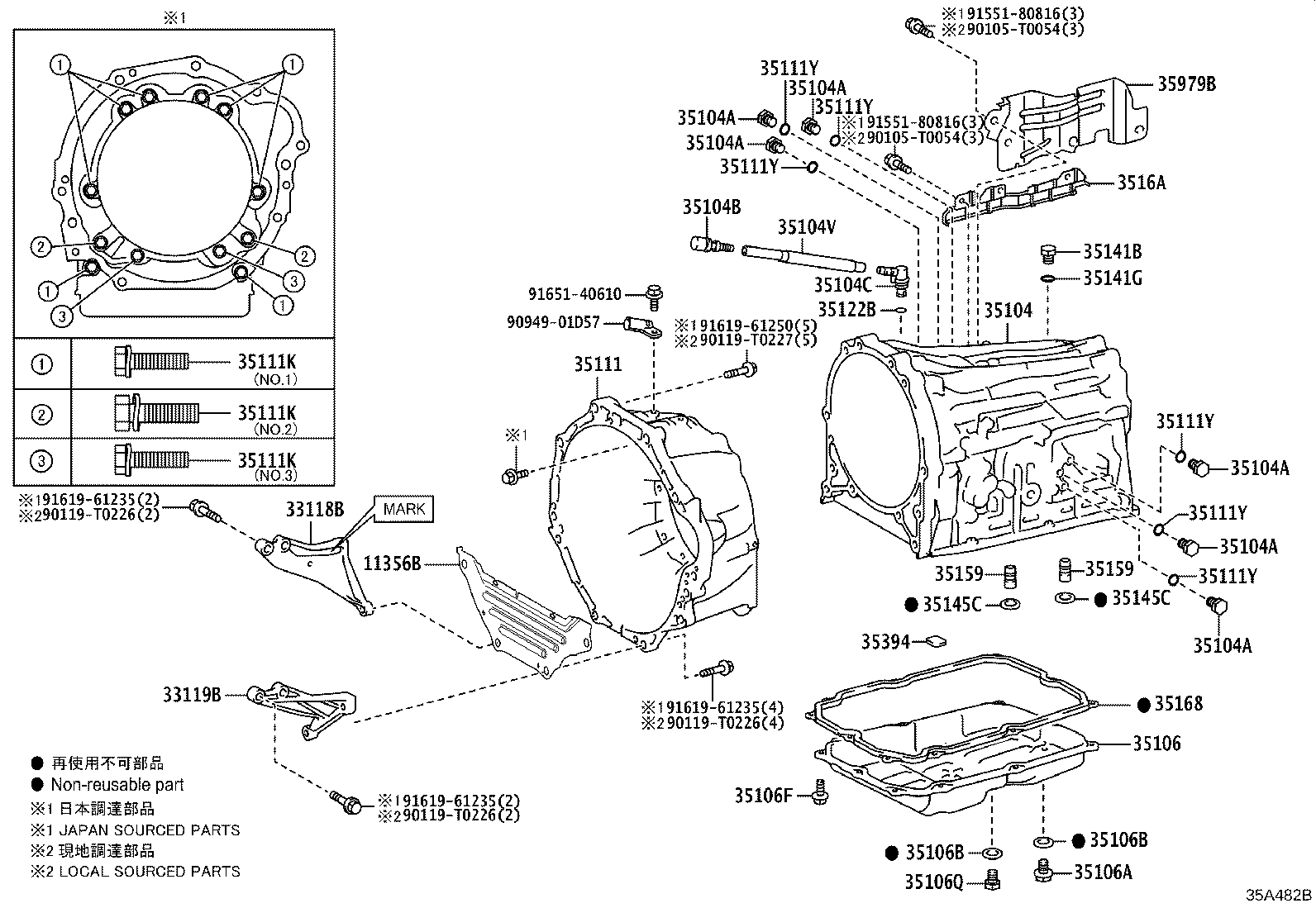

Click highlighted areas on diagram

AC60E

diagram 11356B 33118B 33119B 35104 35104A 35104A 35104A 35104A 35104A 35104A 35104B 35104C 35104V 35106 35106A 35106B 35106B 35106F 35106Q 35111 35111K 35111K 35111K 35111Y 35111Y 35111Y 35111Y 35111Y 35111Y 35122B 35141B 35141G 35145C 35145C 35159 35159 35168 3516A 35394 35979B 90105T0054 90105T0054 90119T0226 90119T0226 90119T0226 90119T0227 9094901D57 9155180816 9155180816 9161961235 9161961235 9161961235 9161961250 9165140610
Part # Description Qty Price
11356B - PLATE, REAR END, NO.2
11356-30021

1GDFTV..GDH303

(J)

 1
33118B - PLATE, STIFFENER, RH(ATM)
33118-0K050

GDH303

ﾏｰｸ=0K050

 1
33118-0K050

GDH303

 1
33118-0K030

GDH303

ﾏｰｸ=0K030

 1
33119B - PLATE, STIFFENER, LH(ATM)
33119-0K020

GDH303

 1
35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION
35104-71020

GDH303

 1
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08001

GDH303

 6
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08001

GDH303

 6
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08001

GDH303

 6
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08001

GDH303

 6
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08001

GDH303

 6
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08001

GDH303

 6
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03211

GDH303

 1
35104C - PLUG, BREATHER, NO.2 (ATM)
90930-03220

GDH303

 1
35104V - HOSE (FOR BREATHER PLUG)
90447-11081

GDH303

 1
35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
35106-71050

GDH303

 1
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-10011

GDH303

 1
35106B - GASKET, DRAIN PLUG (ATM)
35178-30010

GDH303

 2
35106B - GASKET, DRAIN PLUG (ATM)
35178-30010

GDH303

 2
35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)
90119-06A02

GDH303

 10
35106Q - PLUG (FOR AUTOMATIC TRANSMISSION OIL PAN)
90341-10021

GDH303

 1
35111 - HOUSING, AUTOMATIC TRANSMISSION
35111-71030

GDH303

 1
35111K - BOLT (FOR TRANSMISSION HOUSING & CASE SETTING)
90119-10232

GDH303

*10−1.5PX35−30,NO.1:ｲﾗｽﾄ参照

 8
90119-10947

GDH303

*10−1.50PX35−29.3,NO.3:ｲﾗｽﾄ参照

 2
90119-12378

GDH303

*12−1.75PX38―30,NO.2:ｲﾗｽﾄ参照

 2
35111K - BOLT (FOR TRANSMISSION HOUSING & CASE SETTING)
90119-10232

GDH303

*10−1.5PX35−30,NO.1:ｲﾗｽﾄ参照

 8
90119-10947

GDH303

*10−1.50PX35−29.3,NO.3:ｲﾗｽﾄ参照

 2
90119-12378

GDH303

*12−1.75PX38―30,NO.2:ｲﾗｽﾄ参照

 2
35111K - BOLT (FOR TRANSMISSION HOUSING & CASE SETTING)
90119-10232

GDH303

*10−1.5PX35−30,NO.1:ｲﾗｽﾄ参照

 8
90119-10947

GDH303

*10−1.50PX35−29.3,NO.3:ｲﾗｽﾄ参照

 2
90119-12378

GDH303

*12−1.75PX38―30,NO.2:ｲﾗｽﾄ参照

 2
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196

GDH303

 6
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196

GDH303

 6
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196

GDH303

 6
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196

GDH303

 6
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196

GDH303

 6
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196

GDH303

 6
35122B - RING, O (FOR AUTOMATIC TRANSAXLE BREATHER TUBE UNION)
90301-08015

GDH303

 1
35141B - PLUG (FOR AUTOMATIC TRANSMISSION CASE)
90341-14011

GDH303

 1
35141G - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-11030

GDH303

 1
35145C - GASKET, TRANSAXLE CASE
35145-60020

GDH303

 2
35145C - GASKET, TRANSAXLE CASE
35145-60020

GDH303

 2
35159 - GASKET, BRAKE DRUM
35159-71010

GDH303

 2
35159 - GASKET, BRAKE DRUM
35159-71010

GDH303

 2
35168 - GASKET, AUTOMATIC TRANSMISSION OIL PAN
35168-71010

GDH303

 1
3516A - INSULATOR, TRANSAXLE OIL PAN HEAT
3516A-60010

GDH303

 1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011

GDH303

 4
35979B - INSULATOR, TRANSMISSION, RH
35979-26010

GDH303

 1
Common parts
90105-T0054
90119-T0226
90119-T0227
90949-01D57
91551-80816
91619-61235
91619-61250
91651-40610
