GDH303W-RDTGY (2019)

Toyota Granace

Production Dec 2019 - Sep 9999
Engine 1GDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1912- )

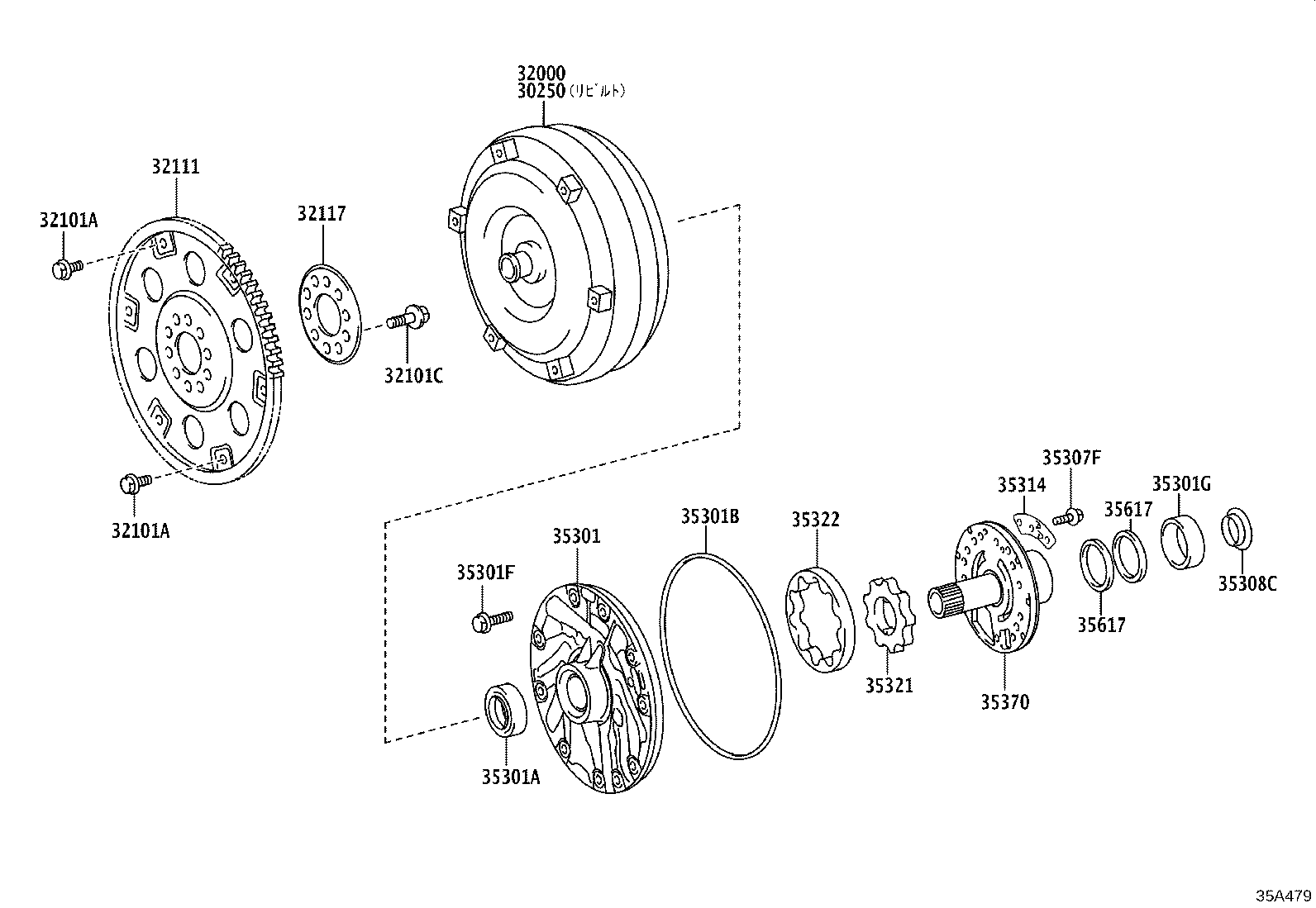

Click highlighted areas on diagram

AC60E

diagram 30250 32000 32101A 32101A 32101C 32111 32117 35301 35301A 35301B 35301F 35301G 35307F 35308C 35314 35321 35322 35370 35617 35617
Part # Description Qty Price
30250 - CONVERTER ASSY, TORQUE, REBUILT
30250-71070

GDH303

 1
32000 - CONVERTER ASSY, TORQUE
32000-71070

GDH303

 1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90105-T0237

GDH303

*10−1.5PX11−8,(L),ｼﾙﾊﾞ− ﾎﾜｲﾄ

 5
90105-10546

GDH303

*10−1.5PX11−8,ﾌﾞﾗｯｸ

 1
90105-10413

GDH303

*10−1.5PX11−8,(J),ｼﾙﾊﾞ− ﾎﾜｲﾄ

 5
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90105-T0237

GDH303

*10−1.5PX11−8,(L),ｼﾙﾊﾞ− ﾎﾜｲﾄ

 5
90105-10546

GDH303

*10−1.5PX11−8,ﾌﾞﾗｯｸ

 1
90105-10413

GDH303

*10−1.5PX11−8,(J),ｼﾙﾊﾞ− ﾎﾜｲﾄ

 5
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90105-13015

GDH303

*13−1.5PX43.5−23.5,(J)

 8
90105-T0203

GDH303

*13−1.5PX43.5−23.5,(L)

 8
32111 - PLATE, PUMP IMPELLER DRIVE
32111-0K030

GDH303

(L)

 1
32111-71010

GDH303

(J)

 1
32117 - SPACER, DRIVE PLATE, REAR
32117-60050

GDH303

 1
35301 - BODY SUB-ASSY, FRONT OIL PUMP
35301-71010

GDH303

 1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90311-38101

GDH303

 1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
35697-60010

GDH303

 1
35301F - BOLT (FOR FRONT OIL PUMP SETTING)
90105-08091

GDH303

*8−1.25PX35−35

 10
35301G - BEARING,NEEDLE ROLLER
90374-71002

GDH303

 1
35307F - BOLT (FOR STATOR SHAFT)
90148-60079

GDH303

 10
35308C - RACE, THRUST BEARING (FOR FRONT OIL PUMP COVER)
35789-71070

GDH303

 1
35314 - PLATE, FRONT OIL PUMP
35314-71020

GDH303

 1
35321 - GEAR, FRONT OIL PUMP DRIVE
35321-71010

GDH303

厚さ=9.977−9.983

 1
35322 - GEAR, FRONT OIL PUMP DRIVEN
35322-71010

GDH303

厚さ=9.977−9.983

 1
35370 - SHAFT ASSY, STATOR
35370-71010

GDH303

 1
35617 - RING, CLUTCH DRUM OIL SEAL
35617-50030

GDH303

 2
35617 - RING, CLUTCH DRUM OIL SEAL
35617-50030

GDH303

 2
