GDH303W-RDTGY (2019)

Toyota Granace

Production Dec 2019 - Sep 9999
Engine 1GDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1912- )

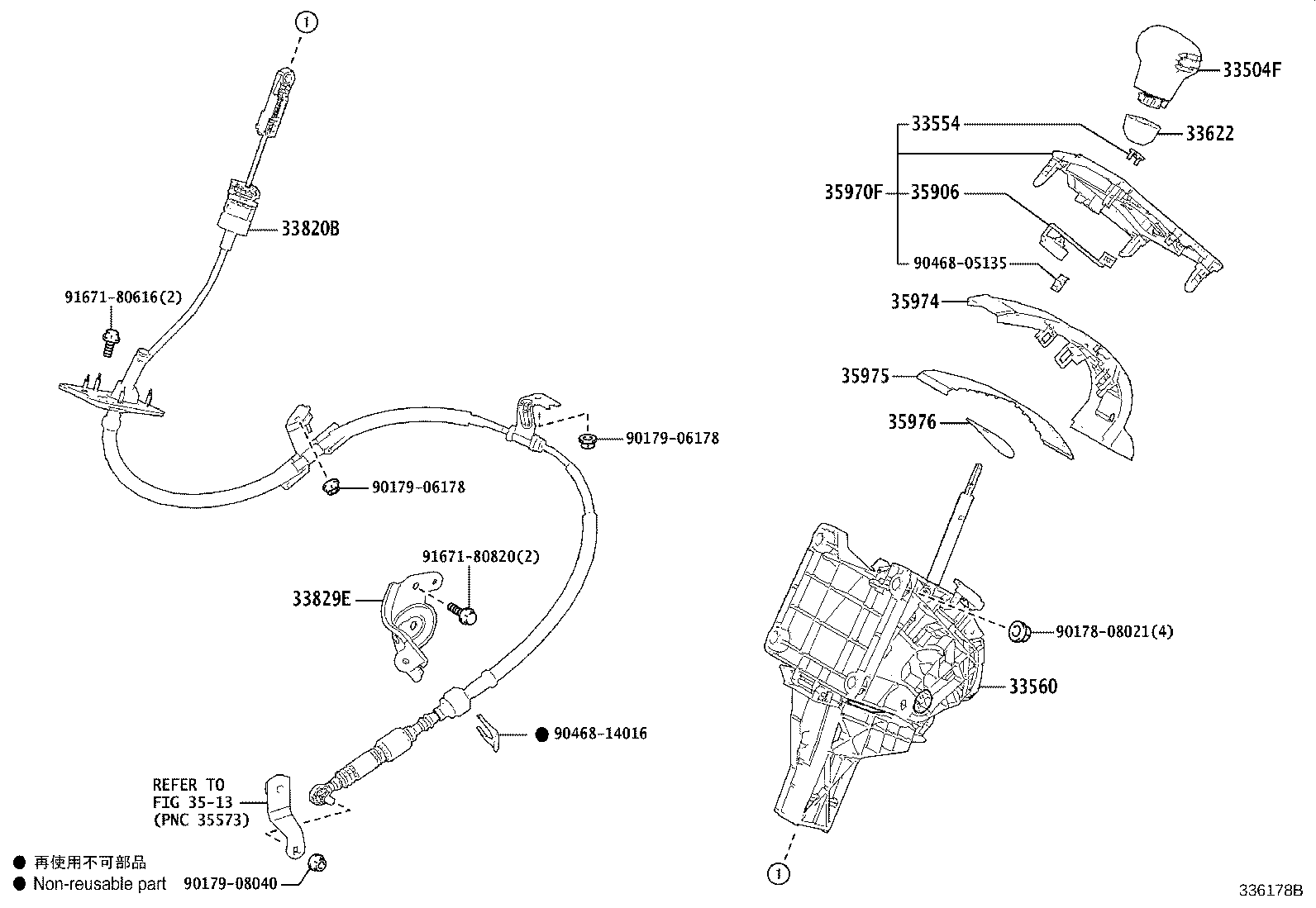

Click highlighted areas on diagram

diagram 33504F 33554 33560 33622 33820B 33829E 3513 35906 35970F 35974 35975 35976 9017808021 9017906178 9017906178 9017908040 9046805135 9046814016 9167180616 9167180820
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33542-26040

GDH303

 1
33554 - CAP, SHIFT LEVER
33554-26070

GDH303

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-26110

GDH303

 1
33622 - COVER, SHIFT LEVER KNOB, NO.1
33622-15020

GDH303

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-26580

GDH303

 1
33829E - BRACKET, TRANSMISSION CONTROL CABLE
33823-26160

GDH303

 1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-26100

GDH303

 1
35970F - HOUSING ASSY, POSITION INDICATOR
35970-26240

GDH303

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-26080

GDH303

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-26070

GDH303

 1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-26030

GDH303

 1
Common parts
90178-08021
90179-06178
90179-08040
90468-05135
90468-14016
91671-80616
91671-80820
Linked diagrams
3513
