GDH303W-RDTGY (2019)
Toyota Granace
Production
Dec 2019
-
Sep 9999
Engine
1GDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1912- )

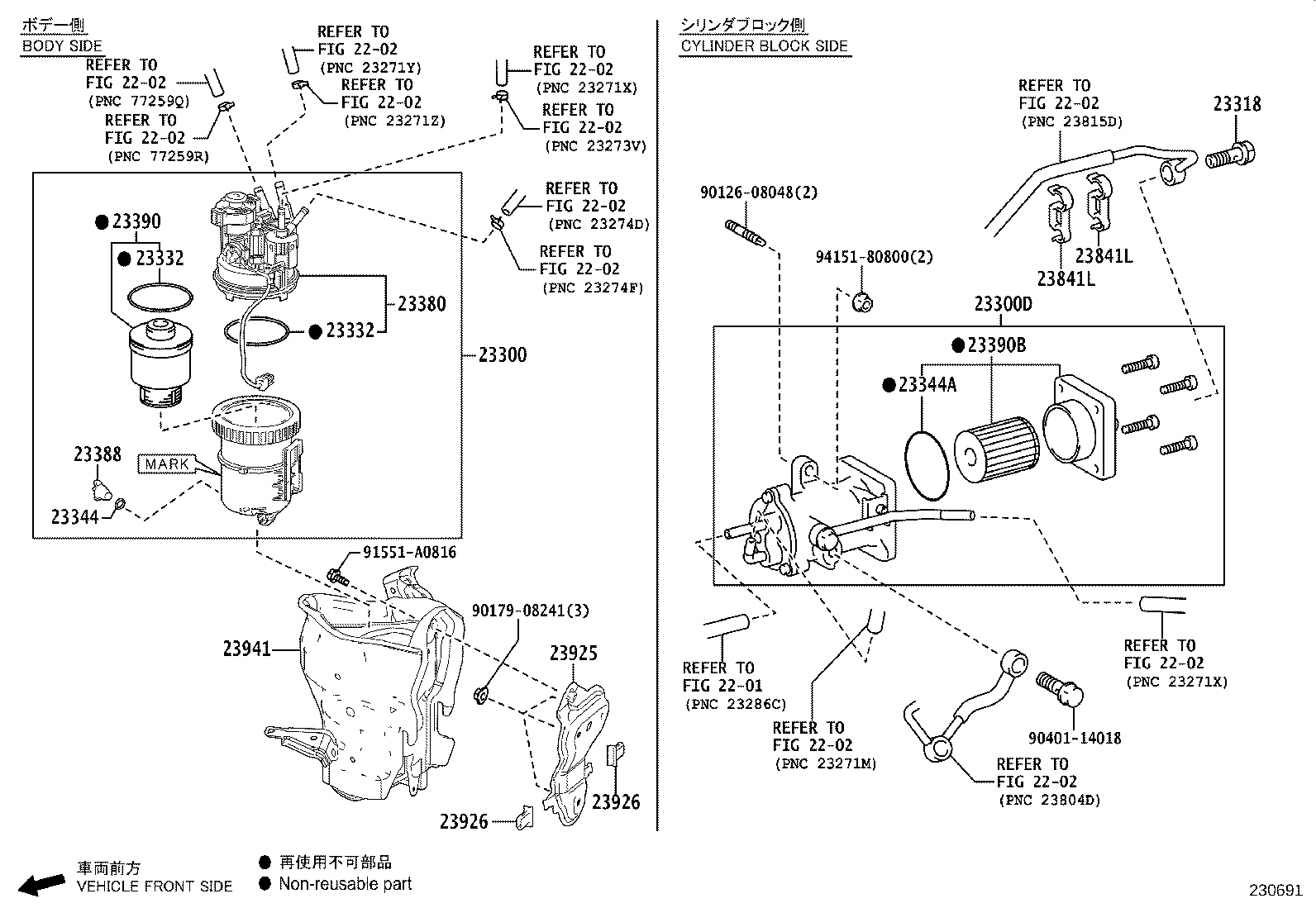

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23300 - FILTER ASSY, FUEL | ||||
| 23300-11250 |
1GDFTV..GDH303 ﾏｰｸ=23300−11250 |
1 | ||
| 23300D - FILTER ASSY, FUEL(FOR DIESEL) | ||||
| 23300-11231 |
1GDFTV..GDH303 |
1 | ||
| 23318 - BOLT, UNION | ||||
| 90401-T0009 |
1GDFTV..GDH303 |
1 | ||
| 23332 - GASKET, ELEMENT(FOR FUEL FILTER) | ||||
| 23344-11240 |
1GDFTV..GDH303 |
2 | ||
| 23332 - GASKET, ELEMENT(FOR FUEL FILTER) | ||||
| 23344-11240 |
1GDFTV..GDH303 |
2 | ||
| 23344 - GASKET, CLAMPING NUT(FOR FUEL FILTER) | ||||
| 23344-0L041 |
1GDFTV..GDH303 |
1 | ||
| 23344A - GASKET, FUEL FILTER ELEMENT | ||||
| 23385-11230 |
1GDFTV..GDH303 |
1 | ||
| 23380 - CAP ASSY, FUEL FILTER | ||||
| 23380-11250 |
1GDFTV..GDH303 |
1 | ||
| 23388 - PLUG, FUEL FILTER DRAIN | ||||
| 23388-0L041 |
1GDFTV..GDH303 |
1 | ||
| 23390 - ELEMENT ASSY, FUEL FILTER | ||||
| 23390-11240 |
1GDFTV..GDH303 |
1 | ||
| 23390B - ELEMENT ASSY, FUEL FILTER, NO.2 | ||||
| 23390-11231 |
1GDFTV..GDH303 |
1 | ||
| 23841L - CLAMP, FUEL PIPE | ||||
| 23841-11050 |
1GDFTV..GDH303 |
2 | ||
| 23841L - CLAMP, FUEL PIPE | ||||
| 23841-11050 |
1GDFTV..GDH303 |
2 | ||
| 23925 - STAY, FUEL FILTER SUPPORT | ||||
| 23925-11010 |
1GDFTV..GDH303 |
1 | ||
| 23926 - STAY, FUEL FILTER SUPPORT, NO.2 | ||||
| 23926-11010 |
1GDFTV..GDH303 |
2 | ||
| 23926 - STAY, FUEL FILTER SUPPORT, NO.2 | ||||
| 23926-11010 |
1GDFTV..GDH303 |
2 | ||
| 23941 - PROTECTOR, FUEL FILTER, NO.1 | ||||
| 23941-11010 |
1GDFTV..GDH303 |
1 | ||
| Common parts | ||||
| 90126-08048 | ||||
| 90179-08241 | ||||
| 90401-14018 | ||||
| 91551-A0816 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 2201 | ||||
| 2202 | ||||
