GDH303W-RDTGY (2019)

Toyota Granace

Production Dec 2019 - Sep 9999
Engine 1GDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

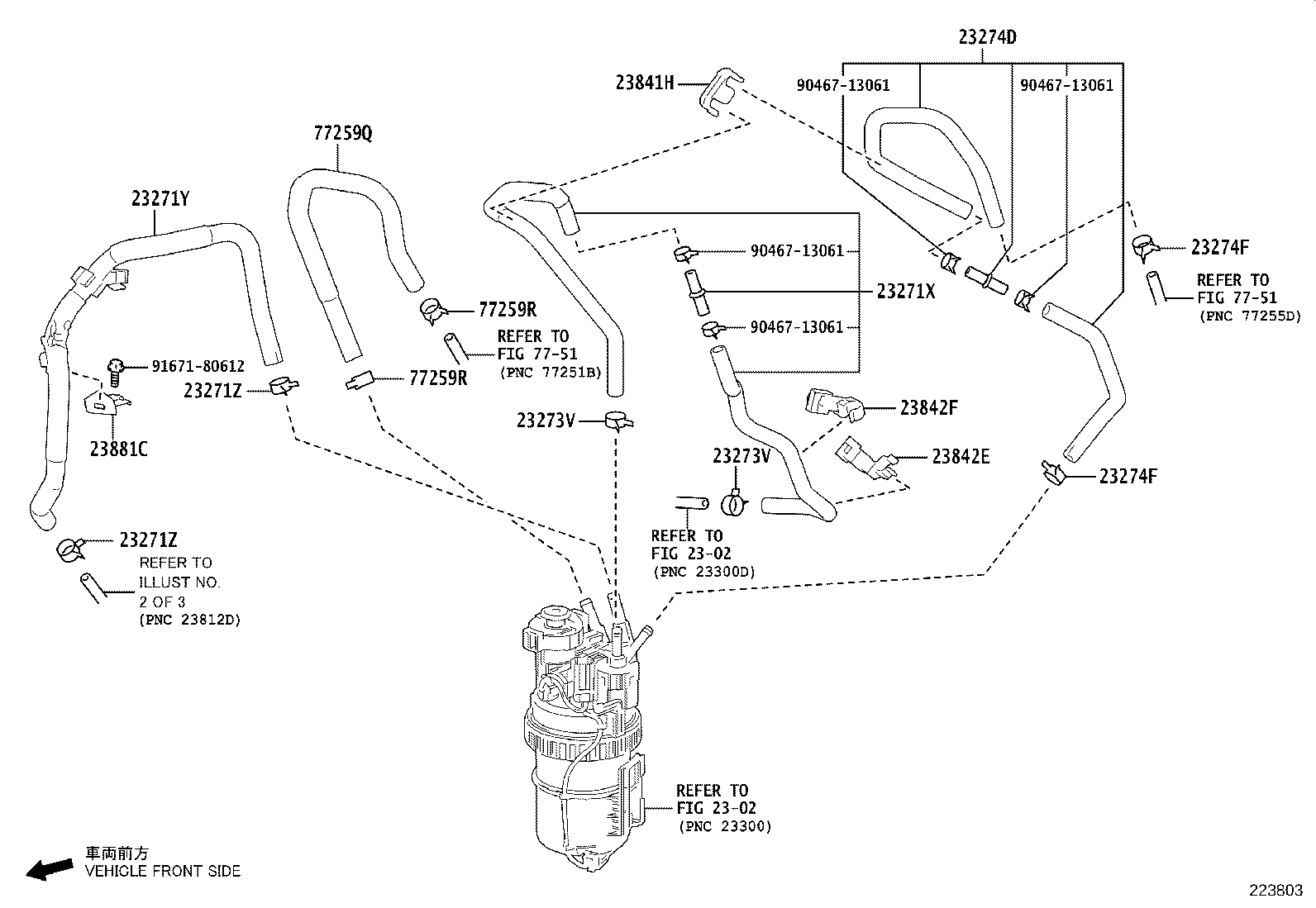

ILLUST NO. 1 OF 3(1912- )

Click highlighted areas on diagram

diagram 2302 2302 23271X 23271Y 23271Z 23271Z 23273V 23273V 23274D 23274F 23274F 23841H 23842E 23842F 23881C 77259Q 77259R 77259R 7751 7751 9046713061 9046713061 9046713061 9046713061 9167180612
Part # Description Qty Price
23271X - HOSE, FUEL, NO.2
23273-11070

1GDFTV..GDH303

 1
23271Y - HOSE, FUEL
23271-11410

1GDFTV..GDH303

 1
23271Z - CLIP, HOSE
96133-41501

1GDFTV..GDH303

 2
23271Z - CLIP, HOSE
96133-41501

1GDFTV..GDH303

 2
23273V - CLIP(FOR FUEL HOSE NO.2)
90466-13005

1GDFTV..GDH303

 2
23273V - CLIP(FOR FUEL HOSE NO.2)
90466-13005

1GDFTV..GDH303

 2
23274D - HOSE, FUEL, NO.3
23274-11020

1GDFTV..GDH303

 1
23274F - CLIP(FOR FUEL HOSE NO.3)
90466-13005

1GDFTV..GDH303

 2
23274F - CLIP(FOR FUEL HOSE NO.3)
90466-13005

1GDFTV..GDH303

 2
23841H - CLAMP, FUEL HOSE
23841-11080

1GDFTV..GDH303

 1
23842E - CLAMP, FUEL PIPE, NO.1
23842-11040

1GDFTV..GDH303

 1
23842F - CLAMP, FUEL PIPE, NO.2
23842-11050

1GDFTV..GDH303

 1
23881C - BRACKET, FUEL HOSE
23881-11010

1GDFTV..GDH303

 1
77259Q - HOSE, FUEL
77259-26200

GDH303

 1
77259R - CLIP, HOSE
96133-41501

GDH303

 2
77259R - CLIP, HOSE
96133-41501

GDH303

 2
Common parts
90467-13061
91671-80612
Linked diagrams
2302
7751

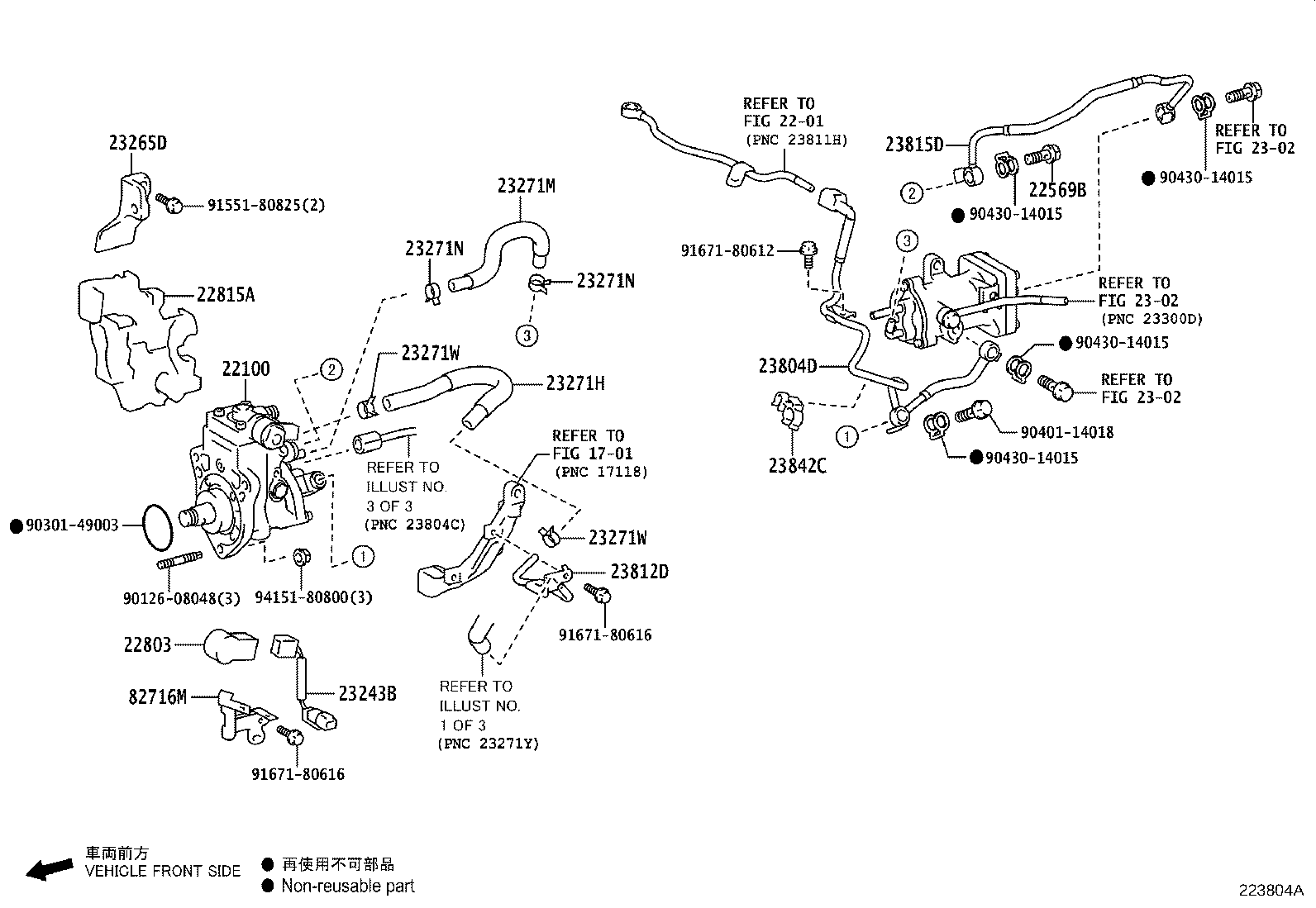

ILLUST NO. 2 OF 3(1912- )

Click highlighted areas on diagram

diagram 1701 2201 22100 22569B 22803 22815A 2302 2302 2302 23243B 23265D 23271H 23271M 23271N 23271N 23271W 23271W 23804D 23812D 23815D 23842C 82716M 9012608048 9030149003 9040114018 9043014015 9043014015 9043014015 9043014015 9155180825 9167180612 9167180616 9167180616 9415180800
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-11010

1GDFTV..GDH303

(J)

 1
22569B - SCREW, SUPPLY PUMP HOLLOW
22569-11010

1GDFTV..GDH303

 1
22803 - COVER SUB-ASSY, FUEL INJECTION PUMP
22803-11010

1GDFTV..GDH303

 1
22815A - INSULATOR, INJECTION PUMP
22815-11011

1GDFTV..GDH303

 1
23243B - WIRE, FUEL PUMP MOTOR
23243-11010

1GDFTV..GDH303

 1
23265D - BRACKET, FUEL PUMP, NO.1
23265-11020

1GDFTV..GDH303

 1
23271H - HOSE, FUEL, NO.1
23271-11371

1GDFTV..GDH303

 1
23271M - HOSE, FUEL
23273-11030

1GDFTV..GDH303

 1
23271N - CLIP, HOSE
96136-41501

1GDFTV..GDH303

 2
23271N - CLIP, HOSE
96136-41501

1GDFTV..GDH303

 2
23271W - CLIP(FOR FUEL HOSE NO.1)
96136-51801

1GDFTV..GDH303

 2
23271W - CLIP(FOR FUEL HOSE NO.1)
96136-51801

1GDFTV..GDH303

 2
23804D - PIPE SUB-ASSY, FUEL, NO.4
23816-0E013

1GDFTV..GDH303

 1
23812D - PIPE, FUEL, NO.2
23812-0E011

1GDFTV..GDH303

(L)

 1
23812-11010

1GDFTV..GDH303

(J)

 1
23815D - PIPE, FUEL, NO.3
23815-0E014

1GDFTV..GDH303

 1
23842C - CLAMP, FUEL PIPE, NO.2(FOR INJECTION PUMP)
23842-11071

1GDFTV..GDH303

 1
82716M - BRACKET, WIRING HARNESS CLAMP, NO.1
82715-71240

GDH303

 1
Common parts
90126-08048
90301-49003
90401-14018
90430-14015
91551-80825
91671-80612
91671-80616
94151-80800
Linked diagrams
1701
2201
2302

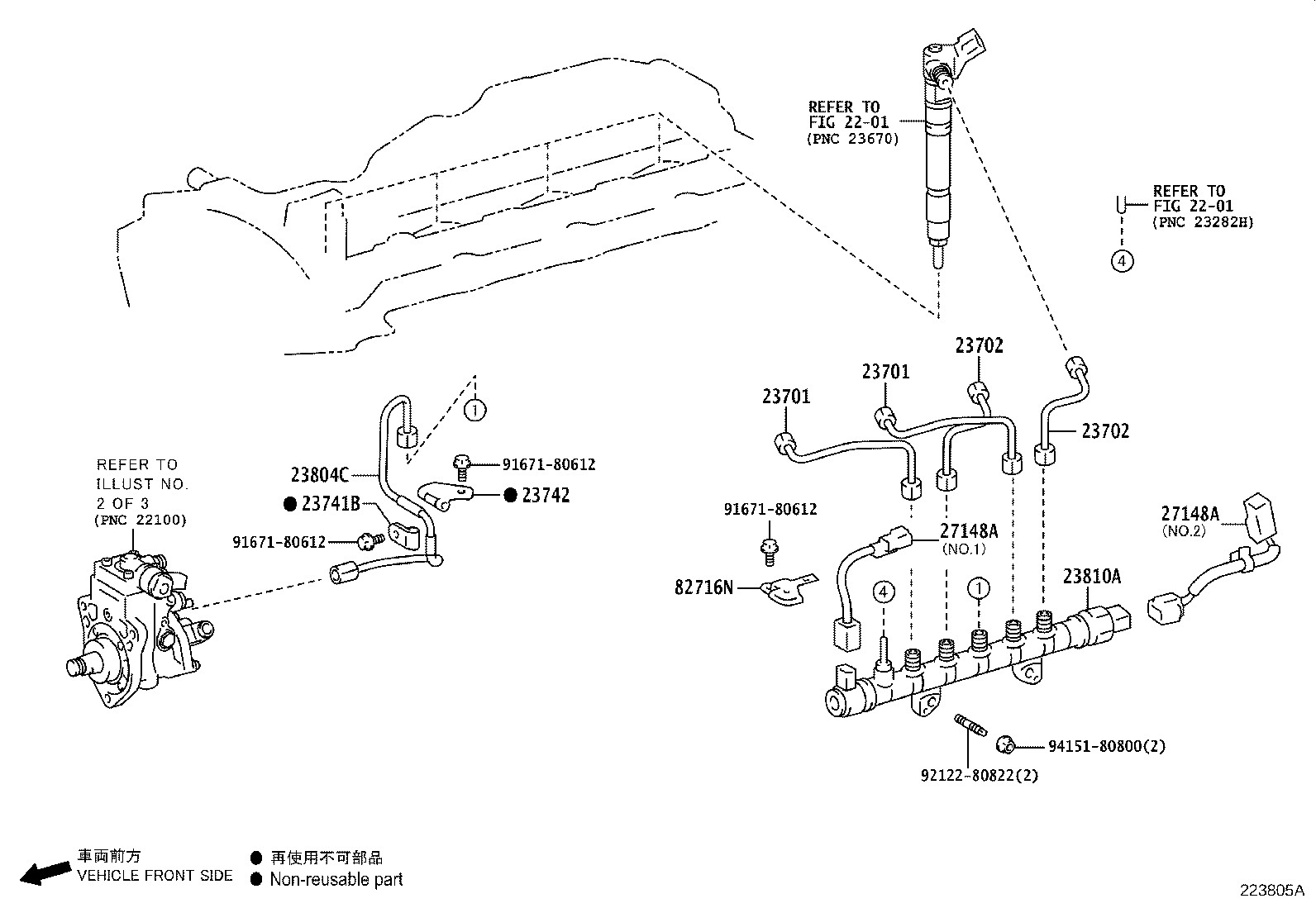

ILLUST NO. 3 OF 3(1912- )

Click highlighted areas on diagram

diagram 2201 2201 23701 23701 23702 23702 23741B 23742 23804C 23810A 27148A 27148A 82716N 9167180612 9167180612 9167180612 9212280822 9415180800
Part # Description Qty Price
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-0E012

1GDFTV..GDH303

 2
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-0E012

1GDFTV..GDH303

 2
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-0E012

1GDFTV..GDH303

 2
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-0E012

1GDFTV..GDH303

 2
23741B - CLAMP, INJECTION PIPE
23741-30010

1GDFTV..GDH303

(J)

 1
23742 - CLAMP, INJECTION PIPE, NO.2
23742-11010

1GDFTV..GDH303

(J)

 1
23804C - PIPE SUB-ASSY, FUEL INLET
23804-11012

1GDFTV..GDH303

(J)

 1
23810A - RAIL ASSY, COMMON
23810-11031

1GDFTV..GDH303

 1
27148A - WIRE, CONNECTING
27148-11050

1GDFTV..GDH303

NO.1

 1
27148-11020

1GDFTV..GDH303

NO.2

 1
27148A - WIRE, CONNECTING
27148-11050

1GDFTV..GDH303

NO.1

 1
27148-11020

1GDFTV..GDH303

NO.2

 1
82716N - BRACKET, WIRING HARNESS CLAMP, NO.2
82715-6A700

GDH303

 1
Common parts
91671-80612
92122-80822
94151-80800
Linked diagrams
2201
