GDH303W-RDTGY (2019)
Toyota Granace
Production
Dec 2019
-
Sep 9999
Engine
1GDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1912- )

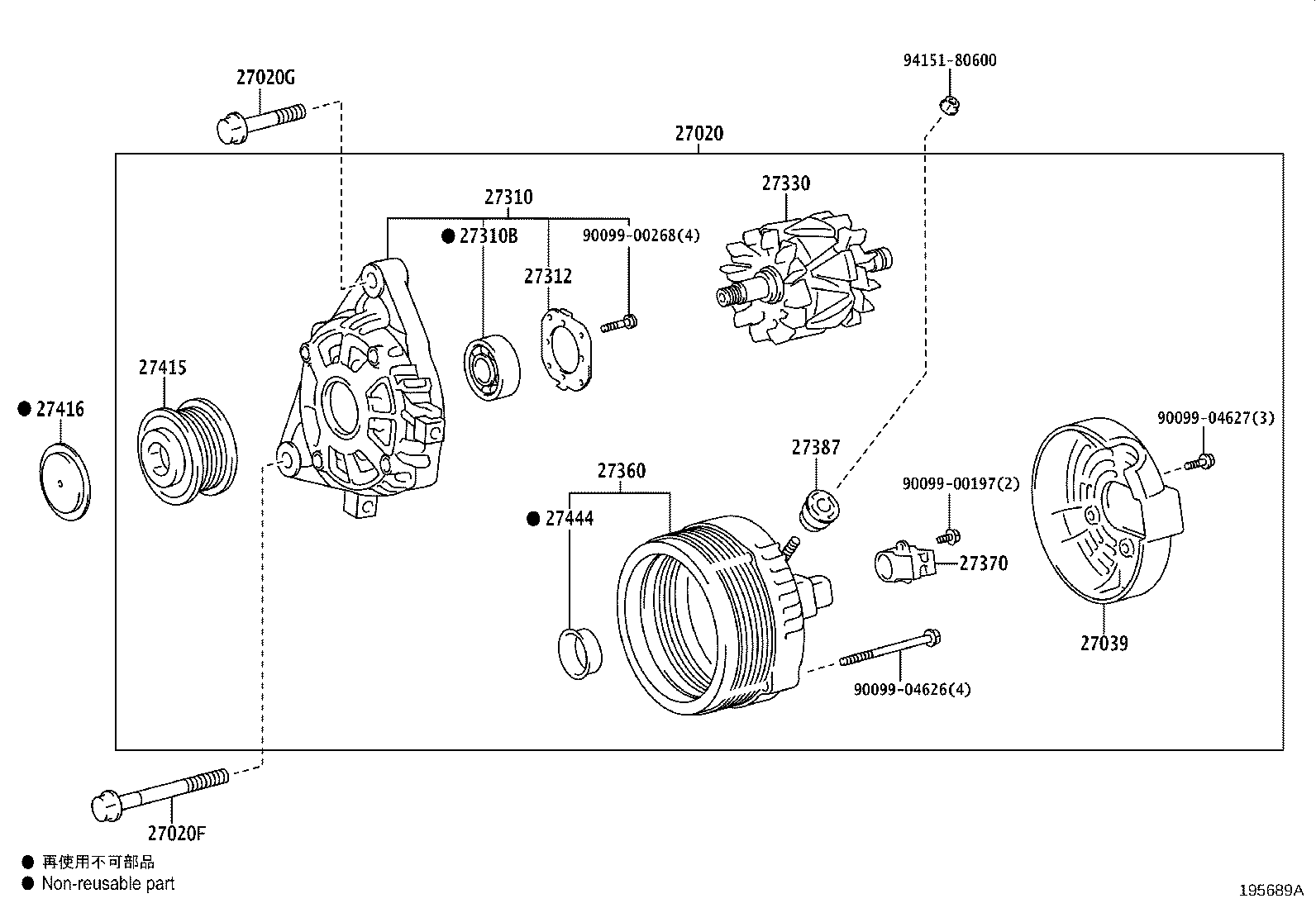

Click highlighted areas on diagram
12V 130A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-11350 |
1GDFTV..GDH303 12V 130A |
1 | ||
| 27020F - BOLT, NO.1(FOR ALTERNATOR) | ||||
| 91552-81090 |
1GDFTV..GDH303 (J) |
1 | ||
| 27020G - BOLT, NO.2(FOR ALTERNATOR) | ||||
| 91672-81045 |
1GDFTV..GDH303 (J) |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-11290 |
1GDFTV..GDH303 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-30240 |
1GDFTV..GDH303 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10223 |
1GDFTV..GDH303 |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
1GDFTV..GDH303 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-37220 |
1GDFTV..GDH303 |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-11290 |
1GDFTV..GDH303 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-31220 |
1GDFTV..GDH303 |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-20130 |
1GDFTV..GDH303 |
1 | ||
| 27415 - PULLEY, ALTERNATOR W/CLUTCH | ||||
| 27415-30010 |
1GDFTV..GDH303 |
1 | ||
| 27416 - CAP, ALTERNATOR PULLEY | ||||
| 27416-30020 |
1GDFTV..GDH303 |
1 | ||
| 27444 - PACKING, ALTERNATOR BEARING COVER | ||||
| 27444-21190 |
1GDFTV..GDH303 |
1 | ||
| Common parts | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-04626 | ||||
| 90099-04627 | ||||
| 94151-80600 | ||||
