GDH303W-RDTGY (2019)

Toyota Granace

Production Dec 2019 - Sep 9999
Engine 1GDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1912- )

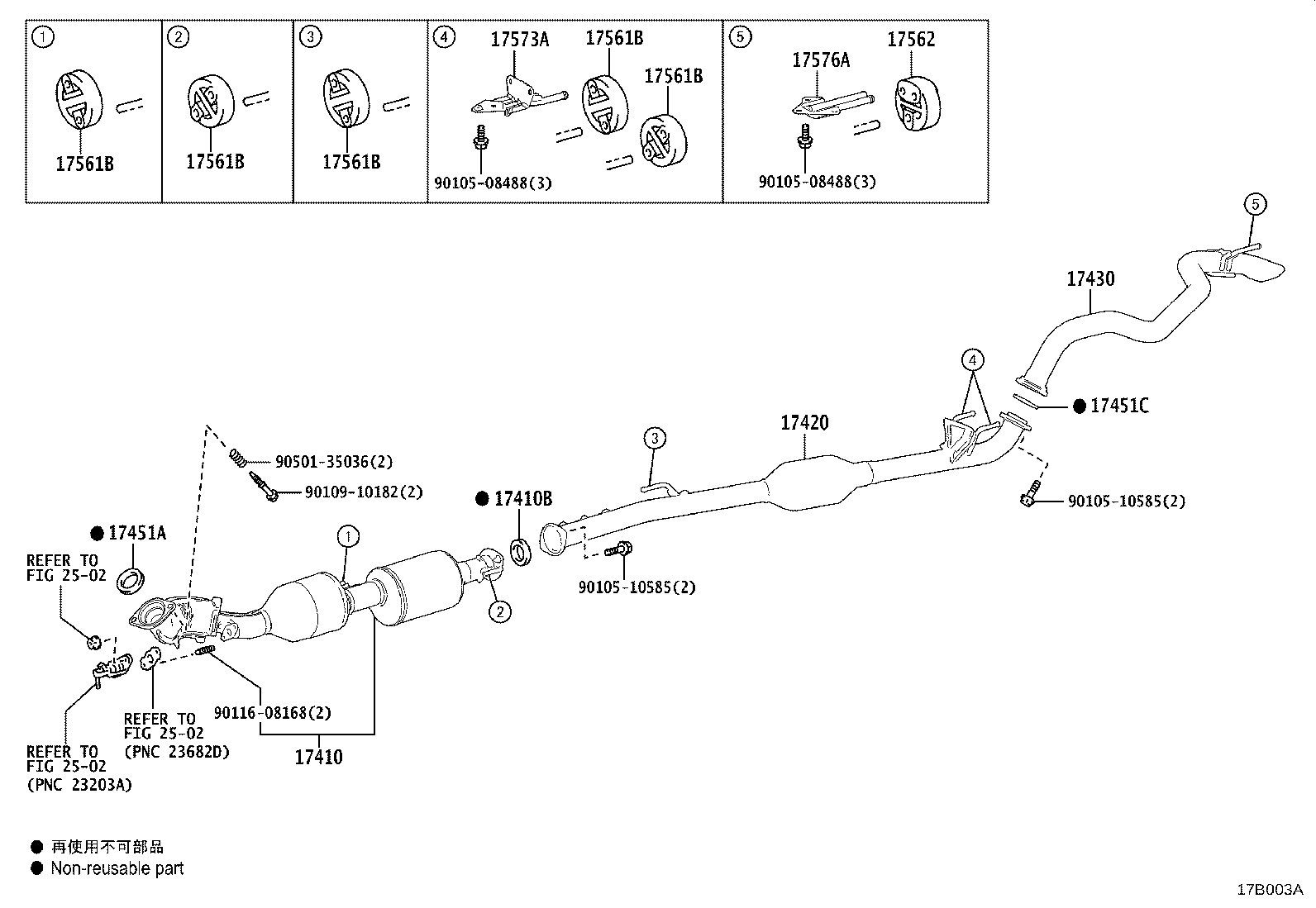

Click highlighted areas on diagram

diagram 17410 17410B 17420 17430 17451A 17451C 17561B 17561B 17561B 17561B 17561B 17562 17573A 17576A 2502 2502 2502 9010508488 9010508488 9010510585 9010510585 9010910182 9011608168 9050135036
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-11A40

1GDFTV..GDH303

 1
17410B - GASKET, EXHAUST PIPE
90917-06054

1GDFTV..GDH303

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-11540

1GDFTV..GDH303

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-1B250

1GDFTV..GDH303

 1
17451A - GASKET, EXHAUST PIPE, NO.2
17451-22070

1GDFTV..GDH303

 1
17451C - GASKET, EXHAUST PIPE, NO.3
90917-06054

1GDFTV..GDH303

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-28010

1GDFTV..GDH303

 5
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-28010

1GDFTV..GDH303

 5
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-28010

1GDFTV..GDH303

 5
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-28010

1GDFTV..GDH303

 5
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-28010

1GDFTV..GDH303

 5
17562 - SUPPORT, EXHAUST PIPE, NO.2
17565-64180

1GDFTV..GDH303

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17573-31110

1GDFTV..GDH303

 1
17576A - BRACKET, EXHAUST PIPE SUPPORT, NO.6
17576-31130

1GDFTV..GDH303

 1
Common parts
90105-08488
90105-10585
90109-10182
90116-08168
90501-35036
Linked diagrams
2502
