GDH303W-RDTGY (2019)
Toyota Granace
(1912- )

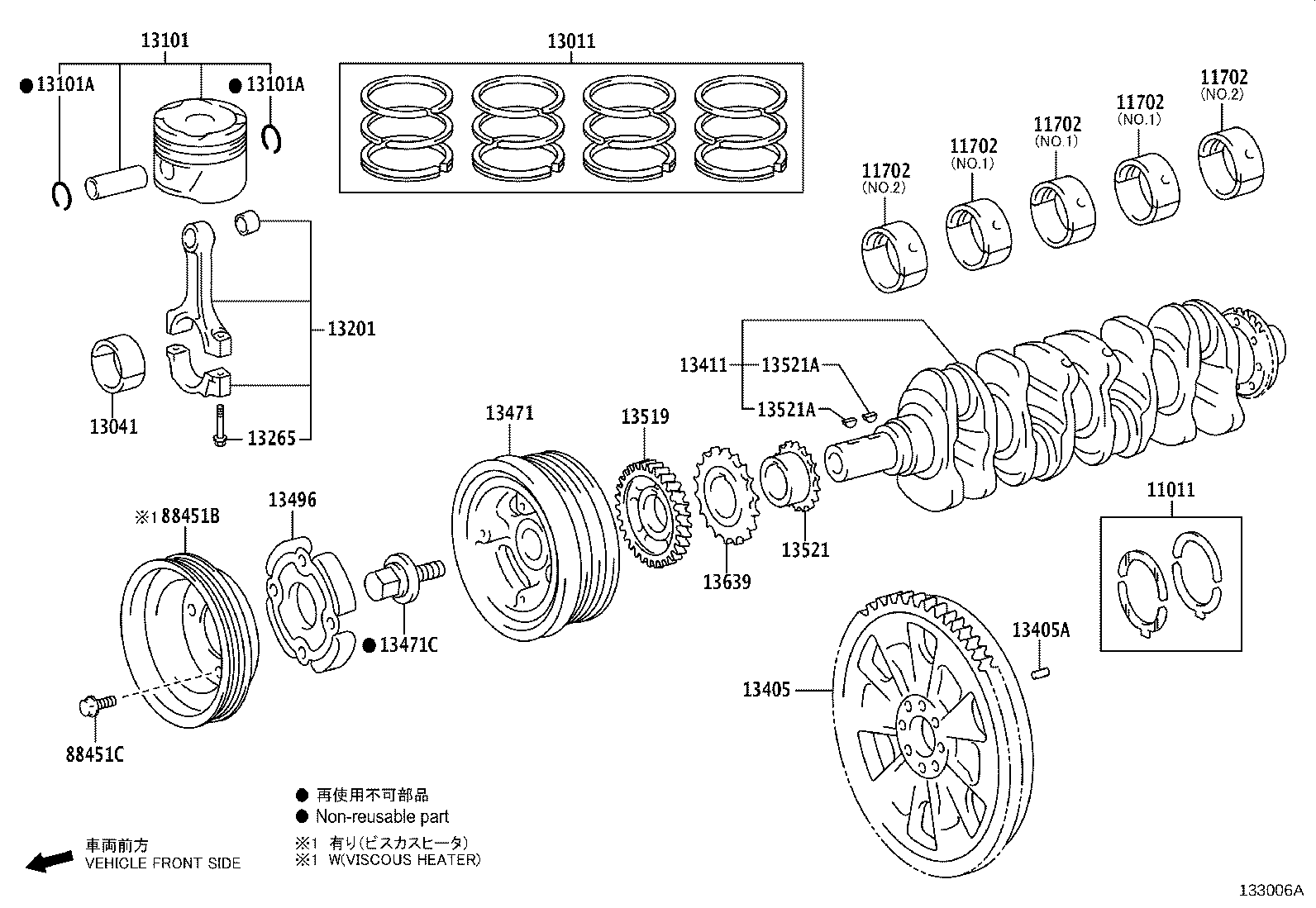

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-30010 |
1GDFTV..GDH303 STD |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11701-1103002 |
1GDFTV..GDH303 MARK 2,NO.1,修理書 参照 |
3 | ||
| 11701-1103004 |
1GDFTV..GDH303 MARK 4,NO.1,修理書 参照 |
3 | ||
| 11701-1103006 |
1GDFTV..GDH303 MARK 6,NO.1,修理書 参照 |
3 | ||
| 11701-1103005 |
1GDFTV..GDH303 MARK 5,NO.1,修理書 参照 |
3 | ||
| 11701-1103003 |
1GDFTV..GDH303 MARK 3,NO.1,修理書 参照 |
3 | ||
| 11701-1104002 |
1GDFTV..GDH303 MARK 2,NO.2,修理書 参照 |
2 | ||
| 11701-1104006 |
1GDFTV..GDH303 MARK 6,NO.2,修理書 参照 |
2 | ||
| 11701-1104004 |
1GDFTV..GDH303 MARK 4,NO.2,修理書 参照 |
2 | ||
| 11701-1104003 |
1GDFTV..GDH303 MARK 3,NO.2,修理書 参照 |
2 | ||
| 11701-1104005 |
1GDFTV..GDH303 MARK 5,NO.2,修理書 参照 |
2 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11701-1103002 |
1GDFTV..GDH303 MARK 2,NO.1,修理書 参照 |
3 | ||
| 11701-1103004 |
1GDFTV..GDH303 MARK 4,NO.1,修理書 参照 |
3 | ||
| 11701-1103006 |
1GDFTV..GDH303 MARK 6,NO.1,修理書 参照 |
3 | ||
| 11701-1103005 |
1GDFTV..GDH303 MARK 5,NO.1,修理書 参照 |
3 | ||
| 11701-1103003 |
1GDFTV..GDH303 MARK 3,NO.1,修理書 参照 |
3 | ||
| 11701-1104002 |
1GDFTV..GDH303 MARK 2,NO.2,修理書 参照 |
2 | ||
| 11701-1104006 |
1GDFTV..GDH303 MARK 6,NO.2,修理書 参照 |
2 | ||
| 11701-1104004 |
1GDFTV..GDH303 MARK 4,NO.2,修理書 参照 |
2 | ||
| 11701-1104003 |
1GDFTV..GDH303 MARK 3,NO.2,修理書 参照 |
2 | ||
| 11701-1104005 |
1GDFTV..GDH303 MARK 5,NO.2,修理書 参照 |
2 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11701-1103002 |
1GDFTV..GDH303 MARK 2,NO.1,修理書 参照 |
3 | ||
| 11701-1103004 |
1GDFTV..GDH303 MARK 4,NO.1,修理書 参照 |
3 | ||
| 11701-1103006 |
1GDFTV..GDH303 MARK 6,NO.1,修理書 参照 |
3 | ||
| 11701-1103005 |
1GDFTV..GDH303 MARK 5,NO.1,修理書 参照 |
3 | ||
| 11701-1103003 |
1GDFTV..GDH303 MARK 3,NO.1,修理書 参照 |
3 | ||
| 11701-1104002 |
1GDFTV..GDH303 MARK 2,NO.2,修理書 参照 |
2 | ||
| 11701-1104006 |
1GDFTV..GDH303 MARK 6,NO.2,修理書 参照 |
2 | ||
| 11701-1104004 |
1GDFTV..GDH303 MARK 4,NO.2,修理書 参照 |
2 | ||
| 11701-1104003 |
1GDFTV..GDH303 MARK 3,NO.2,修理書 参照 |
2 | ||
| 11701-1104005 |
1GDFTV..GDH303 MARK 5,NO.2,修理書 参照 |
2 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11701-1103002 |
1GDFTV..GDH303 MARK 2,NO.1,修理書 参照 |
3 | ||
| 11701-1103004 |
1GDFTV..GDH303 MARK 4,NO.1,修理書 参照 |
3 | ||
| 11701-1103006 |
1GDFTV..GDH303 MARK 6,NO.1,修理書 参照 |
3 | ||
| 11701-1103005 |
1GDFTV..GDH303 MARK 5,NO.1,修理書 参照 |
3 | ||
| 11701-1103003 |
1GDFTV..GDH303 MARK 3,NO.1,修理書 参照 |
3 | ||
| 11701-1104002 |
1GDFTV..GDH303 MARK 2,NO.2,修理書 参照 |
2 | ||
| 11701-1104006 |
1GDFTV..GDH303 MARK 6,NO.2,修理書 参照 |
2 | ||
| 11701-1104004 |
1GDFTV..GDH303 MARK 4,NO.2,修理書 参照 |
2 | ||
| 11701-1104003 |
1GDFTV..GDH303 MARK 3,NO.2,修理書 参照 |
2 | ||
| 11701-1104005 |
1GDFTV..GDH303 MARK 5,NO.2,修理書 参照 |
2 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11701-1103002 |
1GDFTV..GDH303 MARK 2,NO.1,修理書 参照 |
3 | ||
| 11701-1103004 |
1GDFTV..GDH303 MARK 4,NO.1,修理書 参照 |
3 | ||
| 11701-1103006 |
1GDFTV..GDH303 MARK 6,NO.1,修理書 参照 |
3 | ||
| 11701-1103005 |
1GDFTV..GDH303 MARK 5,NO.1,修理書 参照 |
3 | ||
| 11701-1103003 |
1GDFTV..GDH303 MARK 3,NO.1,修理書 参照 |
3 | ||
| 11701-1104002 |
1GDFTV..GDH303 MARK 2,NO.2,修理書 参照 |
2 | ||
| 11701-1104006 |
1GDFTV..GDH303 MARK 6,NO.2,修理書 参照 |
2 | ||
| 11701-1104004 |
1GDFTV..GDH303 MARK 4,NO.2,修理書 参照 |
2 | ||
| 11701-1104003 |
1GDFTV..GDH303 MARK 3,NO.2,修理書 参照 |
2 | ||
| 11701-1104005 |
1GDFTV..GDH303 MARK 5,NO.2,修理書 参照 |
2 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-11200 |
1GDFTV..GDH303 STD,(J) |
1 | ||
| 13011-11201 |
1GDFTV..GDH303 STD,(J) |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-1106006 |
1GDFTV..GDH303 MARK 6,(J) |
4 | ||
| 13041-1106005 |
1GDFTV..GDH303 MARK 5,(J) |
4 | ||
| 13041-1106002 |
1GDFTV..GDH303 MARK 2,(J) |
4 | ||
| 13041-1106104 |
1GDFTV..GDH303 MARK 4,(J) |
4 | ||
| 13041-1106105 |
1GDFTV..GDH303 MARK 5,(J) |
4 | ||
| 13041-1106004 |
1GDFTV..GDH303 MARK 4,(J) |
4 | ||
| 13041-1106106 |
1GDFTV..GDH303 MARK 6,(J) |
4 | ||
| 13041-1106003 |
1GDFTV..GDH303 MARK 3,(J) |
4 | ||
| 13041-1106103 |
1GDFTV..GDH303 MARK 3,(J) |
4 | ||
| 13041-1106102 |
1GDFTV..GDH303 MARK 2,(J) |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-1119101 |
1GDFTV..GDH303 STD,MARK 1,(J) |
4 | ||
| 13101-1119001 |
1GDFTV..GDH303 STD,MARK 1,(J) |
4 | ||
| 13101-1119002 |
1GDFTV..GDH303 STD,MARK 2,(J) |
4 | ||
| 13101-1119102 |
1GDFTV..GDH303 STD,MARK 2,(J) |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-32013 |
1GDFTV..GDH303 |
8 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-32013 |
1GDFTV..GDH303 |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-0E020A0 |
1GDFTV..GDH303 MARK A,(L) |
4 | ||
| 13201-0E020C0 |
1GDFTV..GDH303 MARK C,(L) |
4 | ||
| 13201-11050B0 |
1GDFTV..GDH303 MARK B,(J) |
4 | ||
| 13201-11050A0 |
1GDFTV..GDH303 MARK A,(J) |
4 | ||
| 13201-11050C0 |
1GDFTV..GDH303 MARK C,(J) |
4 | ||
| 13201-0E020B0 |
1GDFTV..GDH303 MARK B,(L) |
4 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-22031 |
1GDFTV..GDH303 |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-11090 |
1GDFTV..GDH303 (J) |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-05121 |
1GDFTV..GDH303 長さ=15,外径=5,(J) |
1 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-11090 |
1GDFTV..GDH303 (J) |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13408-11060 |
1GDFTV..GDH303 (J) |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90119-18003 |
1GDFTV..GDH303 (J) |
1 | ||
| 13496 - COVER, CRANKSHAFT PULLY | ||||
| 13496-11010 |
1GDFTV..GDH303 |
1 | ||
| 13519 - GEAR, OIL PUMP DRIVE | ||||
| 13519-11010 |
1GDFTV..GDH303 (J) |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-11050 |
1GDFTV..GDH303 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 95161-30516 |
1GDFTV..GDH303 (J) |
2 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 95161-30516 |
1GDFTV..GDH303 (J) |
2 | ||
| 13639 - SPROCKET, BALANCESHAFT TIMING | ||||
| 13639-11010 |
1GDFTV..GDH303 (J) |
1 | ||
| 88451B - PULLEY, CRANKSHAFT(FOR VISCOUS HEATER) | ||||
| 88451-26070 |
GDH303 寒冷地仕様(−20℃地域) |
1 | ||
| 88451C - BOLT, FLANGE W/WASHER | ||||
| 91671-80814 |
GDH303 (J) |
4 | ||
| 91671-80814 |
GDH303 寒冷地仕様(−20℃地域) |
4 | ||
