GDH303W-RDTGY (2019)
Toyota Granace
Production
Dec 2019
-
Sep 9999
Engine
1GDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1912- )

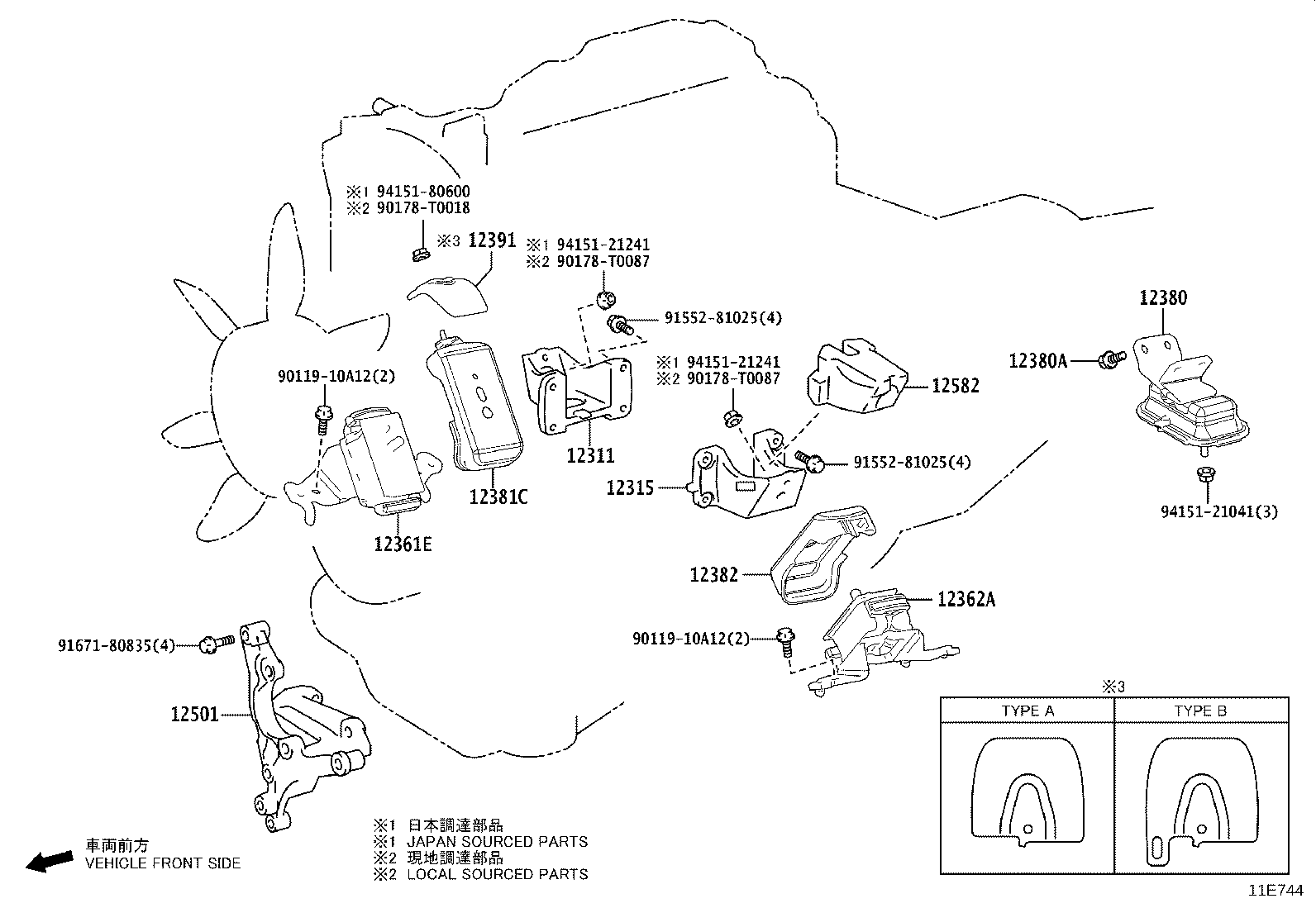

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-11140 |
1GDFTV..GDH303 (J) |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-11060 |
1GDFTV..GDH303 (J) |
1 | ||
| 12361E - INSULATOR, ENGINE MOUNTING, FRONT RH | ||||
| 12361-11210 |
1GDFTV..GDH303 |
1 | ||
| 12362A - INSULATOR, ENGINE MOUNTING, FRONT LH | ||||
| 12362-11310 |
1GDFTV..GDH303 |
1 | ||
| 12380 - INSULATOR ASSY, ENGINE MOUNTING, REAR | ||||
| 12380-11010 |
1GDFTV..GDH303 |
1 | ||
| 12380A - BOLT(FOR ENGINE MOUNTING INSURATOR) | ||||
| 90119-10A12 |
1GDFTV..GDH303 |
4 | ||
| 12381C - STABILIZER, ENGINE MOUNTING, RH | ||||
| 12381-11030 |
1GDFTV..GDH303 |
1 | ||
| 12382 - STABILIZER, ENGINE MOUNTING, LH | ||||
| 12381-11030 |
1GDFTV..GDH303 |
1 | ||
| 12391 - INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH | ||||
| 12391-0L010 |
1GDFTV..GDH303 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 12391-11030 |
1GDFTV..GDH303 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 12501 - BRACKET SUB-ASSY, ALTERNATOR | ||||
| 12501-11012 |
1GDFTV..GDH303 (J) |
1 | ||
| 12582 - INSULATOR, CYLINDER BLOCK, NO.2 | ||||
| 12582-11010 |
1GDFTV..GDH303 |
1 | ||
| Common parts | ||||
| 90119-10A12 | ||||
| 90178-T0018 | ||||
| 90178-T0087 | ||||
| 91552-81025 | ||||
| 91671-80835 | ||||
| 94151-21041 | ||||
| 94151-21241 | ||||
| 94151-80600 | ||||
