GDH303W-RDTGY (2019)

Toyota Granace

Production Dec 2019 - Sep 9999
Engine 1GDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1912- )

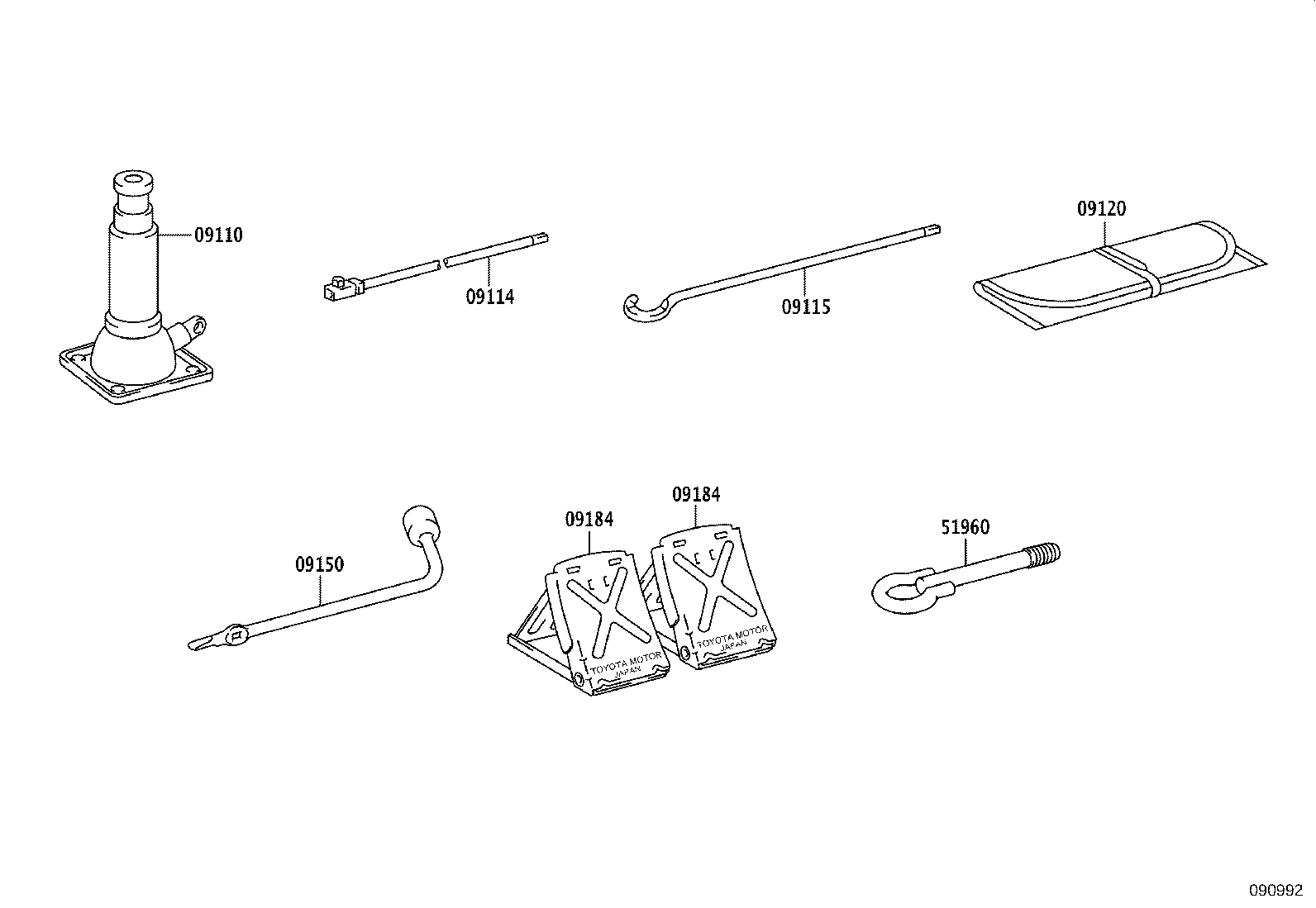

Click highlighted areas on diagram

diagram 09110 09114 09115 09120 09150 09184 09184 51960
Part # Description Qty Price
09110 - JACK ASSY
09111-26210

GDH303

 1
09114 - EXTENSION SUB-ASSY, JACK HANDLE
09114-28010

GDH303

 1
09115 - ROD SUB-ASSY, JACK HANDLE
09115-28030

GDH303

 1
09120 - BAG, TOOL
09120-30020

GDH303

 1
09150 - WRENCH, HUB NUT BOX
09150-26040

GDH303

 1
09184 - STOPPER, WHEEL
09184-00010

GDH303

 2
09184 - STOPPER, WHEEL
09184-00010

GDH303

 2
51960 - HOOK ASSY, FRONT
51960-26030

GDH303

 1
