Toyota Gaia SXM15 ABS & VSC - JDM Part Detective

SXM15G-BRSEK (1998)

Toyota Gaia

Production May 1998 - Aug 2002

Engine 3SFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

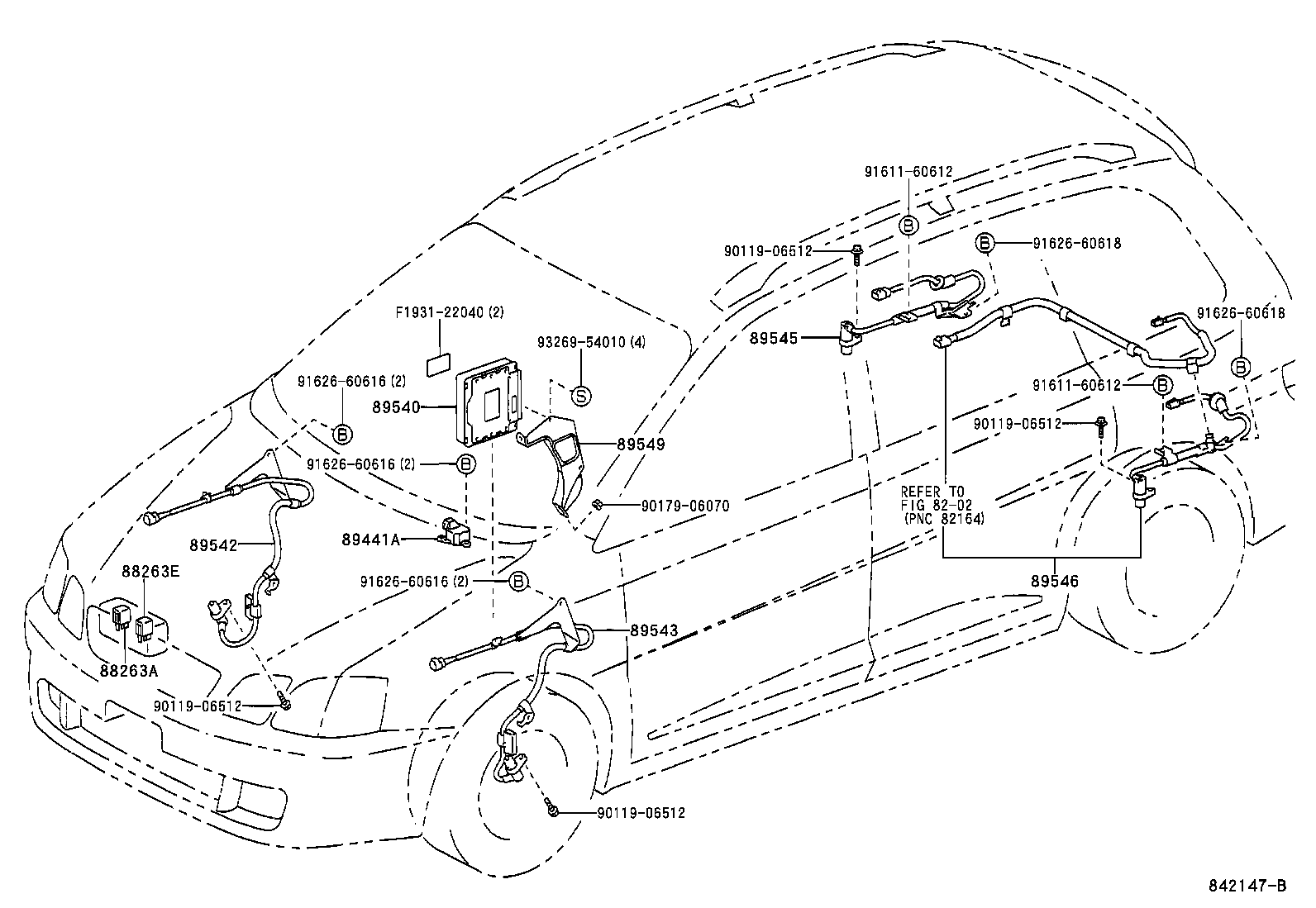

Click highlighted areas on diagram

Part #	Description	Period	Qty
88263A - RELAY, SKID CONTROL
88263-24030	CXM10,SXM1#	05/1998 - 04/2001	1
88263-32070	ACM15,SXM15	04/2001 - 12/2999	1
88263E - RELAY, SKID CONTROL NO.2
88263-14110	SXM15	05/1998 - 04/2001	1
89441A - SENSOR, DECELERATION
89441-42010	ACM15,SXM15	04/2001 - 12/2999	1
89441-42010	SXM15	05/1998 - 04/2001	1
89540 - COMPUTER ASSY, SKID CONTROL
89540-44140	SXM15	04/2001 - 08/2002	1
89541-44032	SXM15	12/1999 - 04/2001	1
89541-44031	SXM15	03/1999 - 12/1999	1
89541-44030	SXM15	05/1998 - 03/1999	1
89542 - SENSOR, SPEED, FRONT RH
89542-44010	CXM10,SXM1#	05/1999 - 04/2001	1
89542-44010	SXM15	04/2001 - 08/2002	1
89542-20130	CXM10,SXM1#	05/1998 - 05/1999	1
89543 - SENSOR, SPEED, FRONT LH
89543-20130	CXM10,SXM1#	05/1998 - 05/1999	1
89543-44010	SXM15	04/2001 - 08/2002	1
89543-44010	CXM10,SXM1#	05/1999 - 04/2001	1
89545 - SENSOR, SPEED, REAR RH
89545-44010	SXM15	05/1998 - 04/2001	1
89545-44010	SXM15	04/2001 - 08/2002	1
89546 - SENSOR, SPEED, REAR LH
89546-44021	SXM15	04/2001 - 08/2002	1
89546-44020	SXM15	05/1998 - 07/1998	1
89546-44021	SXM15	07/1998 - 04/2001	1
89549 - BRACKET, SKID CONTROL COMPUTER
89549-44030	CXM10,SXM1#	05/1998 - 04/2001	1
Common parts
90119-06512
90179-06070
91611-60612
91626-60616
91626-60618
93269-54010
F1931-22040
Linked diagrams
8202

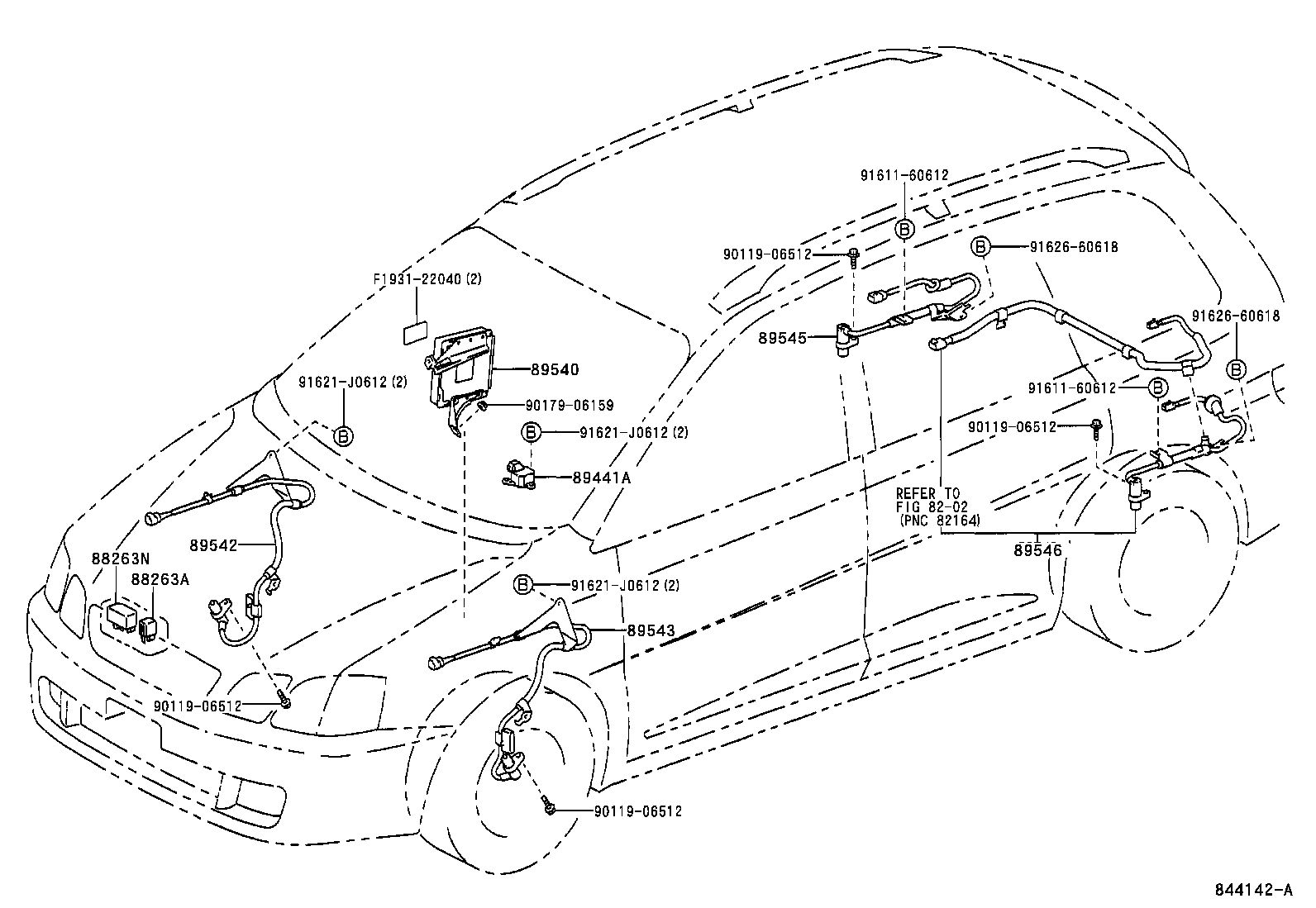

Click highlighted areas on diagram

Part #	Description	Period	Qty
88263A - RELAY, SKID CONTROL
88263-24030	CXM10,SXM1#	05/1998 - 04/2001	1
88263-32070	ACM15,SXM15	04/2001 - 12/2999	1
88263N - RELAY, ABS MOTOR
88263-30150	ACM15,SXM15	04/2001 - 12/2999	1
89441A - SENSOR, DECELERATION
89441-42010	ACM15,SXM15	04/2001 - 12/2999	1
89441-42010	SXM15	05/1998 - 04/2001	1
89540 - COMPUTER ASSY, SKID CONTROL
89540-44140	SXM15	04/2001 - 08/2002	1
89541-44032	SXM15	12/1999 - 04/2001	1
89541-44031	SXM15	03/1999 - 12/1999	1
89541-44030	SXM15	05/1998 - 03/1999	1
89542 - SENSOR, SPEED, FRONT RH
89542-44010	CXM10,SXM1#	05/1999 - 04/2001	1
89542-44010	SXM15	04/2001 - 08/2002	1
89542-20130	CXM10,SXM1#	05/1998 - 05/1999	1
89543 - SENSOR, SPEED, FRONT LH
89543-20130	CXM10,SXM1#	05/1998 - 05/1999	1
89543-44010	SXM15	04/2001 - 08/2002	1
89543-44010	CXM10,SXM1#	05/1999 - 04/2001	1
89545 - SENSOR, SPEED, REAR RH
89545-44010	SXM15	05/1998 - 04/2001	1
89545-44010	SXM15	04/2001 - 08/2002	1
89546 - SENSOR, SPEED, REAR LH
89546-44021	SXM15	04/2001 - 08/2002	1
89546-44020	SXM15	05/1998 - 07/1998	1
89546-44021	SXM15	07/1998 - 04/2001	1
Common parts
90119-06512
90179-06159
91611-60612
91621-J0612
91626-60618
F1931-22040
Linked diagrams
8202
