SXM15G-BRSEK (1998)
Toyota Gaia

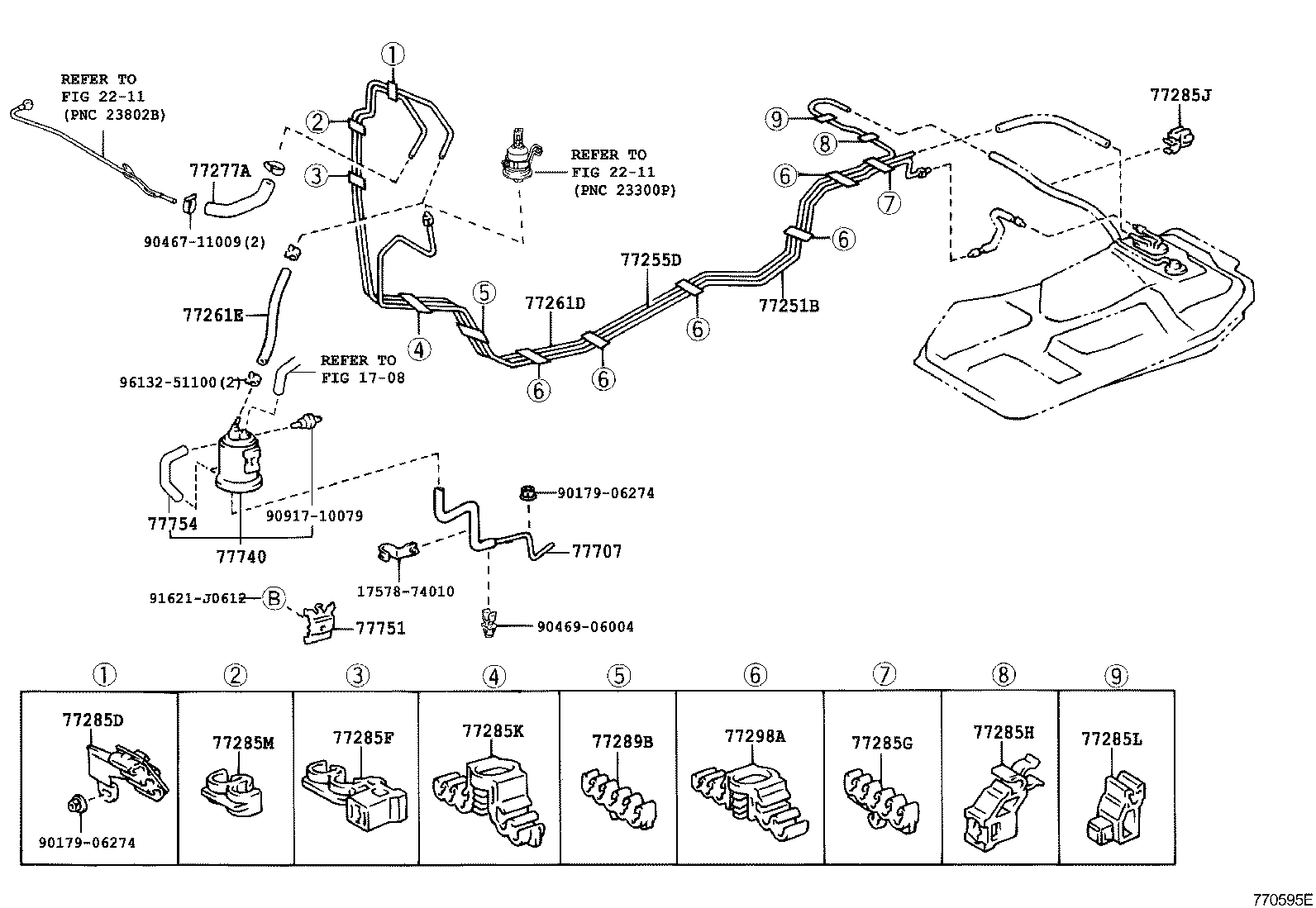

ILLUST NO. 2 OF 2(9805- )SXM1#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-44010 |
SXM1# |
1 | ||
| 77251-44010 |
ACM1#,SXM15 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-44010 |
SXM1# |
1 | ||
| 77255-44010 |
ACM1#,SXM15 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-44010 |
SXM1# |
1 | ||
| 77261-44010 |
ACM1#,SXM15 |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06030 |
SXM15 *H,L=220 |
1 | ||
| 95333-06030 |
SXM1# *H,L=220 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-12084 |
SXM1# 長さ=280 |
1 | ||
| 90447-12084 |
SXM15 長さ=280 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-44100 |
ACM1#,SXM15 |
1 | ||
| 77285-44100 |
SXM1# |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-44110 |
SXM1# |
1 | ||
| 77285-44110 |
ACM1#,SXM15 |
1 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-44120 |
CXM10,SXM1# |
1 | ||
| 77285-44120 |
ACM1#,CXM10,SXM15 |
1 | ||
| 77285H - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-44130 |
CXM10,SXM1# |
1 | ||
| 77285-44130 |
ACM1#,CXM10,SXM15 |
1 | ||
| 77285J - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-44140 |
CXM10,SXM1# |
1 | ||
| 77285-44140 |
ACM1#,CXM10,SXM15 |
1 | ||
| 77285K - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-44150 |
ACM1#,CXM10,SXM15 |
1 | ||
| 77285-44150 |
CXM10,SXM1# |
1 | ||
| 77285L - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-44070 |
SXM1# |
1 | ||
| 77285-44070 |
ACM1#,SXM15 |
1 | ||
| 77285M - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-44080 |
SXM1# |
1 | ||
| 77285-44080 |
ACM1#,SXM15 |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-44010 |
CXM10,SXM1# |
1 | ||
| 77289-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-44020 |
CXM10,SXM1# |
5 | ||
| 77298-44020 |
ACM1#,CXM10,SXM15 |
5 | ||
| 77707 - TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET | ||||
| 77707-44011 |
SXM15 |
1 | ||
| 77707-44011 |
SXM1# |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-44010 |
SXM1# |
1 | ||
| 77740-44010 |
SXM15 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-44010 |
SXM1# |
1 | ||
| 77751-44010 |
SXM15 |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-20370 |
SXM1# |
1 | ||
| 77754-20370 |
SXM15 |
1 | ||
| Common parts | ||||
| 17578-74010 | ||||
| 90179-06274 | ||||
| 90467-11009 | ||||
| 90469-06004 | ||||
| 90917-10079 | ||||
| 91621-J0612 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||

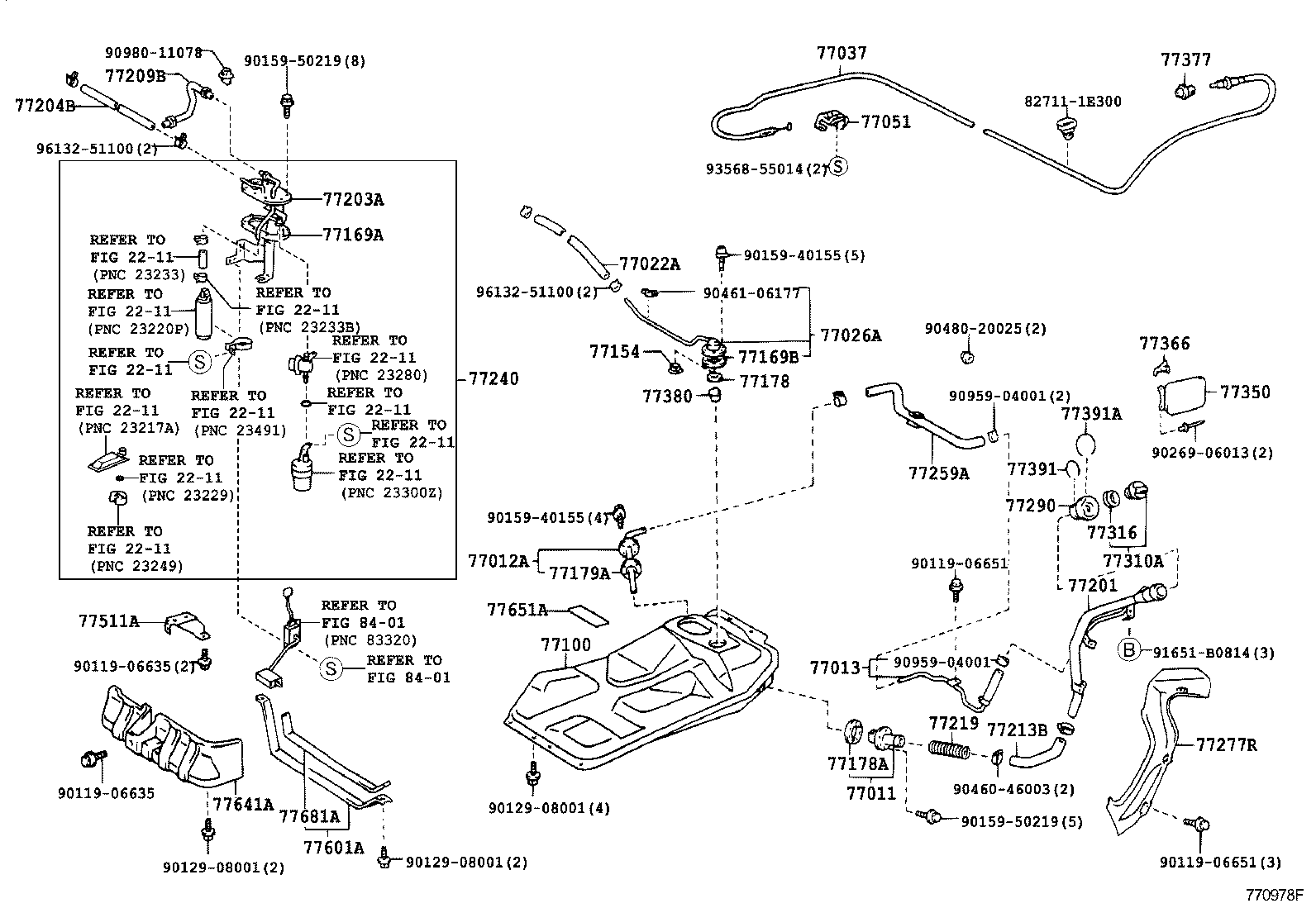

ILLUST NO. 1 OF 2(9805- )ACM1#,SXM1#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-28010 |
CXM10,SXM1# |
1 | ||
| 77011-28010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 77012A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1 | ||||
| 77012-44020 |
CXM10,SXM1# |
1 | ||
| 77012-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 77013 - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2 | ||||
| 77013-44010 |
CXM10,SXM1# |
1 | ||
| 77013-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-06060 |
SXM1# *H,L=500 |
1 | ||
| 95333-06060 |
ACM1#,SXM15 *H,L=500 |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 77026-44020 |
CXM10,SXM1# |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-44010 |
CXM10,SXM1# |
1 | ||
| 77037-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 77051 - LEVER SUB-ASSY, FUEL LID OPEN | ||||
| 77051-44010B1 |
CXM10,SXM1# DK.CHARCOAL,TRIM0# |
1 | ||
| 77051-44010E0 |
SXM15 SANDAL WOOD,TRIM0# |
1 | ||
| 77051-44010B0 |
SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 77051-44010B3 |
SXM15 DK.GRAY,TRIM1# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-44900 |
SXM1# |
1 | ||
| 77001-44900 |
ACM1#,SXM15 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-60010 |
SXM1# |
1 | ||
| 77169B - GASKET, FUEL SUCTION TUBE SET, NO.1 | ||||
| 77169-14020 |
CXM10,SXM1# |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-44010 |
CXM10,SXM1# |
1 | ||
| 77178A - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20030 |
CXM10,SXM1# |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-14030 |
CXM10,SXM1# |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 77201-44020 |
CXM10,SXM1# |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-44020 |
SXM1# |
1 | ||
| 77203-44020 |
SXM15 |
1 | ||
| 77204B - HOSE, FUEL(FOR FUEL RETURN) | ||||
| 95333-06020 |
ACM1#,SXM15 |
1 | ||
| 95333-06020 |
SXM1# |
1 | ||
| 77209B - TUBE SUB-ASSY, FUEL PUMP | ||||
| 77209-44010 |
SXM1# |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-44010 |
CXM10,SXM1# |
1 | ||
| 77213-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 77219-44010 |
CXM10,SXM1# |
1 | ||
| 77259A - HOSE, FUEL(FOR BREATHER TUBE) | ||||
| 77049-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 77049-44010 |
CXM10,SXM1# |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 77277-44010 |
CXM10,SXM1# |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-44011 |
CXM10,SXM1# |
1 | ||
| 77291-44011 |
ACM1#,CXM10,SXM15 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-48010 |
ACM1#,SXM15 |
1 | ||
| 77310-48010 |
SXM1# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
CXM10,SXM1# |
1 | ||
| 77316-16010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-44020 |
CXM10,SXM1# |
1 | ||
| 77350-44020 |
SXM15 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-44020 |
CXM10,SXM1# |
1 | ||
| 77360-44010 |
CXM10,SXM1# |
1 | ||
| 77360-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12050 |
ACM1#,CXM10,SXM15 |
1 | ||
| 77377-12050 |
CXM10,SXM1# |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
CXM10,SXM1# |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 77391-12020 |
CXM10,SXM1# |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-44010 |
CXM10,SXM1# |
1 | ||
| 77391-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 77511A - BRACKET, FUEL TANK | ||||
| 77511-44010 |
CXM10,SXM1# |
1 | ||
| 77511-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-44010 |
CXM10,SXM1# |
1 | ||
| 77601-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 77641-44010 |
CXM10,SXM1# |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-44010 |
ACM1#,CXM10,SXM15 |
6 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-32060 |
CXM10,SXM1# |
1 | ||
| 77681-32060 |
ACM1#,CXM10,SXM15 |
1 | ||
| Common parts | ||||
| 82711-1E300 | ||||
| 90119-06635 | ||||
| 90119-06651 | ||||
| 90129-08001 | ||||
| 90159-40155 | ||||
| 90159-50219 | ||||
| 90269-06013 | ||||
| 90460-46003 | ||||
| 90461-06177 | ||||
| 90480-20025 | ||||
| 90959-04001 | ||||
| 90980-11078 | ||||
| 91651-B0814 | ||||
| 93568-55014 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 8401 | ||||
