SXM15G-BRSEK (1998)
Toyota Gaia
Production
May 1998
-
Aug 2002
Engine
3SFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9805- )ACM15,SXM15

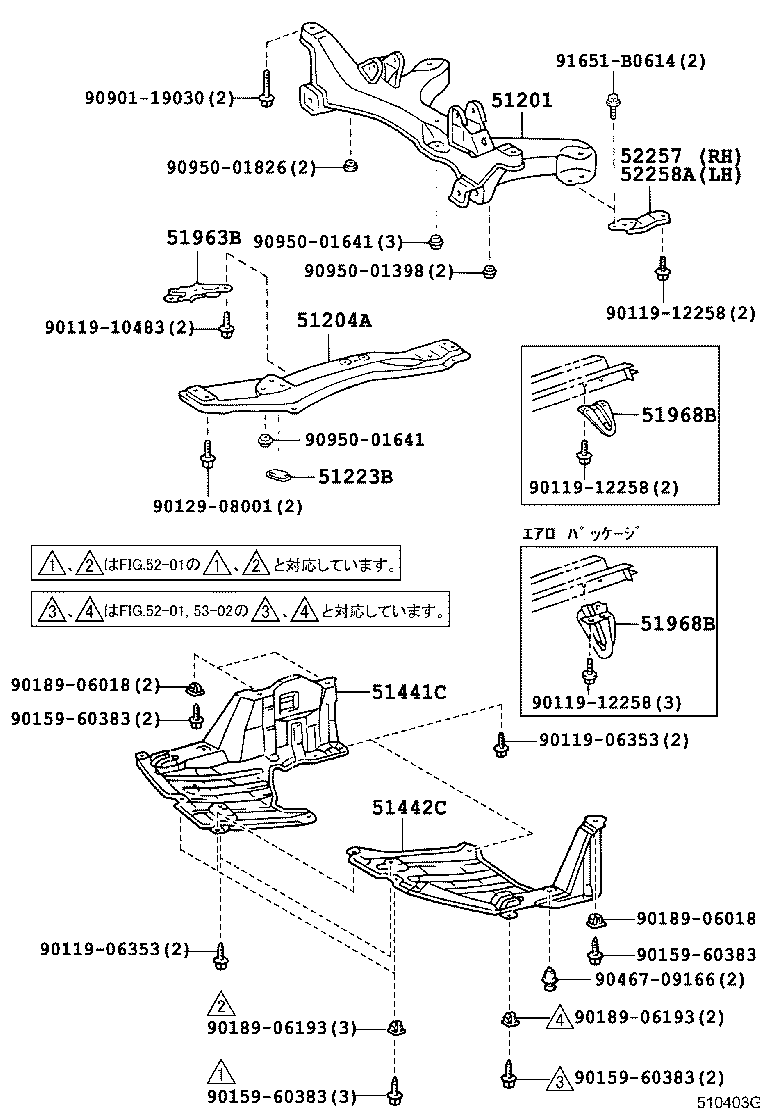

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-20290 |
SXM15 |
1 | ||
| 51201-20290 |
ACM15,SXM15 |
1 | ||
| 51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER | ||||
| 51204-20121 |
SXM15 |
1 | ||
| 51204-20121 |
ACM15,SXM15 |
1 | ||
| 51223B - COVER, ENGINE MOUNTING HOLE | ||||
| 51223-20050 |
ACM1#,CXM10,SXM15 |
1 | ||
| 51223-20050 |
CXM10,SXM1# |
1 | ||
| 51441C - COVER, ENGINE UNDER, RH | ||||
| 51441-20380 |
SXM1# |
1 | ||
| 51441-20380 |
ACM1#,SXM15 |
1 | ||
| 51442C - COVER, ENGINE UNDER, LH | ||||
| 51442-20450 |
SXM1# |
1 | ||
| 51442-20450 |
ACM1#,SXM15 |
1 | ||
| 51963B - HOOK, TRANSPORT, FRONT RH | ||||
| 51963-20130 |
SXM1# |
1 | ||
| 51963-20130 |
ACM1#,SXM15 |
1 | ||
| 51968B - HOOK, TRANSPORT, REAR LH | ||||
| 51096-44010 |
SXM1# ｴｱﾛ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 51968-44010 |
CXM10,SXM1# |
1 | ||
| 51968-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 51096-44010 |
ACM1#,SXM15 ｴｱﾛ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 51968B - HOOK, TRANSPORT, REAR LH | ||||
| 51096-44010 |
SXM1# ｴｱﾛ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 51968-44010 |
CXM10,SXM1# |
1 | ||
| 51968-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 51096-44010 |
ACM1#,SXM15 ｴｱﾛ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH | ||||
| 52257-44020 |
SXM15 |
1 | ||
| 52257-44020 |
ACM15,SXM15 |
1 | ||
| 52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH | ||||
| 52258-44020 |
SXM15 |
1 | ||
| 52258-44020 |
ACM15,SXM15 |
1 | ||
| Common parts | ||||
| 90119-06353 | ||||
| 90119-10483 | ||||
| 90119-12258 | ||||
| 90129-08001 | ||||
| 90159-60383 | ||||
| 90189-06018 | ||||
| 90189-06193 | ||||
| 90467-09166 | ||||
| 90901-19030 | ||||
| 90950-01398 | ||||
| 90950-01641 | ||||
| 90950-01826 | ||||
| 91651-B0614 | ||||
