SXM15G-BRSEK (1998)
Toyota Gaia
Production
May 1998
-
Aug 2002
Engine
3SFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

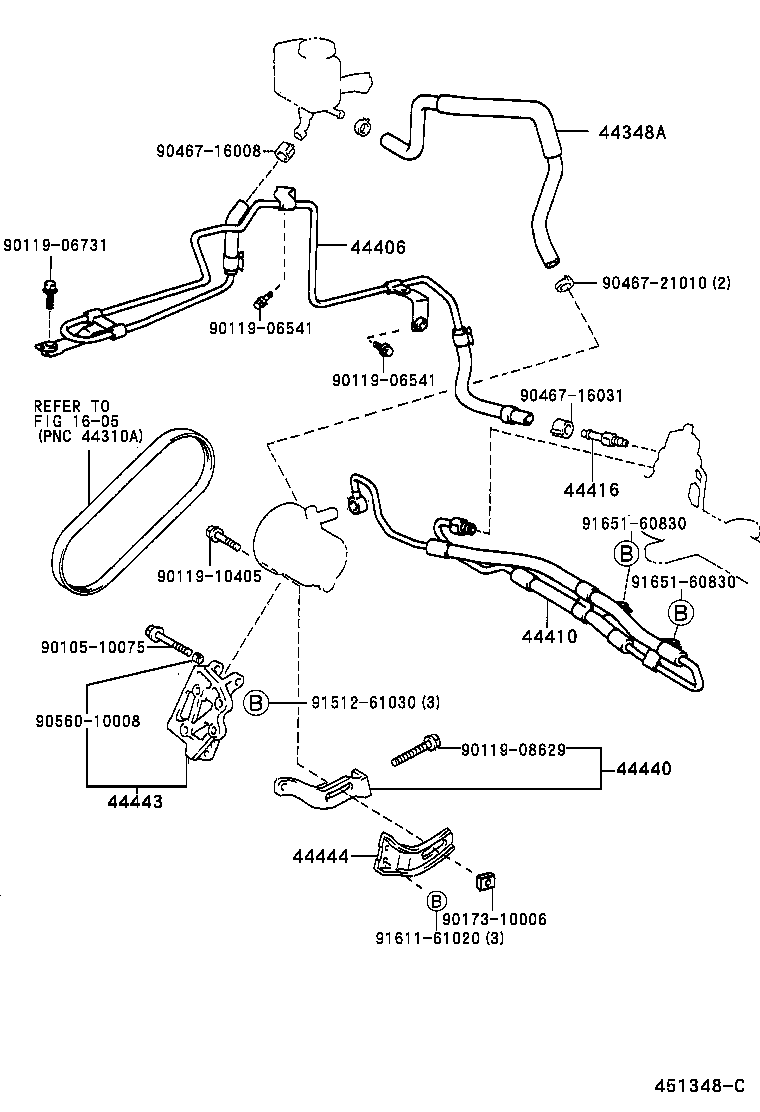

(9805-0104)SXM15
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-44020 |
SXM15 |
1 | ||
| 44348-44020 |
SXM15 |
1 | ||
| 44406 - TUBE SUB-ASSY, RETURN | ||||
| 44406-44022 |
SXM15 |
1 | ||
| 44406-44021 |
SXM15 |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-44020 |
SXM15 |
1 | ||
| 44410-44020 |
SXM15 |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-20220 |
ACM1#,CXM10,SXM15 |
1 | ||
| 44416-20220 |
CXM10,SXM1# |
1 | ||
| 44440 - BRACKET ASSY, PUMP | ||||
| 44440-20040 |
SXM15 |
1 | ||
| 44440-20040 |
SXM15 |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-20050 |
SXM1# |
1 | ||
| 44443-20050 |
SXM15 |
1 | ||
| 44444 - STAY, PUMP, REAR | ||||
| 44444-20030 |
SXM1# |
1 | ||
| 44444-20030 |
SXM15 |
1 | ||
| Common parts | ||||
| 90105-10075 | ||||
| 90119-06541 | ||||
| 90119-06731 | ||||
| 90119-08629 | ||||
| 90119-10405 | ||||
| 90173-10006 | ||||
| 90467-16008 | ||||
| 90467-16031 | ||||
| 90467-21010 | ||||
| 90560-10008 | ||||
| 91512-61030 | ||||
| 91611-61020 | ||||
| 91651-60830 | ||||
| Linked diagrams | ||||
| 1605 | ||||

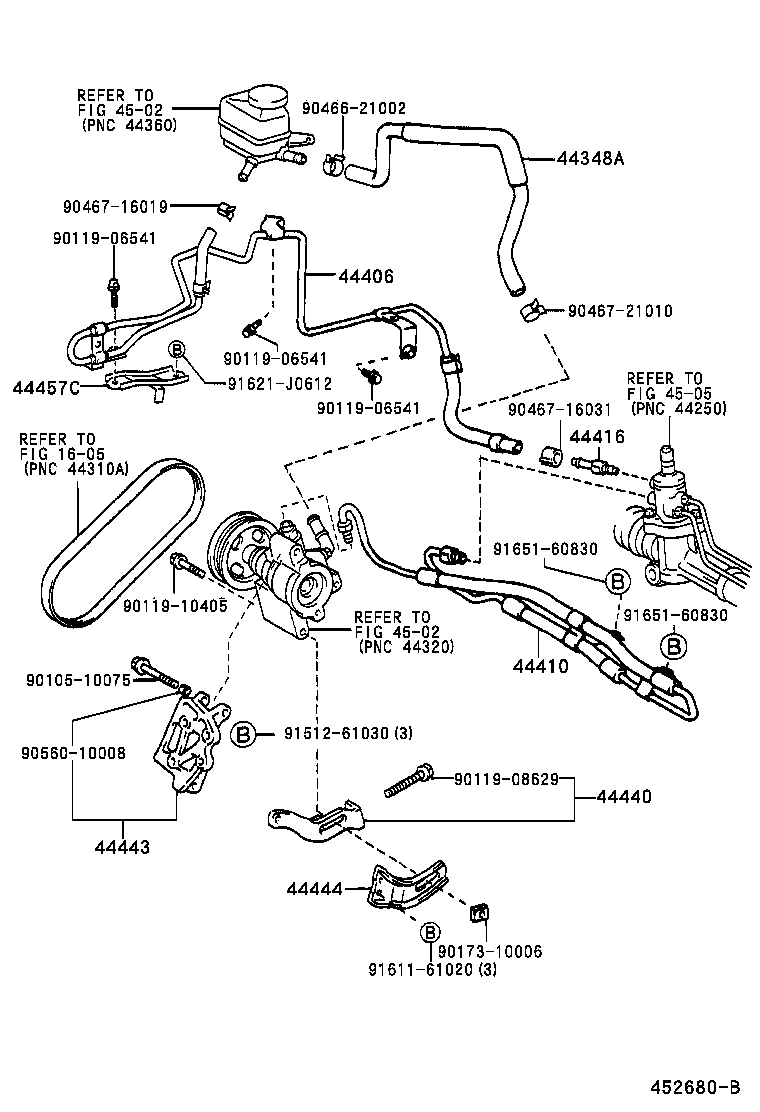

(0104-0208)SXM15
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-44020 |
SXM15 |
1 | ||
| 44348-44020 |
SXM15 |
1 | ||
| 44406 - TUBE SUB-ASSY, RETURN | ||||
| 44406-44022 |
SXM15 |
1 | ||
| 44406-44021 |
SXM15 |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-44020 |
SXM15 |
1 | ||
| 44410-44020 |
SXM15 |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-20220 |
ACM1#,CXM10,SXM15 |
1 | ||
| 44416-20220 |
CXM10,SXM1# |
1 | ||
| 44440 - BRACKET ASSY, PUMP | ||||
| 44440-20040 |
SXM15 |
1 | ||
| 44440-20040 |
SXM15 |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-20050 |
SXM1# |
1 | ||
| 44443-20050 |
SXM15 |
1 | ||
| 44444 - STAY, PUMP, REAR | ||||
| 44444-20030 |
SXM1# |
1 | ||
| 44444-20030 |
SXM15 |
1 | ||
| 44457C - BRACKET, POWER STEERING TUBE SUPPORT, NO.1 | ||||
| 44457-44020 |
ACM1#,SXM15 |
1 | ||
| Common parts | ||||
| 90105-10075 | ||||
| 90119-06541 | ||||
| 90119-08629 | ||||
| 90119-10405 | ||||
| 90173-10006 | ||||
| 90466-21002 | ||||
| 90467-16019 | ||||
| 90467-16031 | ||||
| 90467-21010 | ||||
| 90560-10008 | ||||
| 91512-61030 | ||||
| 91611-61020 | ||||
| 91621-J0612 | ||||
| 91651-60830 | ||||
| Linked diagrams | ||||
| 1605 | ||||
| 4502 | ||||
| 4505 | ||||
