SXM15G-BRSEK (1998)
Toyota Gaia
ILLUST NO. 1 OF 2(9805-0208)SXM15 ; (0208- )ACM15
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04437A - BOOT KIT, REAR DRIVE SHAFT, RH | ||||
| 04437-44020 |
SXM15 |
1 | ||
| 04437-21022 |
SXM15 |
1 | ||
| 04437B - BOOT KIT, REAR DRIVE SHAFT, LH | ||||
| 04437-44020 |
SXM15 |
1 | ||
| 04437-21022 |
SXM15 |
1 | ||
| 04437C - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04437-44010 |
SXM15 |
1 | ||
| 04437-21012 |
SXM15 |
1 | ||
| 04437D - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04437-44010 |
SXM15 |
1 | ||
| 04437-21012 |
SXM15 |
1 | ||
| 42330 - SHAFT ASSY, REAR DRIVE, RH | ||||
| 42340-44010 |
SXM15 |
1 | ||
| 42340-44010 |
ACM15,SXM15 |
1 | ||
| 42330C - RING, HOLE SNAP(FOR REAR DRIVE SHAFT) | ||||
| 90521-64001 |
SXM15 |
1 | ||
| 42330D - RING, SHAFT SNAP(FOR REAR DRIVE SHAFT) | ||||
| 90521-64001 |
SXM15 |
1 | ||
| 42340B - SHAFT ASSY, REAR DRIVE, LH | ||||
| 42340-44010 |
SXM15 |
1 | ||
| 42340-44010 |
ACM15,SXM15 |
1 | ||
| 42341B - RING, SNAP (FOR REAR DRIVE SHAFT RH) | ||||
| 90520-21020 |
SXM15 |
1 | ||
| 90520-21020 |
ACM15,SXM15 |
1 | ||
| 42341C - RING, SNAP (FOR REAR DRIVE SHAFT LH) | ||||
| 90520-21020 |
ACM15,SXM15 |
1 | ||
| 90520-21020 |
SXM15 |
1 | ||
| 42346C - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH) | ||||
| 42345-12120 |
SXM15 |
1 | ||
| 42345-12120 |
ACM15,SXM15 内径=74.3 |
1 | ||
| 42345-12120 |
SXM15 内径=74.3 |
1 | ||
| 42346D - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH) | ||||
| 42345-12120 |
SXM15 内径=74.3 |
1 | ||
| 42345-12120 |
ACM15,SXM15 内径=74.3 |
1 | ||
| 42345-12120 |
SXM15 |
1 | ||
| 42346E - CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT R | ||||
| 42345-12130 |
ACM15,SXM15 |
1 | ||
| 42345-12130 |
SXM15 |
1 | ||
| 42345-33020 |
SXM15 |
1 | ||
| 42346F - CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT L | ||||
| 42345-33020 |
SXM15 |
1 | ||
| 42345-12130 |
ACM15,SXM15 |
1 | ||
| 42345-12130 |
SXM15 |
1 | ||
| 42347C - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH) | ||||
| 42345-12120 |
SXM15 |
1 | ||
| 42345-12120 |
ACM15,SXM15 内径=74.3 |
1 | ||
| 42345-12120 |
SXM15 内径=74.3 |
1 | ||
| 42347D - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH) | ||||
| 42345-12120 |
SXM15 |
1 | ||
| 42345-12120 |
ACM15,SXM15 内径=74.3 |
1 | ||
| 42345-12120 |
SXM15 内径=74.3 |
1 | ||
| 42347E - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH | ||||
| 42345-12130 |
SXM15 |
1 | ||
| 42345-33020 |
SXM15 |
1 | ||
| 42345-12130 |
ACM15,SXM15 |
1 | ||
| 42347F - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH | ||||
| 42345-12130 |
SXM15 |
1 | ||
| 42345-33020 |
SXM15 |
1 | ||
| 42345-12130 |
ACM15,SXM15 |
1 | ||
| 42360C - JOINT ASSY, REAR DRIVE SHAFT INBOARD, RH | ||||
| 42360-44010 |
SXM15 |
1 | ||
| 42360-28010 |
ACM15,SXM15 |
1 | ||
| 42360-28010 |
SXM15 |
1 | ||
| 42360D - JOINT ASSY, REAR DRIVE SHAFT INBOARD, LH | ||||
| 42360-28010 |
SXM15 |
1 | ||
| 42360-44010 |
SXM15 |
1 | ||
| 42360-28010 |
ACM15,SXM15 |
1 | ||
| 42370A - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH | ||||
| 42370-49066 |
ACM15,SXM15 |
1 | ||
| 42370-49065 |
SXM15 |
1 | ||
| 42370-49066 |
SXM15 |
1 | ||
| 42380 - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH | ||||
| 42370-49066 |
ACM15,SXM15 |
1 | ||
| 42370-49065 |
SXM15 |
1 | ||
| 42370-49066 |
SXM15 |
1 | ||
| 42451A - DEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH | ||||
| 43247-12010 |
SXM15 |
1 | ||
| 43247-12010 |
SXM15 |
1 | ||
| 42451B - DEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH | ||||
| 43247-12010 |
SXM15 |
1 | ||
| 43247-12010 |
SXM15 |
1 | ||
| Common parts | ||||
| 90170-10191 | ||||
| 90201-10068 | ||||

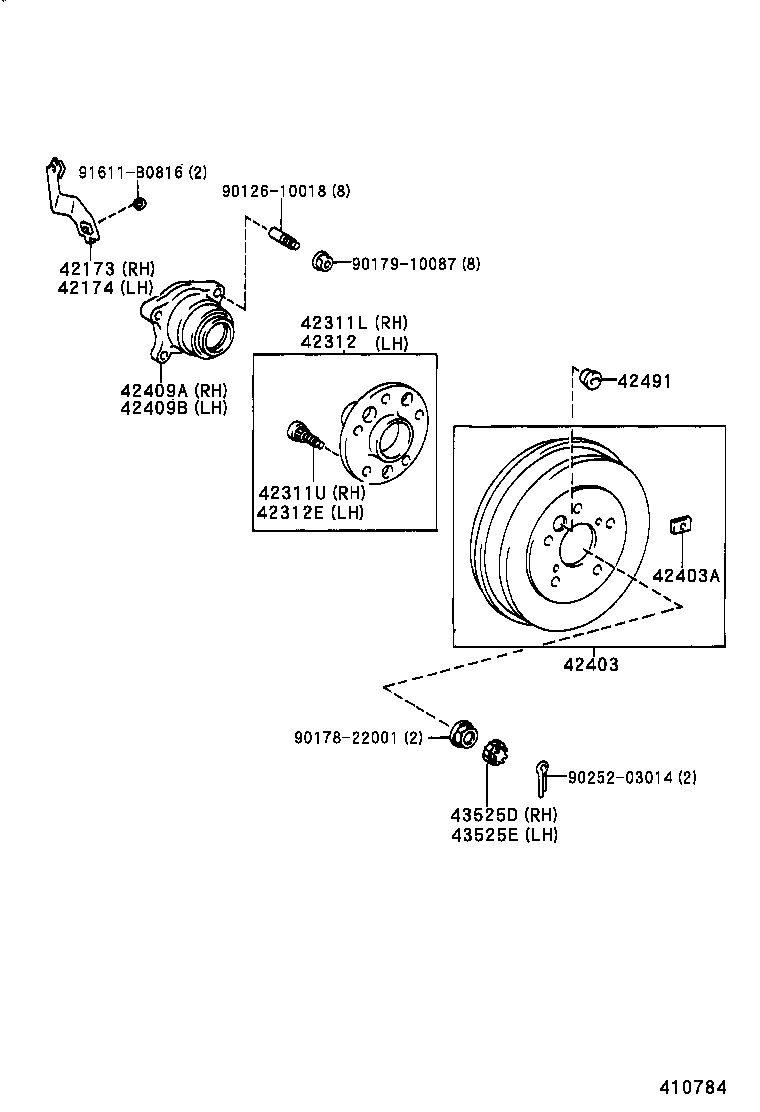

ILLUST NO. 2 OF 2(9805-0208)SXM15 ; (0208- )ACM15
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42173 - BRACKET, REAR AXLE HARNESS, RH | ||||
| 42173-44020 |
SXM15 |
1 | ||
| 42173-44020 |
SXM15 |
1 | ||
| 42174 - BRACKET, REAR AXLE HARNESS, LH | ||||
| 42174-44020 |
SXM15 |
1 | ||
| 42174-44020 |
SXM15 |
1 | ||
| 42311L - SHAFT, REAR AXLE, RH | ||||
| 42301-44020 |
ACM15,SXM15 |
1 | ||
| 42301-44020 |
SXM15 |
1 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02070 |
CXM10,SXM1# |
5 | ||
| 90942-02070 |
SXM15 |
5 | ||
| 42312 - SHAFT, REAR AXLE, LH | ||||
| 42301-44020 |
SXM15 |
1 | ||
| 42301-44020 |
ACM15,SXM15 |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02070 |
CXM10,SXM1# |
5 | ||
| 90942-02070 |
SXM15 |
5 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-44010 |
CXM10,SXM1# |
2 | ||
| 42431-44010 |
SXM15 |
2 | ||
| 42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM) | ||||
| 90937-01287 |
CXM10,SXM1# 10G |
1 | ||
| 90937-01287 |
ACM1#,CXM10,SXM15 10G |
1 | ||
| 90937-01289 |
ACM1#,CXM10,SXM15 30G |
1 | ||
| 90937-01288 |
CXM10,SXM1# 20G |
1 | ||
| 90937-01288 |
ACM1#,CXM10,SXM15 20G |
1 | ||
| 90937-01289 |
CXM10,SXM1# 30G |
1 | ||
| 42409A - BEARING SUB-ASSY, REAR AXLE, RH | ||||
| 42409-42010 |
SXM15 |
1 | ||
| 42409-42010 |
ACM15,SXM15 |
1 | ||
| 42409B - BEARING SUB-ASSY, REAR AXLE, LH | ||||
| 42409-42010 |
SXM15 |
1 | ||
| 42409-42010 |
ACM15,SXM15 |
1 | ||
| 42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE) | ||||
| 47491-14010 |
SXM15 |
2 | ||
| 47491-14010 |
CXM10,SXM1# |
2 | ||
| 43525D - CAP, REAR WHEEL ADJUSTING LOCK, RH | ||||
| 42428-42010 |
ACM15,SXM15 |
1 | ||
| 42428-42010 |
SXM15 |
1 | ||
| 43525E - CAP, REAR WHEEL ADJUSTING LOCK, LH | ||||
| 42428-42010 |
ACM15,SXM15 |
1 | ||
| 42428-42010 |
SXM15 |
1 | ||
| Common parts | ||||
| 90126-10018 | ||||
| 90178-22001 | ||||
| 90179-10087 | ||||
| 90252-03014 | ||||
| 91611-B0816 | ||||
