Toyota Gaia SXM15 PROPELLER SHAFT & UNIVERSAL JOINT

Manufacturers Home
Toyota
JP
GAIA
SXM15G-BRSEK (1998)
3701 - PROPELLER SHAFT & UNIVERSAL JOINT

SXM15G-BRSEK (1998)

Toyota Gaia

Production May 1998 - Aug 2002

Engine 3SFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

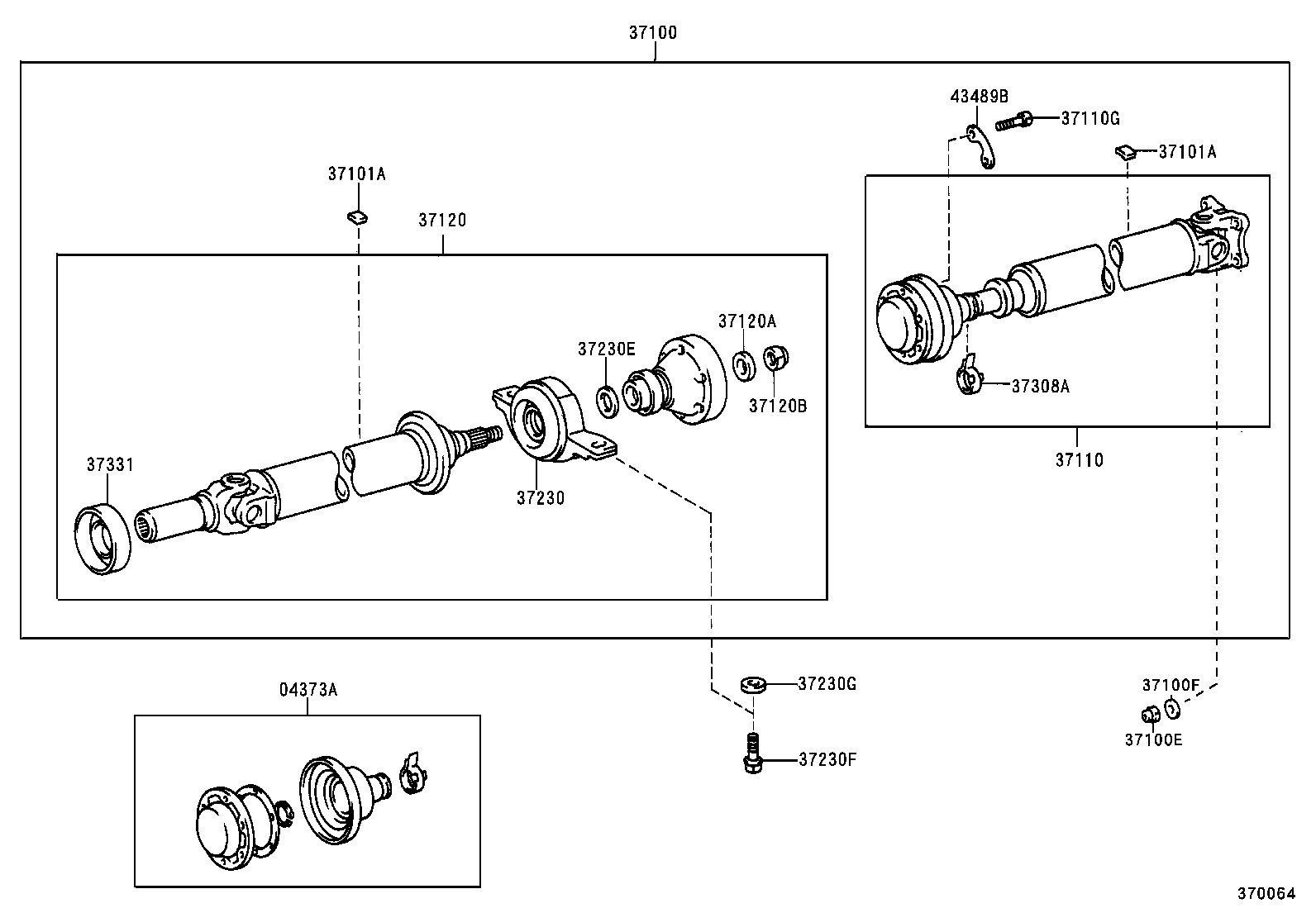

(9805-0104)SXM15

Click highlighted areas on diagram

Part #	Description	Period	Qty
04373A - BOOT KIT, UNIVERSAL
04373-12010	SXM15	05/1998 - 04/2001	1
37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING
37100-44020	ACM15,SXM15	04/2001 - 12/2999	1
37100-44020	SXM15	05/1998 - 04/2001	1
37100E - NUT, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90179-08268	SXM15	05/1998 - 04/2001	4
90179-08268	ACM15,SXM15	04/2001 - 12/2999	4
37100F - WASHER, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN
90204-10002	ACM15,SXM15	04/2001 - 12/2999	4
90204-10002	SXM15	05/1998 - 04/2001	4
37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
90937-01147	SXM15 2G,厚さ=2.0	05/1998 - 04/2001	1
90937-01136	SXM15 20G,長さ=41.4	05/1998 - 04/2001	1
90937-01140	SXM15 30G,長さ=62.2	05/1998 - 04/2001	1
90937-01151	SXM15 12G,長さ=24.9	05/1998 - 04/2001	1
90937-01132	SXM15 10G,長さ=20.7	05/1998 - 04/2001	1
90937-01154	SXM15 18G,長さ=37.3	05/1998 - 04/2001	1
90937-01153	SXM15 16G,長さ=33.2	05/1998 - 04/2001	1
90937-01150	SXM15 8G,長さ=16.6	05/1998 - 04/2001	1
90937-01152	SXM15 14G,長さ=29.0	05/1998 - 04/2001	1
90937-01156	SXM15 24G,長さ=49.7	05/1998 - 04/2001	1
90937-01148	SXM15 4G,厚さ=2.0	05/1998 - 04/2001	1
90937-01149	SXM15 6G,長さ=12.4	05/1998 - 04/2001	1
90937-01157	SXM15 26G,長さ=53.9	05/1998 - 04/2001	1
90937-01158	SXM15 28G,長さ=58.1	05/1998 - 04/2001	1
90937-01155	SXM15 22G,長さ=45.6	05/1998 - 04/2001	1
37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
90937-01147	SXM15 2G,厚さ=2.0	05/1998 - 04/2001	1
90937-01136	SXM15 20G,長さ=41.4	05/1998 - 04/2001	1
90937-01140	SXM15 30G,長さ=62.2	05/1998 - 04/2001	1
90937-01151	SXM15 12G,長さ=24.9	05/1998 - 04/2001	1
90937-01132	SXM15 10G,長さ=20.7	05/1998 - 04/2001	1
90937-01154	SXM15 18G,長さ=37.3	05/1998 - 04/2001	1
90937-01153	SXM15 16G,長さ=33.2	05/1998 - 04/2001	1
90937-01150	SXM15 8G,長さ=16.6	05/1998 - 04/2001	1
90937-01152	SXM15 14G,長さ=29.0	05/1998 - 04/2001	1
90937-01156	SXM15 24G,長さ=49.7	05/1998 - 04/2001	1
90937-01148	SXM15 4G,厚さ=2.0	05/1998 - 04/2001	1
90937-01149	SXM15 6G,長さ=12.4	05/1998 - 04/2001	1
90937-01157	SXM15 26G,長さ=53.9	05/1998 - 04/2001	1
90937-01158	SXM15 28G,長さ=58.1	05/1998 - 04/2001	1
90937-01155	SXM15 22G,長さ=45.6	05/1998 - 04/2001	1
37110 - SHAFT ASSY, PROPELLER
37110-44020	SXM15	05/1998 - 04/2001	1
37110G - BOLT (FOR REAR PROPELLER SHAFT)
90110-08016	SXM15	05/1998 - 04/2001	6
37120 - SHAFT ASSY, PROPELLER INTERMEDIATE
37120-44020	SXM15	05/1998 - 04/2001	1
37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET)
90201-18182	SXM15 外径=33.5,厚さ=4.0	05/1998 - 04/2001	1
37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
90179-18009	SXM15	05/1998 - 04/2001	1
37230 - BEARING ASSY, CENTER SUPPORT, NO.1
37230-20130	SXM15	05/1998 - 04/2001	1
37230-29025	ACM15,SXM15	04/2001 - 12/2999	1
37230E - WASHER, NO.1 (FOR CENTER SUPPORT BEARING)
90201-25005	SXM15	05/1998 - 04/2001	1
37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING)
90119-10444	ACM15,SXM15	04/2001 - 12/2999	2
90119-10444	SXM15	05/1998 - 04/2001	2
37230G - WASHER, NO.2 (FOR CENTER SUPPORT BEARING)
90201-10084	SXM15 厚さ=9.0	05/1998 - 04/2001	2
90201-10081	SXM15 厚さ=4.5	05/1998 - 04/2001	2
90201-10081	ACM15,SXM15 厚さ=4.5	04/2001 - 12/2999	2
90201-10095	SXM15 厚さ=3.2	05/1998 - 04/2001	2
90201-10095	ACM15,SXM15 厚さ=3.2	04/2001 - 12/2999	2
90201-10083	ACM15,SXM15 厚さ=6.5	04/2001 - 12/2999	2
90201-10083	SXM15 厚さ=6.5	05/1998 - 04/2001	2
37308A - CLAMP (FOR UNIVERSAL JOINT COVER)
90949-01431	SXM15	05/1998 - 04/2001	1
37331 - COVER, SLIDING SHAFT DUST
37331-30010	SXM15	05/1998 - 04/2001	1
43489B - WASHER, CONSTANT VELOCITY UNIVERSAL JOINT
43489-20030	SXM15	05/1998 - 04/2001	2

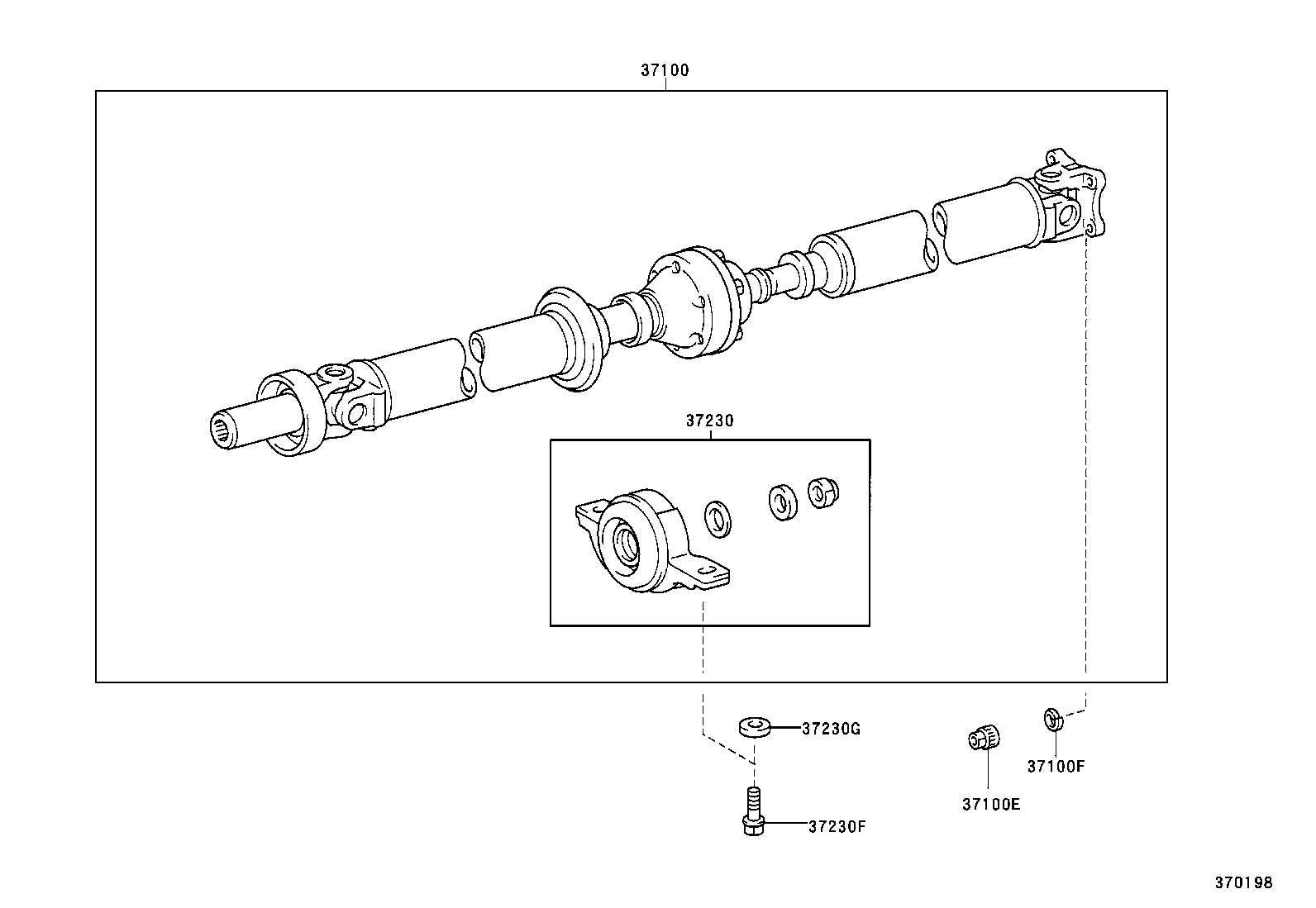

(0104- )ACM15,SXM15

Click highlighted areas on diagram

Part #	Description	Period	Qty
37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING
37100-44020	ACM15,SXM15	04/2001 - 12/2999	1
37100-44020	SXM15	05/1998 - 04/2001	1
37100E - NUT, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90179-08268	SXM15	05/1998 - 04/2001	4
90179-08268	ACM15,SXM15	04/2001 - 12/2999	4
37100F - WASHER, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN
90204-10002	ACM15,SXM15	04/2001 - 12/2999	4
90204-10002	SXM15	05/1998 - 04/2001	4
37230 - BEARING ASSY, CENTER SUPPORT, NO.1
37230-20130	SXM15	05/1998 - 04/2001	1
37230-29025	ACM15,SXM15	04/2001 - 12/2999	1
37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING)
90119-10444	ACM15,SXM15	04/2001 - 12/2999	2
90119-10444	SXM15	05/1998 - 04/2001	2
37230G - WASHER, NO.2 (FOR CENTER SUPPORT BEARING)
90201-10084	SXM15 厚さ=9.0	05/1998 - 04/2001	2
90201-10081	SXM15 厚さ=4.5	05/1998 - 04/2001	2
90201-10081	ACM15,SXM15 厚さ=4.5	04/2001 - 12/2999	2
90201-10095	SXM15 厚さ=3.2	05/1998 - 04/2001	2
90201-10095	ACM15,SXM15 厚さ=3.2	04/2001 - 12/2999	2
90201-10083	ACM15,SXM15 厚さ=6.5	04/2001 - 12/2999	2
90201-10083	SXM15 厚さ=6.5	05/1998 - 04/2001	2

SXM15G-BRSEK (1998)

(9805-0104)SXM15

(0104- )ACM15,SXM15
