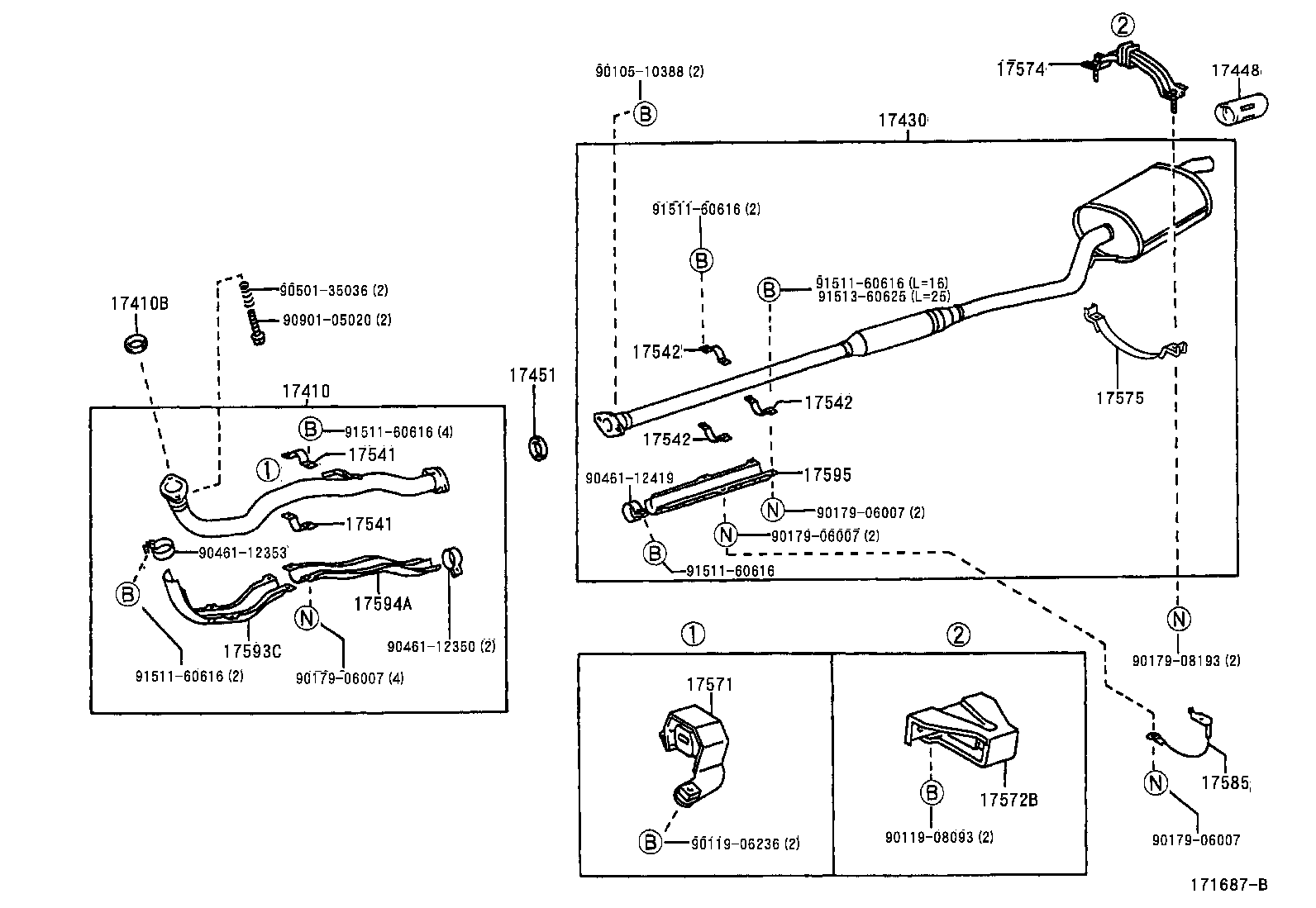

Toyota Gaia SXM15 EXHAUST PIPE - JDM Part Detective

Part #	Description	Period	Qty
17410 - PIPE ASSY, EXHAUST, FRONT
17410-7A470	3SFE..SXM15	04/2001 - 08/2002	1
17410-7A470	3SFE..SXM15	05/1998 - 04/2001	1
17410B - GASKET, EXHAUST PIPE
17451-74051	3SFE..SXM1#	05/1998 - 04/2001	1
17451-74051	3SFE..SXM15	04/2001 - 08/2002	1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-7A721	3SFE..SXM15	05/1998 - 04/2001	1
17430-7A721	3SFE..SXM15	04/2001 - 08/2002	1
17448 - BAFFLE, TAIL PIPE
17448-74080	3CTE,3SFE..CXM10,SXM1#	05/1998 - 04/2001	1
17448-74080	1AZFSE,3CTE,3SFE..ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
17451 - GASKET, EXHAUST PIPE
90917-06062	1AZFSE,3CTE,3SFE..ACM10,CXM10,SXM15	04/2001 - 12/2999	1
90917-06062	3CTE,3SFE..CXM10,SXM1#	05/1998 - 04/2001	1
17541 - STAY, EXHUST PIPE PROTECTOR, NO.1
17541-34020	3SFE..SXM15	05/1998 - 04/2001	4
17541-34020	3SFE..SXM15	04/2001 - 08/2002	4
17541 - STAY, EXHUST PIPE PROTECTOR, NO.1
17541-34020	3SFE..SXM15	05/1998 - 04/2001	4
17541-34020	3SFE..SXM15	04/2001 - 08/2002	4
17542 - STAY, EXHAUST PIPE PROTECTOR, NO.2
17541-34020	3SFE..SXM15	04/2001 - 08/2002	3
17541-34020	3SFE..SXM15	05/1998 - 04/2001	3
17542 - STAY, EXHAUST PIPE PROTECTOR, NO.2
17541-34020	3SFE..SXM15	04/2001 - 08/2002	3
17541-34020	3SFE..SXM15	05/1998 - 04/2001	3
17542 - STAY, EXHAUST PIPE PROTECTOR, NO.2
17541-34020	3SFE..SXM15	04/2001 - 08/2002	3
17541-34020	3SFE..SXM15	05/1998 - 04/2001	3
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-74340	1AZFSE,3SFE..ACM15,SXM15	04/2001 - 12/2999	1
17571-74340	3SFE..SXM15	05/1998 - 04/2001	1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-74120	3CTE,3SFE..CXM10,SXM1#	05/1998 - 04/2001	1
17572-74120	1AZFSE,3CTE,3SFE..ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4
17574-74140	3CTE,3SFE..CXM10,SXM1#	05/1998 - 04/2001	1
17574-74140	1AZFSE,3CTE,3SFE..ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-74140	3CTE,3SFE..CXM10,SXM1#	05/1998 - 04/2001	1
17575-74140	1AZFSE,3CTE,3SFE..ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
17585 - HANGER, EXHAUST PIPE
17585-74090	1AZFSE,3SFE..ACM15,SXM15	04/2001 - 12/2999	1
17585-74090	3SFE..SXM15	05/1998 - 04/2001	1
17593C - PROTECTOR, EXHAUST PIPE, LOWER NO.1
17593-74690	3SFE..SXM15	04/2001 - 08/2002	1
17593-74690	3SFE..SXM15	05/1998 - 04/2001	1
17594A - PROTECTOR, EXHAUST PIPE, LOWER NO.2
17594-74650	3SFE..SXM15	05/1998 - 04/2001	1
17594-74650	3SFE..SXM15	04/2001 - 08/2002	1
17595 - PROTECTOR, EXHAUST PIPE, LOWER NO.3
17595-74470	3SFE..SXM15	05/1998 - 04/2001	1
17595-74470	3SFE..SXM15	04/2001 - 08/2002	1
Common parts
90105-10388
90119-06236
90119-08093
90179-06007
90179-08193
90461-12350
90461-12353
90461-12419
90501-35036
90901-05020
91511-60616
91513-60625

SXM15G-BRSEK (1998)

(9805- )3SFE..SXM15
