SXM15G-BRSEK (1998)
Toyota Gaia
Production
May 1998
-
Aug 2002
Engine
3SFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9805- )3SFE

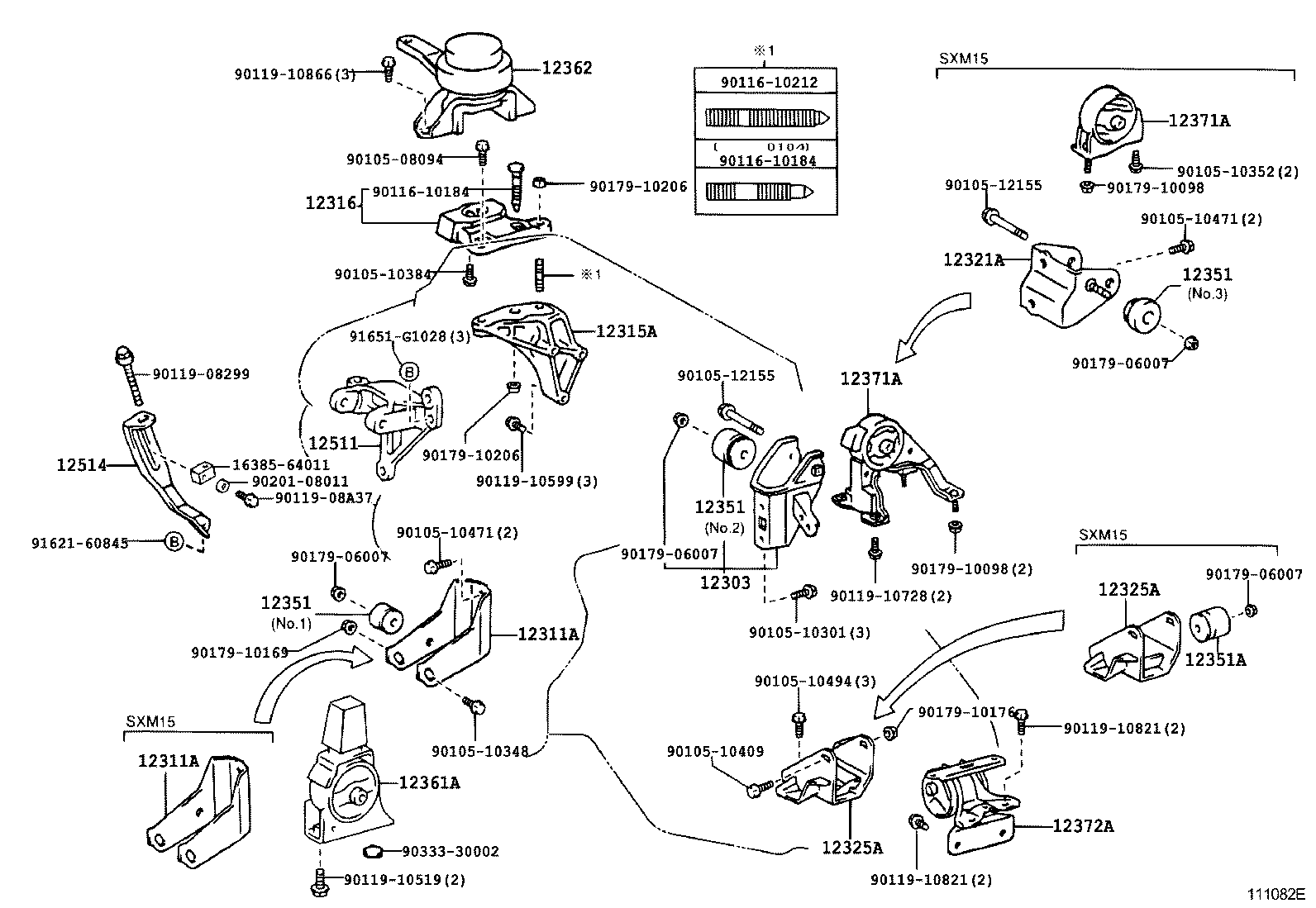

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-74200 |
3SFE..SXM15 |
1 | ||
| 12311-74200 |
3SFE..SXM15 |
1 | ||
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-74200 |
3SFE..SXM15 |
1 | ||
| 12311-74200 |
3SFE..SXM15 |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-74140 |
3SFE..SXM1# |
1 | ||
| 12315-74140 |
3SFE..SXM15 |
1 | ||
| 12316 - BRACKET, ENGINE MOUNTING, NO.2 RH | ||||
| 12316-74150 |
3SFE..SXM15 |
1 | ||
| 12316-74150 |
3SFE..SXM15 |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-74430 |
3SFE..SXM15 |
1 | ||
| 12321-74430 |
3SFE..SXM15 |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-74360 |
3SFE..SXM15 |
1 | ||
| 12325-74360 |
3SFE..SXM15 |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-74360 |
3SFE..SXM15 |
1 | ||
| 12325-74360 |
3SFE..SXM15 |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-74130 |
3SFE..SXM15 NO.3 |
1 | ||
| 12351-64020 |
3SFE..SXM1# NO.1 |
1 | ||
| 12351-64020 |
3SFE..SXM15 NO.1 |
1 | ||
| 12351-74130 |
3SFE..SXM15 NO.3 |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-74130 |
3SFE..SXM15 NO.3 |
1 | ||
| 12351-64020 |
3SFE..SXM1# NO.1 |
1 | ||
| 12351-64020 |
3SFE..SXM15 NO.1 |
1 | ||
| 12351-74130 |
3SFE..SXM15 NO.3 |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-74130 |
3SFE..SXM15 NO.3 |
1 | ||
| 12351-64020 |
3SFE..SXM1# NO.1 |
1 | ||
| 12351-64020 |
3SFE..SXM15 NO.1 |
1 | ||
| 12351-74130 |
3SFE..SXM15 NO.3 |
1 | ||
| 12351A - DAMPER, ENGINE MOUNTING(FOR INSULATOR) | ||||
| 12351-74120 |
3SFE..SXM15 |
1 | ||
| 12351-74120 |
3SFE..SXM15 |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-16290 |
3SFE..SXM15 |
1 | ||
| 12361-16290 |
3SFE..SXM1# |
1 | ||
| 12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12362-74490 |
3SFE..SXM15 |
1 | ||
| 12362-74490 |
3SFE..SXM15 |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-74351 |
3SFE..SXM15 |
1 | ||
| 12371-74351 |
3SFE..SXM15 |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-74351 |
3SFE..SXM15 |
1 | ||
| 12371-74351 |
3SFE..SXM15 |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-74590 |
3SFE..SXM15 |
1 | ||
| 12372-74590 |
3SFE..SXM15 |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-74051 |
3SFE..SXM15 |
1 | ||
| 12511-74051 |
3SFE..SXM1# |
1 | ||
| 12514 - BAR, ALTERNATOR BELT ADJUSTING | ||||
| 12514-74051 |
3SFE..SXM1# |
1 | ||
| 12514-74051 |
3SFE..SXM15 |
1 | ||
| Common parts | ||||
| 16385-64011 | ||||
| 90105-08094 | ||||
| 90105-10301 | ||||
| 90105-10348 | ||||
| 90105-10352 | ||||
| 90105-10384 | ||||
| 90105-10409 | ||||
| 90105-10471 | ||||
| 90105-10494 | ||||
| 90105-12155 | ||||
| 90116-10184 | ||||
| 90116-10212 | ||||
| 90119-08299 | ||||
| 90119-08A37 | ||||
| 90119-10519 | ||||
| 90119-10599 | ||||
| 90119-10728 | ||||
| 90119-10821 | ||||
| 90119-10866 | ||||
| 90179-06007 | ||||
| 90179-10098 | ||||
| 90179-10169 | ||||
| 90179-10176 | ||||
| 90179-10206 | ||||
| 90201-08011 | ||||
| 90333-30002 | ||||
| 91621-60845 | ||||
| 91651-G1028 | ||||
