SXM10G-BRSEK (1998)

Toyota Gaia

Production May 1998 - Apr 2001
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805-0104)

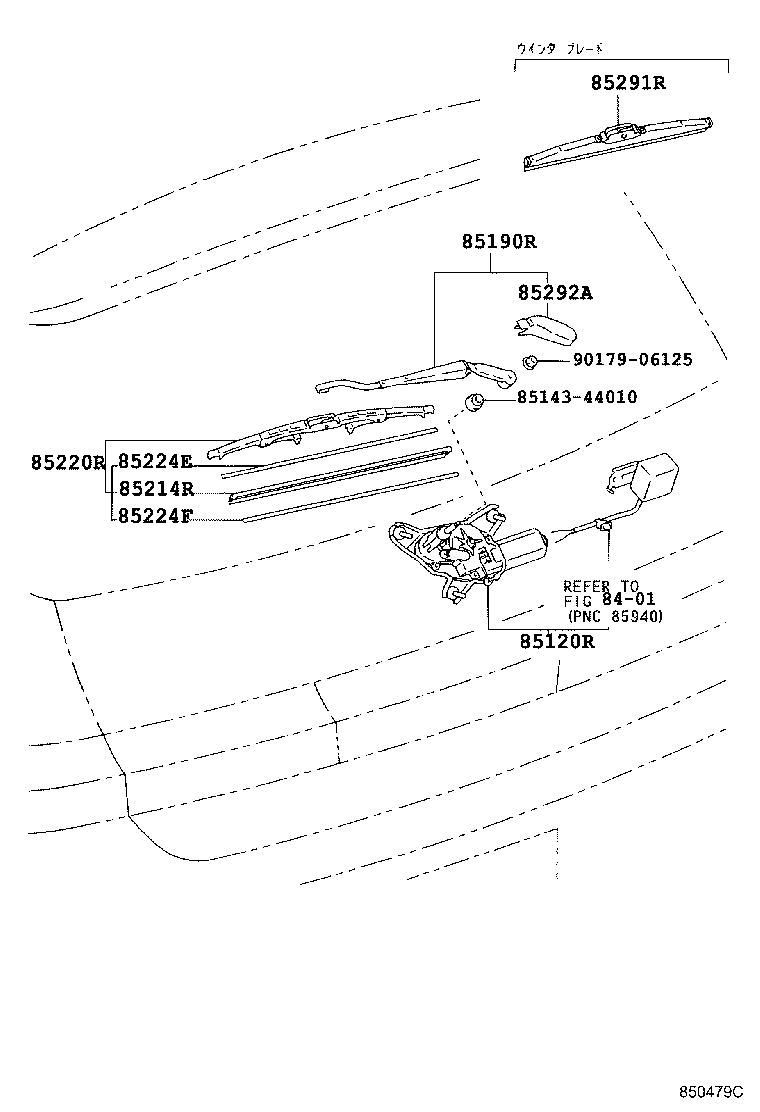

Click highlighted areas on diagram

diagram 8401 85120R 8514344010 85190R 85214R 85220R 85224E 85224F 85291R 85292A 9017906125
Part # Description Qty Price
85120R - MOTOR AND BRACKET ASSY, REAR WIPER
85130-44020

CXM10,SXM1#

 1
85190R - ARM ASSY, REAR WIPER
85241-44020

CXM10,SXM1#

 1
85214R - RUBBER, REAR WIPER
85214-10100

CXM10,SXM1#

 1
85220R - BLADE ASSY, REAR WIPER
85242-60050

CXM10,SXM1#

 1
85224E - PLATE, REAR WIPER RUBBER BACKING, NO.1
85224-10200

CXM10,SXM1#

 1
85224F - PLATE, REAR WIPER RUBBER BACKING, NO.2
85224-10200

CXM10,SXM1#

 1
85291R - BLADE,REAR WIPER, WINTER
85291-60060

CXM10,SXM1#

 1
85292A - CAP, REAR WIPER ARM HEAD
85292-44020

CXM10,SXM1#

 1
Common parts
85143-44010
90179-06125
Linked diagrams
8401
