SXM10G-BRSEK (1998)
Toyota Gaia
ILLUST NO. 1 OF 8(9805- )ACM1#,SXM1#
ｴﾝｼﾞﾝ ﾙｰﾑ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

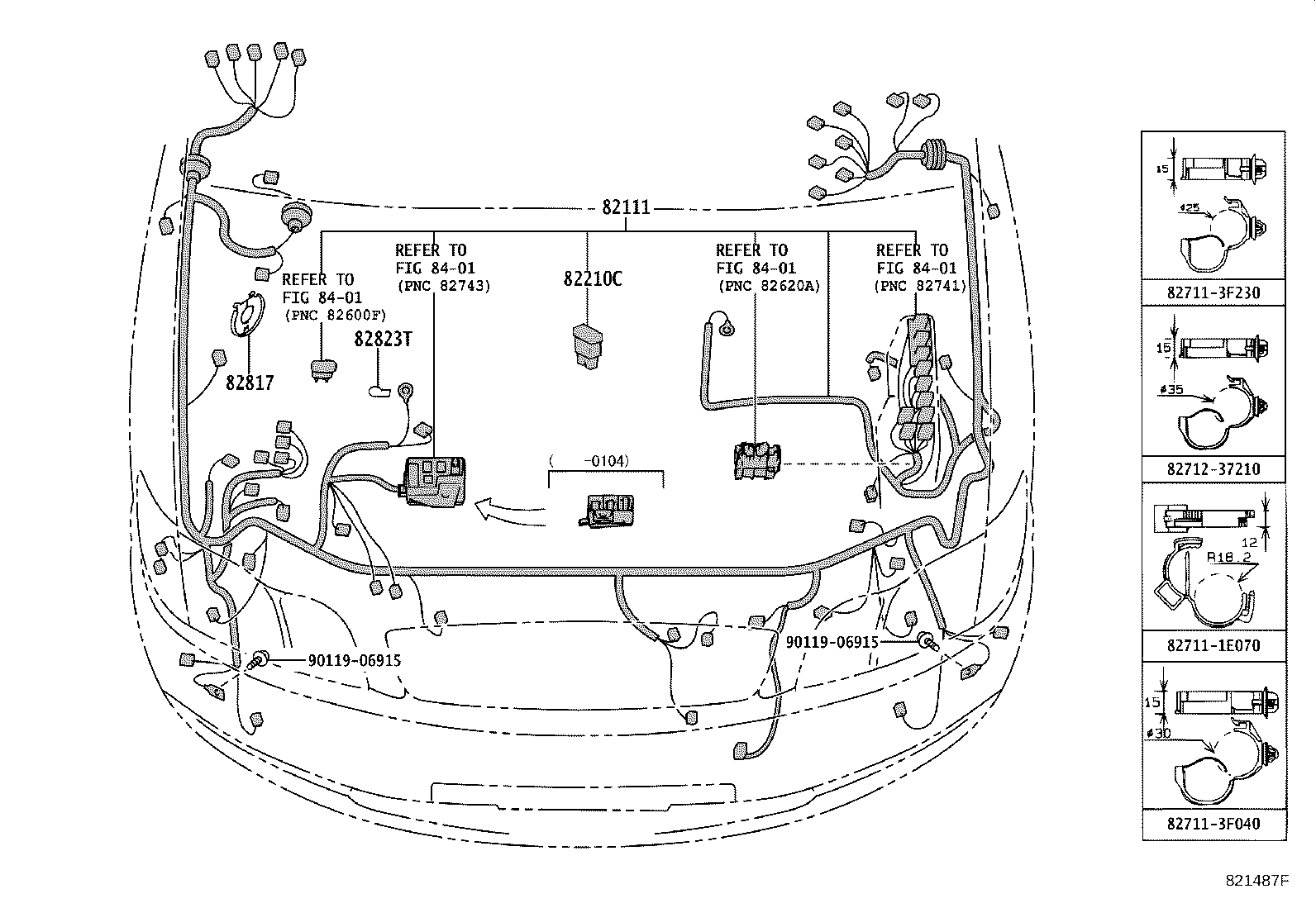

| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-44300 |
SXM10 ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-) |
1 | ||
| 82111-44290 |
SXM10 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08283 |
CXM10,SXM1# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08202 |
CXM10,SXM1# 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08285 |
CXM10,SXM1# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08254 |
CXM10,SXM1# 120A,ｵｽ端子,白 |
1 | ||
| 90982-08284 |
CXM10,SXM1# 40A,ﾒｽ端子,緑 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-95702 |
CXM10,SXM1# |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
CXM10,SXM1# |
1 | ||
| Common parts | ||||
| 82711-1E070 | ||||
| 82711-3F040 | ||||
| 82711-3F230 | ||||
| 82712-37210 | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 8(9805-0208)SXM1#
ｴﾝｼﾞﾝ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

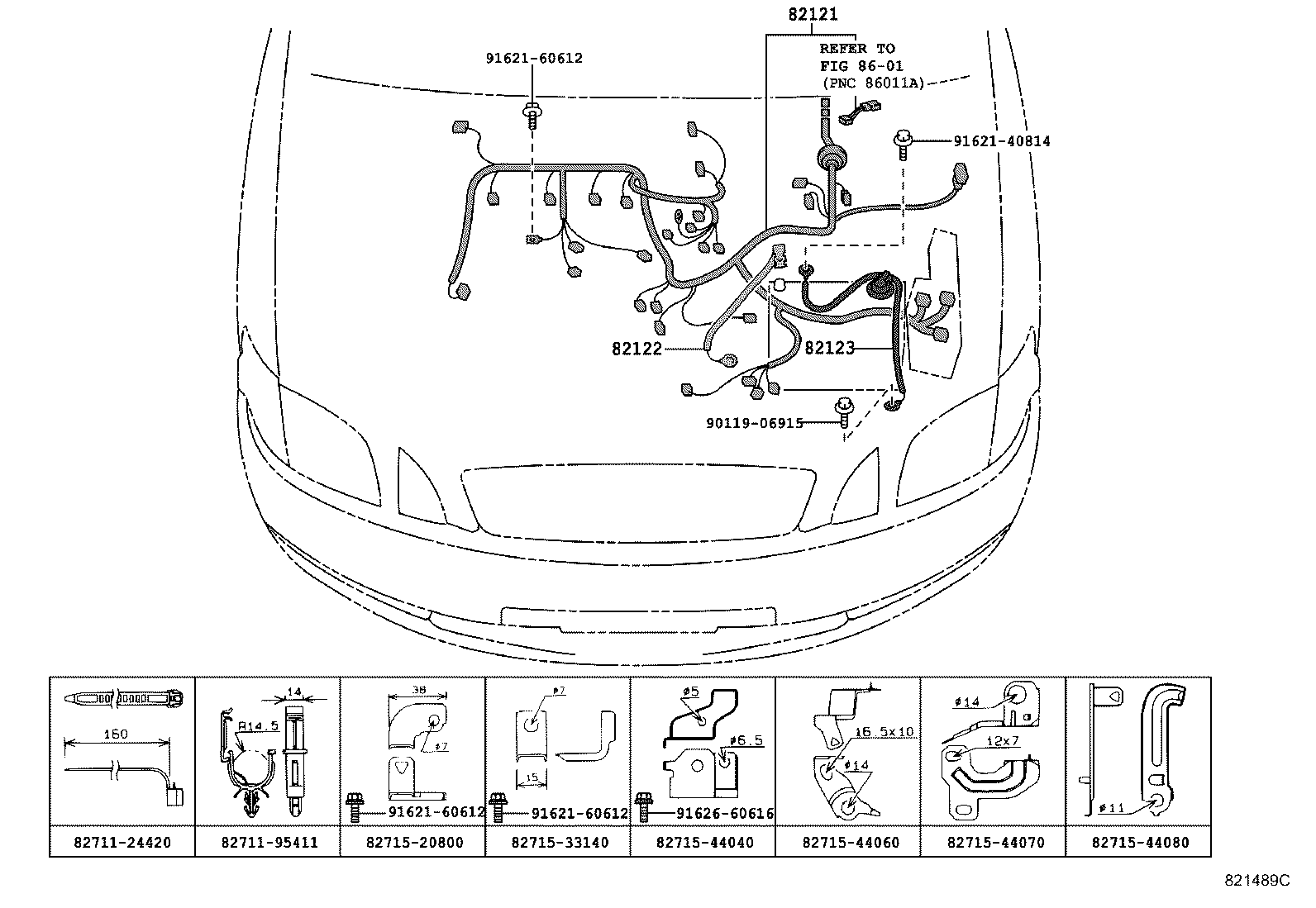

| 82121 - WIRE, ENGINE | ||||
| 82121-44180 |
SXM10 |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-44030 |
SXM1# |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-44010 |
SXM1# |
1 | ||
| Common parts | ||||
| 82711-24420 | ||||
| 82711-95411 | ||||
| 82715-20800 | ||||
| 82715-33140 | ||||
| 82715-44040 | ||||
| 82715-44060 | ||||
| 82715-44070 | ||||
| 82715-44080 | ||||
| 90119-06915 | ||||
| 91621-40814 | ||||
| 91621-60612 | ||||
| 91626-60616 | ||||
| Linked diagrams | ||||
| 8601 | ||||
ILLUST NO. 3 OF 8(9805- )
ｶｳﾙ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-44450 |
SXM10 ｱﾘ(ﾜｲﾄﾞ ﾏﾙﾁ AV ｽﾃ-ｼﾖﾝ 6ｽﾋﾟ-ｶ) |
1 | ||
| 82131-44830 |
SXM10 ﾒﾓﾘｱﾙ ｴﾃﾞｲｼﾖﾝ *(C) |
1 | ||
| 82131-44451 |
SXM10 ｱﾘ(ﾜｲﾄﾞ ﾏﾙﾁ AV ｽﾃ-ｼﾖﾝ 6ｽﾋﾟ-ｶ) |
1 | ||
| 82131-44430 |
SXM10 |
1 | ||
| 82131-44440 |
SXM10 ｶﾝﾚｲﾁ ｼﾖｳ OR ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 82132 - WIRE, COWL, NO.2 | ||||
| 82132-44050 |
SXM10 ﾒﾓﾘｱﾙ ｴﾃﾞｲｼﾖﾝ *(C) |
1 | ||
| 82132-44050 |
CXM10,SXM10 ｱﾘ(ﾜｲﾄﾞ ﾏﾙﾁ AV ｽﾃ-ｼﾖﾝ 6ｽﾋﾟ-ｶ) |
1 | ||
| 82132-44140 |
CXM10,SXM10 ｱﾘ(ﾜｲﾄﾞ ﾏﾙﾁ AV ｽﾃ-ｼﾖﾝ 6ｽﾋﾟ-ｶ) |
1 | ||
| 82132-44150 |
CXM10,SXM10 |
1 | ||
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-44040 |
CXM10,SXM1# 運転席側 |
1 | ||
| 82167-44030 |
CXM10,SXM1# 助手席側 |
1 | ||
| 82167-44031 |
CXM10,SXM1# 助手席側 |
1 | ||
| 82167-44041 |
CXM10,SXM1# 運転席側 |
1 | ||
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-44040 |
CXM10,SXM1# 運転席側 |
1 | ||
| 82167-44030 |
CXM10,SXM1# 助手席側 |
1 | ||
| 82167-44031 |
CXM10,SXM1# 助手席側 |
1 | ||
| 82167-44041 |
CXM10,SXM1# 運転席側 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08283 |
CXM10,SXM1# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08202 |
CXM10,SXM1# 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08285 |
CXM10,SXM1# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08254 |
CXM10,SXM1# 120A,ｵｽ端子,白 |
1 | ||
| 90982-08284 |
CXM10,SXM1# 40A,ﾒｽ端子,緑 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-44010 |
CXM10,SXM1# |
2 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-44010 |
CXM10,SXM1# |
2 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-44070 |
CXM10,SXM1# |
2 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-44070 |
CXM10,SXM1# |
2 | ||
| 82818 - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82818-44010 |
CXM10,SXM1# |
2 | ||
| 82818 - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82818-44010 |
CXM10,SXM1# |
2 | ||
| Common parts | ||||
| 61825-12010 | ||||
| 82712-44020 | ||||
| 90159-70003 | ||||
| 90159-70004 | ||||
| 90164-50043 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 4 OF 8(9805- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

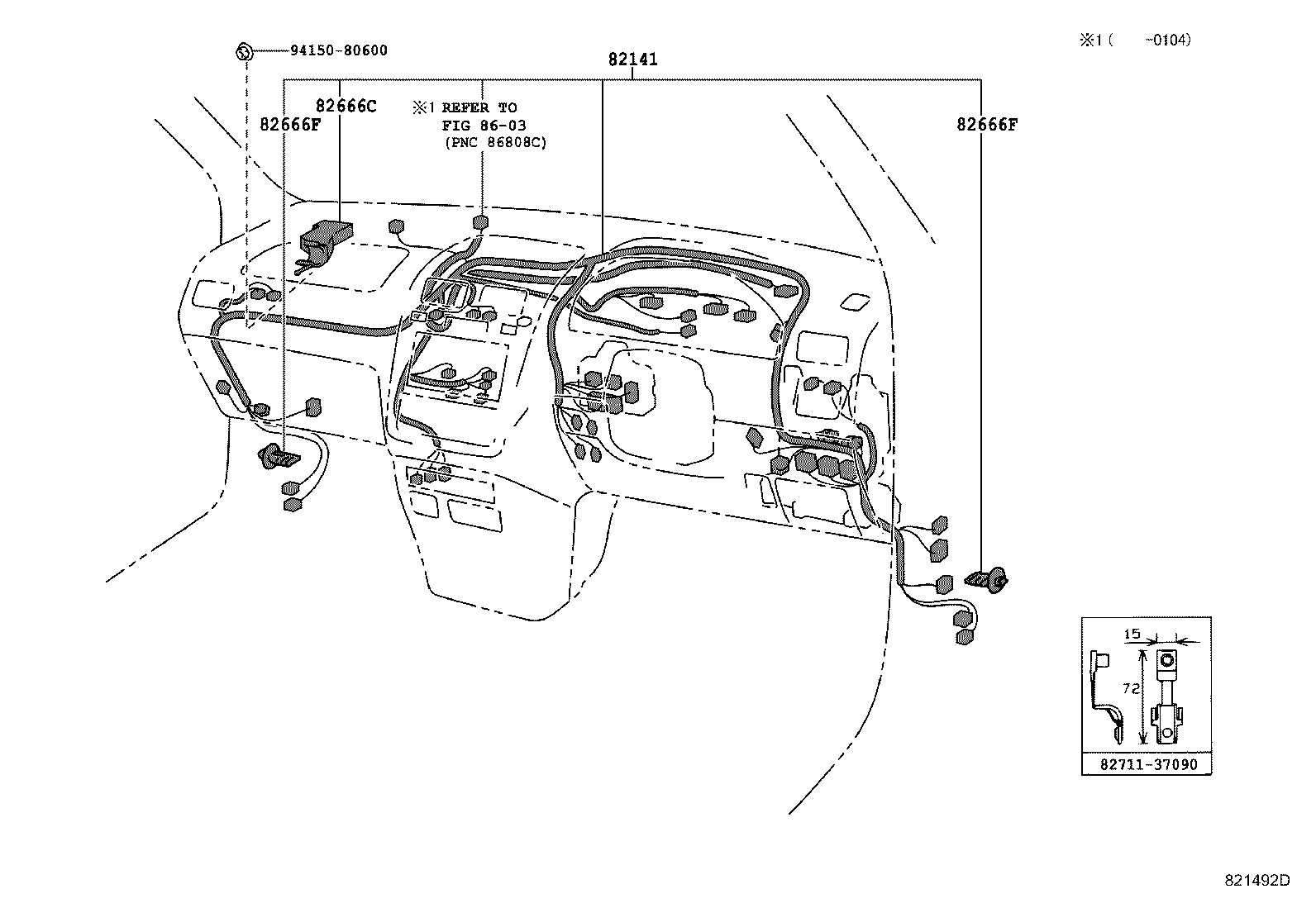

| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-44370 |
CXM10,SXM1# ｱﾘ(ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ & ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ) |
1 | ||
| 82141-44350 |
CXM10,SXM1# ｱﾘ(ﾑ-ﾝﾙ-ﾌ) & ﾅｼ(ﾗｼﾞｵ),6SP & ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-) |
1 | ||
| 82141-44360 |
CXM10,SXM1# ｱﾘ(ﾑ-ﾝﾙ-ﾌ & AM/FM ﾃﾞﾝｼﾁﾕ-ﾅ ｶｾﾂﾄ CD 6 ｽﾋﾟ-ｶ & ｸﾘｱﾗﾝｽ ｿﾅ-) |
1 | ||
| 82141-44390 |
CXM10,SXM1# ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- & ﾅﾋﾞｹﾞｰｼﾖﾝｼｽﾃﾑ) |
1 | ||
| 82141-44380 |
CXM10,SXM1# ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- & ﾑ-ﾝﾙ-ﾌ) OR ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-) |
1 | ||
| 82141-44630 |
SXM1# ﾒﾓﾘｱﾙ ｴﾃﾞｲｼﾖﾝ *(C) |
1 | ||
| 82141-44340 |
CXM10,SXM10 |
1 | ||
| 82141-44391 |
CXM10,SXM1# ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- & ﾅﾋﾞｹﾞｰｼﾖﾝｼｽﾃﾑ) |
1 | ||
| 82141-44430 |
CXM10,SXM10 ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 82141-44481 |
CXM10,SXM1# ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ & ﾑ-ﾝﾙ-ﾌ) OR ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ) |
1 | ||
| 82141-44371 |
CXM10,SXM1# ｱﾘ(ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ & ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ) |
1 | ||
| 82141-44480 |
CXM10,SXM1# ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ & ﾑ-ﾝﾙ-ﾌ) OR ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ) |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-44080 |
CXM10,SXM1# |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-44050 |
CXM10,SXM1# |
2 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-44050 |
CXM10,SXM1# |
2 | ||
| Common parts | ||||
| 82711-37090 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 8603 | ||||
ILLUST NO. 5 OF 8(9805- )
ﾄﾞｱ & ﾙｰﾌ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

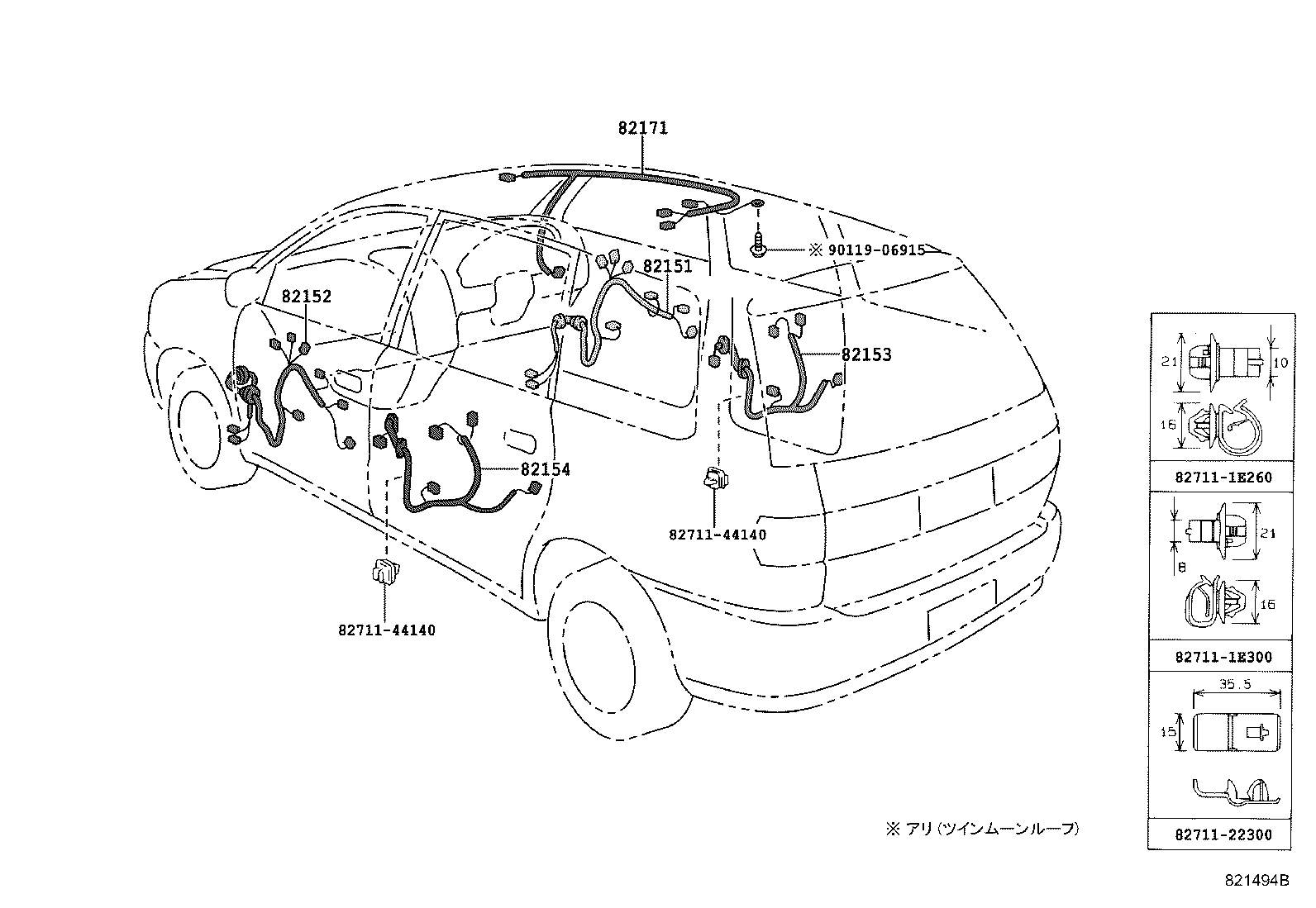

| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-44060 |
CXM10,SXM1# |
1 | ||
| 82151-44070 |
CXM10,SXM1# ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-44060 |
CXM10,SXM1# ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ) |
1 | ||
| 82152-44050 |
CXM10,SXM1# |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-44030 |
CXM10,SXM1# |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-44030 |
CXM10,SXM1# |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-44040 |
CXM10,SXM1# ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 82171-44050 |
CXM10,SXM1# |
1 | ||
| Common parts | ||||
| 82711-1E260 | ||||
| 82711-1E300 | ||||
| 82711-22300 | ||||
| 82711-44140 | ||||
| 90119-06915 | ||||
ILLUST NO. 6 OF 8(9805- )
ﾌﾛｱ & ﾗｹｰｼﾞ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-44080 |
CXM10,SXM1# |
1 | ||
| 82161-44070 |
CXM10,SXM1# ｱﾘ(ﾜｲﾄﾞ ﾏﾙﾁ AV ｽﾃ-ｼﾖﾝ) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-44090 |
CXM10,SXM10 ｱﾘ(ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 82162-44110 |
CXM10,SXM10 |
1 | ||
| 82162-44100 |
CXM10,SXM1# ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅｰ & ﾘﾔﾋｰﾀ) |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-44020 |
CXM10,SXM1# |

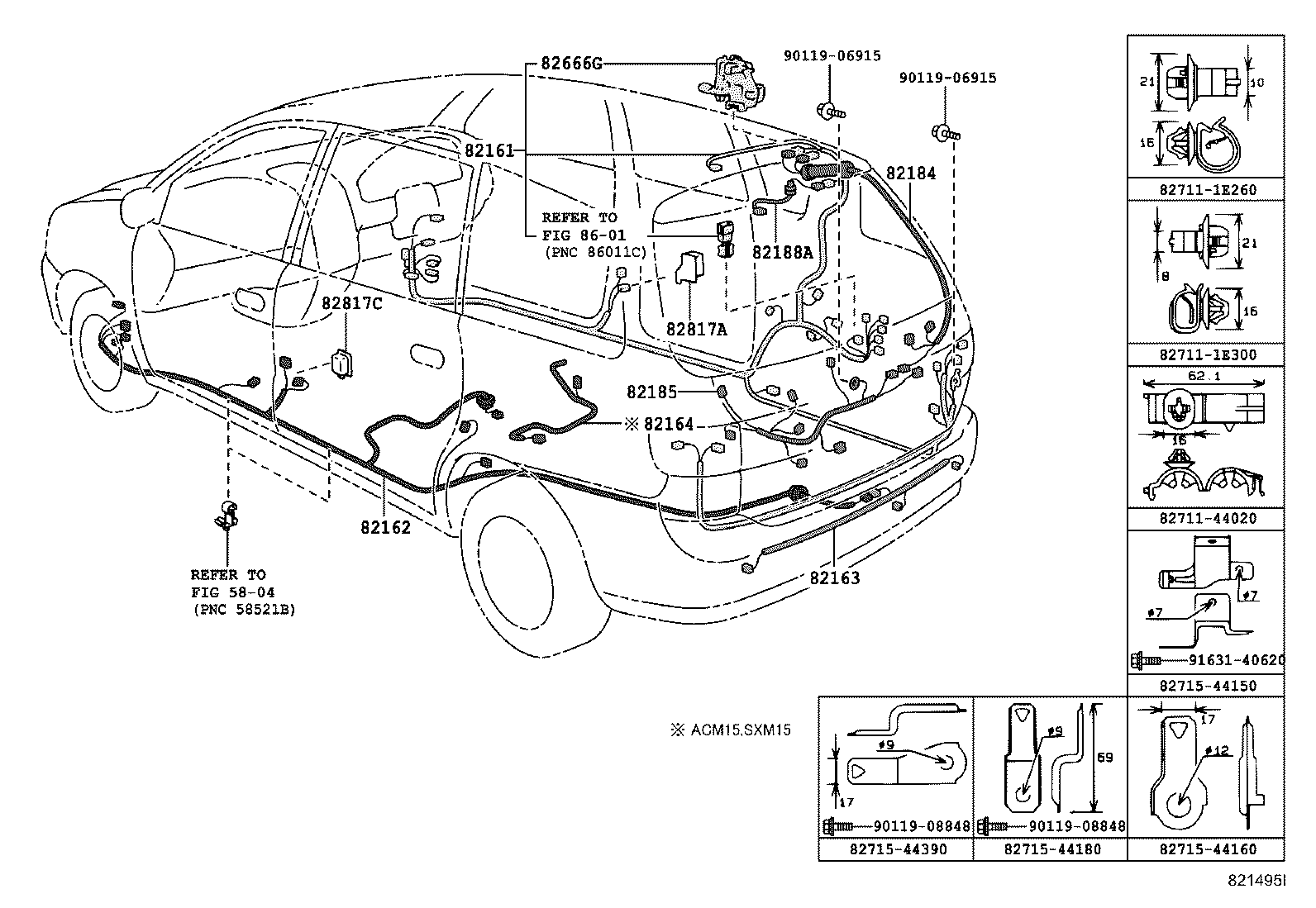

1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-44100 |
SXM1# ｴｱﾛ ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾜｲﾄﾞ ﾃﾚﾋﾞ & ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ & 6ｽﾋﾟ-ｶ) |
1 | ||
| 82184-44090 |
SXM1# ｴｱﾛ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 82184-44040 |
CXM10,SXM1# ｱﾘ(ﾜｲﾄﾞ ﾃﾚﾋﾞ & ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ & 6ｽﾋﾟ-ｶ) |
1 | ||
| 82184-44050 |
CXM10,SXM1# |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-44040 |
CXM10,SXM1# |
1 | ||
| 82185-44090 |
SXM1# ｴｱﾛ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 82185-44100 |
SXM1# ｴｱﾛ ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾜｲﾄﾞ ﾃﾚﾋﾞ & ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ & 6ｽﾋﾟ-ｶ) |
1 | ||
| 82185-44030 |
CXM10,SXM1# ｱﾘ(ﾜｲﾄﾞ ﾃﾚﾋﾞ & ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ & 6ｽﾋﾟ-ｶ) |
1 | ||
| 82188A - WIRE, BACK DOOR, NO.3 | ||||
| 82188-44030 |
SXM1# ｴｱﾛ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-44120 |
CXM10,SXM1# |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-44030 |
CXM10,SXM1# |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-44060 |
CXM10,SXM1# |
1 | ||
| Common parts | ||||
| 82711-1E260 | ||||
| 82711-1E300 | ||||
| 82711-44020 | ||||
| 82715-44150 | ||||
| 82715-44160 | ||||
| 82715-44180 | ||||
| 82715-44390 | ||||
| 90119-06915 | ||||
| 90119-08848 | ||||
| 91631-40620 | ||||
| Linked diagrams | ||||
| 5804 | ||||
| 8601 | ||||
ILLUST NO. 7 OF 8(9805-0208)SXM1#
ｹｰﾌﾞﾙ ﾎﾞﾝﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

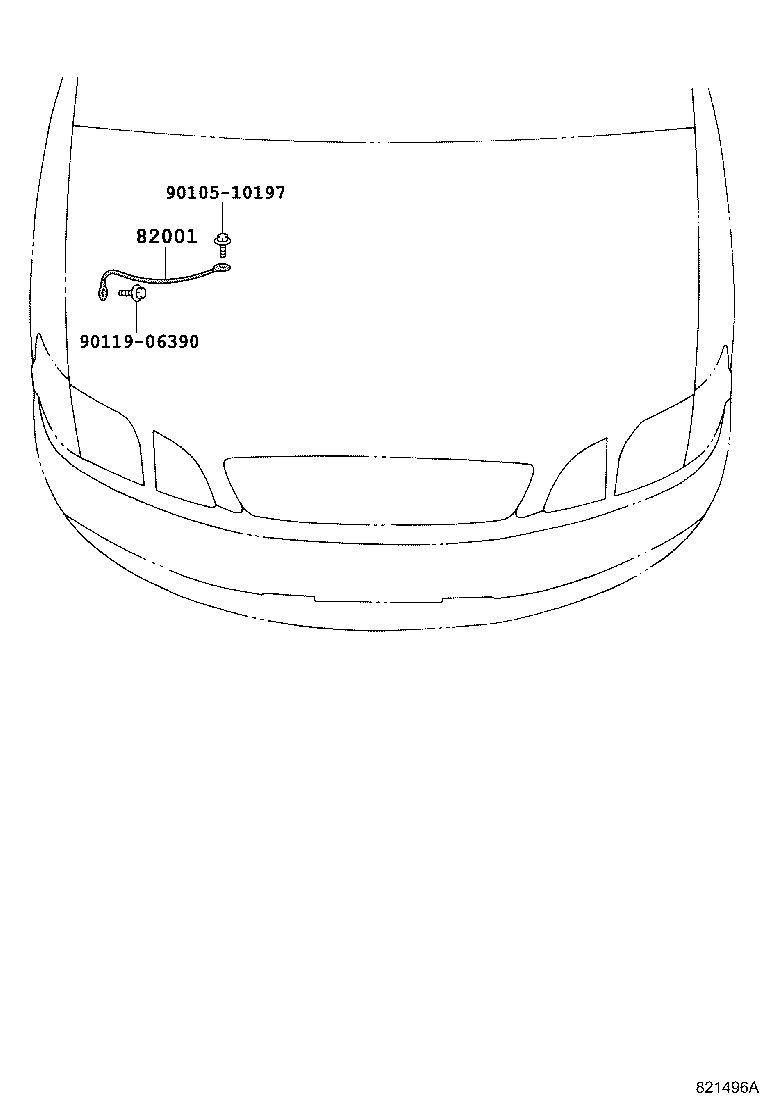

| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07343 |
SXM1# |
1 | ||
| Common parts | ||||
| 90105-10197 | ||||
| 90119-06390 | ||||
ILLUST NO. 8 OF 8(9805- )
ｺﾈｸﾀ

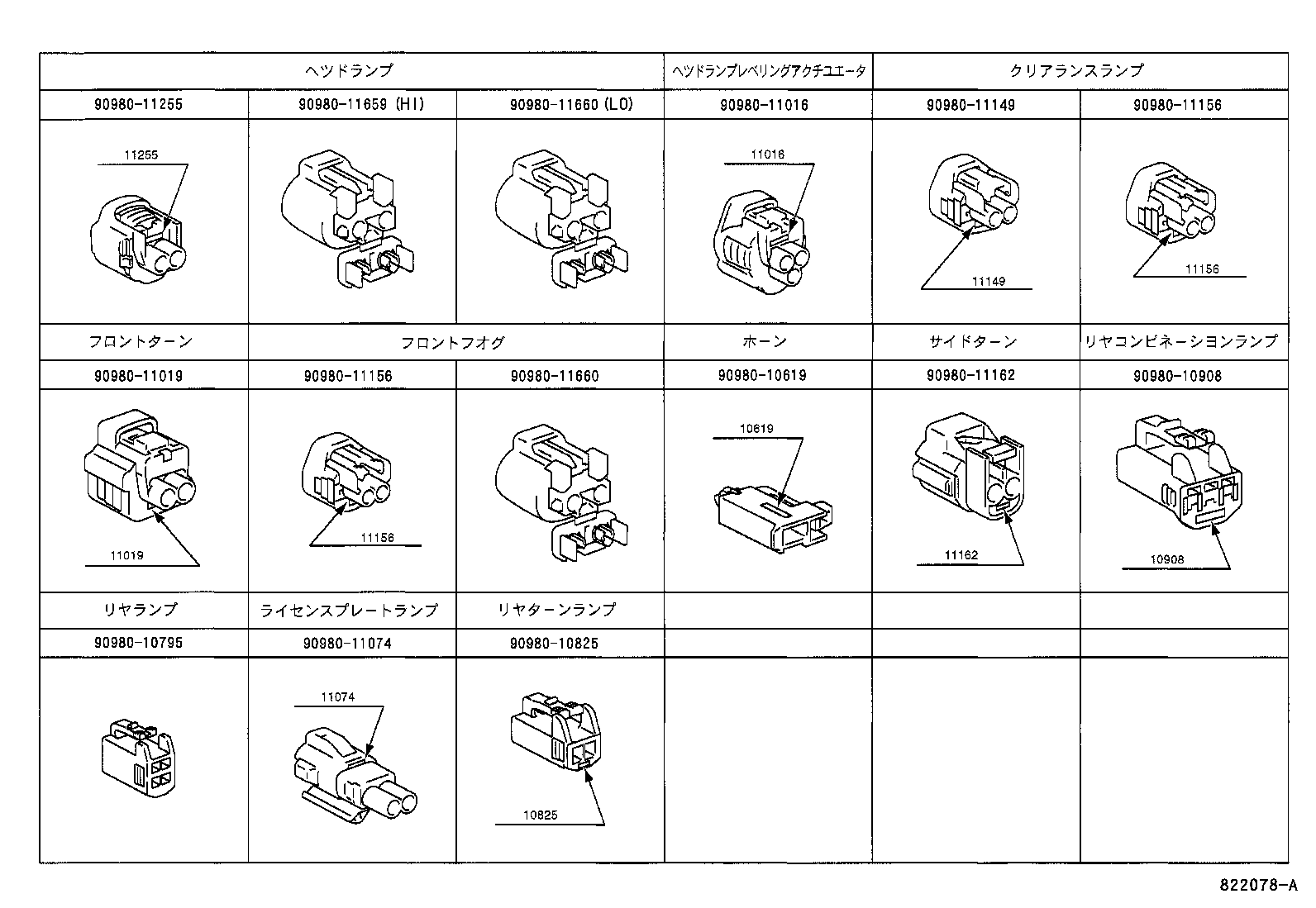

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-10795 | ||||
| 90980-10825 | ||||
| 90980-10908 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11074 | ||||
| 90980-11149 | ||||
| 90980-11156 | ||||
| 90980-11162 | ||||
| 90980-11255 | ||||
| 90980-11659 | ||||
| 90980-11660 | ||||
