SXM10G-BRSEK (1998)
Toyota Gaia
Production
May 1998
-
Apr 2001
Engine
3SFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

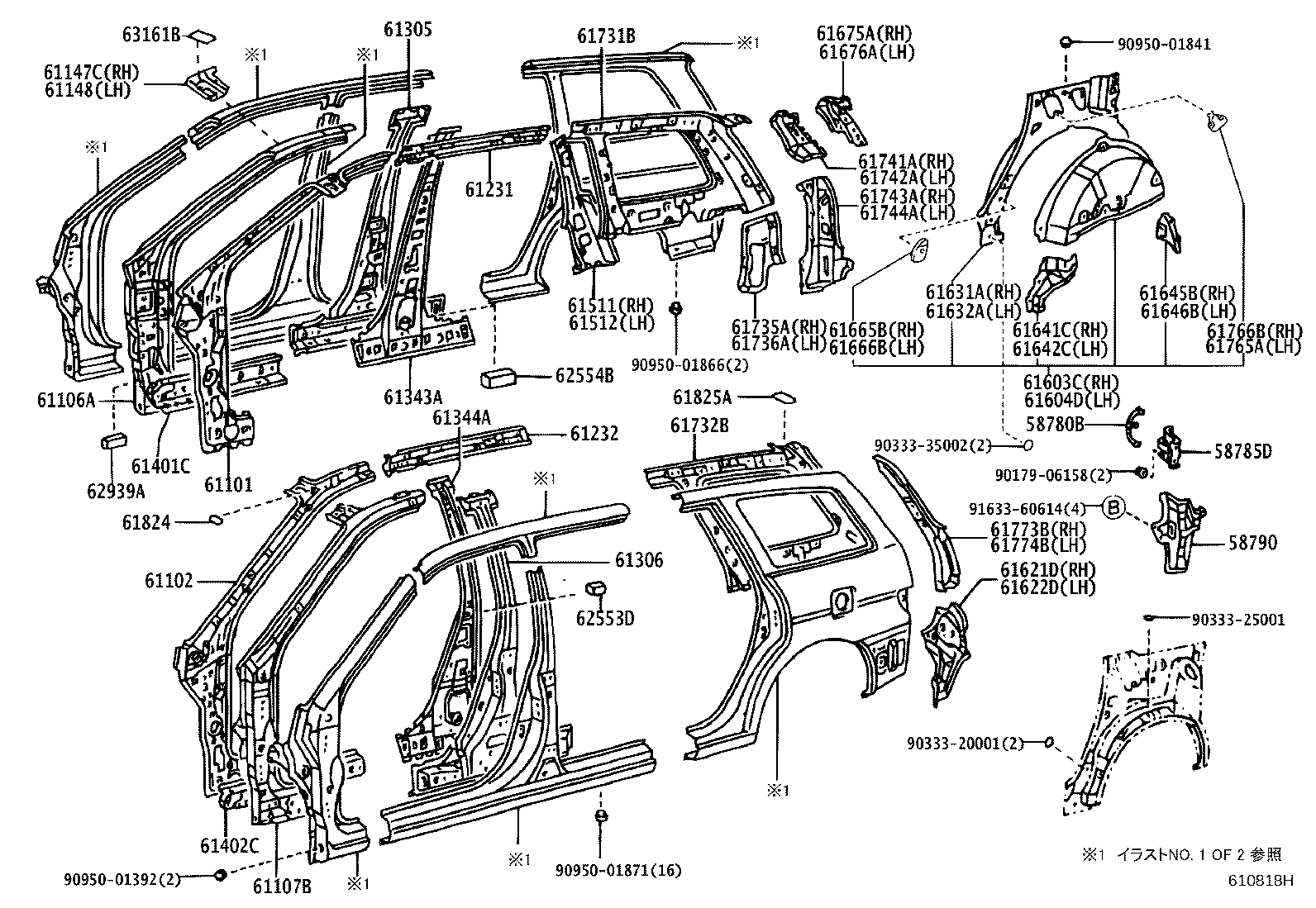

ILLUST NO. 2 OF 2(9805- )
Click highlighted areas on diagram
ｲﾝﾅﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58780B - BAND ASSY, TOOL BOX | ||||
| 58780-44010 |
CXM10,SXM1# |
1 | ||
| 58785D - BRACKET, TOOL BAG BAND | ||||
| 58785-44010 |
CXM10,SXM1# |
1 | ||
| 58790 - CARRIER ASSY, JACK | ||||
| 58790-44010 |
CXM10,SXM1# |
1 | ||
| 61101 - PANEL SUB-ASSY, COWL SIDE, RH | ||||
| 61013-44020 |
CXM10,SXM1# |
1 | ||
| 61102 - PANEL SUB-ASSY, COWL SIDE, LH | ||||
| 61014-44020 |
CXM10,SXM1# |
1 | ||
| 61106A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH | ||||
| 61106-44030 |
CXM10,SXM1# |
1 | ||
| 61107B - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH | ||||
| 61107-44030 |
CXM10,SXM1# |
1 | ||
| 61147C - EXTENSION, FRONT BODY PILLAR, OUTER RH | ||||
| 61147-44020 |
CXM10,SXM1# |
1 | ||
| 61148 - EXTENSION, FRONT BODY PILLAR, OUTER LH | ||||
| 61148-44020 |
CXM10,SXM1# |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-44030 |
CXM10,SXM1# |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-44030 |
CXM10,SXM1# |
1 | ||
| 61305 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH | ||||
| 61305-44020 |
CXM10,SXM1# |
1 | ||
| 61306 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH | ||||
| 61306-44020 |
CXM10,SXM1# |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61307-44902 |
CXM10,SXM1# |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61308-44902 |
CXM10,SXM1# |
1 | ||
| 61401C - PANEL SUB-ASSY, ROCKER, OUTER RH | ||||
| 61401-44020 |
CXM10,SXM1# |
1 | ||
| 61402C - PANEL SUB-ASSY, ROCKER, OUTER LH | ||||
| 61402-44020 |
CXM10,SXM1# |
1 | ||
| 61511 - PILLAR, QUARTER LOCK, RH | ||||
| 61501-44020 |
CXM10,SXM1# |
1 | ||
| 61512 - PILLAR, QUARTER LOCK, LH | ||||
| 61502-44020 |
CXM10,SXM1# |
1 | ||
| 61603C - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH | ||||
| 61603-44030 |
CXM10,SXM1# |
1 | ||
| 61604D - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH | ||||
| 61604-44030 |
CXM10,SXM1# |
1 | ||
| 61621D - TROUGH, BACK DOOR OPENING, RH | ||||
| 61621-44020 |
CXM10,SXM1# |
1 | ||
| 61622D - TROUGH, BACK DOOR OPENING, LH | ||||
| 61622-44020 |
CXM10,SXM1# |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-44020 |
CXM10,SXM1# |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-44020 |
CXM10,SXM1# |
1 | ||
| 61641C - GUSSET, QUARTER WHEEL HOUSE, FRONT RH | ||||
| 61641-44010 |
CXM10,SXM1# |
1 | ||
| 61642C - GUSSET, QUARTER WHEEL HOUSE, FRONT LH | ||||
| 61642-44010 |
CXM10,SXM1# |
1 | ||
| 61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-44010 |
CXM10,SXM1# |
1 | ||
| 61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61646-44010 |
CXM10,SXM1# |
1 | ||
| 61665B - REINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, | ||||
| 61665-44010 |
CXM10,SXM1# |
1 | ||
| 61666B - REINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, | ||||
| 61666-44010 |
CXM10,SXM1# |
1 | ||
| 61675A - REINFORCE, SEAT BELT ANCHOR, NO.2 UPPER RH | ||||
| 61675-44020 |
CXM10,SXM1# |
1 | ||
| 61676A - REINFORCE, SEAT BELT ANCHOR, NO.2 UPPER LH | ||||
| 61676-44020 |
CXM10,SXM1# |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-44030 |
CXM10,SXM1# |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-44030 |
CXM10,SXM1# |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-44020 |
CXM10,SXM1# |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-44020 |
CXM10,SXM1# |
1 | ||
| 61741A - REINFORCEMENT, BACK DOOR OPENING, UPPER RH | ||||
| 61741-44010 |
CXM10,SXM1# |
1 | ||
| 61742A - REINFORCEMENT, BACK DOOR OPENING, UPPER LH | ||||
| 61742-44010 |
CXM10,SXM1# |
1 | ||
| 61743A - REINFORCEMENT, BACK DOOR OPENING SIDE, RH | ||||
| 61743-44020 |
CXM10,SXM1# |
1 | ||
| 61744A - REINFORCEMENT, BACK DOOR OPENING SIDE, LH | ||||
| 61744-44020 |
CXM10,SXM1# |
1 | ||
| 61765A - REINFORCEMENT, SEAT BELT ANCHOR, NO.2 LH | ||||
| 61766-44011 |
CXM10,SXM1# |
1 | ||
| 61766B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH | ||||
| 61765-44011 |
CXM10,SXM1# |
1 | ||
| 61773B - FRAME, BACK DOOR OPENING SIDE, UPPER RH | ||||
| 61773-44020 |
CXM10,SXM1# |
1 | ||
| 61774B - FRAME, BACK DOOR OPENING SIDE, UPPER LH | ||||
| 61774-44020 |
CXM10,SXM1# |
1 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-44010 |
CXM10,SXM1# |
2 | ||
| 61825A - PLATE, NOISE CONTROL, NO.2 | ||||
| 59198-12010 |
CXM10,SXM1# |
1 | ||
| 61825-44010 |
CXM10,SXM1# |
1 | ||
| 62553D - PAD, PILLAR, NO.3 | ||||
| 62553-44010 |
CXM10,SXM1# |
2 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-44010 |
CXM10,SXM1# |
2 | ||
| 62939A - SILENCER, QUARTER VENT | ||||
| 62939-32020 |
CXM10,SXM1# |
2 | ||
| 63161B - PLATE, ROOF HEADER PANEL, NO.1 | ||||
| 61825-12010 |
CXM10,SXM1# |
2 | ||
| Common parts | ||||
| 90179-06158 | ||||
| 90333-20001 | ||||
| 90333-25001 | ||||
| 90333-35002 | ||||
| 90950-01392 | ||||
| 90950-01841 | ||||
| 90950-01866 | ||||
| 90950-01871 | ||||
| 91633-60614 | ||||

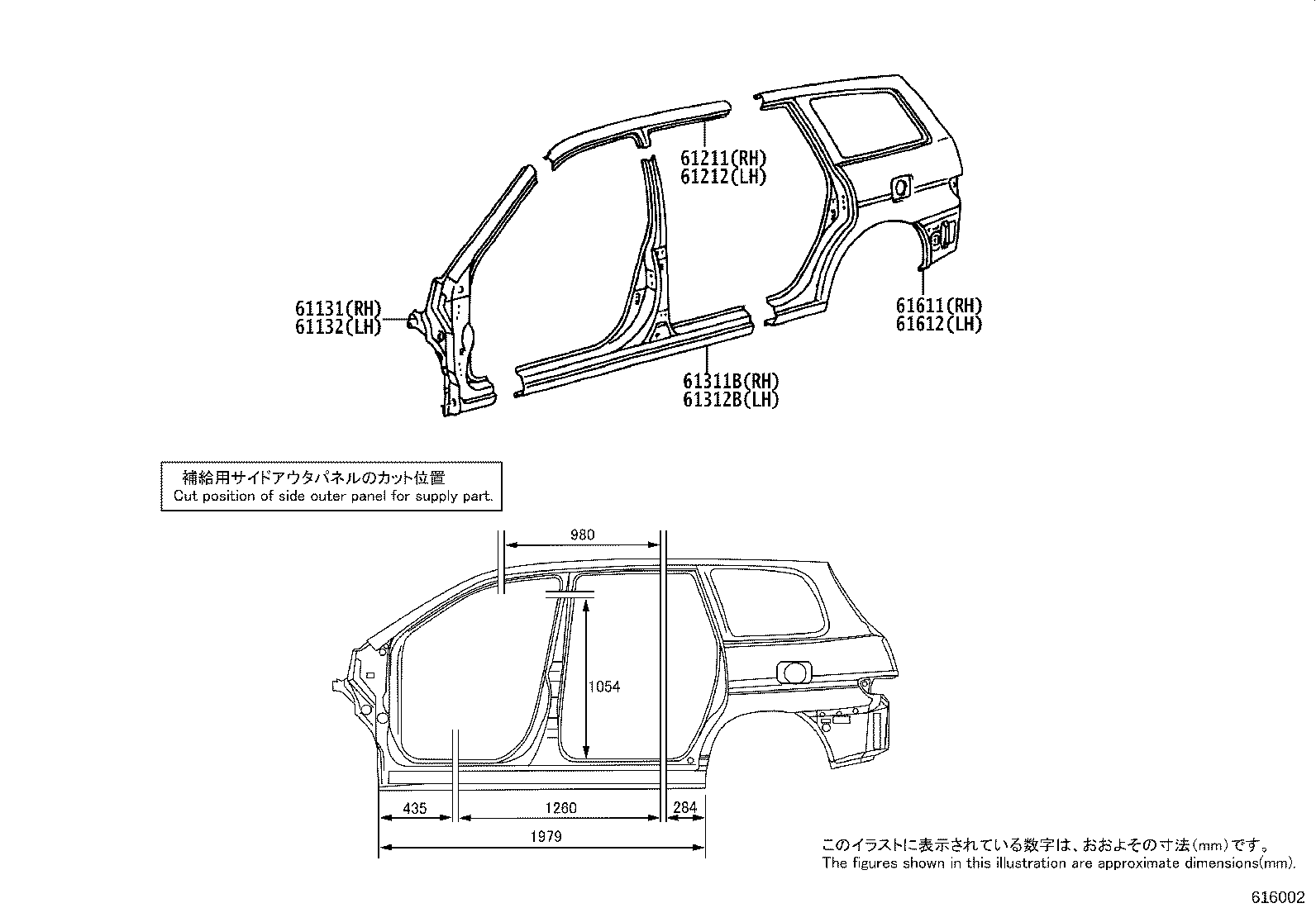

ILLUST NO. 1 OF 2(9805- )
Click highlighted areas on diagram
ｱｳﾀﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-44040 |
CXM10,SXM1# |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-44040 |
CXM10,SXM1# |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-44030 |
CXM10,SXM1# |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-44030 |
CXM10,SXM1# |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-44030 |
CXM10,SXM1# |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-44030 |
CXM10,SXM1# |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-44030 |
CXM10,SXM1# |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-44030 |
CXM10,SXM1# |
1 | ||
