SXM10G-BRSEK (1998)

Toyota Gaia

Production May 1998 - Apr 2001
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )

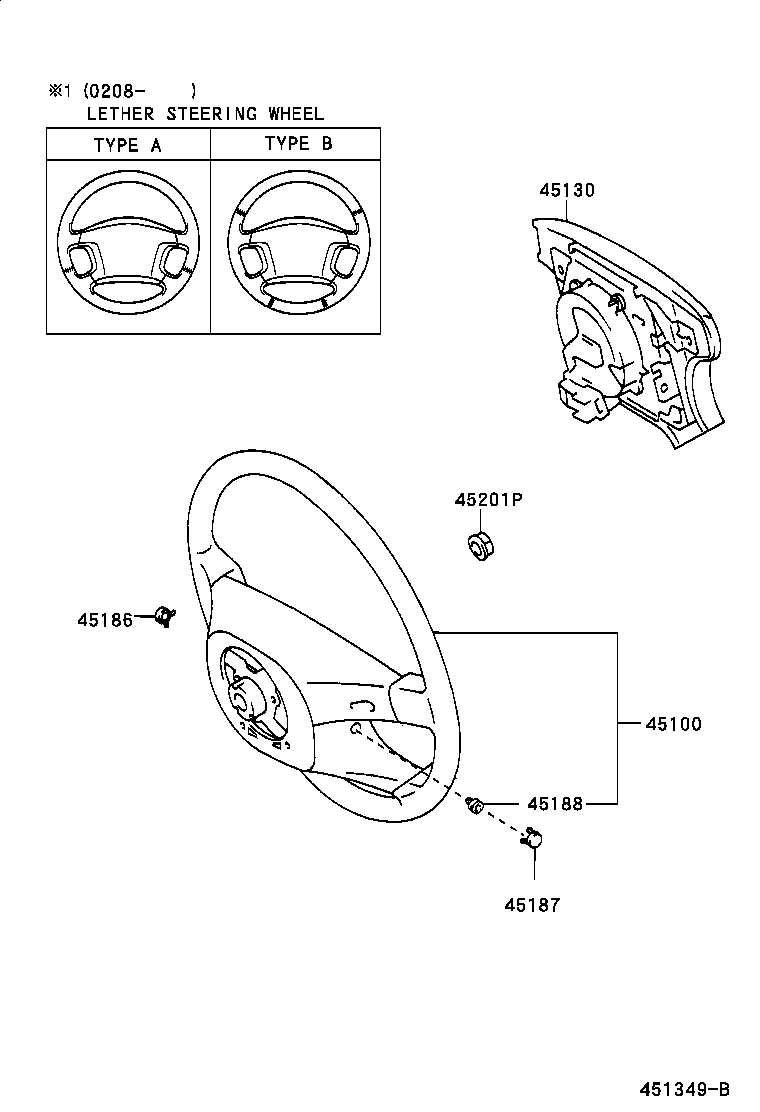

Click highlighted areas on diagram

diagram 45100 45130 45186 45187 45188 45201P
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-32310B2

SXM1#

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,DK.CHARCOAL,TRIM0#

 1
45100-44020B1

SXM1#

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,DK.CHARCOAL,TRIM0#

 1
45100-32310B1

SXM1#

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,MD.MOON MIST,TRIM1#

 1
45100-44020B0

SXM1#

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,MD.MOON MIST,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-44030B0

SXM1#

MD.MOON MIST,TRIM1#

 1
45130-44030B1

CXM10,SXM1#

DK.CHARCOAL,TRIM0#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-44010B1

SXM1#

MD.MOON MIST,TRIM1#

 1
45186-44010B5

CXM10,SXM1#

DK.CHARCOAL,TRIM0#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45186-44010B1

SXM1#

MD.MOON MIST,TRIM1#

 1
45186-44010B5

CXM10,SXM1#

DK.CHARCOAL,TRIM0#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60007

CXM10,SXM1#

長さ=18

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

CXM10,SXM1#

 1
