SXM10G-BPSEK (1998)

Toyota Gaia

Production May 1998 - Apr 2001
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805-0208)SXM1#

Click highlighted areas on diagram

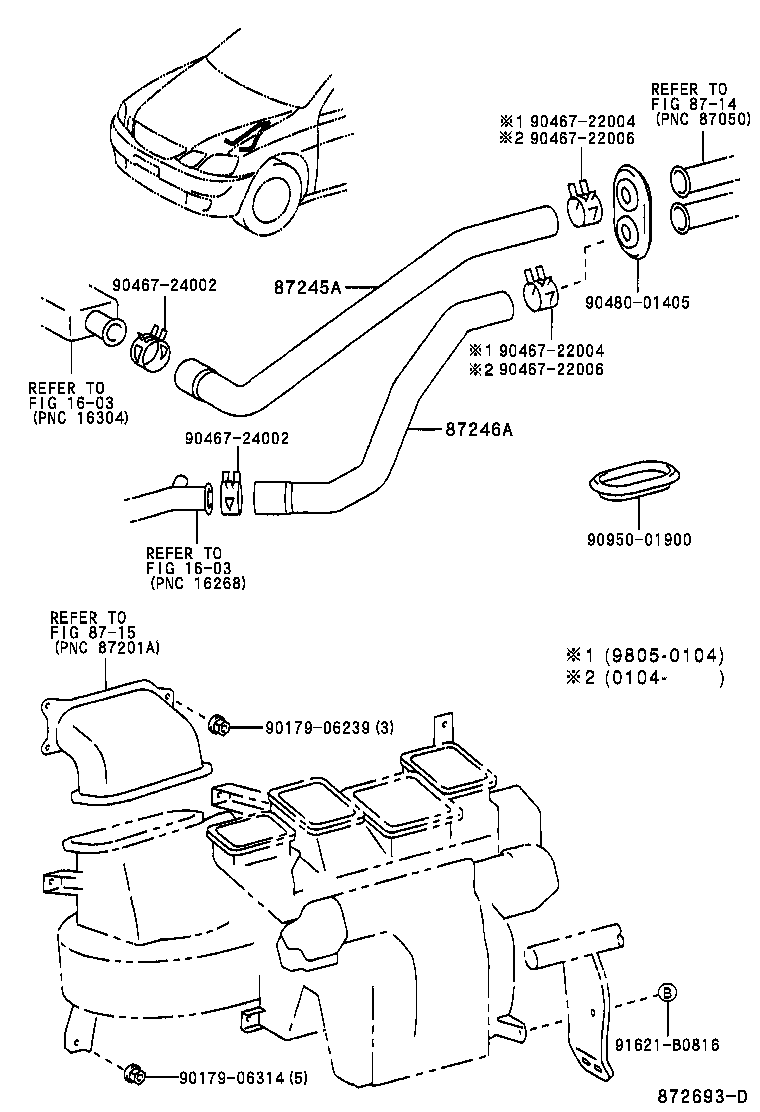

diagram 1603 1603 8714 8715 87245A 87246A 9017906239 9017906314 9046722004 9046722004 9046722006 9046722006 9046724002 9046724002 9048001405 9095001900 91621B0816
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-44150

SXM1#

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87245-44010

SXM1#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-44020

SXM1#

 1
87245-44450

SXM1#

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87245-44100

SXM1#

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
Common parts
90179-06239
90179-06314
90467-22004
90467-22006
90467-24002
90480-01405
90950-01900
91621-B0816
Linked diagrams
1603
8714
8715

(9805-0208)SXM1#

Click highlighted areas on diagram

ｱﾘ(ﾘﾔ ﾋｰﾀ)

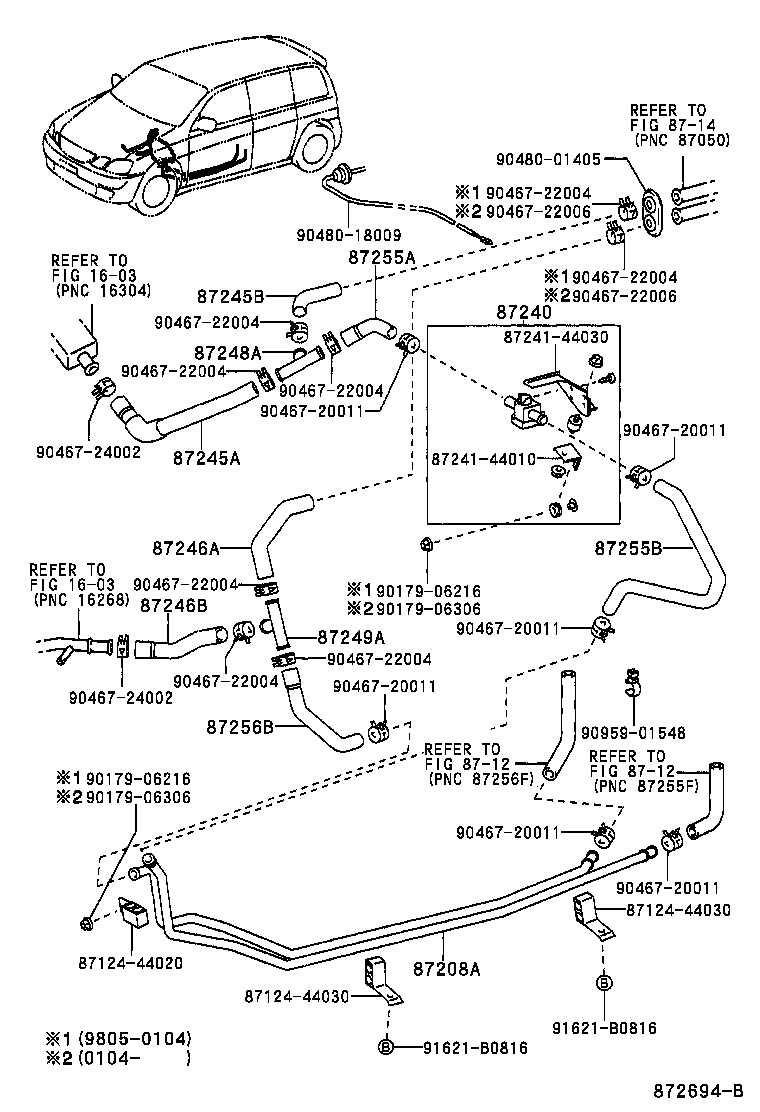

diagram 1603 1603 8712 8712 8712444020 8712444030 8712444030 8714 87208A 87240 8724144010 8724144030 87245A 87245B 87246A 87246B 87248A 87249A 87255A 87255B 87256B 9017906216 9017906216 9017906306 9017906306 9046720011 9046720011 9046720011 9046720011 9046720011 9046720011 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9046722006 9046722006 9046724002 9046724002 9048001405 9048018009 9095901548 91621B0816 91621B0816
Part # Description Qty Price
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-44040

SXM1#

 1
87240 - VALVE ASSY, HEATER WATER
87240-44010

CXM10,SXM1#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-44150

SXM1#

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87245-44010

SXM1#

 1
87245B - HOSE, HEATER WATER, INLET B
87245-44140

SXM1#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-44020

SXM1#

 1
87245-44450

SXM1#

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87245-44100

SXM1#

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-44460

SXM1#

 1
87245-44110

SXM1#

 1
87248A - PIPE, HEATER WATER INLET, A
87248-12130

SXM1#

 1
87248-08030

SXM1#

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-12130

CXM10,SXM1#

 1
87248-08030

CXM10,SXM1#

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-44130

SXM1#

 1
87255B - HOSE, REAR HEATER WATER INLET, B
87245-44360

SXM1#

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
87245-44080

SXM1#

 1
87245-44440

SXM1#

 1
Common parts
87124-44020
87124-44030
87241-44010
87241-44030
90179-06216
90179-06306
90467-20011
90467-22004
90467-22006
90467-24002
90480-01405
90480-18009
90959-01548
91621-B0816
Linked diagrams
1603
8712
8714
