SXM10G-BPSEK (1998)

Toyota Gaia

Production May 1998 - Apr 2001
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )

Click highlighted areas on diagram

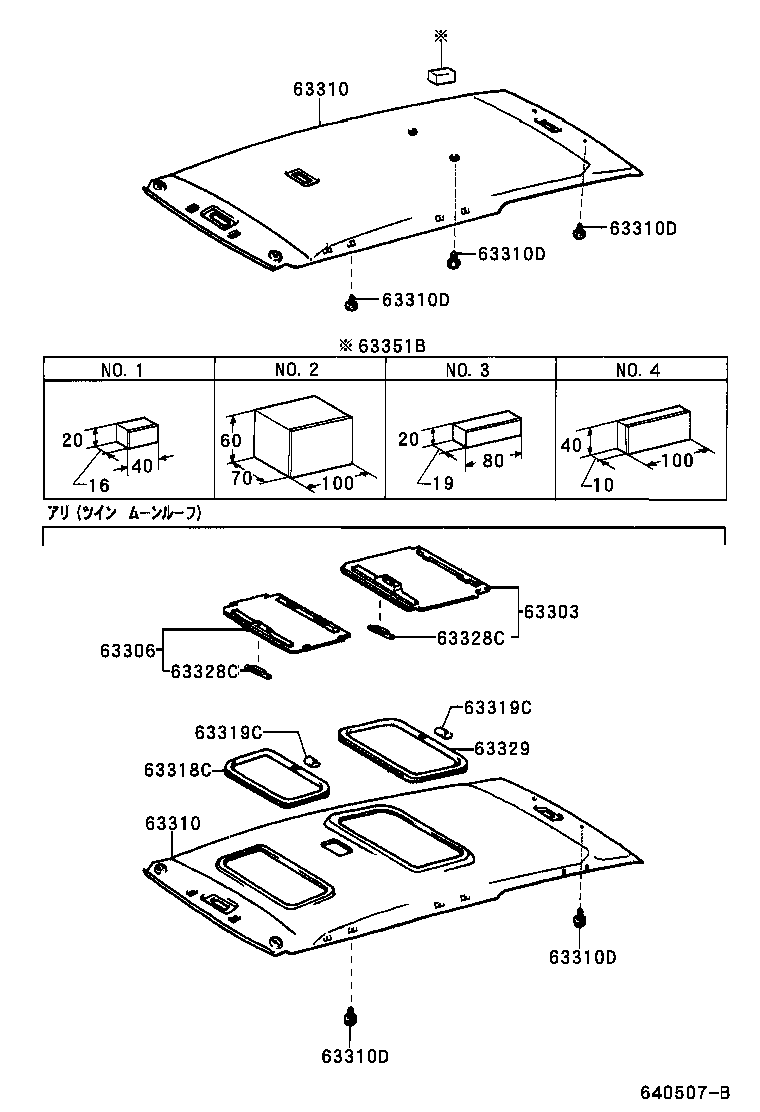

diagram 63303 63306 63310 63310 63310D 63310D 63310D 63310D 63310D 63318C 63319C 63319C 63328C 63328C 63329 63351B
Part # Description Qty Price
63303 - TRIM SUB-ASSY, SUNSHADE, NO.2
63303-44020B2

SXM1#

MOON MIST,TRIM1#

 1
63303-44020A0

CXM10,SXM1#

IVORY,TRIM0#

 1
63303-44010A0

CXM10,SXM1#

IVORY,TRIM0#

 1
63306 - TRIM SUB-ASSY, SUNSHADE
63306-44030B2

SXM1#

MOON MIST,TRIM1#

 1
63306-44010A0

CXM10,SXM1#

IVORY,TRIM0#

 1
63306-44030A0

CXM10,SXM1#

IVORY,TRIM0#

 1
63310 - HEADLINING ASSY, ROOF
63310-44050B1

SXM1#

ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),MOON MIST,TRIM1#

 1
63310-44040A0

CXM10,SXM1#

IVORY,TRIM0#

 1
63310-44040B1

SXM1#

MOON MIST,TRIM1#

 1
63310-44050A0

CXM10,SXM1#

ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0#

 1
63310 - HEADLINING ASSY, ROOF
63310-44050B1

SXM1#

ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),MOON MIST,TRIM1#

 1
63310-44040A0

CXM10,SXM1#

IVORY,TRIM0#

 1
63310-44040B1

SXM1#

MOON MIST,TRIM1#

 1
63310-44050A0

CXM10,SXM1#

ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0#

 1
63310D - CLIP, ROOF HEADLINING
90467-06177A0

CXM10,SXM1#

IVORY,TRIM0#

 5
90467-06177B0

SXM1#

MOON MIST,TRIM1#

 5
90467-06177B0

SXM1#

ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),MOON MIST,TRIM1#

 3
90467-06177A0

CXM10,SXM1#

ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0#

 3
63310D - CLIP, ROOF HEADLINING
90467-06177A0

CXM10,SXM1#

IVORY,TRIM0#

 5
90467-06177B0

SXM1#

MOON MIST,TRIM1#

 5
90467-06177B0

SXM1#

ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),MOON MIST,TRIM1#

 3
90467-06177A0

CXM10,SXM1#

ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0#

 3
63310D - CLIP, ROOF HEADLINING
90467-06177A0

CXM10,SXM1#

IVORY,TRIM0#

 5
90467-06177B0

SXM1#

MOON MIST,TRIM1#

 5
90467-06177B0

SXM1#

ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),MOON MIST,TRIM1#

 3
90467-06177A0

CXM10,SXM1#

ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0#

 3
63310D - CLIP, ROOF HEADLINING
90467-06177A0

CXM10,SXM1#

IVORY,TRIM0#

 5
90467-06177B0

SXM1#

MOON MIST,TRIM1#

 5
90467-06177B0

SXM1#

ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),MOON MIST,TRIM1#

 3
90467-06177A0

CXM10,SXM1#

ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0#

 3
63310D - CLIP, ROOF HEADLINING
90467-06177A0

CXM10,SXM1#

IVORY,TRIM0#

 5
90467-06177B0

SXM1#

MOON MIST,TRIM1#

 5
90467-06177B0

SXM1#

ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),MOON MIST,TRIM1#

 3
90467-06177A0

CXM10,SXM1#

ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0#

 3
63318C - MOULDING, SUN ROOF OPENING TRIM
63318-44010

CXM10,SXM1#

長さ=1992

 1
63318-44010B0

SXM1#

長さ=1992,MOON MIST,TRIM1#

 1
63318-44010A0

CXM10,SXM1#

長さ=1992,IVORY,TRIM0#

 1
63319C - JOINT, SUN ROOF OPENING TRIM
63319-44010B1

SXM1#

LT.BLUISH GRAY,TRIM1#

 2
63319-44010A0

CXM10,SXM1#

IVORY,TRIM0#

 2
63319-44010

CXM10,SXM1#

 2
63319C - JOINT, SUN ROOF OPENING TRIM
63319-44010B1

SXM1#

LT.BLUISH GRAY,TRIM1#

 2
63319-44010A0

CXM10,SXM1#

IVORY,TRIM0#

 2
63319-44010

CXM10,SXM1#

 2
63328C - KNOB, SUNSHADE TRIM
63328-12030A0

CXM10,SXM1#

IVORY,TRIM0#

 2
63328-12030B5

SXM1#

LT.BLUISH GRAY,TRIM1#

 2
63328C - KNOB, SUNSHADE TRIM
63328-12030A0

CXM10,SXM1#

IVORY,TRIM0#

 2
63328-12030B5

SXM1#

LT.BLUISH GRAY,TRIM1#

 2
63329 - MOULDING, SUN ROOF OPENING TRIM, NO.2
63329-44040A0

CXM10,SXM1#

IVORY,TRIM0#

 1
63329-44040B0

SXM1#

MOON MIST,TRIM1#

 1
63351B - PAD, ROOF HEADLINING
63351-44020

CXM10,SXM1#

NO.2

 1
63351-44010

CXM10,SXM1#

NO.1

 1
63351-44030

CXM10,SXM1#

NO.3

 1
63351-44040

CXM10,SXM1#

NO.4

 1
