SXM10G-BPSEK (1998)

Toyota Gaia

Production May 1998 - Apr 2001
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805-0104)

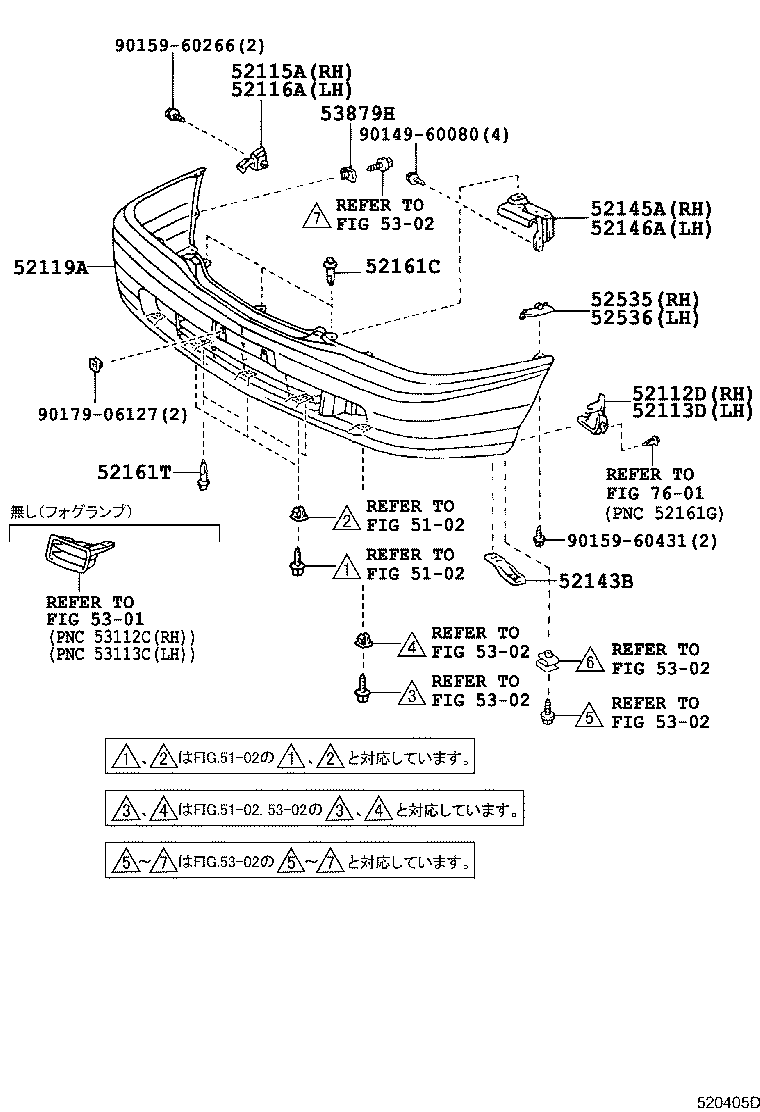

Click highlighted areas on diagram

diagram 5102 5102 52112D 52113D 52115A 52116A 52119A 52143B 52145A 52146A 52161C 52161T 52535 52536 5301 5302 5302 5302 5302 5302 53879H 7601 9014960080 9015960266 9015960431 9017906127
Part # Description Qty Price
52112D - EXTENSION, FRONT BUMPER, RH
52112-44020

SXM1#

 1
52113D - EXTENSION, FRONT BUMPER, LH
52113-44020

SXM1#

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-44020

CXM10,SXM1#

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-44020

CXM10,SXM1#

 1
52119A - COVER, FRONT BUMPER
52119-44090J0

SXM1#

ﾘﾐﾃﾂﾄﾞ *(A),DK.BLUE M.M.,8L1

 1
52119-44090C0

CXM10,SXM1#

BLACK,202

 1
52119-44090A1

SXM1#

ﾒﾓﾘｱﾙ ｴﾃﾞｲｼﾖﾝ *(C),WHITE PM.,042

 1
52119-44090D0

CXM10,SXM1#

RED MC.,3M8

 1
52119-44090J0

SXM1#

ﾘﾐﾃﾂﾄﾞ *(B),DK.BLUE M.M.,8L1

 1
52119-44170A0

SXM1#

ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ),WHITE PM.,057

 1
52119-44100C0

CXM10,SXM1#

ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),BLACK,202

 1
52119-44090H0

CXM10,SXM1#

DK.TURQUOISE MC.,760

 1
52119-44170B0

SXM1#

ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ),SILVER ME.,199

 1
52119-44090A0

SXM1#

WHITE PM.,057

 1
52119-44090G0

CXM10,SXM1#

DK GREEN MICA,6M1

 1
52119-44090B0

CXM10,SXM1#

SILVER GR.SF.,1B9

 1
52119-44100G0

CXM10,SXM1#

ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),DK GREEN MICA,6M1

 1
52119-44100A0

SXM1#

ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),WHITE PM.,057

 1
52119-44100H0

CXM10,SXM1#

ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),DK.TURQUOISE MC.,760

 1
52119-44100B0

CXM10,SXM1#

ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),SILVER GR.SF.,1B9

 1
52119-44180A0

SXM1#

ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ & ｸﾘｱﾗﾝｽ ｿﾅ-),WHITE PM.,057

 1
52119-44090F0

SXM1#

ﾘﾐﾃﾂﾄﾞ *(F) OR ﾘﾐﾃﾂﾄﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(E),CHAMPAGNE ME.,583

 1
52119-44100D0

CXM10,SXM1#

ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),RED MC.,3M8

 1
52119-44090A1

SXM1#

ﾘﾐﾃﾂﾄﾞ *(F) OR ﾘﾐﾃﾂﾄﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(E),WHITE PM.,042

 1
52119-44180C0

SXM1#

ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ & ｸﾘｱﾗﾝｽ ｿﾅ-),BLACK,202

 1
52119-44180B0

SXM1#

ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ & ｸﾘｱﾗﾝｽ ｿﾅ-),SILVER ME.,199

 1
52119-44170C0

SXM1#

ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ),BLACK,202

 1
52143B - BRACKET, FRONT BUMPER SIDE
52143-44020

SXM1#

 2
52145A - STAY, FRONT BUMPER, NO.2 RH
52145-44020

CXM10,SXM1#

 1
52146A - STAY, FRONT BUMPER, NO.2 LH
52146-44020

CXM10,SXM1#

 1
52161C - PIECE, FRONT BUMPER
52161-44010B0

SXM1#

ﾒﾓﾘｱﾙ ｴﾃﾞｲｼﾖﾝ *(C),MOON GRAY,042

 3
52161-44010C0

SXM1#

ﾘﾐﾃﾂﾄﾞ *(B),BLACK,8L1

 3
52161-44010B0

SXM1#

MOON GRAY,057 ,1B9 ,199

 3
52161-44010C0

SXM1#

ﾘﾐﾃﾂﾄﾞ *(A),BLACK,8L1

 3
52161-44010C0

CXM10,SXM1#

BLACK,202 ,3M8 ,6M1 ,760

 3
52161-44010C0

SXM1#

BLACK,057 ,1B9 ,199 ,202 ,3M8 ,6M1 ,760

 3
52161-44010B0

SXM1#

MOON GRAY,057 ,1B9

 3
52161-44010B0

SXM1#

ﾘﾐﾃﾂﾄﾞ *(F) OR ﾘﾐﾃﾂﾄﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(E),MOON GRAY,042 ,583

 3
52161T - PIECE, FRONT BUMPER
52161-44010C0

SXM1#

ﾘﾐﾃﾂﾄﾞ *(A),BLACK,8L1

 2
52161-44010C0

SXM1#

ﾒﾓﾘｱﾙ ｴﾃﾞｲｼﾖﾝ *(C),BLACK,042

 2
52161-44010C0

SXM1#

ﾘﾐﾃﾂﾄﾞ *(F) OR ﾘﾐﾃﾂﾄﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(E),BLACK,042 ,583

 2
52161-44010C0

SXM1#

BLACK,057 ,1B9

 2
52161-44010C0

CXM10,SXM1#

BLACK,202 ,3M8 ,6M1 ,760

 2
52161-44010C0

SXM1#

BLACK,057 ,1B9 ,199 ,202 ,3M8 ,6M1 ,760

 2
52161-44010C0

SXM1#

ﾘﾐﾃﾂﾄﾞ *(B),BLACK,8L1

 2
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-44020

CXM10,SXM1#

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-44020

CXM10,SXM1#

 1
53879H - RETAINER, FRONT FENDER LINER
53879-44010

CXM10,SXM1#

 2
Common parts
90149-60080
90159-60266
90159-60431
90179-06127
Linked diagrams
5102
5301
5302
7601
