SXM10G-BPSEK (1998)

Toyota Gaia

Production May 1998 - Apr 2001
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805-0104)3SFE

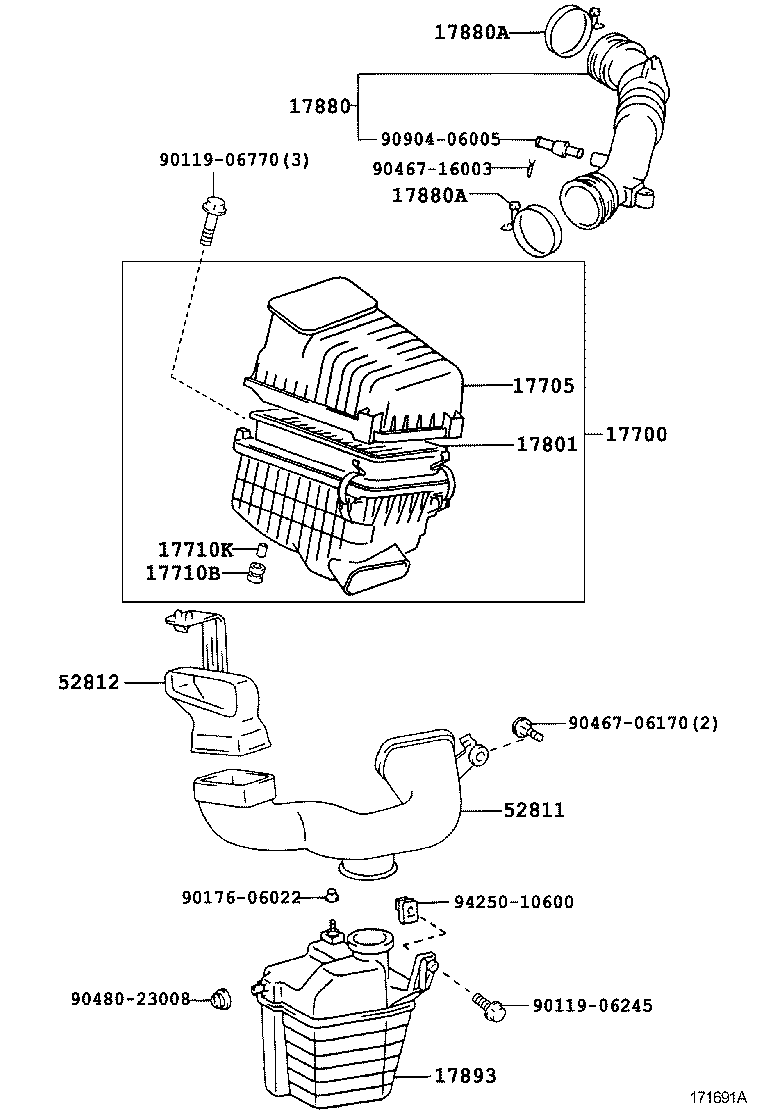

Click highlighted areas on diagram

diagram 17700 17705 17710B 17710K 17801 17880 17880A 17880A 17893 52811 52812 9011906245 9011906770 9017606022 9046706170 9046716003 9048023008 9090406005 9425010600
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-74581

3SFE..SXM1#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-74411

3SFE..SXM1#

 1
17710B - GROMMET
90480-11014

3SFE..SXM1#

 1
17710K - COLLAR(FOR AIR CLEANER)
90387-09064

3SFE..SXM1#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-74020

3SFE..SXM1#

 1
17880 - HOSE ASSY, AIR CLEANER
17880-74621

3SFE..SXM1#

 1
17880A - CLAMP, HOSE
96111-10710

3SFE..SXM1#

 2
17880A - CLAMP, HOSE
96111-10710

3SFE..SXM1#

 2
17893 - RESONATOR, INTAKE AIR
17893-16130

3SFE..SXM1#

 1
52811 - DUCT, COOL AIR INTAKE, NO.1
52811-44030

SXM1#

 1
52812 - DUCT, COOL AIR INTAKE, NO.2
52812-44010

SXM1#

 1
Common parts
90119-06245
90119-06770
90176-06022
90467-06170
90467-16003
90480-23008
90904-06005
94250-10600
