CXM10G-BRSET (1998)
Toyota Gaia
Production
May 1998
-
Sep 2004
Engine
3CTE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

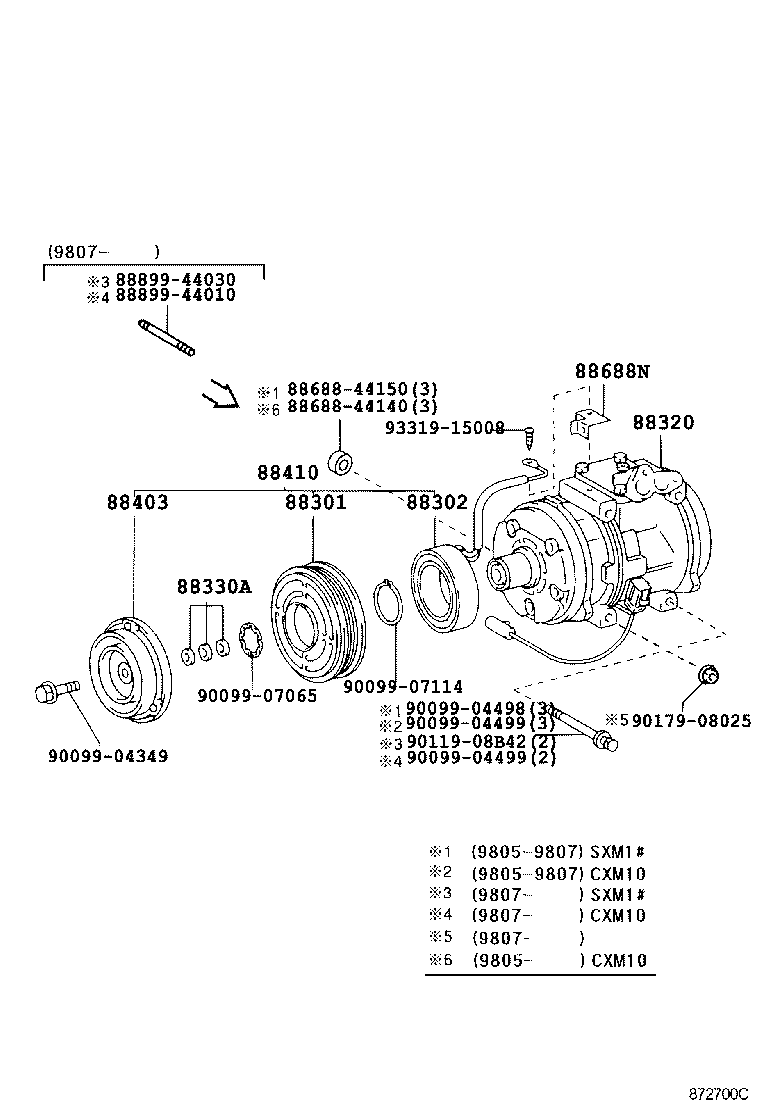

(9805-0104)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-44050 |
CXM10,SXM1# |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-2A030 |
CXM10,SXM1# |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-48040 |
CXM10,SXM15 |
1 | ||
| 88320-48040 |
CXM10,SXM1# |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
CXM10,SXM1# |
1 | ||
| 88335-14020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-16011 |
CXM10,SXM1# |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-44050 |
CXM10,SXM1# |
1 | ||
| 88410-44050 |
CXM10,SXM15 |
1 | ||
| 88688N - BRACKET, COOLER | ||||
| 88688-32670 |
CXM10,SXM15 |
1 | ||
| 88688-32670 |
CXM10,SXM1# |
1 | ||
| Common parts | ||||
| 88688-44140 | ||||
| 88688-44150 | ||||
| 88899-44010 | ||||
| 88899-44030 | ||||
| 90099-04349 | ||||
| 90099-04498 | ||||
| 90099-04499 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 90119-08B42 | ||||
| 90179-08025 | ||||
| 93319-15008 | ||||

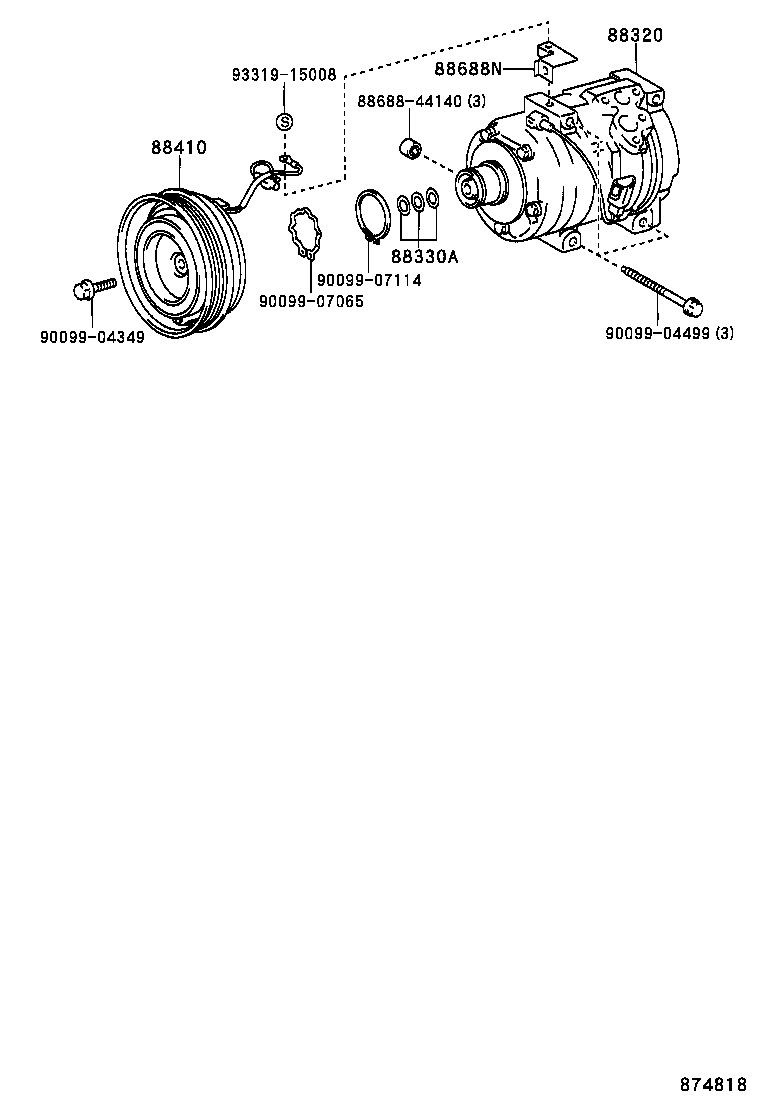

(0104- )CXM10
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-48040 |
CXM10,SXM15 |
1 | ||
| 88320-48040 |
CXM10,SXM1# |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
CXM10,SXM1# |
1 | ||
| 88335-14020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-44050 |
CXM10,SXM1# |
1 | ||
| 88410-44050 |
CXM10,SXM15 |
1 | ||
| 88688N - BRACKET, COOLER | ||||
| 88688-32670 |
CXM10,SXM15 |
1 | ||
| 88688-32670 |
CXM10,SXM1# |
1 | ||
| Common parts | ||||
| 88688-44140 | ||||
| 90099-04349 | ||||
| 90099-04499 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 93319-15008 | ||||
