CXM10G-BRSET (1998)
Toyota Gaia
Production
May 1998
-
Sep 2004
Engine
3CTE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9805- )CXM10

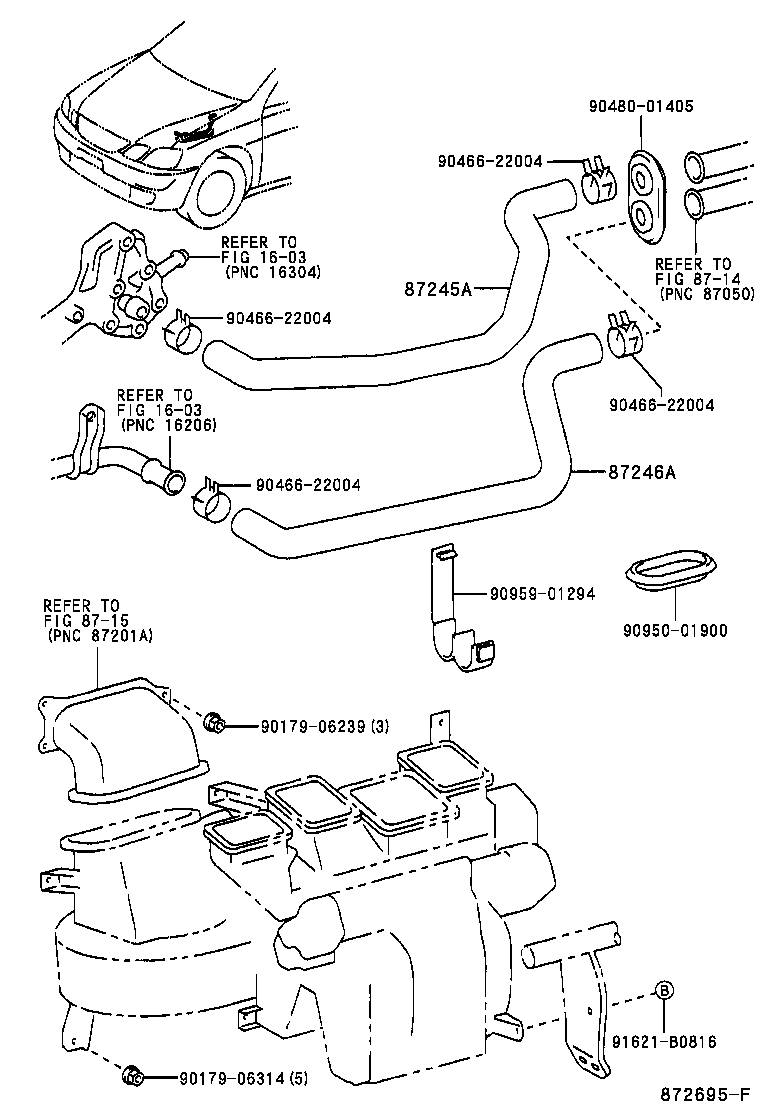

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-44350 |
CXM10 ｱﾘ(ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87245-44210 |
CXM10 |
1 | ||
| 87245-44710 |
CXM10 |
1 | ||
| 87245-44350 |
CXM10 ｱﾘ(ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-44220 |
CXM10 |
1 | ||
| 87245-44720 |
CXM10 |
1 | ||
| 87245-44260 |
CXM10 ｱﾘ(ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87245-44740 |
CXM10 ｱﾘ(ﾘﾔ ﾋ-ﾀ) |
1 | ||
| Common parts | ||||
| 90179-06239 | ||||
| 90179-06314 | ||||
| 90466-22004 | ||||
| 90480-01405 | ||||
| 90950-01900 | ||||
| 90959-01294 | ||||
| 91621-B0816 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8714 | ||||
| 8715 | ||||

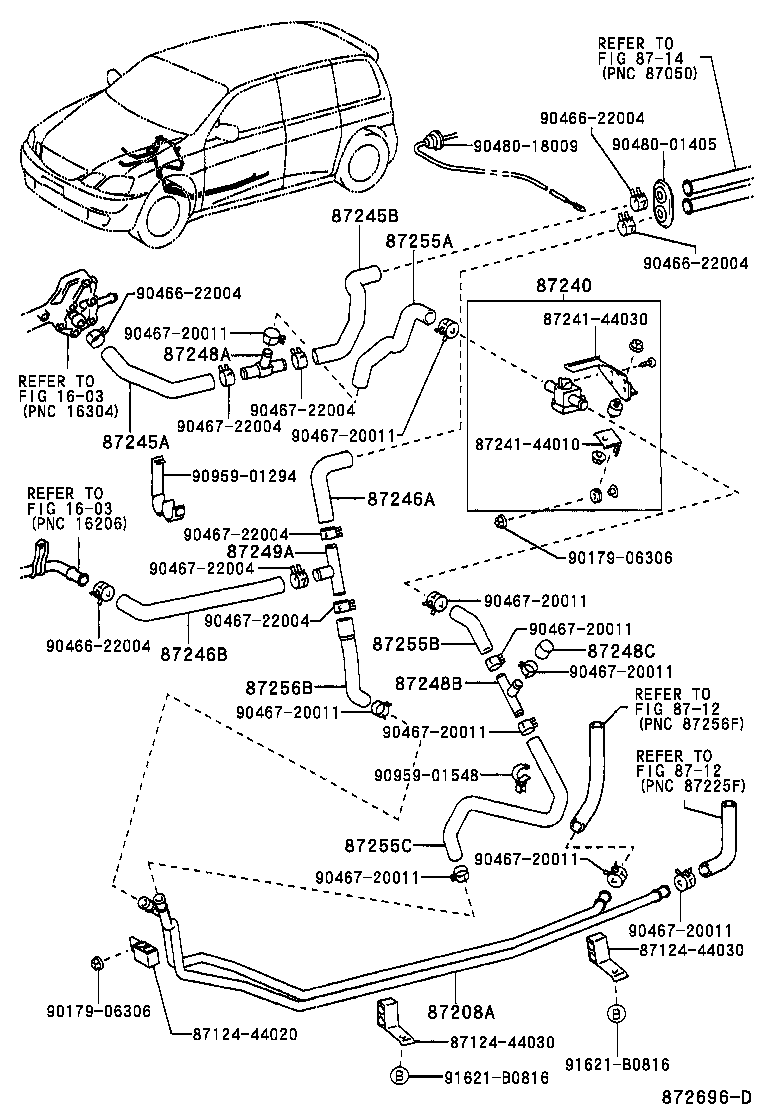

(9805- )CXM10
Click highlighted areas on diagram
ｱﾘ(ﾘﾔ ﾋｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208A - PIPE SUB-ASSY, HEATER WATER, A | ||||
| 87208-44060 |
CXM10 |
1 | ||
| 87208-44060 |
CXM10 |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 87240-44010 |
CXM10,SXM1# |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-44350 |
CXM10 ｱﾘ(ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87245-44210 |
CXM10 |
1 | ||
| 87245-44710 |
CXM10 |
1 | ||
| 87245-44350 |
CXM10 ｱﾘ(ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-44760 |
CXM10 |
1 | ||
| 87245-44340 |
CXM10 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-44220 |
CXM10 |
1 | ||
| 87245-44720 |
CXM10 |
1 | ||
| 87245-44260 |
CXM10 ｱﾘ(ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87245-44740 |
CXM10 ｱﾘ(ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87246B - HOSE, HEATER WATER, OUTLET B | ||||
| 87245-44270 |
CXM10 |
1 | ||
| 87245-44270 |
CXM10 |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87248-60460 |
CXM10 |
1 | ||
| 87248-60460 |
CXM10 |
1 | ||
| 87248B - PIPE, HEATER WATER INLET, B | ||||
| 87248-44010 |
CXM10 |
1 | ||
| 87248-44010 |
CXM10 |
1 | ||
| 87248C - PIPE, HEATER WATER INLET, C | ||||
| 32934-20010 |
CXM10 |
1 | ||
| 32934-20010 |
CXM10 |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87248-08030 |
ACM1#,CXM10,SXM15 |
1 | ||
| 87248-12130 |
CXM10,SXM1# |
1 | ||
| 87248-08030 |
CXM10,SXM1# |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 87245-44330 |
CXM10 |
1 | ||
| 87245-44330 |
CXM10 |
1 | ||
| 87255B - HOSE, REAR HEATER WATER INLET, B | ||||
| 87245-44320 |
CXM10 |
1 | ||
| 87245-44320 |
CXM10 |
1 | ||
| 87255C - HOSE, REAR HEATER WATER INLET, C | ||||
| 87245-44070 |
CXM10 |
1 | ||
| 87245-44070 |
CXM10 |
1 | ||
| 87256B - HOSE, REAR HEATER WATER OUTLET, B | ||||
| 87245-44250 |
CXM10 |
1 | ||
| 87245-44250 |
CXM10 |
1 | ||
| Common parts | ||||
| 87124-44020 | ||||
| 87124-44030 | ||||
| 87241-44010 | ||||
| 87241-44030 | ||||
| 90179-06306 | ||||
| 90466-22004 | ||||
| 90467-20011 | ||||
| 90467-22004 | ||||
| 90480-01405 | ||||
| 90480-18009 | ||||
| 90959-01294 | ||||
| 90959-01548 | ||||
| 91621-B0816 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8712 | ||||
| 8714 | ||||
