CXM10G-BRSET (1998)
Toyota Gaia

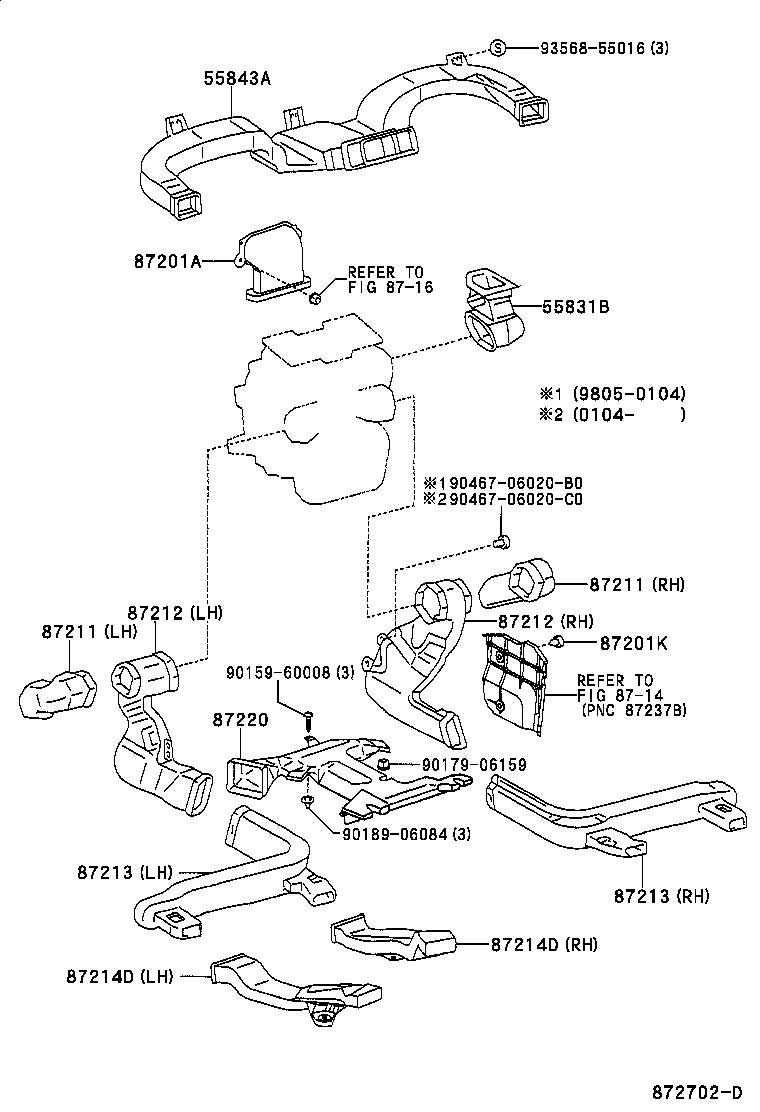

ILLUST NO. 2 OF 4(9805- )
ﾌﾛﾝﾄ ﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55831B - CONNECTOR, INSTRUMENT PANEL REGISTER, RH | ||||
| 55832-44010 |
CXM10,SXM1# |
1 | ||
| 55832-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-44010 |
CXM10,SXM1# |
1 | ||
| 55843-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 87201A - DUCT SUB-ASSY, AIR | ||||
| 87201-44070 |
CXM10 |
1 | ||
| 87201-44070 |
CXM10 |
1 | ||
| 87201K - CLIP (FOR AIR DUCT) | ||||
| 90467-07121B3 |
CXM10,SXM1# DK.CHARCOAL,TRIM0# |
1 | ||
| 90467-07121E1 |
ACM1#,CXM10 SANDAL WOOD,TRIM0# |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-44010 |
CXM10,SXM1# 右側 |
1 | ||
| 87211-44020 |
CXM10,SXM1# 左側 |
1 | ||
| 87211-44010 |
ACM1#,CXM10,SXM15 右側 |
1 | ||
| 87211-44020 |
ACM1#,CXM10,SXM15 左側 |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-44010 |
CXM10,SXM1# 右側 |
1 | ||
| 87211-44020 |
CXM10,SXM1# 左側 |
1 | ||
| 87211-44010 |
ACM1#,CXM10,SXM15 右側 |
1 | ||
| 87211-44020 |
ACM1#,CXM10,SXM15 左側 |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-44010 |
ACM1#,CXM10,SXM15 右側 |
1 | ||
| 87212-44020 |
ACM1#,CXM10,SXM15 左側 |
1 | ||
| 87212-44020 |
CXM10,SXM1# 左側 |
1 | ||
| 87212-44010 |
CXM10,SXM1# 右側 |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-44010 |
ACM1#,CXM10,SXM15 右側 |
1 | ||
| 87212-44020 |
ACM1#,CXM10,SXM15 左側 |
1 | ||
| 87212-44020 |
CXM10,SXM1# 左側 |
1 | ||
| 87212-44010 |
CXM10,SXM1# 右側 |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-44020 |
ACM1#,CXM10,SXM15 左側 |
1 | ||
| 87213-44010 |
ACM10,CXM10,SXM15 右側 |
1 | ||
| 87213-44020 |
CXM10,SXM1# 左側 |
1 | ||
| 87213-44070 |
ACM1#,CXM10 右側 |
1 | ||
| 87213-44010 |
CXM10,SXM1# 右側 |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-44020 |
ACM1#,CXM10,SXM15 左側 |
1 | ||
| 87213-44010 |
ACM10,CXM10,SXM15 右側 |
1 | ||
| 87213-44020 |
CXM10,SXM1# 左側 |
1 | ||
| 87213-44070 |
ACM1#,CXM10 右側 |
1 | ||
| 87213-44010 |
CXM10,SXM1# 右側 |
1 | ||
| 87214D - DUCT, AIR, REAR NO.3 | ||||
| 87215-44010 |
CXM10,SXM1# 右側 |
1 | ||
| 87215-44020 |
ACM1#,CXM10,SXM15 左側 |
1 | ||
| 87215-44010 |
ACM1#,CXM10,SXM15 右側 |
1 | ||
| 87215-44020 |
CXM10,SXM1# 左側 |
1 | ||
| 87214D - DUCT, AIR, REAR NO.3 | ||||
| 87215-44010 |
CXM10,SXM1# 右側 |
1 | ||
| 87215-44020 |
ACM1#,CXM10,SXM15 左側 |
1 | ||
| 87215-44010 |
ACM1#,CXM10,SXM15 右側 |
1 | ||
| 87215-44020 |
CXM10,SXM1# 左側 |
1 | ||
| 87220 - DUCT ASSY, AIR | ||||
| 87220-44030 |
CXM10,SXM1# |
1 | ||
| 87220-44030 |
ACM1#,CXM10,SXM15 |
1 | ||
| Common parts | ||||
| 90159-60008 | ||||
| 90179-06159 | ||||
| 90189-06084 | ||||
| 90467-06020B0 | ||||
| 90467-06020C0 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8716 | ||||

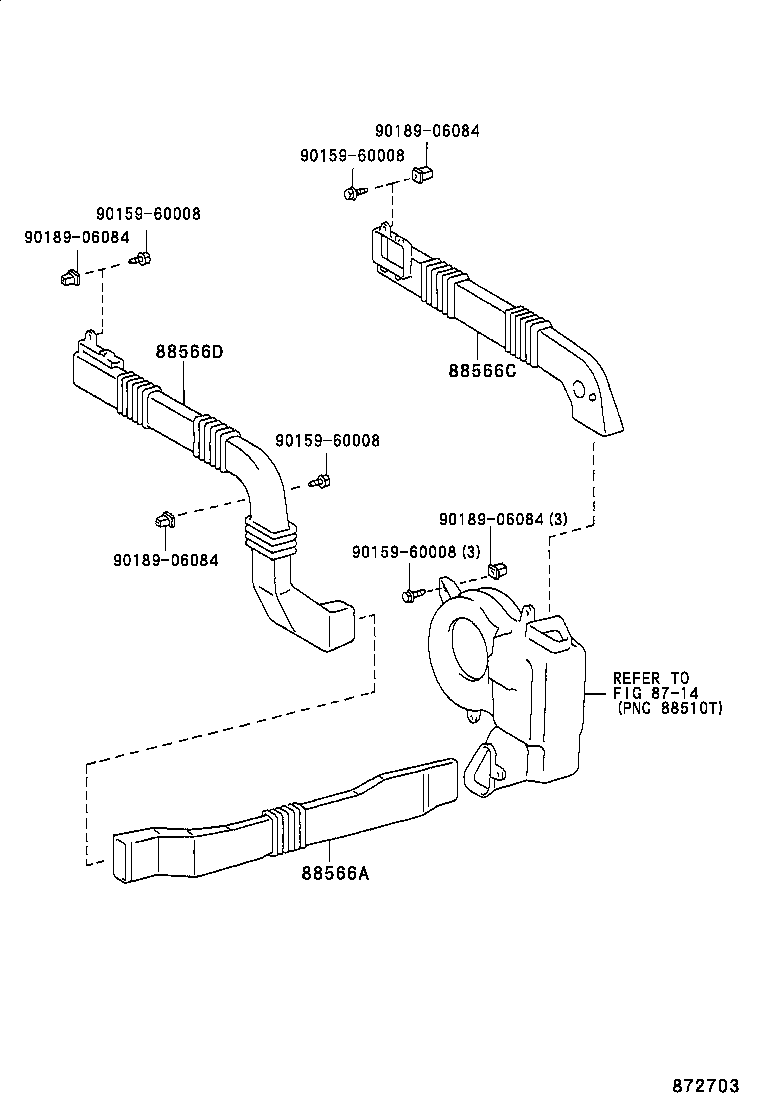

ILLUST NO. 3 OF 4(9805- )
ﾘﾔ ﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88566A - DUCT, COOLER AIR, NO.1 | ||||
| 88566-44050 |
CXM10,SXM1# |
1 | ||
| 88566-44050 |
ACM1#,CXM10,SXM15 |
1 | ||
| 88566C - DUCT, COOLER AIR, NO.3 | ||||
| 88566-44060 |
ACM1#,CXM10,SXM15 |
1 | ||
| 88566-44060 |
CXM10,SXM1# |
1 | ||
| 88566D - DUCT, COOLER AIR, NO.4 | ||||
| 88566-44070 |
CXM10,SXM1# |
1 | ||
| 88566-44070 |
ACM1#,CXM10,SXM15 |
1 | ||
| Common parts | ||||
| 90159-60008 | ||||
| 90189-06084 | ||||
| Linked diagrams | ||||
| 8714 | ||||

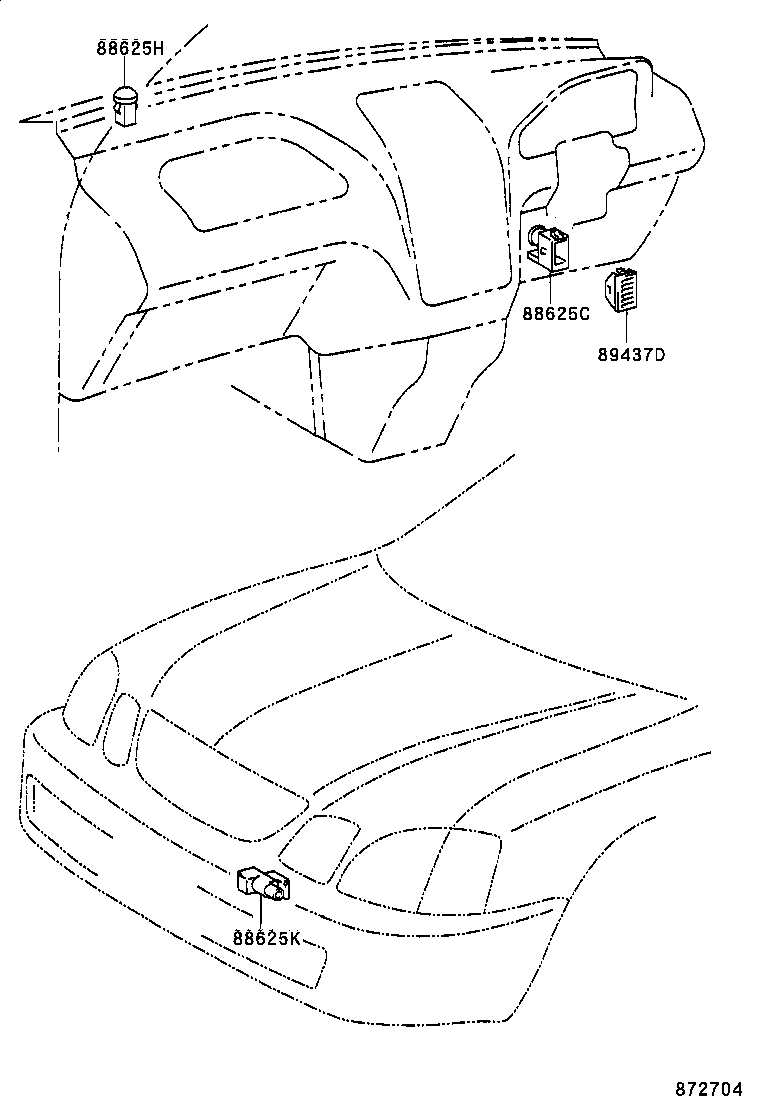

ILLUST NO. 4 OF 4(9805- )
ｾﾝｻｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625C - THERMISTOR, COOLER | ||||
| 88625-20490 |
CXM10,SXM1# |
1 | ||
| 88625-20490 |
ACM1#,CXM10,SXM15 |
1 | ||
| 88625H - THERMISTOR, COOLER (SOLAR SENSOR) | ||||
| 88625-32160 |
CXM10,SXM1# |
1 | ||
| 88625-32160 |
ACM1#,CXM10,SXM15 |
1 | ||
| 88625K - THERMISTOR, COOLER | ||||
| 88625-32170 |
ACM10,CXM10,SXM15 |
1 | ||
| 88625-32171 |
ACM1#,CXM10,SXM15 |
1 | ||
| 88625-32170 |
CXM10,SXM1# |
1 | ||
| 89437D - COVER, SENSOR | ||||
| 89437-60040B0 |
CXM10 DK.CHARCOAL,TRIM0# |
1 | ||
| 89437-44010B0 |
CXM10,SXM1# DK.CHARCOAL,TRIM0# |
1 | ||
| 89437-60040E1 |
ACM1#,CXM10 SANDAL WOOD,TRIM0# |
1 | ||

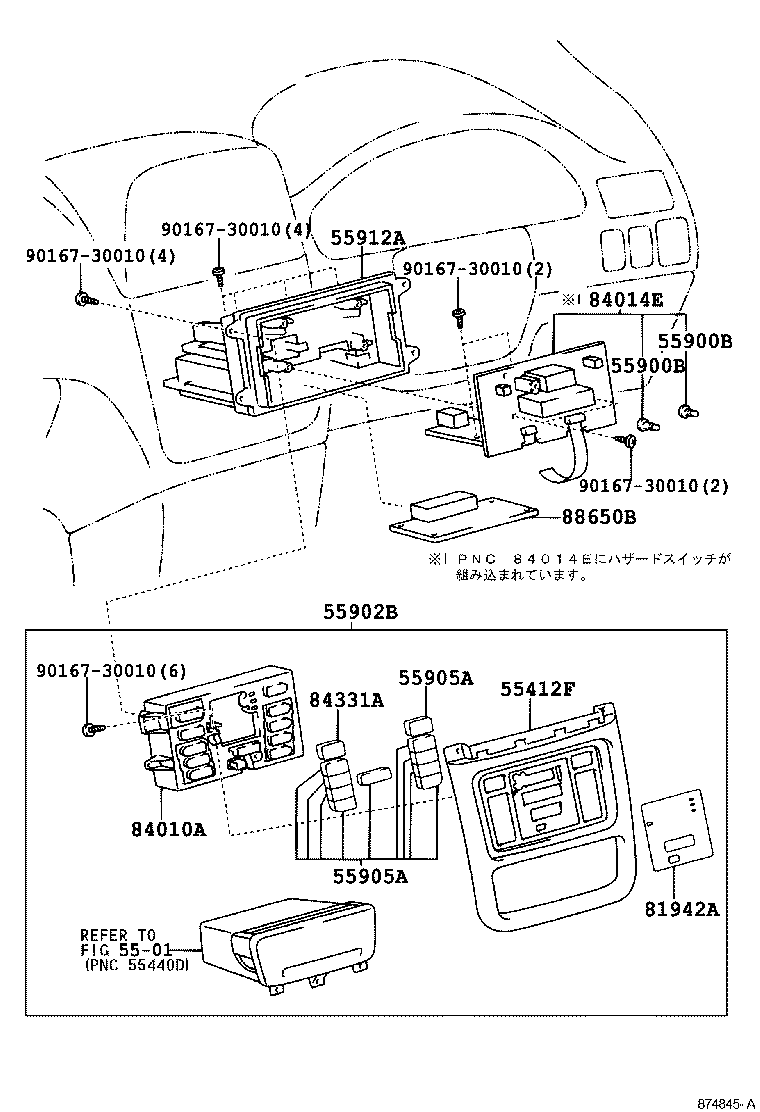

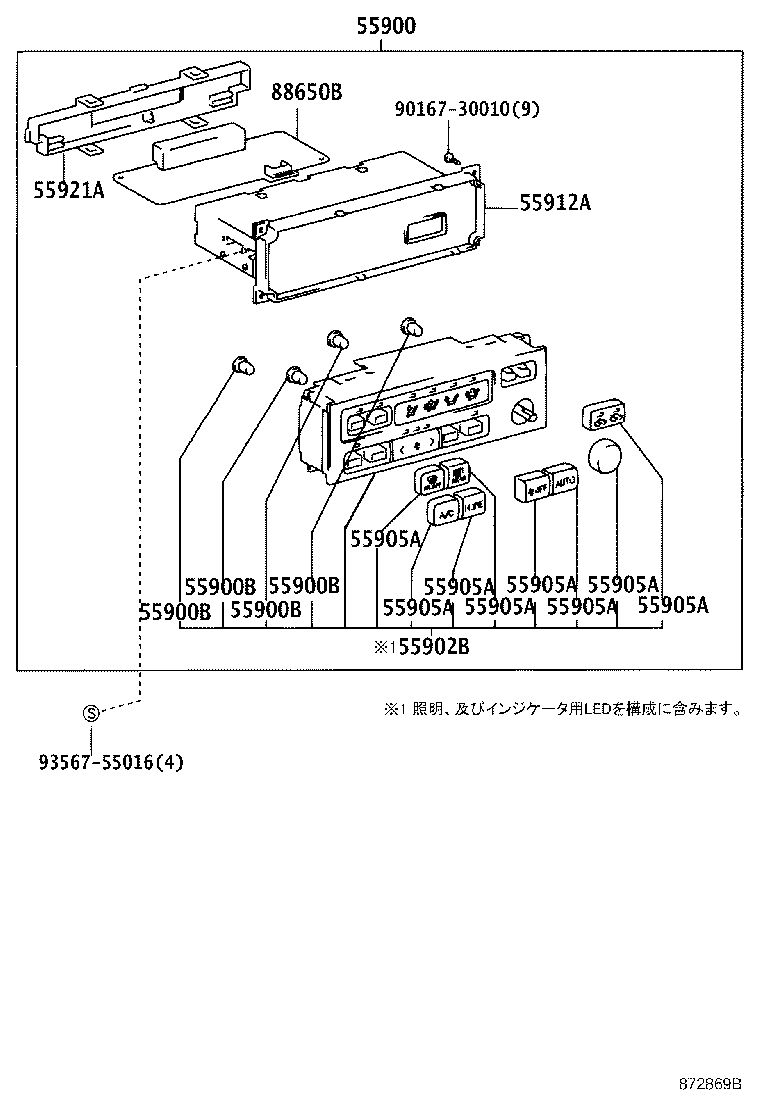

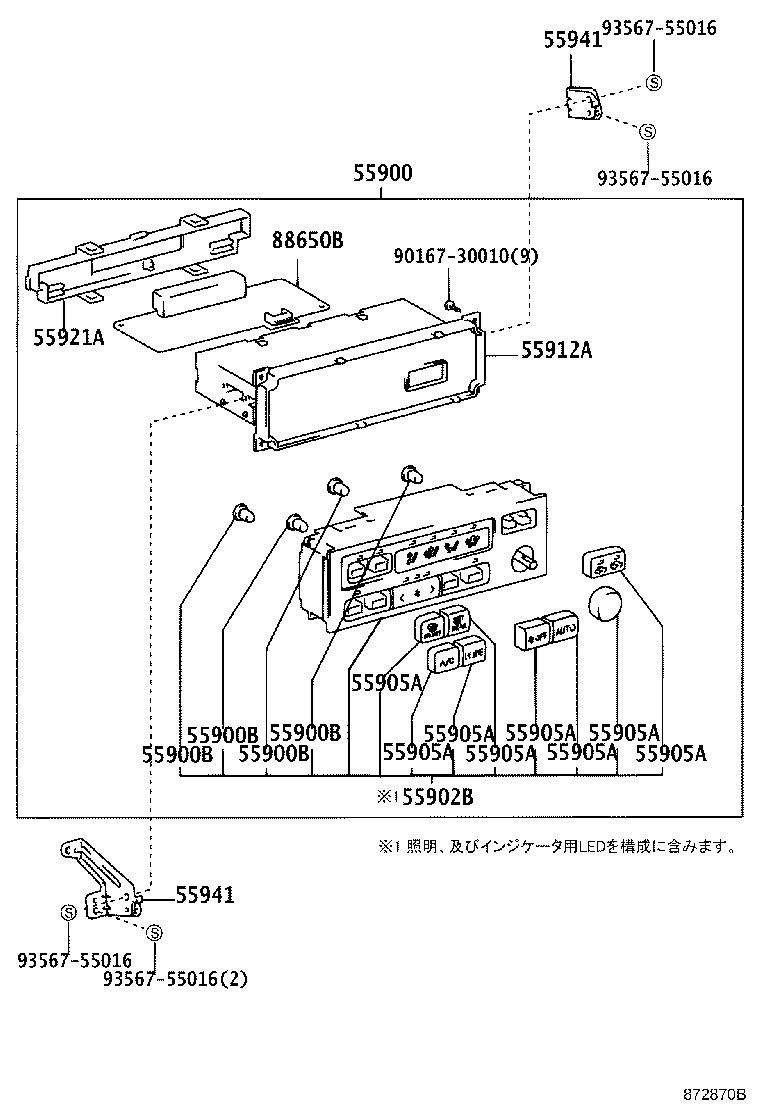

ILLUST NO. 1 OF 4(9805-0104)
ｺﾝﾄﾛｰﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-44080 |
CXM10 |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90010-05134 |
ACM1#,CXM10,SXM15 14V 1.12W,ｷｬｯﾌﾟ付き |
1 | ||
| 90010-05101 |
CXM10,SXM1# 14V 1.12W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
6 | ||
| 90010-05106 |
ACM1#,CXM10,SXM15 14V 0.91W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90010-05134 |
ACM1#,CXM10,SXM15 14V 1.12W,ｷｬｯﾌﾟ付き |
1 | ||
| 90010-05101 |
CXM10,SXM1# 14V 1.12W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
6 | ||
| 90010-05106 |
ACM1#,CXM10,SXM15 14V 0.91W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90010-05134 |
ACM1#,CXM10,SXM15 14V 1.12W,ｷｬｯﾌﾟ付き |
1 | ||
| 90010-05101 |
CXM10,SXM1# 14V 1.12W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
6 | ||
| 90010-05106 |
ACM1#,CXM10,SXM15 14V 0.91W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90010-05134 |
ACM1#,CXM10,SXM15 14V 1.12W,ｷｬｯﾌﾟ付き |
1 | ||
| 90010-05101 |
CXM10,SXM1# 14V 1.12W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
6 | ||
| 90010-05106 |
ACM1#,CXM10,SXM15 14V 0.91W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 55902B - CONTROL SUB-ASSY, HEATER | ||||
| 55902-44080 |
ACM1#,CXM10,SXM15 ﾓｸﾒ(ﾌﾞﾗｳﾝ) |
1 | ||
| 55902-22110 |
CXM10,SXM1# |
1 | ||
| 55902-44090 |
ACM1#,CXM10,SXM15 ﾓｸﾒ(ﾌﾞﾗｳﾝ) & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-) |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60210 |
CXM10,SXM1# ﾓｰﾄﾞ |
1 | ||
| 55905-60200 |
CXM10,SXM1# ﾘﾔ ﾃﾞﾌｫｶﾞ |
1 | ||
| 55905-60180 |
CXM10,SXM1# A/C |
1 | ||
| 55905-22430 |
CXM10,SXM1# TEMP |
1 | ||
| 55905-60230 |
CXM10,SXM1# 内気/外気 |
1 | ||
| 55905-60190 |
CXM10,SXM1# ﾌﾛﾝﾄﾃﾞﾌｯｶﾞ |
1 | ||
| 55905-60220 |
CXM10,SXM1# OFF |
1 | ||
| 55905-44040 |
ACM1#,CXM10,SXM15 |
1 | ||
| 55905-60240 |
CXM10,SXM1# ｵｰﾄ |
1 | ||
| 55905-44050 |
ACM1#,CXM10,SXM15 助手席ｼｰﾄﾍﾞﾙﾄ |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60210 |
CXM10,SXM1# ﾓｰﾄﾞ |
1 | ||
| 55905-60200 |
CXM10,SXM1# ﾘﾔ ﾃﾞﾌｫｶﾞ |
1 | ||
| 55905-60180 |
CXM10,SXM1# A/C |
1 | ||
| 55905-22430 |
CXM10,SXM1# TEMP |
1 | ||
| 55905-60230 |
CXM10,SXM1# 内気/外気 |
1 | ||
| 55905-60190 |
CXM10,SXM1# ﾌﾛﾝﾄﾃﾞﾌｯｶﾞ |
1 | ||
| 55905-60220 |
CXM10,SXM1# OFF |
1 | ||
| 55905-44040 |
ACM1#,CXM10,SXM15 |
1 | ||
| 55905-60240 |
CXM10,SXM1# ｵｰﾄ |
1 | ||
| 55905-44050 |
ACM1#,CXM10,SXM15 助手席ｼｰﾄﾍﾞﾙﾄ |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60210 |
CXM10,SXM1# ﾓｰﾄﾞ |
1 | ||
| 55905-60200 |
CXM10,SXM1# ﾘﾔ ﾃﾞﾌｫｶﾞ |
1 | ||
| 55905-60180 |
CXM10,SXM1# A/C |
1 | ||
| 55905-22430 |
CXM10,SXM1# TEMP |
1 | ||
| 55905-60230 |
CXM10,SXM1# 内気/外気 |
1 | ||
| 55905-60190 |
CXM10,SXM1# ﾌﾛﾝﾄﾃﾞﾌｯｶﾞ |
1 | ||
| 55905-60220 |
CXM10,SXM1# OFF |
1 | ||
| 55905-44040 |
ACM1#,CXM10,SXM15 |
1 | ||
| 55905-60240 |
CXM10,SXM1# ｵｰﾄ |
1 | ||
| 55905-44050 |
ACM1#,CXM10,SXM15 助手席ｼｰﾄﾍﾞﾙﾄ |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60210 |
CXM10,SXM1# ﾓｰﾄﾞ |
1 | ||
| 55905-60200 |
CXM10,SXM1# ﾘﾔ ﾃﾞﾌｫｶﾞ |
1 | ||
| 55905-60180 |
CXM10,SXM1# A/C |
1 | ||
| 55905-22430 |
CXM10,SXM1# TEMP |
1 | ||
| 55905-60230 |
CXM10,SXM1# 内気/外気 |
1 | ||
| 55905-60190 |
CXM10,SXM1# ﾌﾛﾝﾄﾃﾞﾌｯｶﾞ |
1 | ||
| 55905-60220 |
CXM10,SXM1# OFF |
1 | ||
| 55905-44040 |
ACM1#,CXM10,SXM15 |
1 | ||
| 55905-60240 |
CXM10,SXM1# ｵｰﾄ |
1 | ||
| 55905-44050 |
ACM1#,CXM10,SXM15 助手席ｼｰﾄﾍﾞﾙﾄ |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60210 |
CXM10,SXM1# ﾓｰﾄﾞ |
1 | ||
| 55905-60200 |
CXM10,SXM1# ﾘﾔ ﾃﾞﾌｫｶﾞ |
1 | ||
| 55905-60180 |
CXM10,SXM1# A/C |
1 | ||
| 55905-22430 |
CXM10,SXM1# TEMP |
1 | ||
| 55905-60230 |
CXM10,SXM1# 内気/外気 |
1 | ||
| 55905-60190 |
CXM10,SXM1# ﾌﾛﾝﾄﾃﾞﾌｯｶﾞ |
1 | ||
| 55905-60220 |
CXM10,SXM1# OFF |
1 | ||
| 55905-44040 |
ACM1#,CXM10,SXM15 |
1 | ||
| 55905-60240 |
CXM10,SXM1# ｵｰﾄ |
1 | ||
| 55905-44050 |
ACM1#,CXM10,SXM15 助手席ｼｰﾄﾍﾞﾙﾄ |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60210 |
CXM10,SXM1# ﾓｰﾄﾞ |
1 | ||
| 55905-60200 |
CXM10,SXM1# ﾘﾔ ﾃﾞﾌｫｶﾞ |
1 | ||
| 55905-60180 |
CXM10,SXM1# A/C |
1 | ||
| 55905-22430 |
CXM10,SXM1# TEMP |
1 | ||
| 55905-60230 |
CXM10,SXM1# 内気/外気 |
1 | ||
| 55905-60190 |
CXM10,SXM1# ﾌﾛﾝﾄﾃﾞﾌｯｶﾞ |
1 | ||
| 55905-60220 |
CXM10,SXM1# OFF |
1 | ||
| 55905-44040 |
ACM1#,CXM10,SXM15 |
1 | ||
| 55905-60240 |
CXM10,SXM1# ｵｰﾄ |
1 | ||
| 55905-44050 |
ACM1#,CXM10,SXM15 助手席ｼｰﾄﾍﾞﾙﾄ |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60210 |
CXM10,SXM1# ﾓｰﾄﾞ |
1 | ||
| 55905-60200 |
CXM10,SXM1# ﾘﾔ ﾃﾞﾌｫｶﾞ |
1 | ||
| 55905-60180 |
CXM10,SXM1# A/C |
1 | ||
| 55905-22430 |
CXM10,SXM1# TEMP |
1 | ||
| 55905-60230 |
CXM10,SXM1# 内気/外気 |
1 | ||
| 55905-60190 |
CXM10,SXM1# ﾌﾛﾝﾄﾃﾞﾌｯｶﾞ |
1 | ||
| 55905-60220 |
CXM10,SXM1# OFF |
1 | ||
| 55905-44040 |
ACM1#,CXM10,SXM15 |
1 | ||
| 55905-60240 |
CXM10,SXM1# ｵｰﾄ |
1 | ||
| 55905-44050 |
ACM1#,CXM10,SXM15 助手席ｼｰﾄﾍﾞﾙﾄ |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60210 |
CXM10,SXM1# ﾓｰﾄﾞ |
1 | ||
| 55905-60200 |
CXM10,SXM1# ﾘﾔ ﾃﾞﾌｫｶﾞ |
1 | ||
| 55905-60180 |
CXM10,SXM1# A/C |
1 | ||
| 55905-22430 |
CXM10,SXM1# TEMP |
1 | ||
| 55905-60230 |
CXM10,SXM1# 内気/外気 |
1 | ||
| 55905-60190 |
CXM10,SXM1# ﾌﾛﾝﾄﾃﾞﾌｯｶﾞ |
1 | ||
| 55905-60220 |
CXM10,SXM1# OFF |
1 | ||
| 55905-44040 |
ACM1#,CXM10,SXM15 |
1 | ||
| 55905-60240 |
CXM10,SXM1# ｵｰﾄ |
1 | ||
| 55905-44050 |
ACM1#,CXM10,SXM15 助手席ｼｰﾄﾍﾞﾙﾄ |
1 | ||
| 55912A - HOUSING, HEATER CONTROL | ||||
| 55912-22020 |
CXM10,SXM1# |
1 | ||
| 55912-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 55912-44030 |
ACM1#,CXM10,SXM15 ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-) |
1 | ||
| 55921A - RETAINER, HEATER CONTROL | ||||
| 55921-22070 |
CXM10,SXM1# |
1 | ||
| 88650B - AMPLIFIER ASSY, AIRCONDITIONER | ||||
| 88650-44271 |
ACM1#,CXM10 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 88650-44270 |
CXM10 |
1 | ||
| 88650-44100 |
CXM10 |
1 | ||
| Common parts | ||||
| 90167-30010 | ||||
| 93567-55016 | ||||

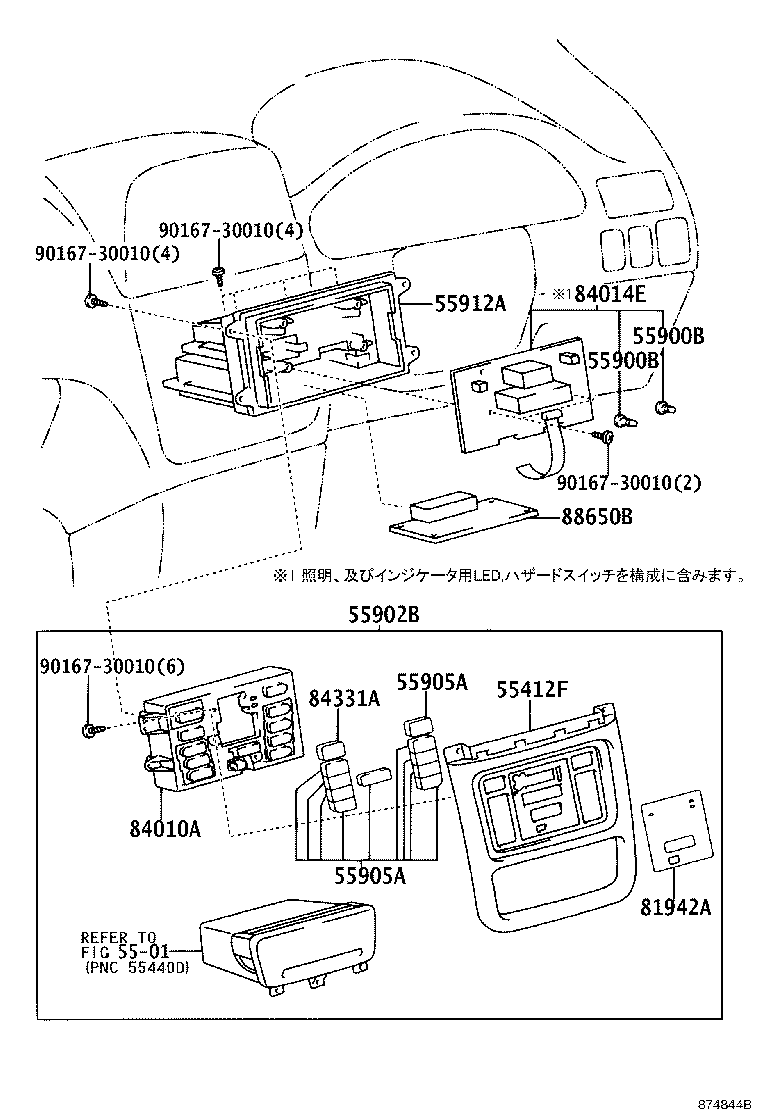

ILLUST NO. 1 OF 4(9805-0104)
ｺﾝﾄﾛｰﾙ,ｱﾘ(ﾅﾋﾞｹﾞｰｼﾖﾝ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-44080 |
CXM10 |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90010-05134 |
ACM1#,CXM10,SXM15 14V 1.12W,ｷｬｯﾌﾟ付き |
1 | ||
| 90010-05101 |
CXM10,SXM1# 14V 1.12W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
6 | ||
| 90010-05106 |
ACM1#,CXM10,SXM15 14V 0.91W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90010-05134 |
ACM1#,CXM10,SXM15 14V 1.12W,ｷｬｯﾌﾟ付き |
1 | ||
| 90010-05101 |
CXM10,SXM1# 14V 1.12W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
6 | ||
| 90010-05106 |
ACM1#,CXM10,SXM15 14V 0.91W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90010-05134 |
ACM1#,CXM10,SXM15 14V 1.12W,ｷｬｯﾌﾟ付き |
1 | ||
| 90010-05101 |
CXM10,SXM1# 14V 1.12W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
6 | ||
| 90010-05106 |
ACM1#,CXM10,SXM15 14V 0.91W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90010-05134 |
ACM1#,CXM10,SXM15 14V 1.12W,ｷｬｯﾌﾟ付き |
1 | ||
| 90010-05101 |
CXM10,SXM1# 14V 1.12W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
6 | ||
| 90010-05106 |
ACM1#,CXM10,SXM15 14V 0.91W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 55902B - CONTROL SUB-ASSY, HEATER | ||||
| 55902-44080 |
ACM1#,CXM10,SXM15 ﾓｸﾒ(ﾌﾞﾗｳﾝ) |
1 | ||
| 55902-22110 |
CXM10,SXM1# |
1 | ||
| 55902-44090 |
ACM1#,CXM10,SXM15 ﾓｸﾒ(ﾌﾞﾗｳﾝ) & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-) |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60210 |
CXM10,SXM1# ﾓｰﾄﾞ |
1 | ||
| 55905-60200 |
CXM10,SXM1# ﾘﾔ ﾃﾞﾌｫｶﾞ |
1 | ||
| 55905-60180 |
CXM10,SXM1# A/C |
1 | ||
| 55905-22430 |
CXM10,SXM1# TEMP |
1 | ||
| 55905-60230 |
CXM10,SXM1# 内気/外気 |
1 | ||
| 55905-60190 |
CXM10,SXM1# ﾌﾛﾝﾄﾃﾞﾌｯｶﾞ |
1 | ||
| 55905-60220 |
CXM10,SXM1# OFF |
1 | ||
| 55905-44040 |
ACM1#,CXM10,SXM15 |
1 | ||
| 55905-60240 |
CXM10,SXM1# ｵｰﾄ |
1 | ||
| 55905-44050 |
ACM1#,CXM10,SXM15 助手席ｼｰﾄﾍﾞﾙﾄ |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60210 |
CXM10,SXM1# ﾓｰﾄﾞ |
1 | ||
| 55905-60200 |
CXM10,SXM1# ﾘﾔ ﾃﾞﾌｫｶﾞ |
1 | ||
| 55905-60180 |
CXM10,SXM1# A/C |
1 | ||
| 55905-22430 |
CXM10,SXM1# TEMP |
1 | ||
| 55905-60230 |
CXM10,SXM1# 内気/外気 |
1 | ||
| 55905-60190 |
CXM10,SXM1# ﾌﾛﾝﾄﾃﾞﾌｯｶﾞ |
1 | ||
| 55905-60220 |
CXM10,SXM1# OFF |
1 | ||
| 55905-44040 |
ACM1#,CXM10,SXM15 |
1 | ||
| 55905-60240 |
CXM10,SXM1# ｵｰﾄ |
1 | ||
| 55905-44050 |
ACM1#,CXM10,SXM15 助手席ｼｰﾄﾍﾞﾙﾄ |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60210 |
CXM10,SXM1# ﾓｰﾄﾞ |
1 | ||
| 55905-60200 |
CXM10,SXM1# ﾘﾔ ﾃﾞﾌｫｶﾞ |
1 | ||
| 55905-60180 |
CXM10,SXM1# A/C |
1 | ||
| 55905-22430 |
CXM10,SXM1# TEMP |
1 | ||
| 55905-60230 |
CXM10,SXM1# 内気/外気 |
1 | ||
| 55905-60190 |
CXM10,SXM1# ﾌﾛﾝﾄﾃﾞﾌｯｶﾞ |
1 | ||
| 55905-60220 |
CXM10,SXM1# OFF |
1 | ||
| 55905-44040 |
ACM1#,CXM10,SXM15 |
1 | ||
| 55905-60240 |
CXM10,SXM1# ｵｰﾄ |
1 | ||
| 55905-44050 |
ACM1#,CXM10,SXM15 助手席ｼｰﾄﾍﾞﾙﾄ |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60210 |
CXM10,SXM1# ﾓｰﾄﾞ |
1 | ||
| 55905-60200 |
CXM10,SXM1# ﾘﾔ ﾃﾞﾌｫｶﾞ |
1 | ||
| 55905-60180 |
CXM10,SXM1# A/C |
1 | ||
| 55905-22430 |
CXM10,SXM1# TEMP |
1 | ||
| 55905-60230 |
CXM10,SXM1# 内気/外気 |
1 | ||
| 55905-60190 |
CXM10,SXM1# ﾌﾛﾝﾄﾃﾞﾌｯｶﾞ |
1 | ||
| 55905-60220 |
CXM10,SXM1# OFF |
1 | ||
| 55905-44040 |
ACM1#,CXM10,SXM15 |
1 | ||
| 55905-60240 |
CXM10,SXM1# ｵｰﾄ |
1 | ||
| 55905-44050 |
ACM1#,CXM10,SXM15 助手席ｼｰﾄﾍﾞﾙﾄ |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60210 |
CXM10,SXM1# ﾓｰﾄﾞ |
1 | ||
| 55905-60200 |
CXM10,SXM1# ﾘﾔ ﾃﾞﾌｫｶﾞ |
1 | ||
| 55905-60180 |
CXM10,SXM1# A/C |
1 | ||
| 55905-22430 |
CXM10,SXM1# TEMP |
1 | ||
| 55905-60230 |
CXM10,SXM1# 内気/外気 |
1 | ||
| 55905-60190 |
CXM10,SXM1# ﾌﾛﾝﾄﾃﾞﾌｯｶﾞ |
1 | ||
| 55905-60220 |
CXM10,SXM1# OFF |
1 | ||
| 55905-44040 |
ACM1#,CXM10,SXM15 |
1 | ||
| 55905-60240 |
CXM10,SXM1# ｵｰﾄ |
1 | ||
| 55905-44050 |
ACM1#,CXM10,SXM15 助手席ｼｰﾄﾍﾞﾙﾄ |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60210 |
CXM10,SXM1# ﾓｰﾄﾞ |
1 | ||
| 55905-60200 |
CXM10,SXM1# ﾘﾔ ﾃﾞﾌｫｶﾞ |
1 | ||
| 55905-60180 |
CXM10,SXM1# A/C |
1 | ||
| 55905-22430 |
CXM10,SXM1# TEMP |
1 | ||
| 55905-60230 |
CXM10,SXM1# 内気/外気 |
1 | ||
| 55905-60190 |
CXM10,SXM1# ﾌﾛﾝﾄﾃﾞﾌｯｶﾞ |
1 | ||
| 55905-60220 |
CXM10,SXM1# OFF |
1 | ||
| 55905-44040 |
ACM1#,CXM10,SXM15 |
1 | ||
| 55905-60240 |
CXM10,SXM1# ｵｰﾄ |
1 | ||
| 55905-44050 |
ACM1#,CXM10,SXM15 助手席ｼｰﾄﾍﾞﾙﾄ |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60210 |
CXM10,SXM1# ﾓｰﾄﾞ |
1 | ||
| 55905-60200 |
CXM10,SXM1# ﾘﾔ ﾃﾞﾌｫｶﾞ |
1 | ||
| 55905-60180 |
CXM10,SXM1# A/C |
1 | ||
| 55905-22430 |
CXM10,SXM1# TEMP |
1 | ||
| 55905-60230 |
CXM10,SXM1# 内気/外気 |
1 | ||
| 55905-60190 |
CXM10,SXM1# ﾌﾛﾝﾄﾃﾞﾌｯｶﾞ |
1 | ||
| 55905-60220 |
CXM10,SXM1# OFF |
1 | ||
| 55905-44040 |
ACM1#,CXM10,SXM15 |
1 | ||
| 55905-60240 |
CXM10,SXM1# ｵｰﾄ |
1 | ||
| 55905-44050 |
ACM1#,CXM10,SXM15 助手席ｼｰﾄﾍﾞﾙﾄ |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60210 |
CXM10,SXM1# ﾓｰﾄﾞ |
1 | ||
| 55905-60200 |
CXM10,SXM1# ﾘﾔ ﾃﾞﾌｫｶﾞ |
1 | ||
| 55905-60180 |
CXM10,SXM1# A/C |
1 | ||
| 55905-22430 |
CXM10,SXM1# TEMP |
1 | ||
| 55905-60230 |
CXM10,SXM1# 内気/外気 |
1 | ||
| 55905-60190 |
CXM10,SXM1# ﾌﾛﾝﾄﾃﾞﾌｯｶﾞ |
1 | ||
| 55905-60220 |
CXM10,SXM1# OFF |
1 | ||
| 55905-44040 |
ACM1#,CXM10,SXM15 |
1 | ||
| 55905-60240 |
CXM10,SXM1# ｵｰﾄ |
1 | ||
| 55905-44050 |
ACM1#,CXM10,SXM15 助手席ｼｰﾄﾍﾞﾙﾄ |
1 | ||
| 55912A - HOUSING, HEATER CONTROL | ||||
| 55912-22020 |
CXM10,SXM1# |
1 | ||
| 55912-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 55912-44030 |
ACM1#,CXM10,SXM15 ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-) |
1 | ||
| 55921A - RETAINER, HEATER CONTROL | ||||
| 55921-22070 |
CXM10,SXM1# |
1 | ||
| 55941 - BRACKET, HEATER CONTROL | ||||
| 55938-44010 |
CXM10,SXM1# 右側 |
1 | ||
| 55938-44020 |
CXM10,SXM1# 左側 |
1 | ||
| 55941 - BRACKET, HEATER CONTROL | ||||
| 55938-44010 |
CXM10,SXM1# 右側 |
1 | ||
| 55938-44020 |
CXM10,SXM1# 左側 |
1 | ||
| 88650B - AMPLIFIER ASSY, AIRCONDITIONER | ||||
| 88650-44271 |
ACM1#,CXM10 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 88650-44270 |
CXM10 |
1 | ||
| 88650-44100 |
CXM10 |
1 | ||
| Common parts | ||||
| 90167-30010 | ||||
| 93567-55016 | ||||
ILLUST NO. 1 OF 4(0104- )
ｺﾝﾄﾛ-ﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55412F - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-44180 |
ACM1#,CXM10,SXM15 ﾓｸﾒ(ﾌﾞﾗｳﾝ) |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90010-05134 |
ACM1#,CXM10,SXM15 14V 1.12W,ｷｬｯﾌﾟ付き |
1 | ||
| 90010-05101 |
CXM10,SXM1# 14V 1.12W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
6 | ||
| 90010-05106 |
ACM1#,CXM10,SXM15 14V 0.91W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90010-05134 |
ACM1#,CXM10,SXM15 14V 1.12W,ｷｬｯﾌﾟ付き |
1 | ||
| 90010-05101 |
CXM10,SXM1# 14V 1.12W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
6 | ||
| 90010-05106 |
ACM1#,CXM10,SXM15 14V 0.91W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 55902B - CONTROL SUB-ASSY, HEATER | ||||
| 55902-44080 |
ACM1#,CXM10,SXM15 ﾓｸﾒ(ﾌﾞﾗｳﾝ) |
1 | ||
| 55902-22110 |
CXM10,SXM1# |
1 | ||
| 55902-44090 |
ACM1#,CXM10,SXM15 ﾓｸﾒ(ﾌﾞﾗｳﾝ) & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-) |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60210 |
CXM10,SXM1# ﾓｰﾄﾞ |
1 | ||
| 55905-60200 |
CXM10,SXM1# ﾘﾔ ﾃﾞﾌｫｶﾞ |
1 | ||
| 55905-60180 |
CXM10,SXM1# A/C |
1 | ||
| 55905-22430 |
CXM10,SXM1# TEMP |
1 | ||
| 55905-60230 |
CXM10,SXM1# 内気/外気 |
1 | ||
| 55905-60190 |
CXM10,SXM1# ﾌﾛﾝﾄﾃﾞﾌｯｶﾞ |
1 | ||
| 55905-60220 |
CXM10,SXM1# OFF |
1 | ||
| 55905-44040 |
ACM1#,CXM10,SXM15 |
1 | ||
| 55905-60240 |
CXM10,SXM1# ｵｰﾄ |
1 | ||
| 55905-44050 |
ACM1#,CXM10,SXM15 助手席ｼｰﾄﾍﾞﾙﾄ |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60210 |
CXM10,SXM1# ﾓｰﾄﾞ |
1 | ||
| 55905-60200 |
CXM10,SXM1# ﾘﾔ ﾃﾞﾌｫｶﾞ |
1 | ||
| 55905-60180 |
CXM10,SXM1# A/C |
1 | ||
| 55905-22430 |
CXM10,SXM1# TEMP |
1 | ||
| 55905-60230 |
CXM10,SXM1# 内気/外気 |
1 | ||
| 55905-60190 |
CXM10,SXM1# ﾌﾛﾝﾄﾃﾞﾌｯｶﾞ |
1 | ||
| 55905-60220 |
CXM10,SXM1# OFF |
1 | ||
| 55905-44040 |
ACM1#,CXM10,SXM15 |
1 | ||
| 55905-60240 |
CXM10,SXM1# ｵｰﾄ |
1 | ||
| 55905-44050 |
ACM1#,CXM10,SXM15 助手席ｼｰﾄﾍﾞﾙﾄ |
1 | ||
| 55912A - HOUSING, HEATER CONTROL | ||||
| 55912-22020 |
CXM10,SXM1# |
1 | ||
| 55912-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 55912-44030 |
ACM1#,CXM10,SXM15 ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-) |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-44040 |
ACM1#,CXM10,SXM15 |
1 | ||
| 81942-44050 |
ACM1#,CXM10,SXM15 ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-) |
1 | ||
| 84010A - CONTROL & PANEL ASSY, INTEGRATION | ||||
| 84012-44030 |
ACM1#,CXM10,SXM15 |
1 | ||
| 84012-44040 |
ACM1#,CXM10,SXM15 ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-) |
1 | ||
| 84014E - BOARD SUB-ASSY, PRINTED WIRE INTEGRATION | ||||
| 84014-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 84014-44020 |
ACM1#,CXM10,SXM15 ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-) |
1 | ||
| 84331A - KNOB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84331-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 88650B - AMPLIFIER ASSY, AIRCONDITIONER | ||||
| 88650-44271 |
ACM1#,CXM10 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 88650-44270 |
CXM10 |
1 | ||
| 88650-44100 |
CXM10 |
1 | ||
| Common parts | ||||
| 90167-30010 | ||||
| Linked diagrams | ||||
| 5501 | ||||
ILLUST NO. 1 OF 4(0104- )
ｺﾝﾄﾛ-ﾙ,ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55412F - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-44180 |
ACM1#,CXM10,SXM15 ﾓｸﾒ(ﾌﾞﾗｳﾝ) |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90010-05134 |
ACM1#,CXM10,SXM15 14V 1.12W,ｷｬｯﾌﾟ付き |
1 | ||
| 90010-05101 |
CXM10,SXM1# 14V 1.12W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
6 | ||
| 90010-05106 |
ACM1#,CXM10,SXM15 14V 0.91W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90010-05134 |
ACM1#,CXM10,SXM15 14V 1.12W,ｷｬｯﾌﾟ付き |
1 | ||
| 90010-05101 |
CXM10,SXM1# 14V 1.12W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
6 | ||
| 90010-05106 |
ACM1#,CXM10,SXM15 14V 0.91W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 55902B - CONTROL SUB-ASSY, HEATER | ||||
| 55902-44080 |
ACM1#,CXM10,SXM15 ﾓｸﾒ(ﾌﾞﾗｳﾝ) |
1 | ||
| 55902-22110 |
CXM10,SXM1# |
1 | ||
| 55902-44090 |
ACM1#,CXM10,SXM15 ﾓｸﾒ(ﾌﾞﾗｳﾝ) & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-) |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60210 |
CXM10,SXM1# ﾓｰﾄﾞ |
1 | ||
| 55905-60200 |
CXM10,SXM1# ﾘﾔ ﾃﾞﾌｫｶﾞ |
1 | ||
| 55905-60180 |
CXM10,SXM1# A/C |
1 | ||
| 55905-22430 |
CXM10,SXM1# TEMP |
1 | ||
| 55905-60230 |
CXM10,SXM1# 内気/外気 |
1 | ||
| 55905-60190 |
CXM10,SXM1# ﾌﾛﾝﾄﾃﾞﾌｯｶﾞ |
1 | ||
| 55905-60220 |
CXM10,SXM1# OFF |
1 | ||
| 55905-44040 |
ACM1#,CXM10,SXM15 |
1 | ||
| 55905-60240 |
CXM10,SXM1# ｵｰﾄ |
1 | ||
| 55905-44050 |
ACM1#,CXM10,SXM15 助手席ｼｰﾄﾍﾞﾙﾄ |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60210 |
CXM10,SXM1# ﾓｰﾄﾞ |
1 | ||
| 55905-60200 |
CXM10,SXM1# ﾘﾔ ﾃﾞﾌｫｶﾞ |
1 | ||
| 55905-60180 |
CXM10,SXM1# A/C |
1 | ||
| 55905-22430 |
CXM10,SXM1# TEMP |
1 | ||
| 55905-60230 |
CXM10,SXM1# 内気/外気 |
1 | ||
| 55905-60190 |
CXM10,SXM1# ﾌﾛﾝﾄﾃﾞﾌｯｶﾞ |
1 | ||
| 55905-60220 |
CXM10,SXM1# OFF |
1 | ||
| 55905-44040 |
ACM1#,CXM10,SXM15 |
1 | ||
| 55905-60240 |
CXM10,SXM1# ｵｰﾄ |
1 | ||
| 55905-44050 |
ACM1#,CXM10,SXM15 助手席ｼｰﾄﾍﾞﾙﾄ |
1 | ||
| 55912A - HOUSING, HEATER CONTROL | ||||
| 55912-22020 |
CXM10,SXM1# |
1 | ||
| 55912-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 55912-44030 |
ACM1#,CXM10,SXM15 ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-) |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-44040 |
ACM1#,CXM10,SXM15 |
1 | ||
| 81942-44050 |
ACM1#,CXM10,SXM15 ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-) |
1 | ||
| 84010A - CONTROL & PANEL ASSY, INTEGRATION | ||||
| 84012-44030 |
ACM1#,CXM10,SXM15 |
1 | ||
| 84012-44040 |
ACM1#,CXM10,SXM15 ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-) |
1 | ||
| 84014E - BOARD SUB-ASSY, PRINTED WIRE INTEGRATION | ||||
| 84014-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 84014-44020 |
ACM1#,CXM10,SXM15 ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-) |
1 | ||
| 84331A - KNOB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84331-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 88650B - AMPLIFIER ASSY, AIRCONDITIONER | ||||
| 88650-44271 |
ACM1#,CXM10 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 88650-44270 |
CXM10 |
1 | ||
| 88650-44100 |
CXM10 |
1 | ||
| Common parts | ||||
| 90167-30010 | ||||
| Linked diagrams | ||||
| 5501 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
