Toyota Gaia CXM10 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
JP
GAIA
CXM10G-BRSET (1998)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

CXM10G-BRSET (1998)

Toyota Gaia

Production May 1998 - Sep 2004

Engine 3CTE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

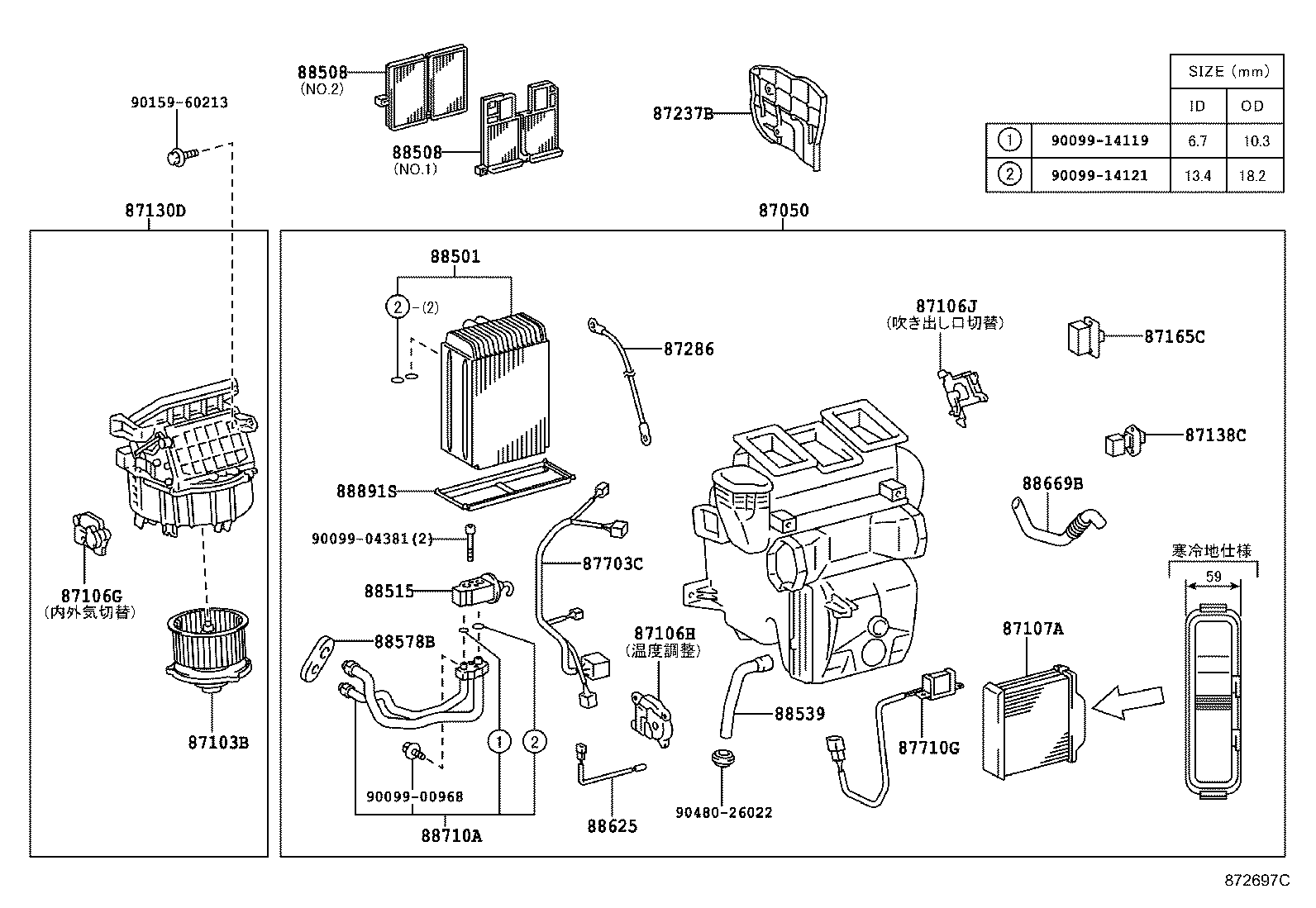

ILLUST NO. 1 OF 2(9805-0104)

Click highlighted areas on diagram

ﾌﾛﾝﾄ

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-44240	CXM10 ｶﾝﾚｲﾁｼﾖｳ	04/2001 - 12/2999	1
87050-44170	CXM10 ｶﾝﾚｲﾁｼﾖｳ & ｱﾘ(ﾘﾔﾋｰﾀ)	05/1998 - 04/2001	1
87050-44240	CXM10 ｶﾝﾚｲﾁｼﾖｳ	05/1998 - 04/2001	1
87050-44170	CXM10 ｶﾝﾚｲﾁｼﾖｳ & ｱﾘ(ﾘﾔﾋｰﾀ)	04/2001 - 12/2999	1
87050-44130	CXM10	04/2001 - 12/2999	1
87050-44130	CXM10	05/1998 - 04/2001	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-33040	CXM10,SXM1#	08/1998 - 11/1998	1
87103-33041	CXM10,SXM1#	11/1998 - 04/2001	1
87103-33041	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
87103-44010	CXM10,SXM1#	05/1998 - 08/1998	1
87106G - SERVO SUB-ASSY, DAMPER(FOR BLOWER)
87106-44010	CXM10,SXM1#	05/1998 - 04/2001	1
87106-44010	ACM1#,CXM10,SXM15	04/2001 - 09/2004	1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-44100	CXM10,SXM1#	05/1998 - 04/2001	1
87106-44100	ACM1#,CXM10,SXM15	04/2001 - 09/2004	1
87106J - SERVO SUB-ASSY, DAMPER(FOR MODE)
87106-20220	CXM10,SXM1#	05/1998 - 04/2001	1
87106-20220	ACM1#,CXM10,SXM15	04/2001 - 09/2004	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-44020	CXM10	04/2001 - 12/2999	1
87107-44020	CXM10	05/1998 - 04/2001	1
87130D - BLOWER ASSY
87130-44040	CXM10	05/1998 - 04/2001	1
87130-44040	CXM10	04/2001 - 12/2999	1
87138C - RESISTOR, BLOWER
87138-50010	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
87138-50010	CXM10,SXM1#	05/1998 - 04/2001	1
87165C - CONTROL, BLOWER MOTOR
87165-32010	CXM10,SXM1#	08/1998 - 04/2001	1
87165-21010	CXM10,SXM1#	05/1998 - 08/1998	1
87165-32010	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
87237B - COVER, HEATER PIPING
87237-44010E0	ACM1#,CXM10 SANDAL WOOD,TRIM0#	04/2001 - 09/2004	1
87237-44010B1	CXM10,SXM1# DK.CHARCOAL,TRIM0#	05/1998 - 04/2001	1
87286 - CABLE, CONTROL
87286-44010	CXM10,SXM1#	05/1998 - 04/2001	1
87286-44010	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
87703C - HARNESS SUB-ASSY, QUICK HEATER
87703-44010	CXM10	05/1998 - 04/2001	1
87703-44010	CXM10	04/2001 - 12/2999	1
87710G - QUICK HEATER ASSY
87710-44010	CXM10	04/2001 - 12/2999	1
87710-44010	CXM10	05/1998 - 04/2001	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-20291	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
88501-20291	CXM10,SXM1#	05/1998 - 04/2001	1
88508 - FILTER SUB-ASSY, CLEAN AIR
88508-20060	ACM1#,CXM10,SXM15 UPPER(ｲﾗｽﾄｻﾝｼﾖｳ NO.1)	04/2001 - 12/2999	1
88508-20060	CXM10,SXM1# UPPER(ｲﾗｽﾄｻﾝｼﾖｳ NO.1)	05/1998 - 04/2001	1
88508-20070	CXM10,SXM1# LOWER(ｲﾗｽﾄｻﾝｼﾖｳ NO.2)	05/1998 - 04/2001	1
88508-20070	ACM1#,CXM10,SXM15 LOWER(ｲﾗｽﾄｻﾝｼﾖｳ NO.2)	04/2001 - 12/2999	1
88508 - FILTER SUB-ASSY, CLEAN AIR
88508-20060	ACM1#,CXM10,SXM15 UPPER(ｲﾗｽﾄｻﾝｼﾖｳ NO.1)	04/2001 - 12/2999	1
88508-20060	CXM10,SXM1# UPPER(ｲﾗｽﾄｻﾝｼﾖｳ NO.1)	05/1998 - 04/2001	1
88508-20070	CXM10,SXM1# LOWER(ｲﾗｽﾄｻﾝｼﾖｳ NO.2)	05/1998 - 04/2001	1
88508-20070	ACM1#,CXM10,SXM15 LOWER(ｲﾗｽﾄｻﾝｼﾖｳ NO.2)	04/2001 - 12/2999	1
88515 - VALVE, COOLER EXPANSION
88515-44010	CXM10,SXM1#	05/1998 - 04/2001	1
88515-44010	ACM1#,CXM10	04/2001 - 09/2004	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-44020	CXM10,SXM1#	05/1998 - 04/2001	1
88578B - PACKING, COOLING UNIT, NO.1
88578-44040	ACM1#,CXM10,SXM15 ﾘﾔ	04/2001 - 12/2999	1
88578-20590	CXM10,SXM1# ﾌﾛﾝﾄ	05/1998 - 04/2001	1
88578-44040	CXM10,SXM1# ﾘﾔ	05/1998 - 04/2001	1
88625 - THERMISTOR, COOLER, NO.1
88625-3A090	CXM10,SXM1#	05/1998 - 04/2001	1
88625-3A090	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
88669B - HOSE, COOLER AIR
88669-33050	CXM10,SXM1#	05/1998 - 04/2001	1
88669-33050	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-44280	CXM10,SXM1#	05/1998 - 04/2001	1
88710-44280	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
88891S - COVER, COOLER, NO.1
88891-20160	CXM10,SXM1#	05/1998 - 04/2001	1
Common parts
90099-00968
90099-04381
90099-14119
90099-14121
90159-60213
90480-26022

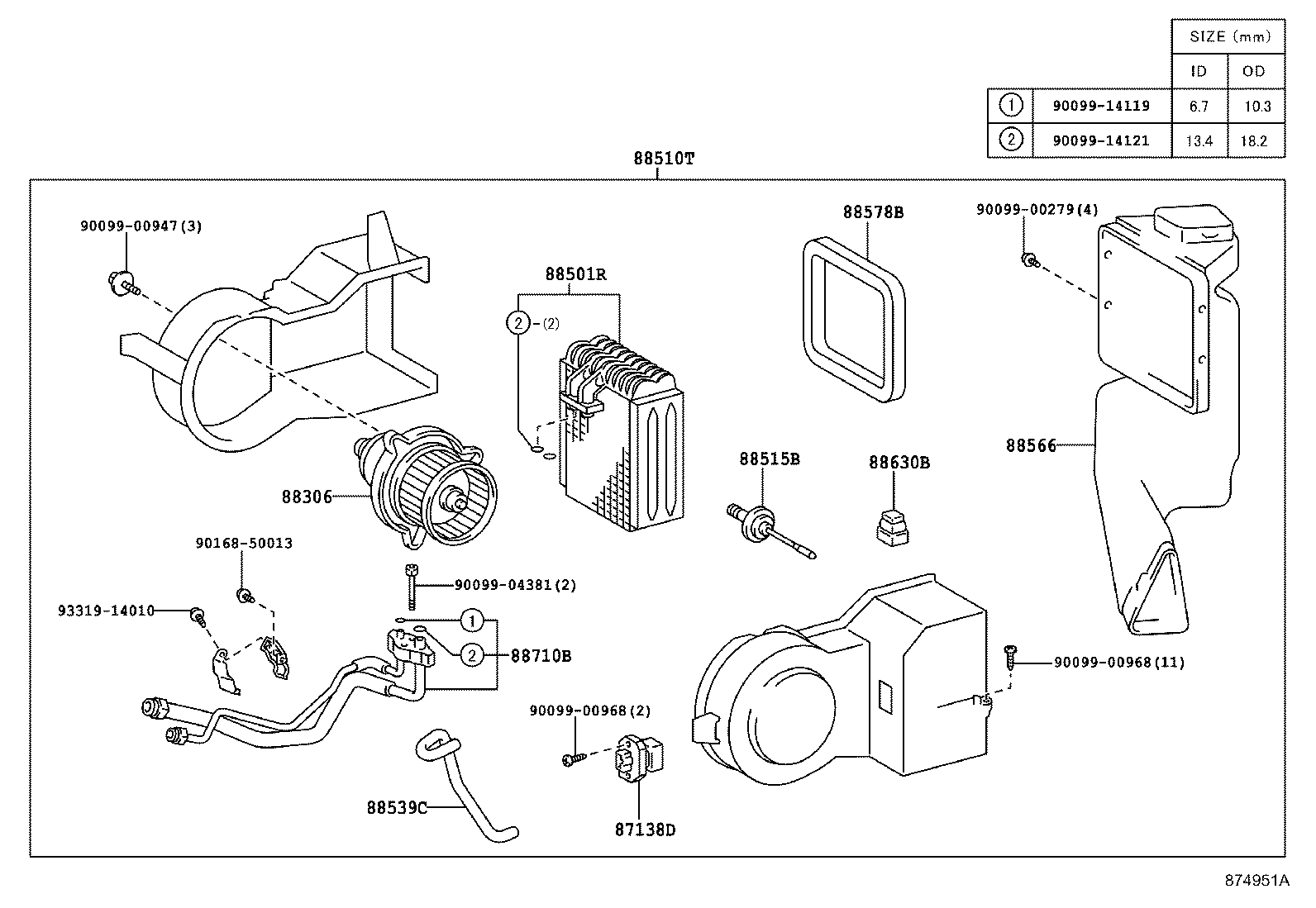

ILLUST NO. 2 OF 2(9805-0104)

Click highlighted areas on diagram

ﾘﾔ

Part #	Description	Period	Qty
87138D - RESISTOR, BLOWER (REAR)
87138-44010	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
87138-44010	CXM10,SXM1#	05/1998 - 04/2001	1
88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1
87103-60160	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
87103-60160	CXM10,SXM1#	05/1998 - 04/2001	1
88501R - EVAPORATOR SUB-ASSY (REAR)
88501-60140	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
88501-60140	CXM10,SXM1#	05/1998 - 04/2001	1
88510T - UNIT ASSY, COOLING (REAR)
88500-44020	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
88500-44020	CXM10,SXM1#	05/1998 - 04/2001	1
88515B - VALVE, REAR COOLING UNIT EXPANSION
88515-28120	CXM10,SXM1#	05/1998 - 04/2001	1
88515-28120	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
88539C - HOSE, COOLER UNIT DRAIN, NO.2
88539-44040	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
88539-44040	CXM10,SXM1#	05/1998 - 04/2001	1
88566 - DUCT, COOLER AIR, NO.1
88566-44010	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
88566-44010	CXM10,SXM1#	05/1998 - 04/2001	1
88578B - PACKING, COOLING UNIT, NO.1
88578-44040	ACM1#,CXM10,SXM15 ﾘﾔ	04/2001 - 12/2999	1
88578-20590	CXM10,SXM1# ﾌﾛﾝﾄ	05/1998 - 04/2001	1
88578-44040	CXM10,SXM1# ﾘﾔ	05/1998 - 04/2001	1
88630B - RELAY ASSY, COOLER
88630-16090	CXM10,SXM1#	05/1998 - 04/2001	1
88630-16090	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
88710B - TUBE ASSY, AIR CONDITIONER
88710-44260	CXM10,SXM1#	05/1998 - 04/2001	1
88710-44260	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
Common parts
90099-00279
90099-00947
90099-00968
90099-04381
90099-14119
90099-14121
90168-50013
93319-14010

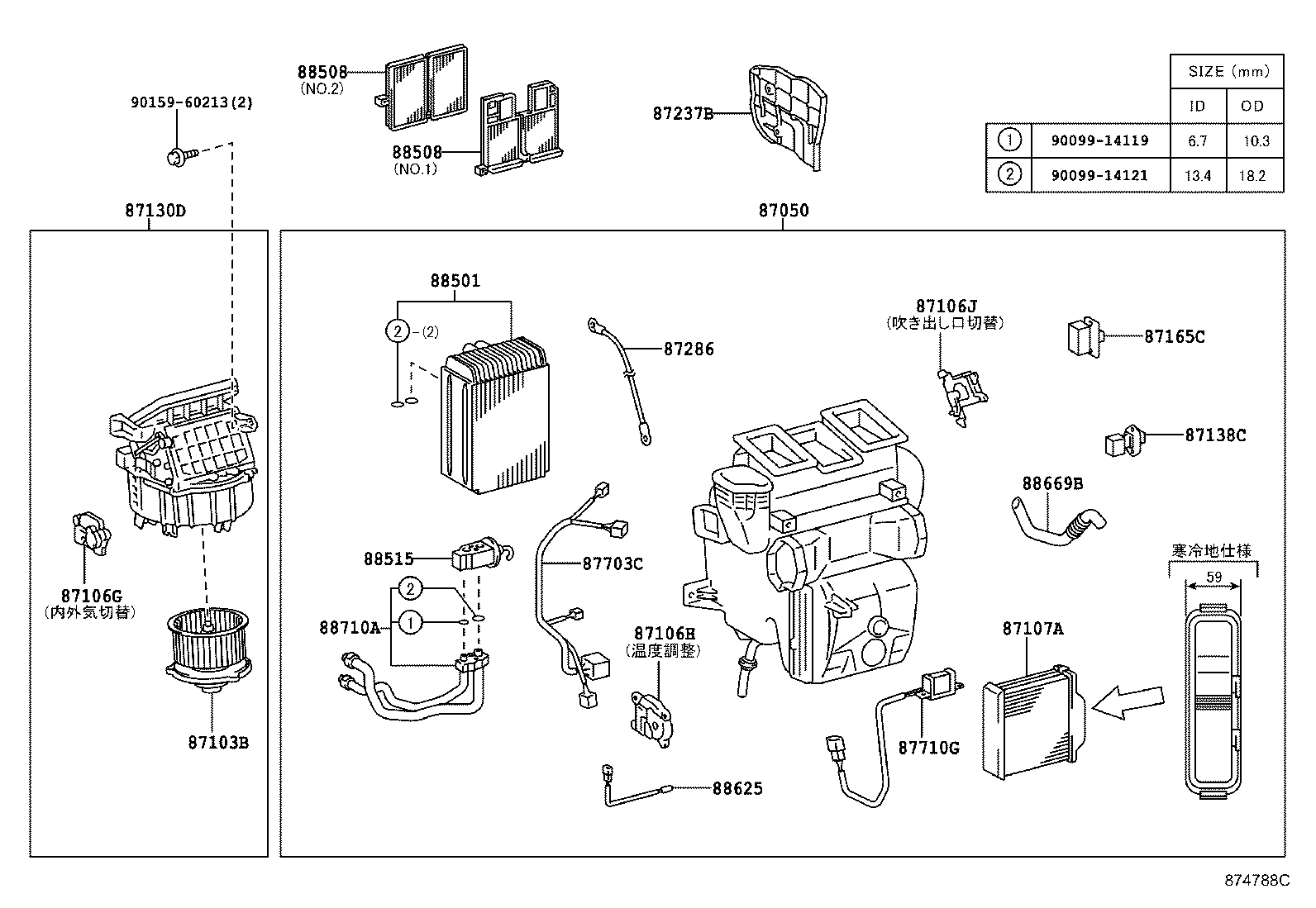

ILLUST NO. 1 OF 2(0104- )

Click highlighted areas on diagram

ﾌﾛﾝﾄ

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-44240	CXM10 ｶﾝﾚｲﾁｼﾖｳ	04/2001 - 12/2999	1
87050-44170	CXM10 ｶﾝﾚｲﾁｼﾖｳ & ｱﾘ(ﾘﾔﾋｰﾀ)	05/1998 - 04/2001	1
87050-44240	CXM10 ｶﾝﾚｲﾁｼﾖｳ	05/1998 - 04/2001	1
87050-44170	CXM10 ｶﾝﾚｲﾁｼﾖｳ & ｱﾘ(ﾘﾔﾋｰﾀ)	04/2001 - 12/2999	1
87050-44130	CXM10	04/2001 - 12/2999	1
87050-44130	CXM10	05/1998 - 04/2001	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-33040	CXM10,SXM1#	08/1998 - 11/1998	1
87103-33041	CXM10,SXM1#	11/1998 - 04/2001	1
87103-33041	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
87103-44010	CXM10,SXM1#	05/1998 - 08/1998	1
87106G - SERVO SUB-ASSY, DAMPER(FOR BLOWER)
87106-44010	CXM10,SXM1#	05/1998 - 04/2001	1
87106-44010	ACM1#,CXM10,SXM15	04/2001 - 09/2004	1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-44100	CXM10,SXM1#	05/1998 - 04/2001	1
87106-44100	ACM1#,CXM10,SXM15	04/2001 - 09/2004	1
87106J - SERVO SUB-ASSY, DAMPER(FOR MODE)
87106-20220	CXM10,SXM1#	05/1998 - 04/2001	1
87106-20220	ACM1#,CXM10,SXM15	04/2001 - 09/2004	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-44020	CXM10	04/2001 - 12/2999	1
87107-44020	CXM10	05/1998 - 04/2001	1
87130D - BLOWER ASSY
87130-44040	CXM10	05/1998 - 04/2001	1
87130-44040	CXM10	04/2001 - 12/2999	1
87138C - RESISTOR, BLOWER
87138-50010	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
87138-50010	CXM10,SXM1#	05/1998 - 04/2001	1
87165C - CONTROL, BLOWER MOTOR
87165-32010	CXM10,SXM1#	08/1998 - 04/2001	1
87165-21010	CXM10,SXM1#	05/1998 - 08/1998	1
87165-32010	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
87237B - COVER, HEATER PIPING
87237-44010E0	ACM1#,CXM10 SANDAL WOOD,TRIM0#	04/2001 - 09/2004	1
87237-44010B1	CXM10,SXM1# DK.CHARCOAL,TRIM0#	05/1998 - 04/2001	1
87286 - CABLE, CONTROL
87286-44010	CXM10,SXM1#	05/1998 - 04/2001	1
87286-44010	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
87703C - HARNESS SUB-ASSY, QUICK HEATER
87703-44010	CXM10	05/1998 - 04/2001	1
87703-44010	CXM10	04/2001 - 12/2999	1
87710G - QUICK HEATER ASSY
87710-44010	CXM10	04/2001 - 12/2999	1
87710-44010	CXM10	05/1998 - 04/2001	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-20291	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
88501-20291	CXM10,SXM1#	05/1998 - 04/2001	1
88508 - FILTER SUB-ASSY, CLEAN AIR
88508-20060	CXM10,SXM1# UPPER(ｲﾗｽﾄｻﾝｼﾖｳ NO.1)	05/1998 - 04/2001	1
88508-20070	CXM10,SXM1# LOWER(ｲﾗｽﾄｻﾝｼﾖｳ NO.2)	05/1998 - 04/2001	1
88508-20070	ACM1#,CXM10,SXM15 LOWER(ｲﾗｽﾄｻﾝｼﾖｳ NO.2)	04/2001 - 12/2999	1
88508-20060	ACM1#,CXM10,SXM15 UPPER(ｲﾗｽﾄｻﾝｼﾖｳ NO.1)	04/2001 - 12/2999	1
88508 - FILTER SUB-ASSY, CLEAN AIR
88508-20060	ACM1#,CXM10,SXM15 UPPER(ｲﾗｽﾄｻﾝｼﾖｳ NO.1)	04/2001 - 12/2999	1
88508-20060	CXM10,SXM1# UPPER(ｲﾗｽﾄｻﾝｼﾖｳ NO.1)	05/1998 - 04/2001	1
88508-20070	CXM10,SXM1# LOWER(ｲﾗｽﾄｻﾝｼﾖｳ NO.2)	05/1998 - 04/2001	1
88508-20070	ACM1#,CXM10,SXM15 LOWER(ｲﾗｽﾄｻﾝｼﾖｳ NO.2)	04/2001 - 12/2999	1
88515 - VALVE, COOLER EXPANSION
88515-44010	CXM10,SXM1#	05/1998 - 04/2001	1
88515-44010	ACM1#,CXM10	04/2001 - 09/2004	1
88625 - THERMISTOR, COOLER, NO.1
88625-3A090	CXM10,SXM1#	05/1998 - 04/2001	1
88625-3A090	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
88669B - HOSE, COOLER AIR
88669-33050	CXM10,SXM1#	05/1998 - 04/2001	1
88669-33050	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-44280	CXM10,SXM1#	05/1998 - 04/2001	1
88710-44280	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
Common parts
90099-14119
90099-14121
90159-60213

ILLUST NO. 2 OF 2(0104- )

Click highlighted areas on diagram

ﾘﾔ

Part #	Description	Period	Qty
87138D - RESISTOR, BLOWER (REAR)
87138-44010	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
87138-44010	CXM10,SXM1#	05/1998 - 04/2001	1
88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1
87103-60160	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
87103-60160	CXM10,SXM1#	05/1998 - 04/2001	1
88501R - EVAPORATOR SUB-ASSY (REAR)
88501-60140	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
88501-60140	CXM10,SXM1#	05/1998 - 04/2001	1
88510T - UNIT ASSY, COOLING (REAR)
88500-44020	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
88500-44020	CXM10,SXM1#	05/1998 - 04/2001	1
88515B - VALVE, REAR COOLING UNIT EXPANSION
88515-28120	CXM10,SXM1#	05/1998 - 04/2001	1
88515-28120	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
88539C - HOSE, COOLER UNIT DRAIN, NO.2
88539-44040	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
88539-44040	CXM10,SXM1#	05/1998 - 04/2001	1
88566 - DUCT, COOLER AIR, NO.1
88566-44010	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
88566-44010	CXM10,SXM1#	05/1998 - 04/2001	1
88578B - PACKING, COOLING UNIT, NO.1
88578-44040	ACM1#,CXM10,SXM15 ﾘﾔ	04/2001 - 12/2999	1
88578-20590	CXM10,SXM1# ﾌﾛﾝﾄ	05/1998 - 04/2001	1
88578-44040	CXM10,SXM1# ﾘﾔ	05/1998 - 04/2001	1
88630B - RELAY ASSY, COOLER
88630-16090	CXM10,SXM1#	05/1998 - 04/2001	1
88630-16090	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
88710B - TUBE ASSY, AIR CONDITIONER
88710-44260	CXM10,SXM1#	05/1998 - 04/2001	1
88710-44260	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
Common parts
90099-00279
90099-00947
90099-00968
90099-04381
90099-14119
90099-14121
90168-50013
93319-14010
