CXM10G-BRSET (1998)

Toyota Gaia

Production May 1998 - Sep 2004
Engine 3CTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

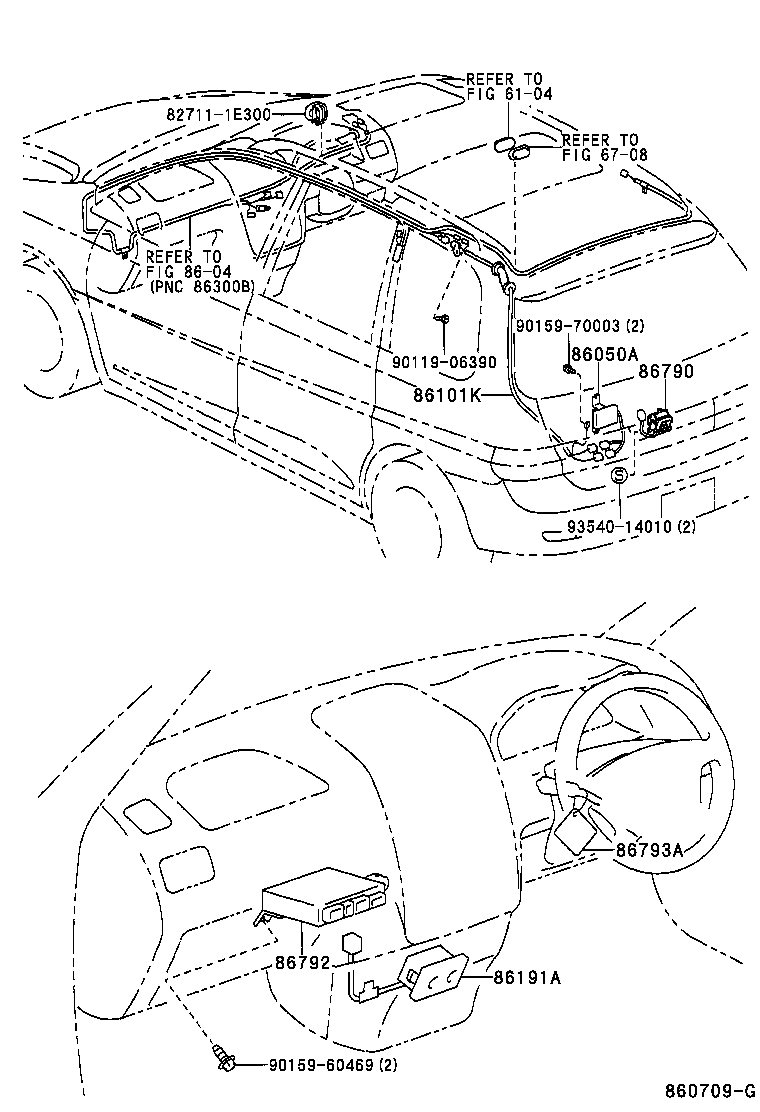

(9805-0104)

Click highlighted areas on diagram

diagram 6104 6708 827111E300 8604 86050A 86101K 86191A 86790 86792 86793A 9011906390 9015960469 9015970003 9354014010
Part # Description Qty Price
86050A - ANTENNA ASSY, TELEVISION
86050-44080

ACM1#,CXM10,SXM15

 1
86050-44011

CXM10,SXM1#

 1
86101K - CORD SUB-ASSY, TELEVISION ANTENNA
86101-44230

ACM1#,CXM10,SXM15

ﾅｼ(ﾊﾞﾂｸ ﾓﾆﾀ-)

 1
86101-44280

ACM1#,CXM10,SXM15

ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ-)

 1
86101-44060

CXM10,SXM1#

 1
86101-44230

ACM10,CXM10,SXM15

 1
86191A - TERMINAL, VIDEO(VIDEO ADAPTER)
86191-44010

ACM1#,CXM10,SXM15

 1
86191-44010

CXM10,SXM1#

 1
86790 - CAMERA ASSY, TELEVISION
86790-44070

ACM1#,CXM10,SXM15

 1
86790-44020

CXM10,SXM1#

 1
86792 - CONTROLLER, TELEVISION CAMERA
86792-44010

CXM10,SXM1#

 1
86792-44040

ACM1#,CXM10,SXM15

 1
86793A - LABEL, TELEVISION CAMERA INFORMATION
86793-13010

CXM10,SXM1#

 1
Common parts
82711-1E300
90119-06390
90159-60469
90159-70003
93540-14010
Linked diagrams
6104
6708
8604

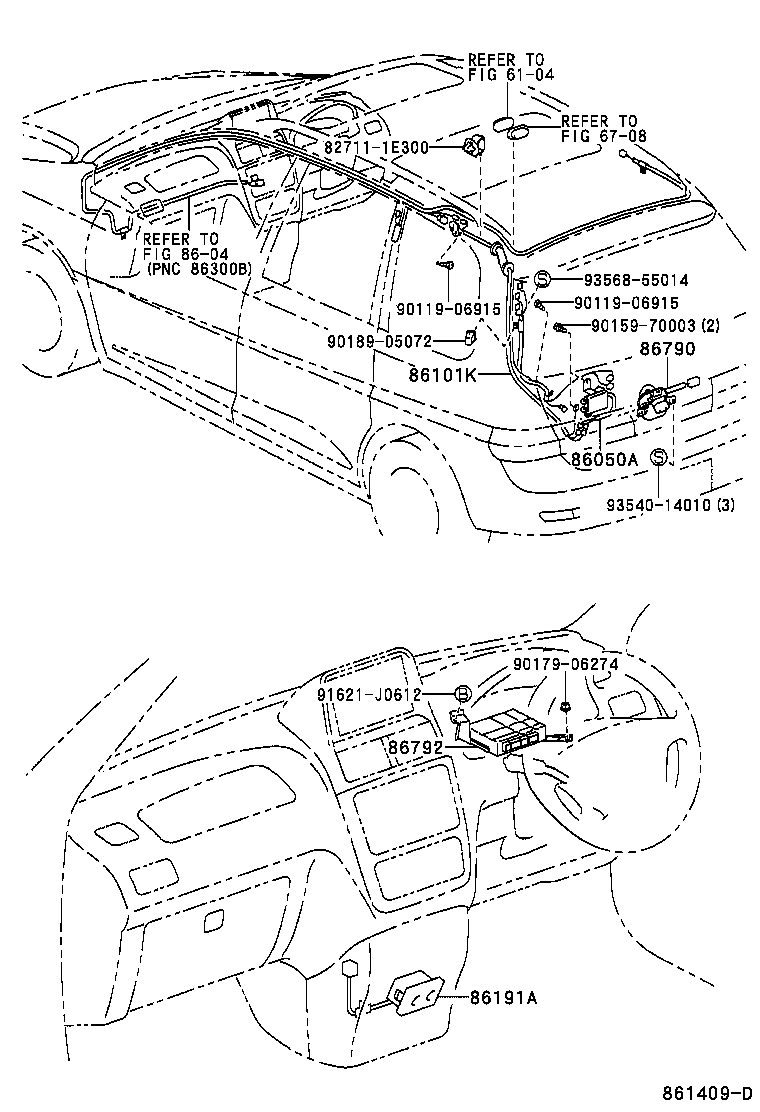

(0104- )

Click highlighted areas on diagram

diagram 6104 6708 827111E300 8604 86050A 86101K 86191A 86790 86792 9011906915 9011906915 9015970003 9017906274 9018905072 91621J0612 9354014010 9356855014
Part # Description Qty Price
86050A - ANTENNA ASSY, TELEVISION
86050-44080

ACM1#,CXM10,SXM15

 1
86050-44011

CXM10,SXM1#

 1
86101K - CORD SUB-ASSY, TELEVISION ANTENNA
86101-44230

ACM1#,CXM10,SXM15

ﾅｼ(ﾊﾞﾂｸ ﾓﾆﾀ-)

 1
86101-44280

ACM1#,CXM10,SXM15

ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ-)

 1
86101-44060

CXM10,SXM1#

 1
86101-44230

ACM10,CXM10,SXM15

 1
86191A - TERMINAL, VIDEO(VIDEO ADAPTER)
86191-44010

ACM1#,CXM10,SXM15

 1
86191-44010

CXM10,SXM1#

 1
86790 - CAMERA ASSY, TELEVISION
86790-44070

ACM1#,CXM10,SXM15

 1
86790-44020

CXM10,SXM1#

 1
86792 - CONTROLLER, TELEVISION CAMERA
86792-44010

CXM10,SXM1#

 1
86792-44040

ACM1#,CXM10,SXM15

 1
Common parts
82711-1E300
90119-06915
90159-70003
90179-06274
90189-05072
91621-J0612
93540-14010
93568-55014
Linked diagrams
6104
6708
8604
